Yea thats pretty much what mine will look like, but with connections at the front. Spray bars fogger same thing.

I had to fix up the harness but the bolted right in. I had power and ground to my inverter right there so I just tapped into that.



So I got to mess with getting all the coolers and junk to fit up front, not going to be easy since I am putting the AC condensor back in and have a separate oil cooler. Stuff that needs to fit up there: Radiator, AC Condensor, Oil Cooler, Trans Cooler, SC Heat Exchanger. I made a couple cross bars that I can bolt stuff to, problem is the trans cooler is just too big so I ordered a smaller one (11x13) instead of trying to use the giant trucool. This way it will be radiator, condensor, then trans cooler and oil cooler beside each other, then SC hex in front of that.



put the oil cooler and trans cooler under the truck with their own fans



I tried that before with my other truck and they worked horribly, so I would really rather keep them in the direct airflow path.



Really..? thats how mine are and it works great!!! whatd you do wrong?!? haha



I run my trans cooler under the truck without a fan and it does fine.

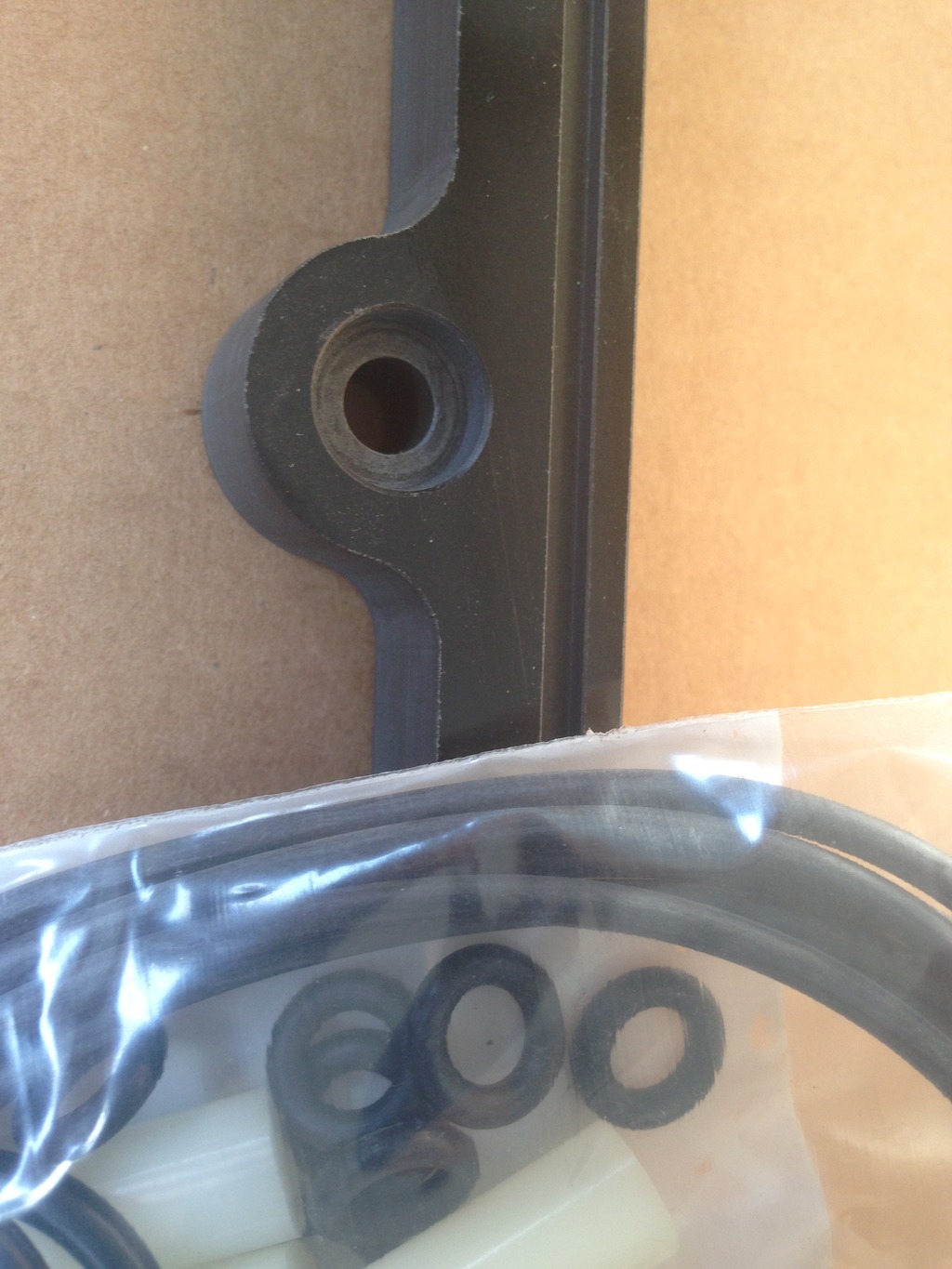

My RDS spacer came in today. I am not sure if you machined the bolts holes for orings or not. The RDS space came with a bunch of little orings to go around the bolt holes.



That seems a little unnecessary considering the main oring is interior of the bolts...



on mine the bolts are on the inside. So i think those areas would see vac/boost. YES/NO?



I would think so too. Lookin good!
