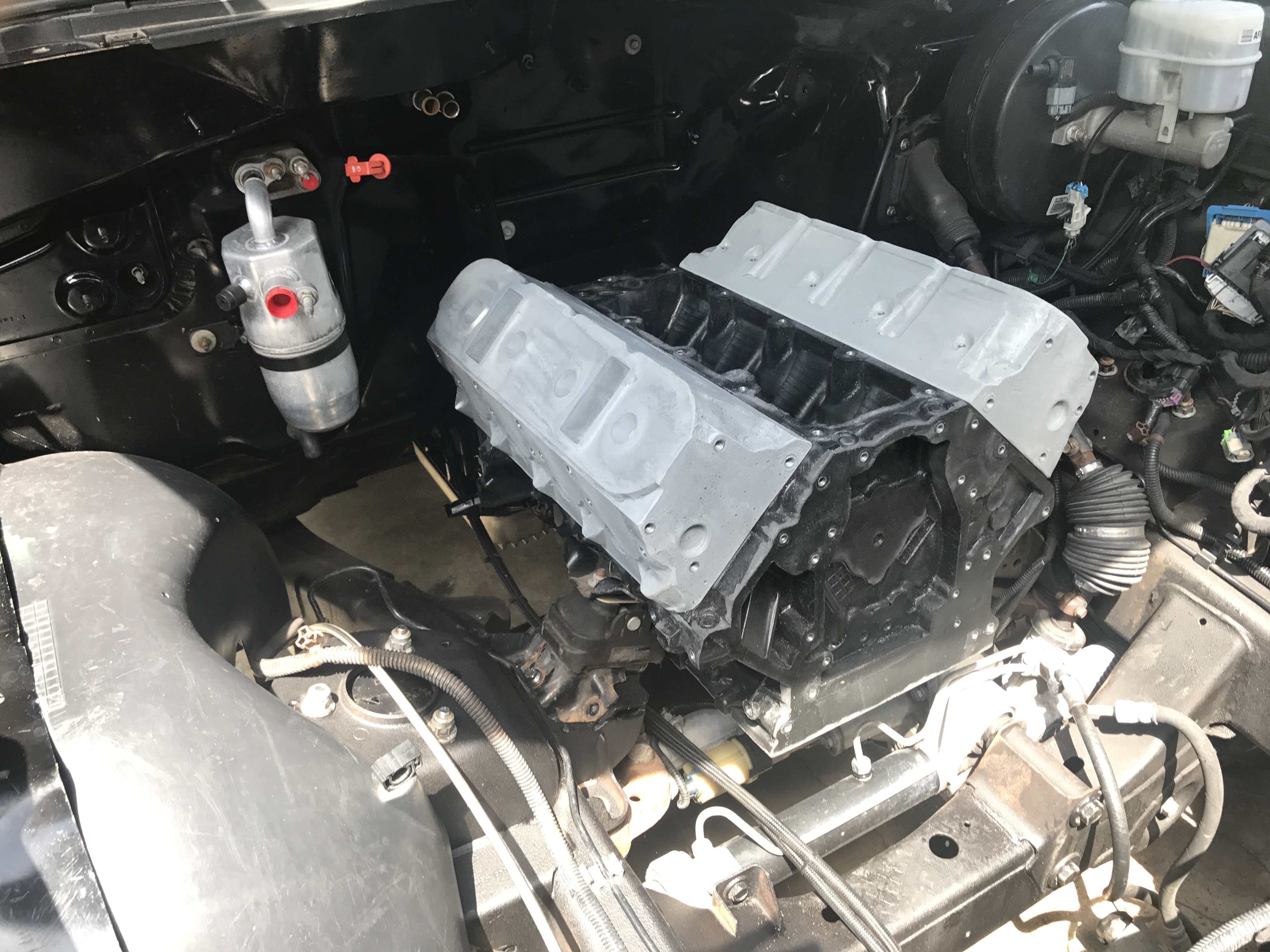

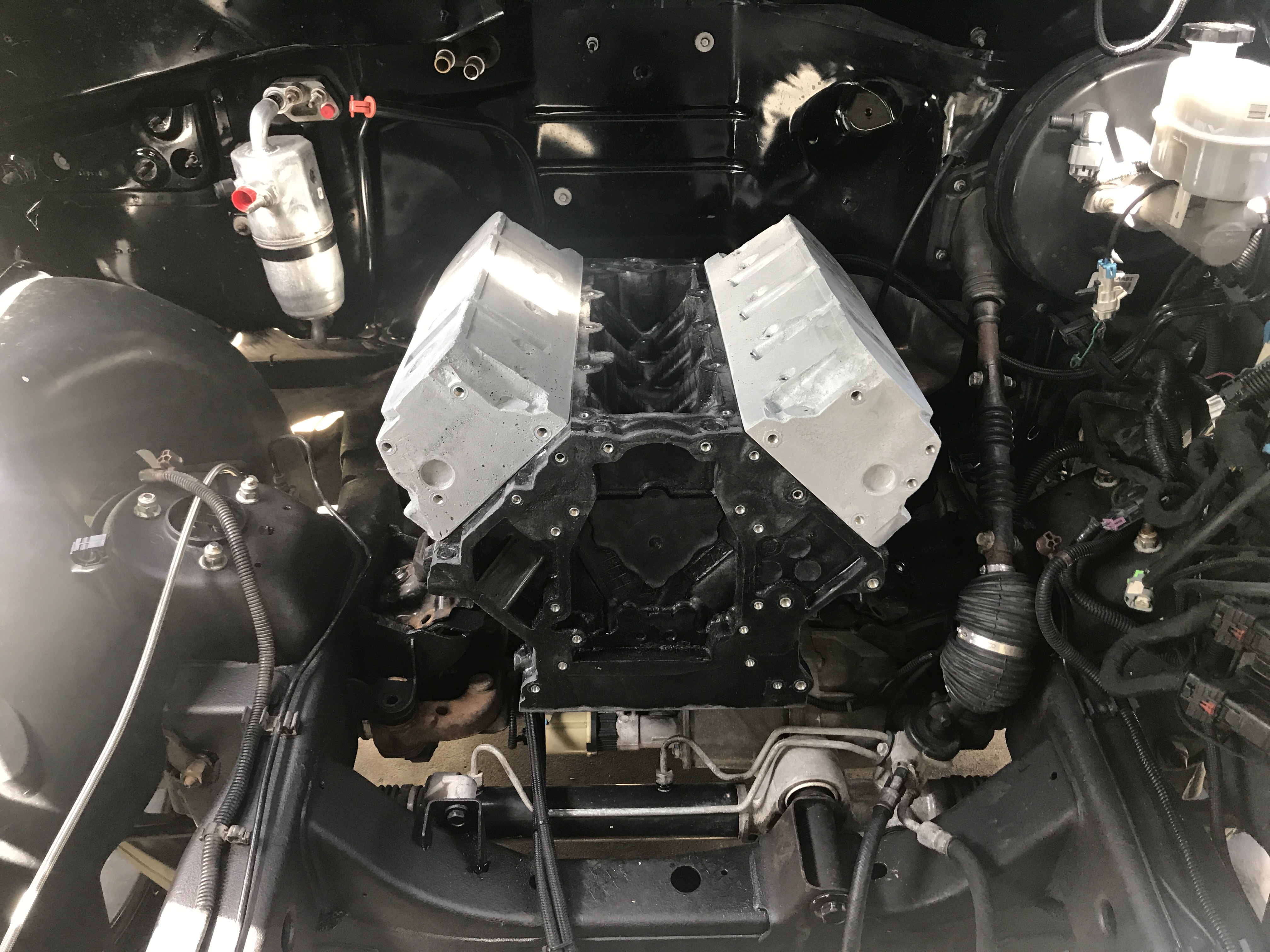

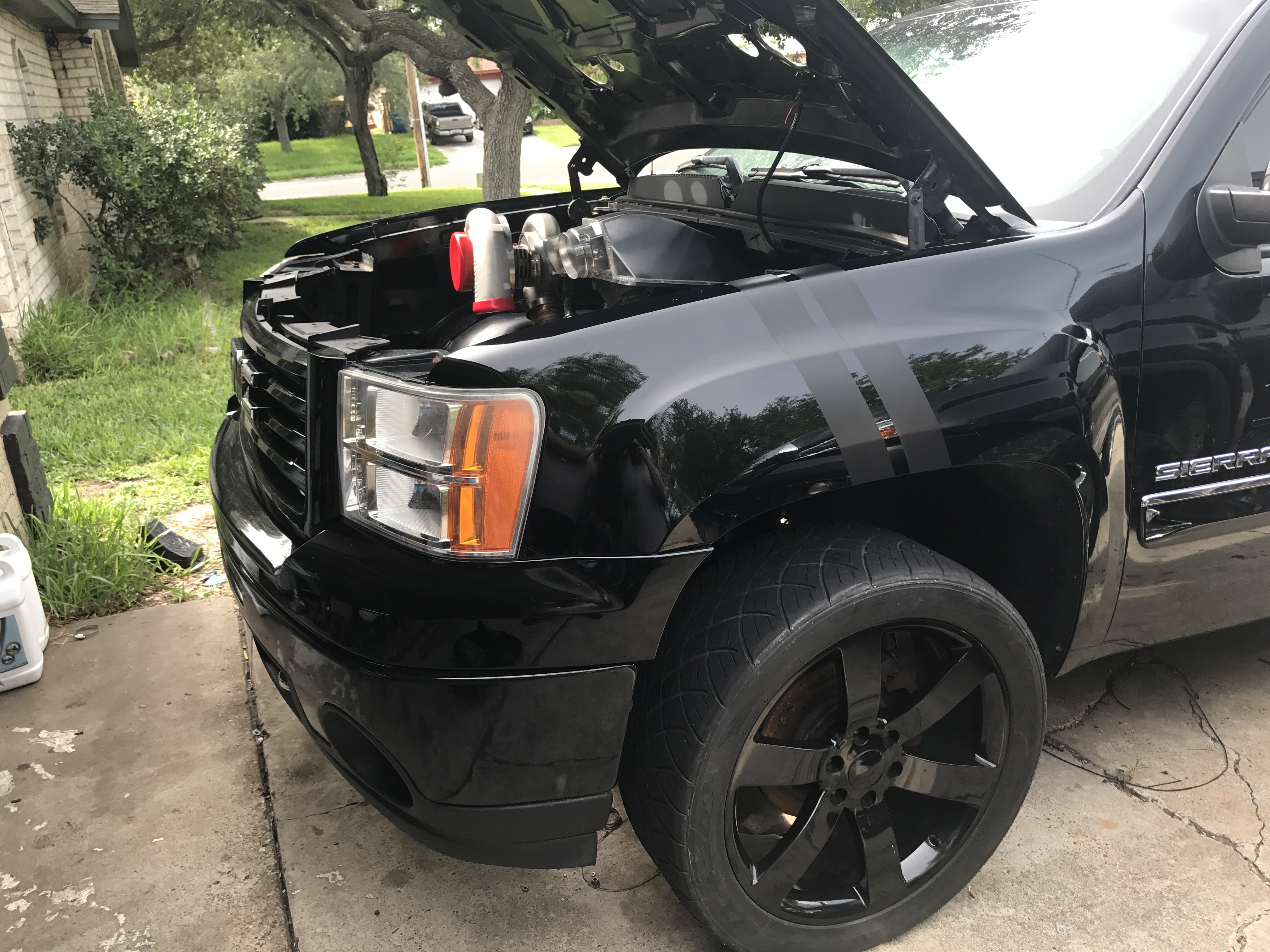

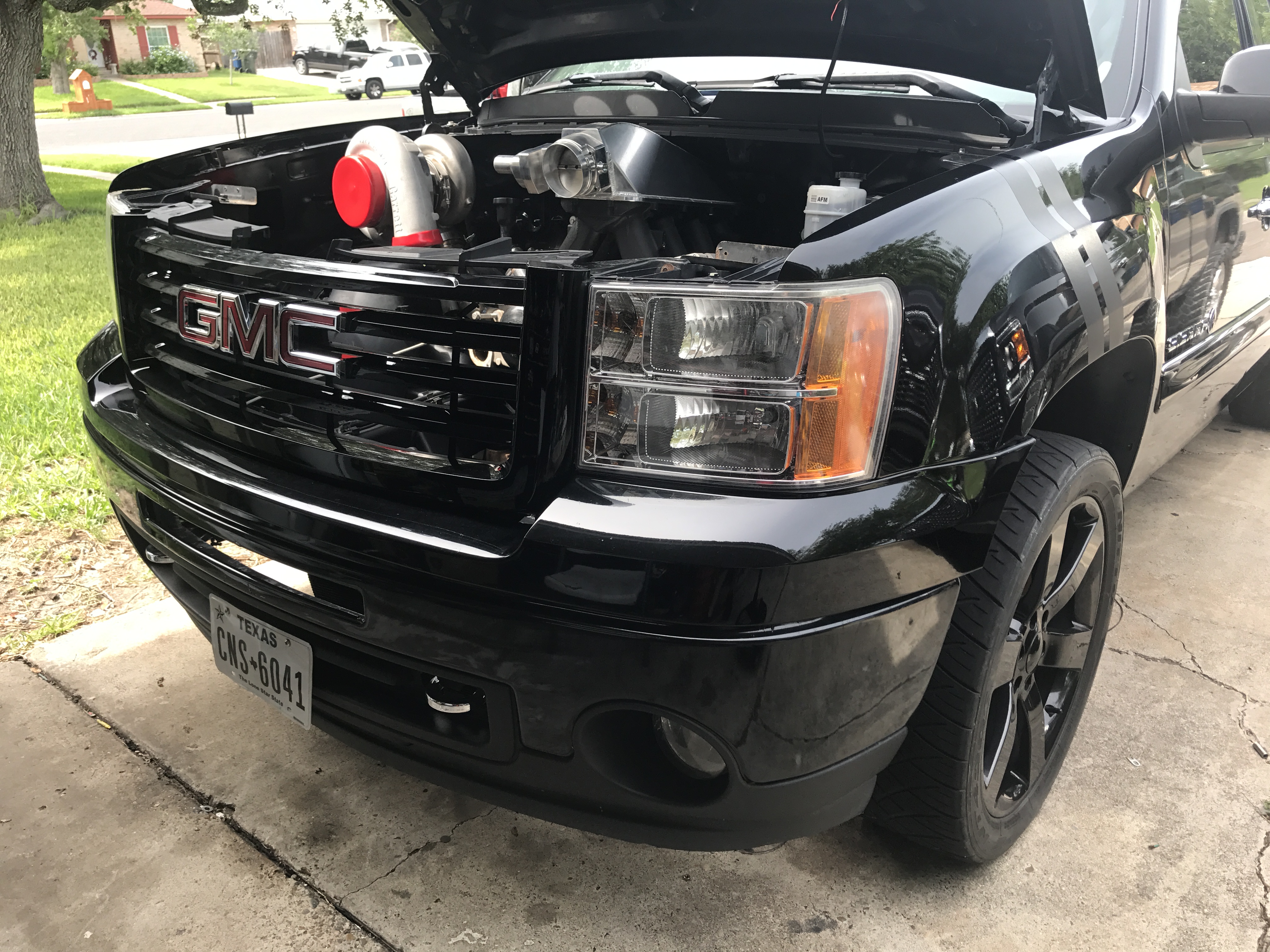

Got it bolted in, kinda weird all the bolts are the correct size as a factory block except for the trans mount bolts... uses 3/8-16? Guessing for engine stand mounting? Not sure why they wouldn't use the factory M10-1.50 size bolts. Oh well it fits, now just to run over to my buddies shop and grab the manifolds and test fit the turbo. Going to be a little tighter then I originally thought but I got a large frame PTE 106 turbo in there so fitting this one shouldn't be an issue.
Jun 2, 2017 | 03:35 PM
#722
Jun 2, 2017 | 03:52 PM
#723
TECH Enthusiast
Joined: Jan 2009
Posts: 553
Likes: 6
Cut some holes with flaps in that shroud to let air through at speed, ask me why i know with this texas heat.

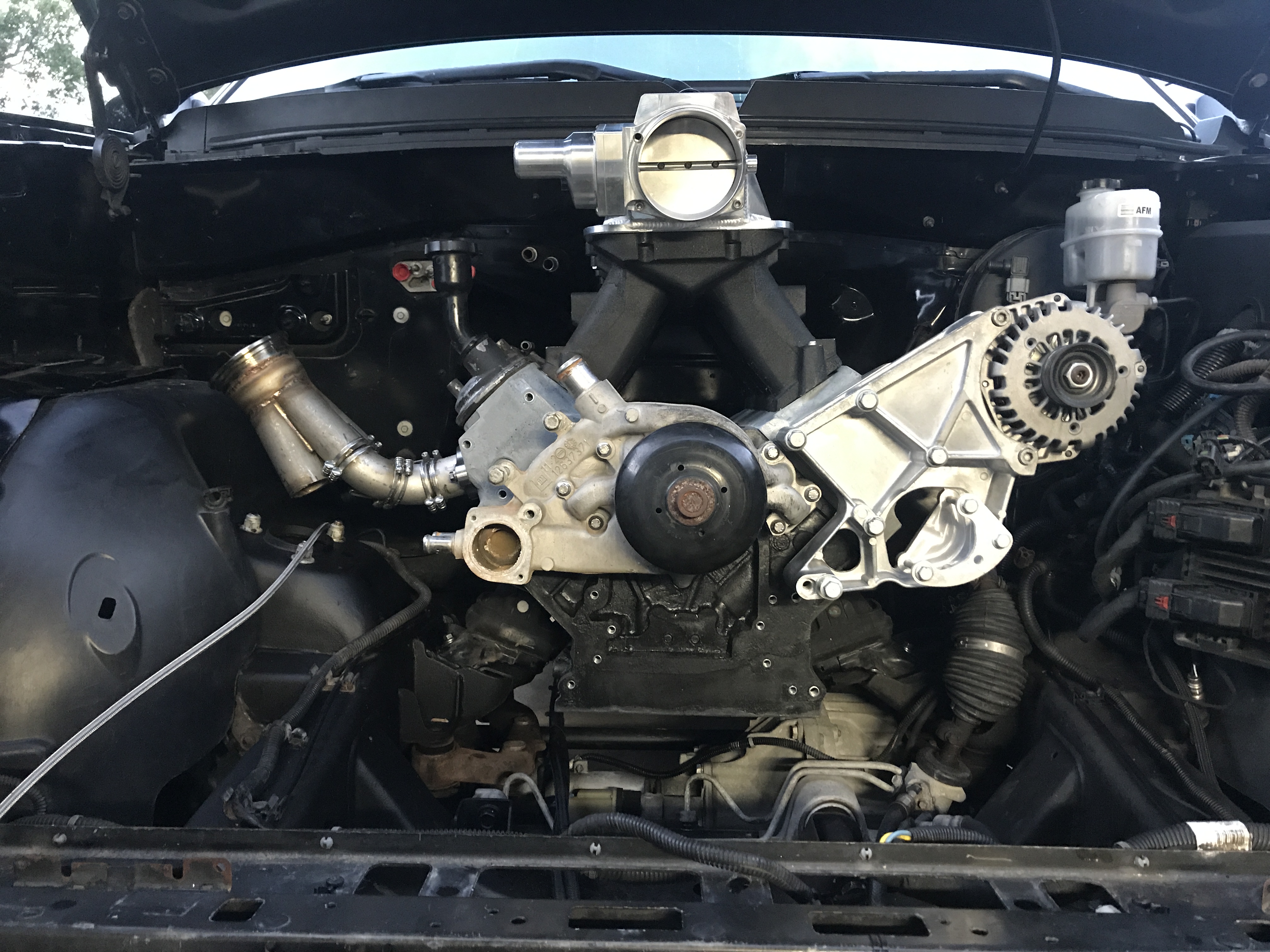

Well haven't had much progress on the truck since the motor is still at LME getting its upgrades. Did get with Richard and came up with a fancy little shroud for the new factory size radiator. Also tried my hand with the tig welder and decided to try and just make my own turbo hot side. First time I have EVER tig welded so still getting the hang of things. Have a lot to learn but slowly getting it. Started getting all the new harness stuff in for the new Motec system from Race Spec, as well as went ahead and ordered a couple Titanium flanges and 5" pie cut kits from Ticon Industries to make a nice pie cut titanium downpipe. Ill just tack those parts and let a professional take care of welding that stuff. Anyways on to some pictures...
Jun 2, 2017 | 04:56 PM
#725

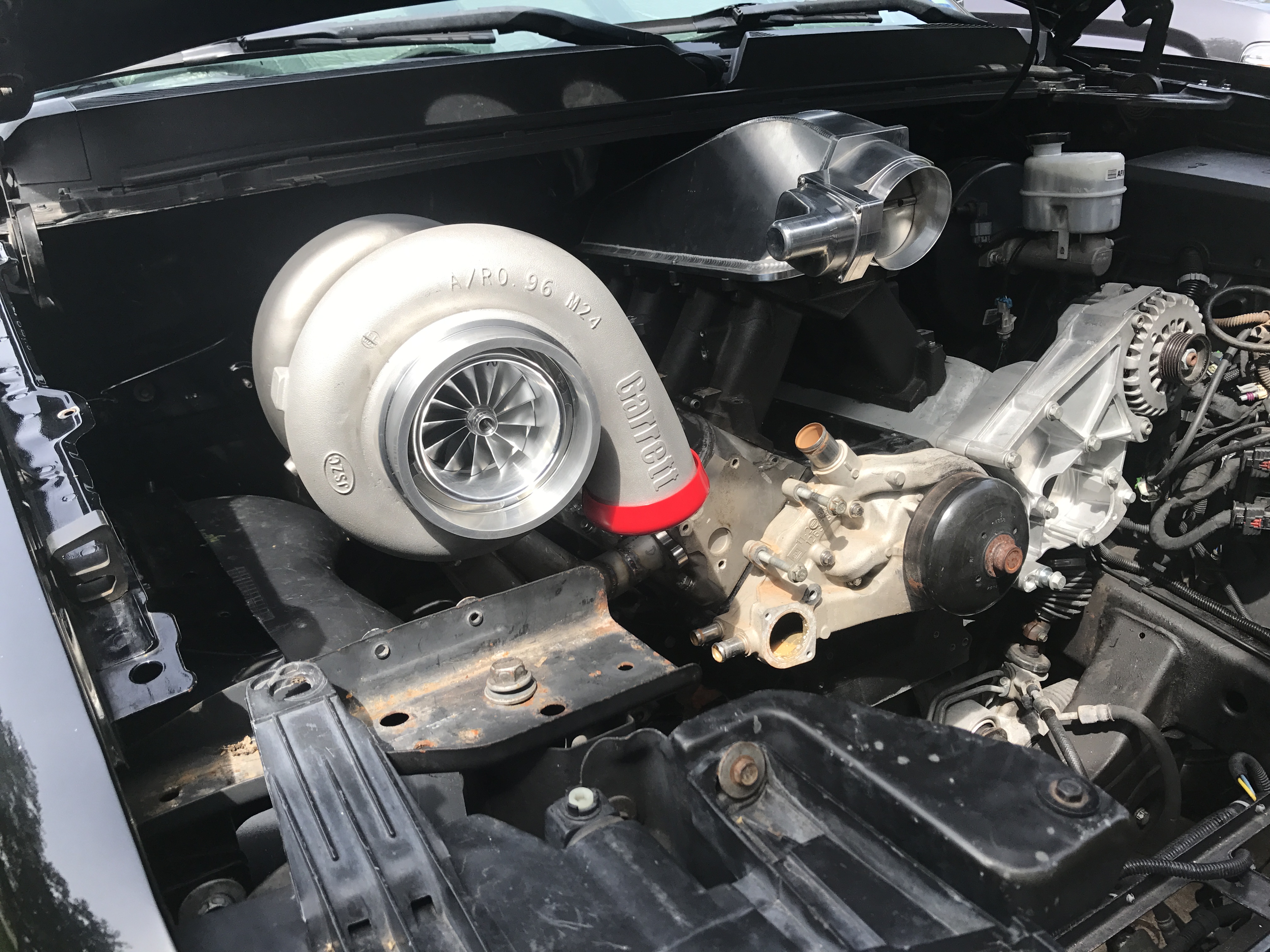

These turbos don't come standard with any turbine housing so out of the options I had I chose to go with the Tial 1.30. A lot more compact then the Garrett housings and being I don't have a lot of room for a 5" down pipe I went with much shorter Tial housing. The turbine wheel is right up to the edge on the Tial housing, the Garrett housings have like a 4-5" extension to them, would have had to either move the turbo more up or have a really tight bend on the down pipe. Side by side was a clear choice.
Jun 2, 2017 | 10:01 PM
#726
Thread Starter
Joined: Mar 2010
Posts: 2,165
Likes: 27
From: Corpus Christi

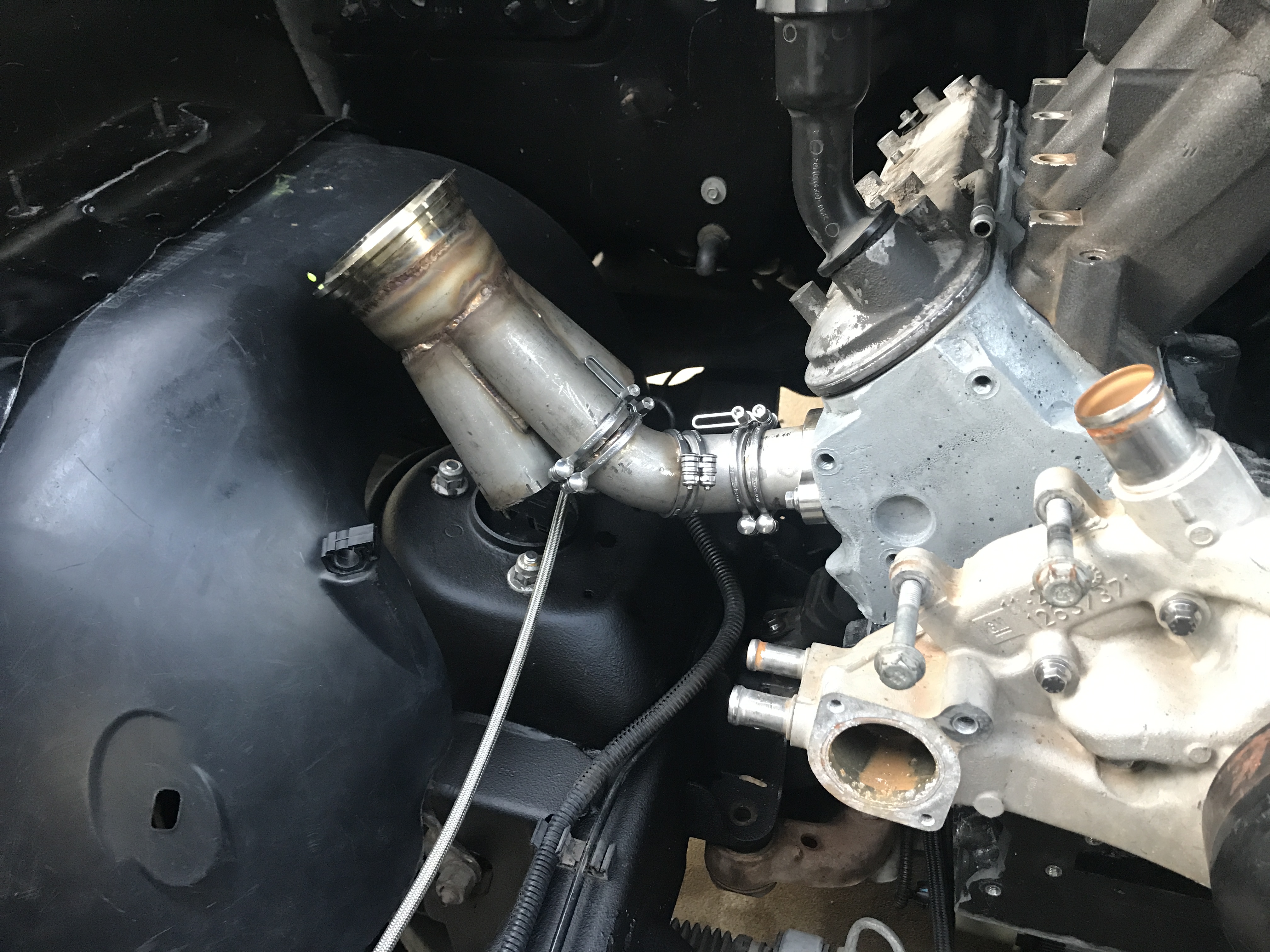

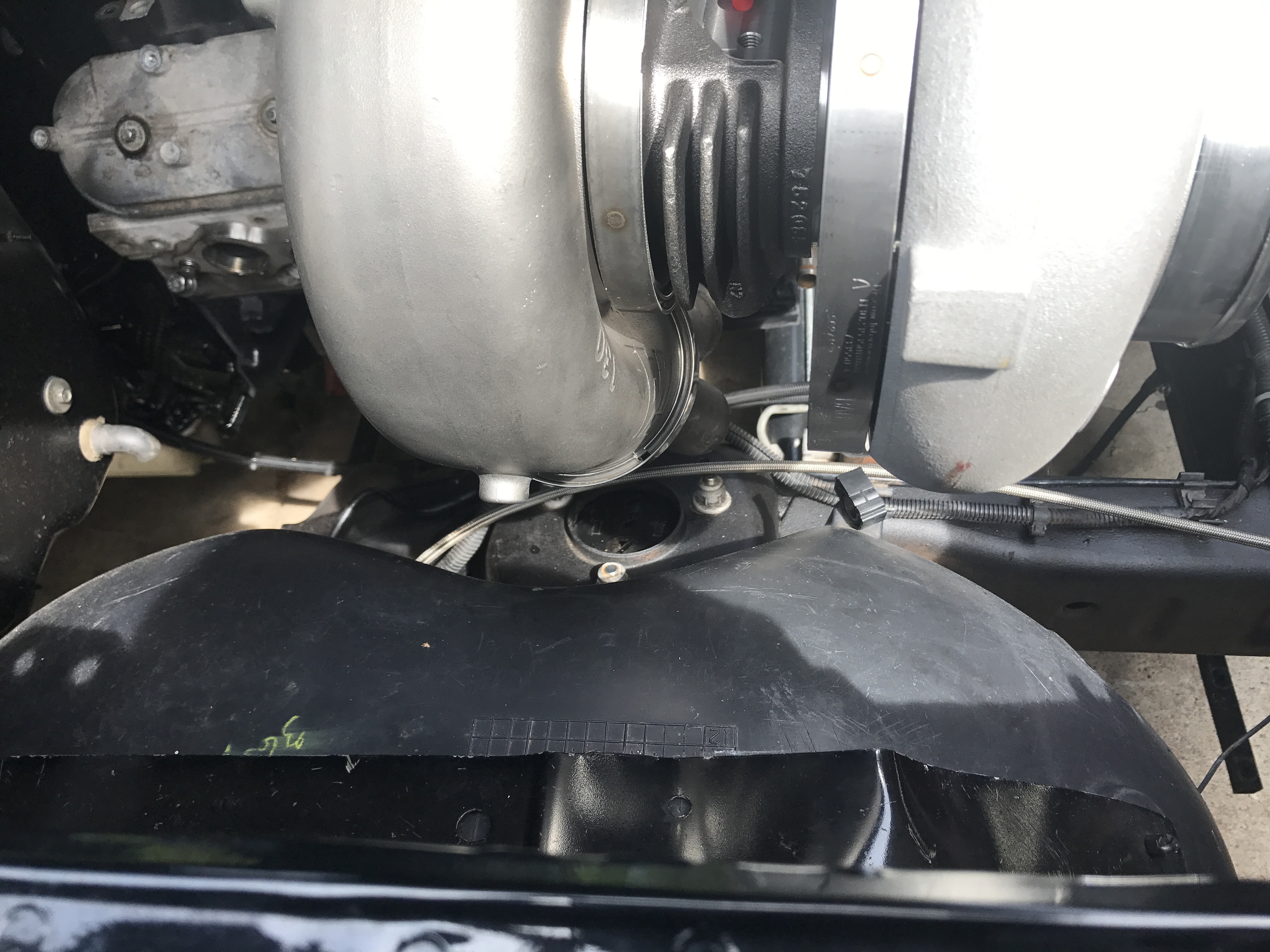

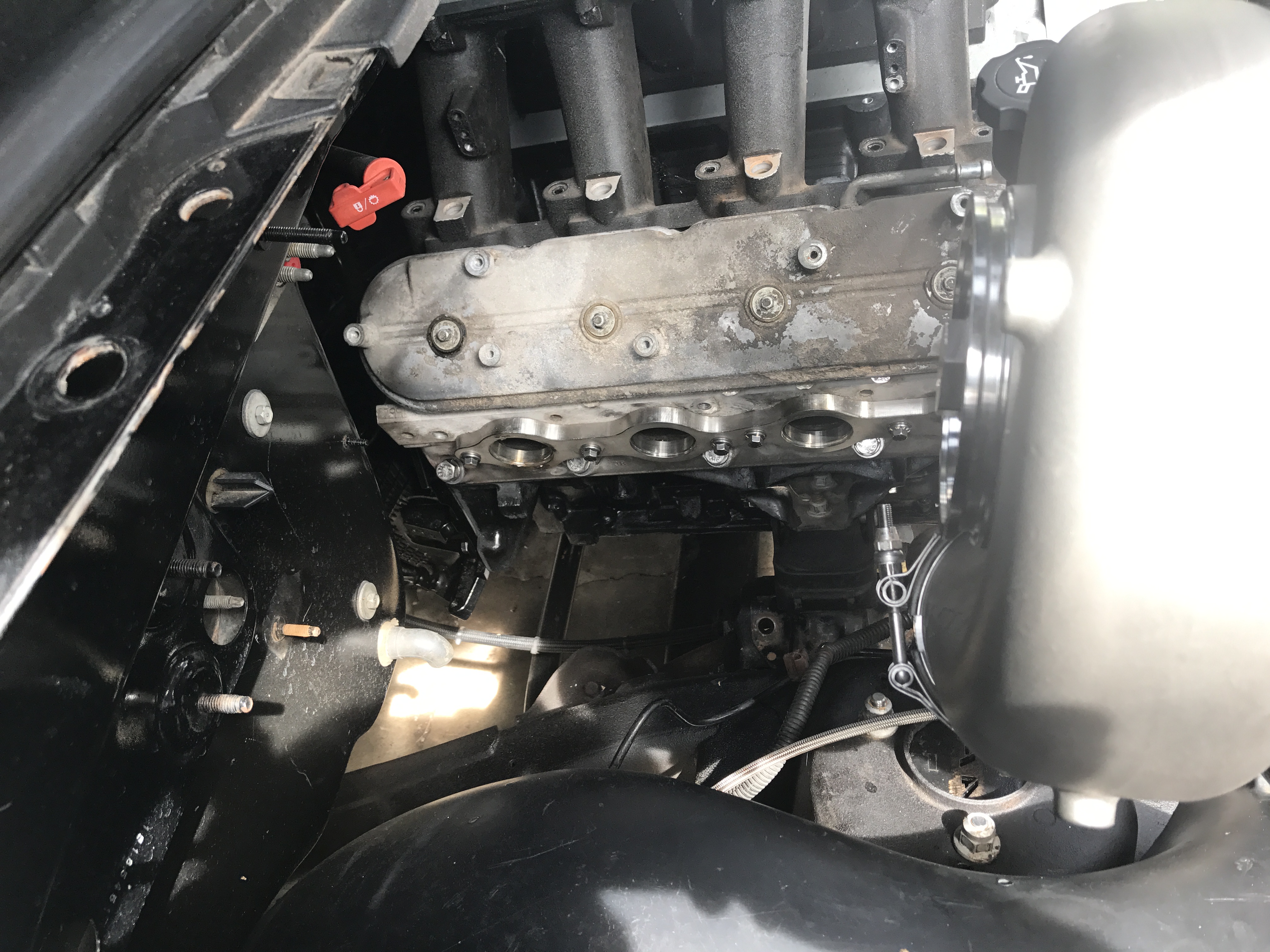

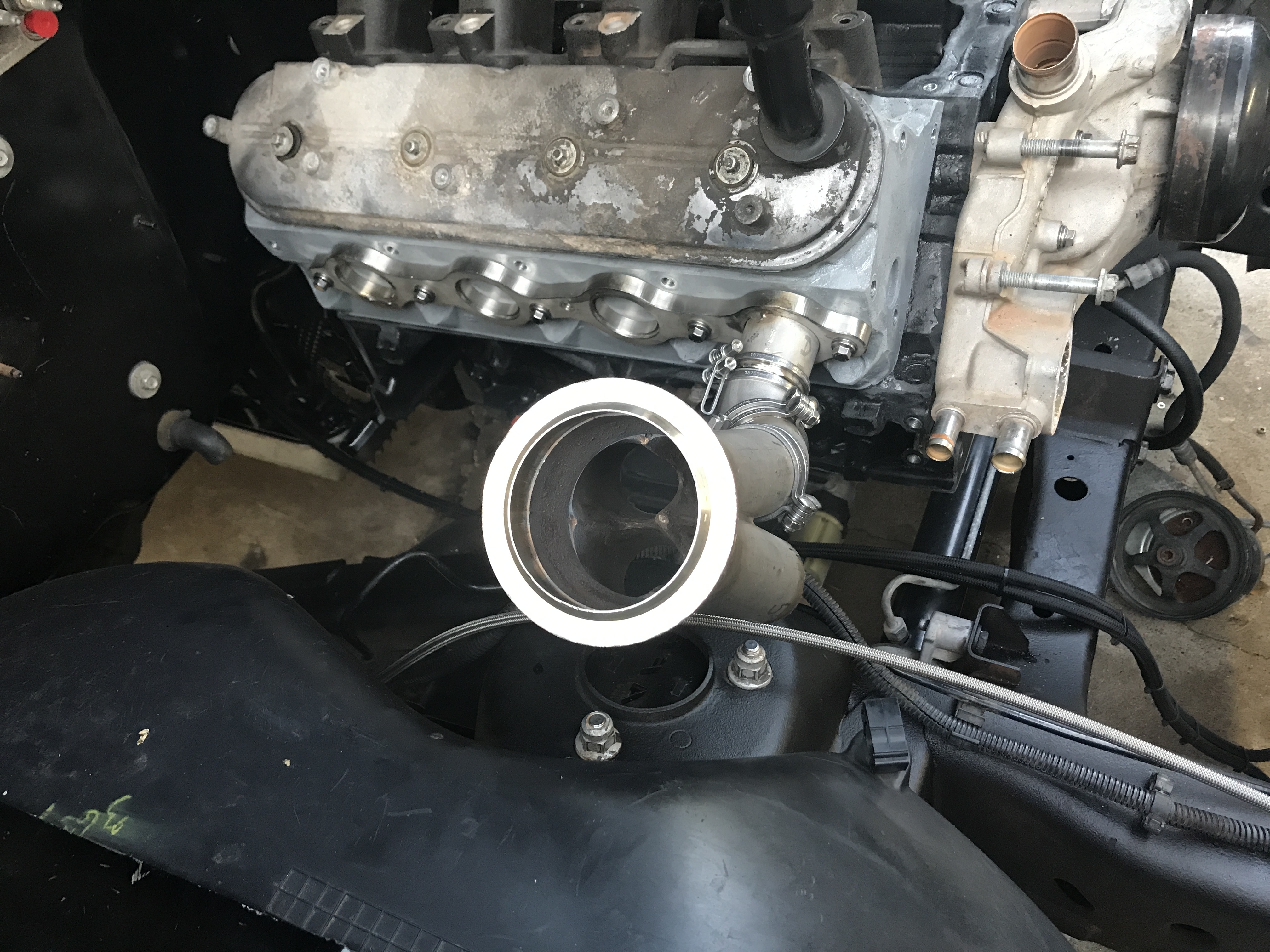

Well put the block to good use, I went to test fit the turbo header and well fitment just wasn't going to work like I originally thought. I bought these clamps from Ice Engine Works that let me clamp the weld els in place instead of having to tac then cut and re tac so used them to position the collector right where I want it. Should have everything right now, but will see. Doesn't look like much changed on the collector placement but brought it up enough to place the turbo off the inner fender. Now it has plenty of clearance from that and raised the turbo about 4 inches.
Last edited by Three6GMC; Jun 2, 2017 at 10:21 PM.
Jun 3, 2017 | 06:19 PM
#727
Thread Starter
Joined: Mar 2010
Posts: 2,165
Likes: 27
From: Corpus Christi

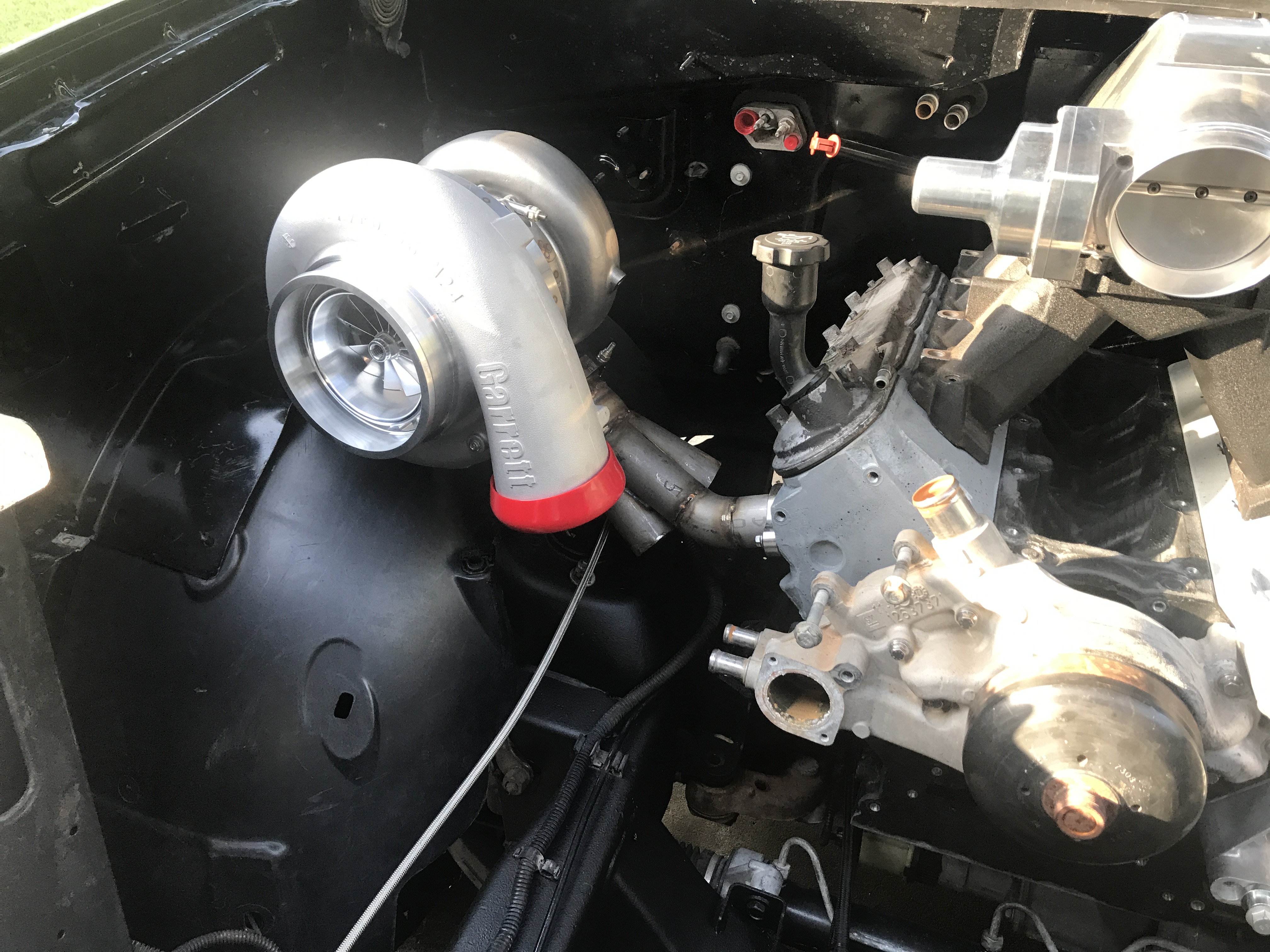

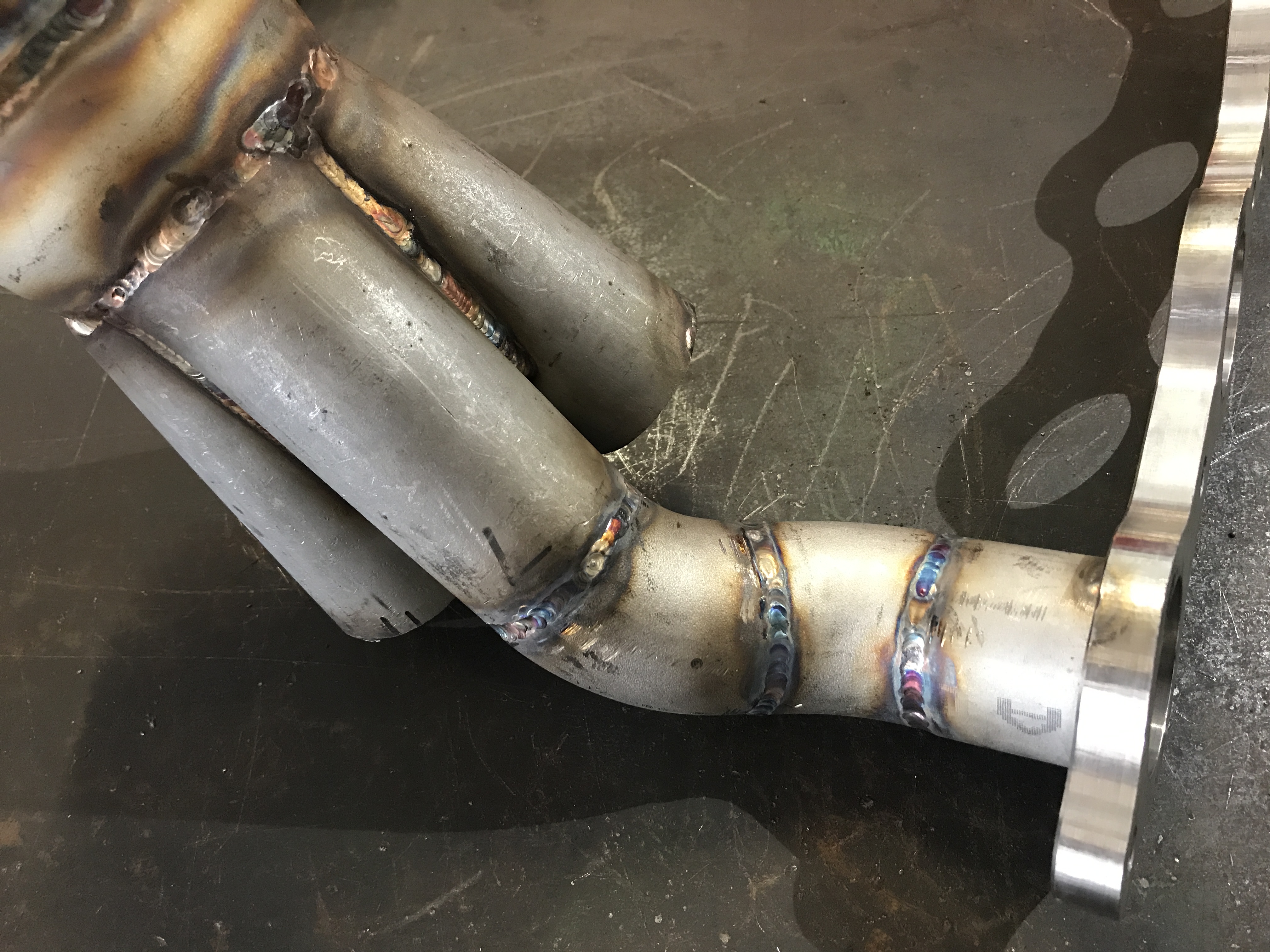

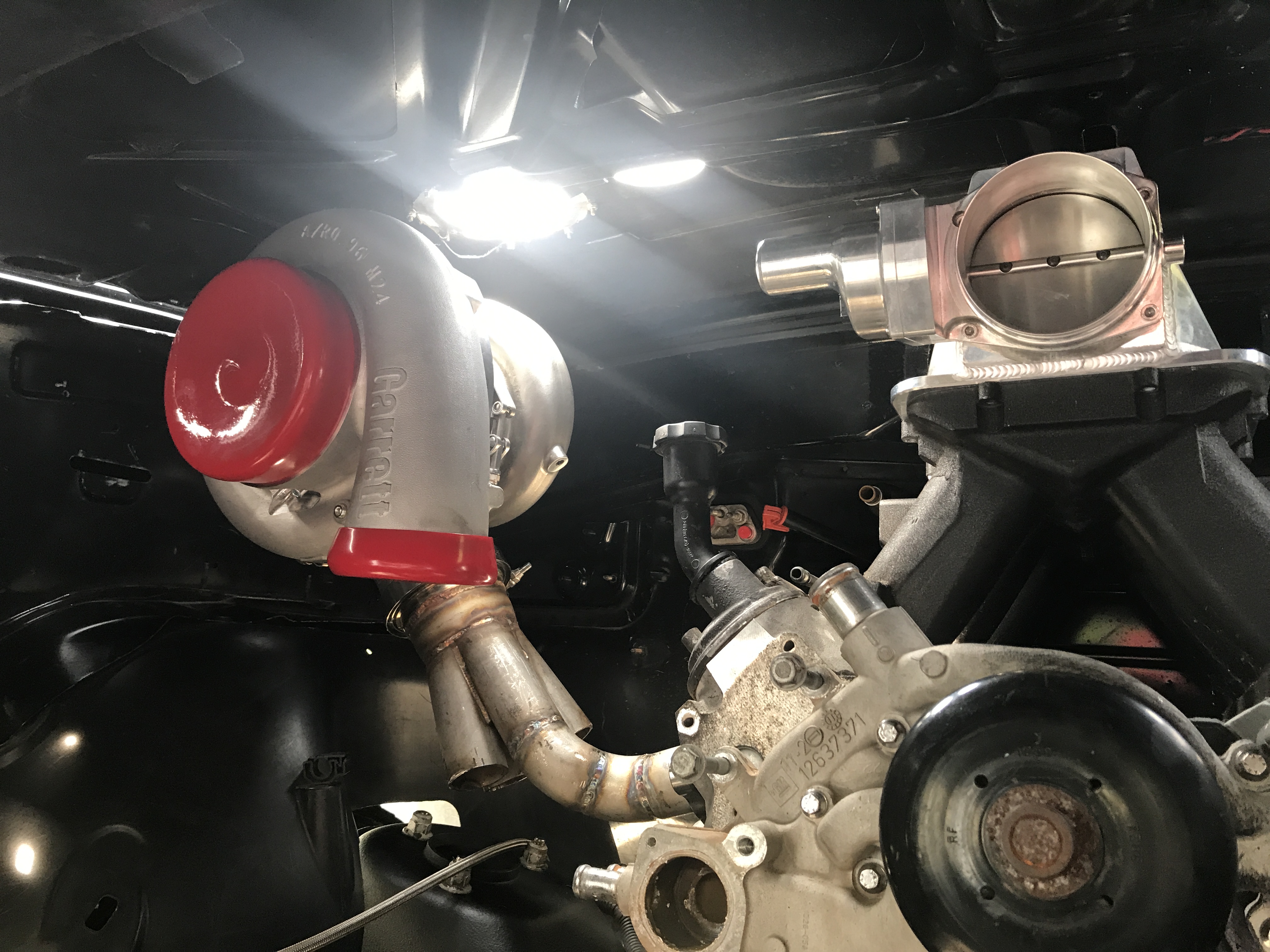

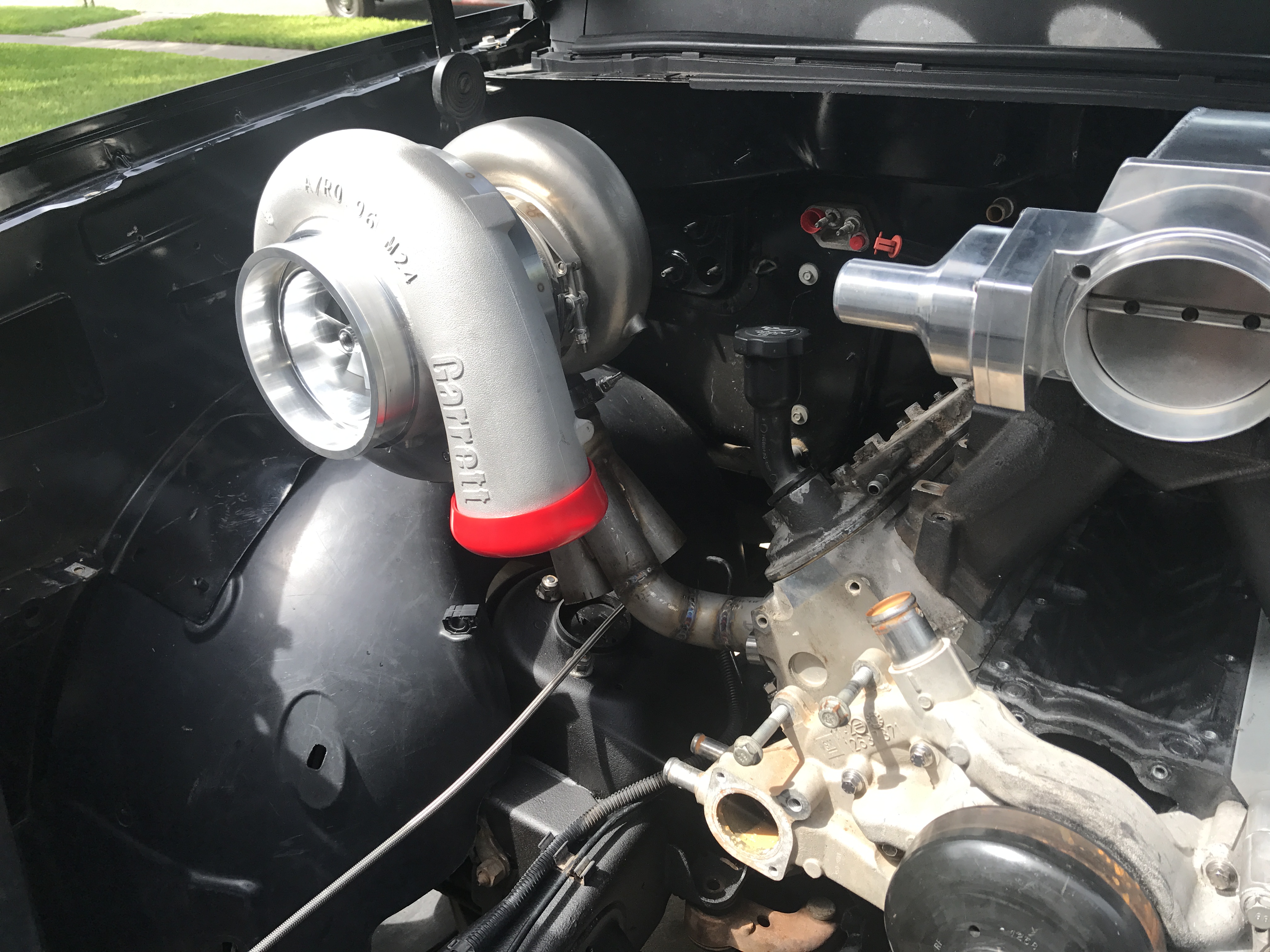

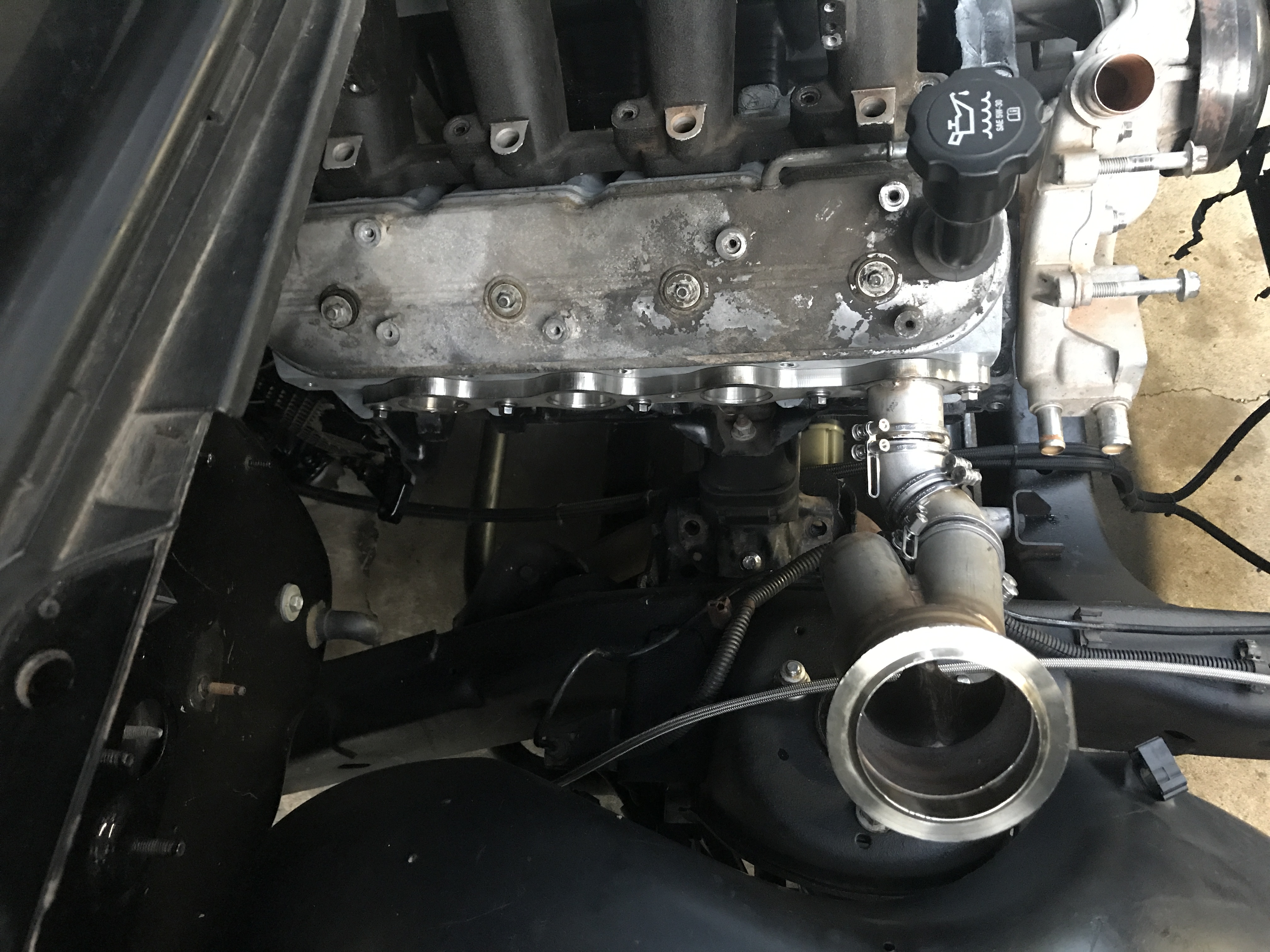

Well not the prettiest welds but they will work. I still have a lot to learn but slowly getting it... Anyways got the header bolted up and test fit the turbo. Everything fits right where I wanted it so now to continue with it and finish the hot side...
Last edited by Three6GMC; Jun 3, 2017 at 07:27 PM.
Jun 3, 2017 | 09:16 PM
#728
TECH Regular
Joined: Aug 2003
Posts: 424
Likes: 3
From: Phoenix, AZ
I haven't been following this build that closely so I hope this isn't a silly question but based off the way you started welding that first pipe to that collector how do you plan on having the drivers side exhaust feed I to that collector?
Jun 3, 2017 | 09:33 PM
#729
Thread Starter
Joined: Mar 2010
Posts: 2,165
Likes: 27
From: Corpus Christi
it will tie in on the back side right under the v band on the turbo like my 106 turbo headers were.
