can someone expaling to me why some install the pump sock outside the bucket on the bottom where the dirt is like this?

Name: IMG_6107-M_zpsfx7zozi8.jpg Views: 817 Size: 73.1 KB

wouldnt it work using a stock style sock in the bucket and have a cleaner filtration?
walledition is offline
Reply Like
Old 03-30-2015, 02:33 PM
  #32
I have a gauge for that
iTrader: (42)

Atomic's Avatar

Join Date: Jan 2006
Location: Huntsville, AL
Posts: 16,252
Received 373 Likes on 254 Posts
Default
It should be installed in the bucket. Less likely to pick up dirt like you mentioned, and should stay better submerged in the tank. Installing it outside of the bucket is quick and easy and inside the bucket requires a little more effort.
Atomic is offline
Reply Like
Old 03-30-2015, 02:44 PM
  #33
TECH Fanatic
Thread Starter
iTrader: (3)

walledition's Avatar

Join Date: Mar 2009
Location: Chihuahua, Mexico
Posts: 1,500
Received 7 Likes on 6 Posts
Default
Thank for the fast answer
Is the sock style important? i have a new one here that seems like it would fit better then the one that came with the pump

Originally Posted by Atomic
It should be installed in the bucket. Less likely to pick up dirt like you mentioned, and should stay better submerged in the tank. Installing it outside of the bucket is quick and easy and inside the bucket requires a little more effort.
walledition is offline
Reply Like
Old 03-30-2015, 04:23 PM
  #34
I have a gauge for that
iTrader: (42)

Atomic's Avatar

Join Date: Jan 2006
Location: Huntsville, AL
Posts: 16,252
Received 373 Likes on 254 Posts
Default
I dont think so, as long as its big enough not to choke the pump.
Atomic is offline
Reply Like
Old 03-31-2015, 12:33 PM
  #35
TECH Fanatic
Thread Starter
iTrader: (3)

walledition's Avatar

Join Date: Mar 2009
Location: Chihuahua, Mexico
Posts: 1,500
Received 7 Likes on 6 Posts
Default

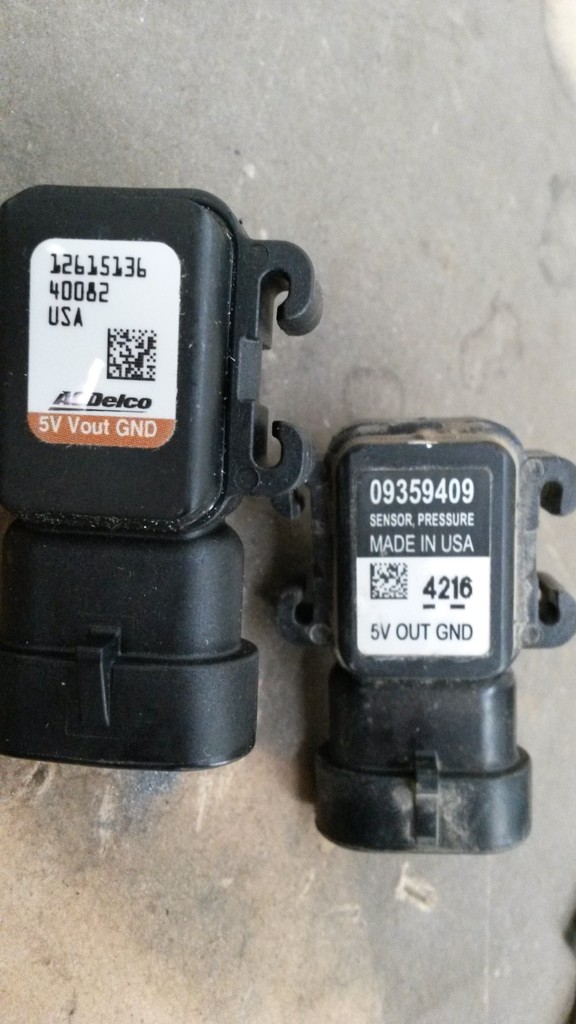

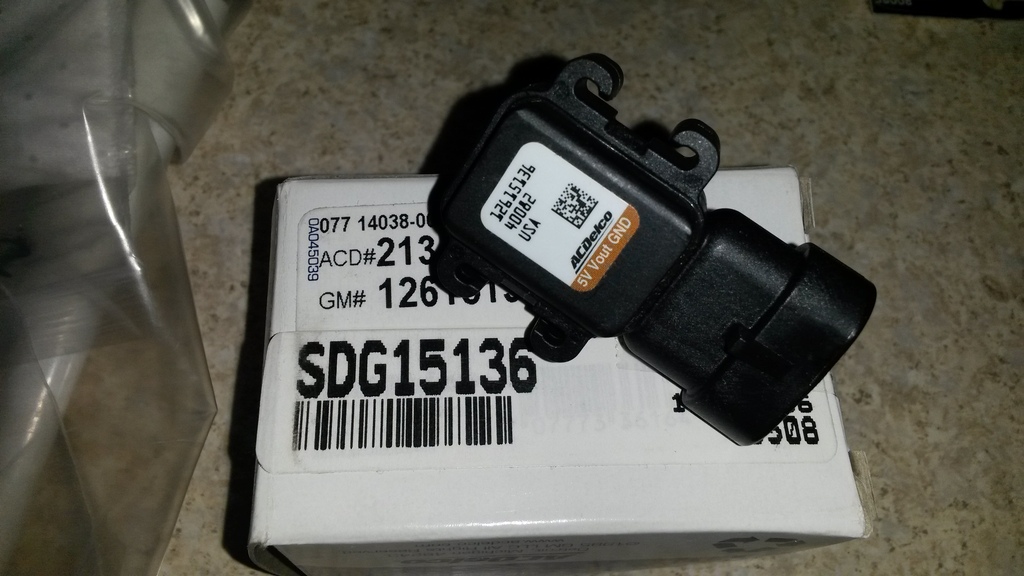

2bar map sensor:
Name: 20150329_203908_zpsj8zzapmy.jpg Views: 767 Size: 214.6 KB
New left, stock right
Name: 20150330_070207_zpscbz8hrhn.jpg Views: 788 Size: 139.8 KB

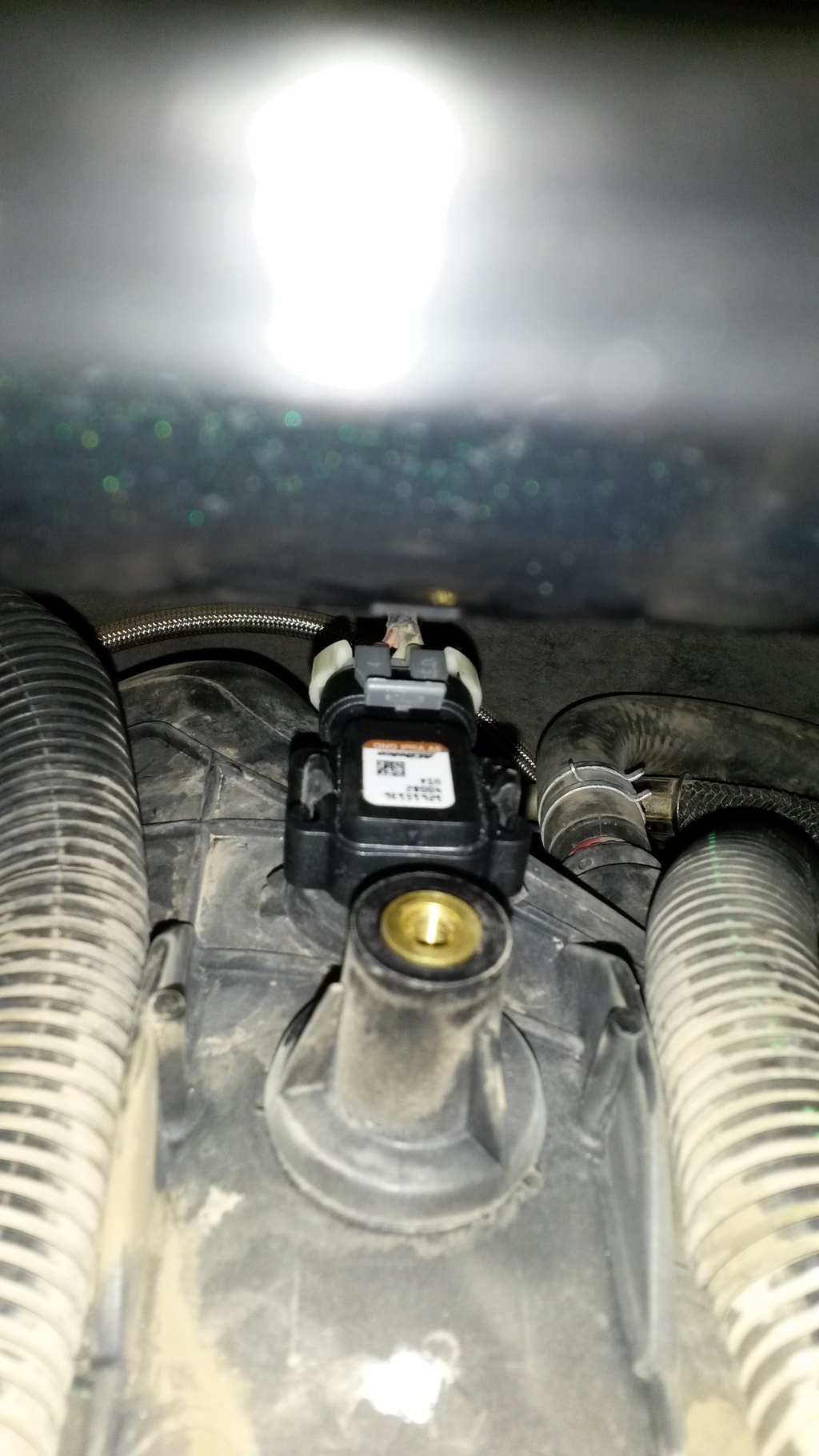

Installed
Name: 20150330_070531_zpshdr6gh7s.jpg Views: 800 Size: 510.0 KB
walledition is offline
Reply Like
Old 03-31-2015, 12:52 PM
  #36
TECH Fanatic
Thread Starter
iTrader: (3)

walledition's Avatar

Join Date: Mar 2009
Location: Chihuahua, Mexico
Posts: 1,500
Received 7 Likes on 6 Posts
Default
Fuel system is done for now, as usual if i would do it all over again i would buy all new fuel lines with nice fittings to make a cleaner installation but that will be a project for the future

On to the pictures

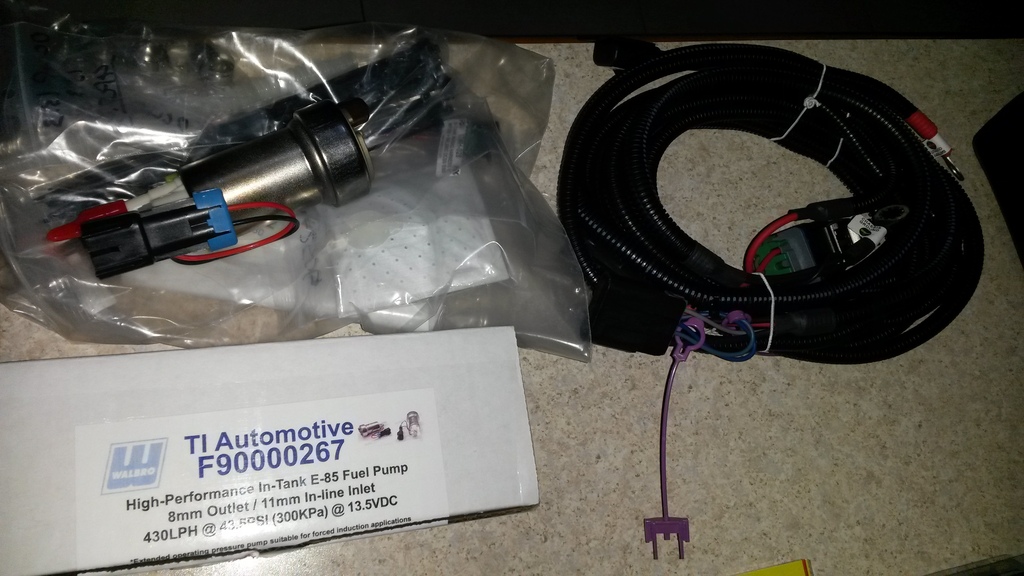

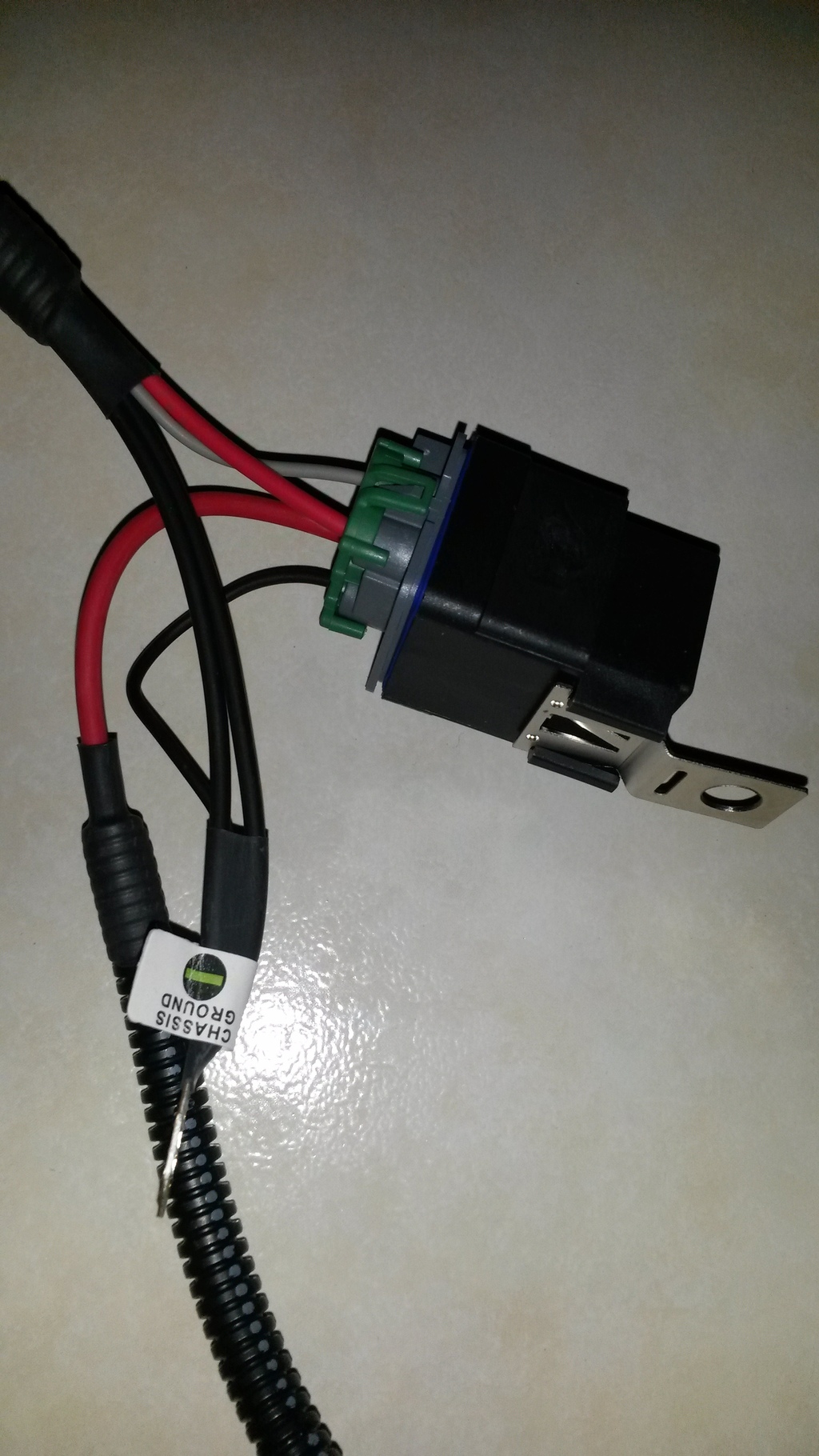

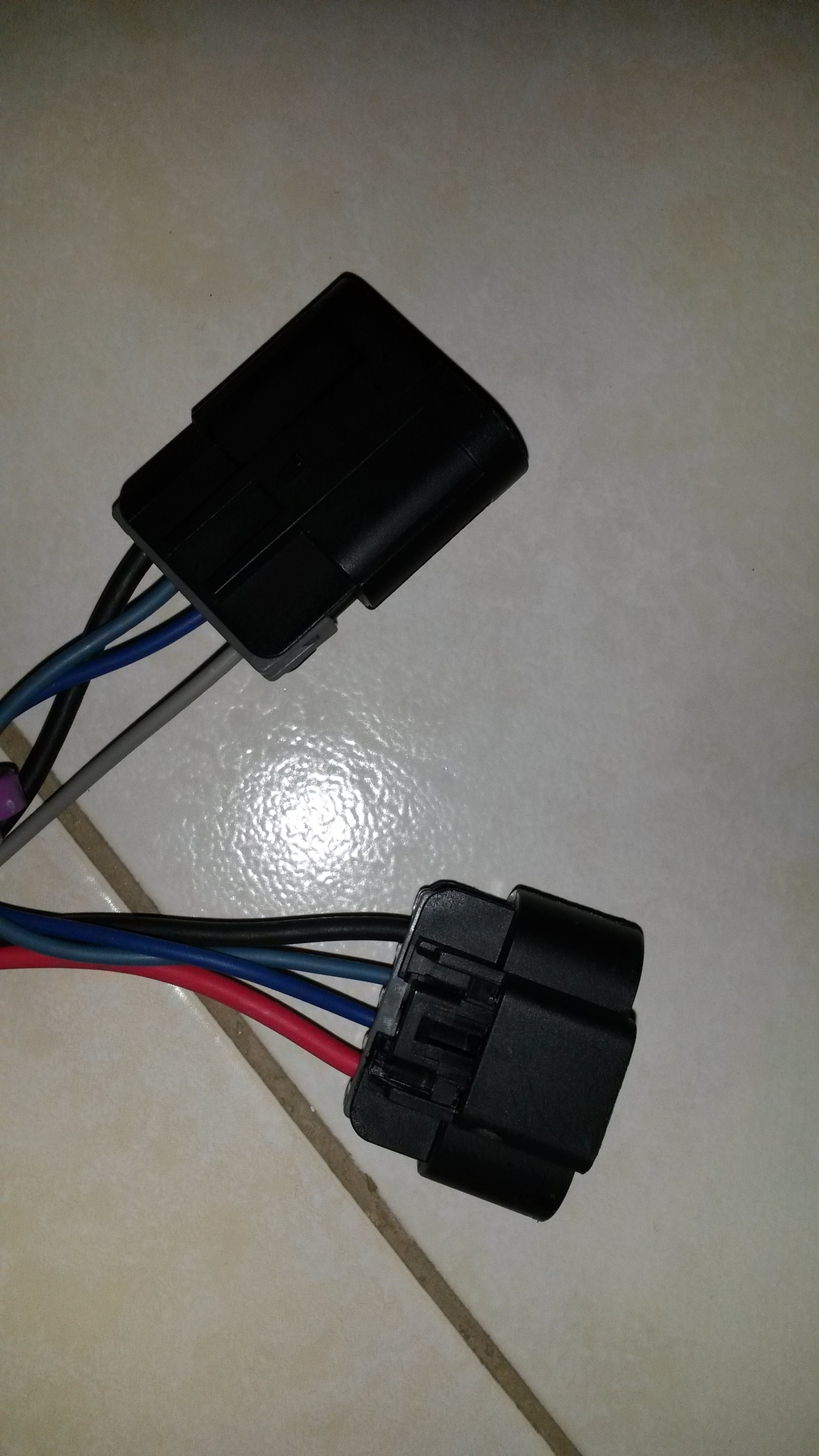

Racetronix has some really nice quality products, the hot wire harness for sure is a nice piece
Name: 20150329_203936_zpsa7y3gwsr.jpg Views: 798 Size: 225.3 KB
Name: 20150329_204459_zpsw21vlshr.jpg Views: 780 Size: 524.1 KB
Name: 20150329_204505_zpsca1xhkne.jpg Views: 848 Size: 506.8 KB
Name: 20150329_204513_zpsfv1sn1hk.jpg Views: 831 Size: 542.7 KB

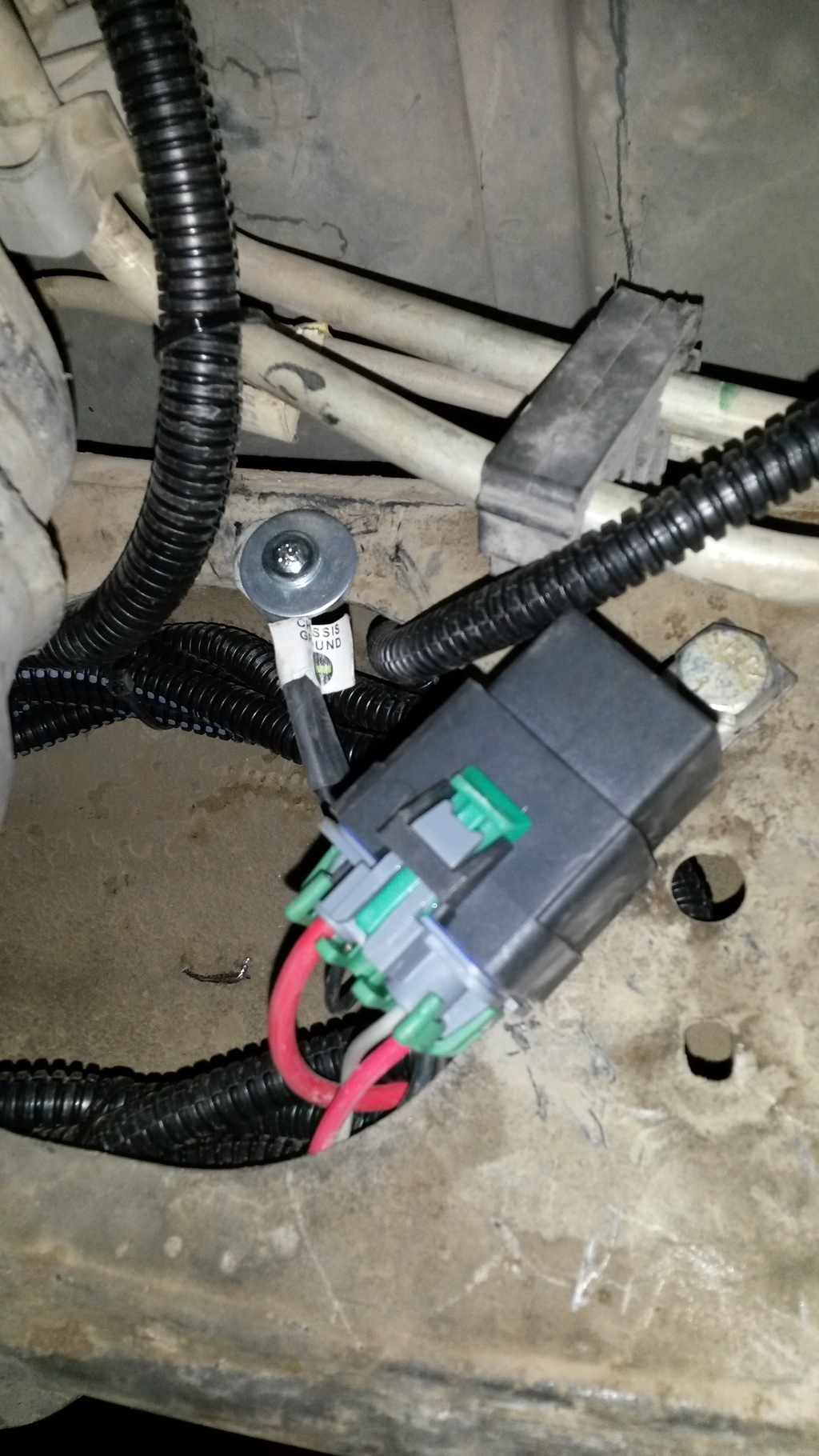

Harness was way to long so i made a roll and put it in the frame
Name: 20150330_230043_zpswvhumxkm.jpg Views: 786 Size: 605.8 KB

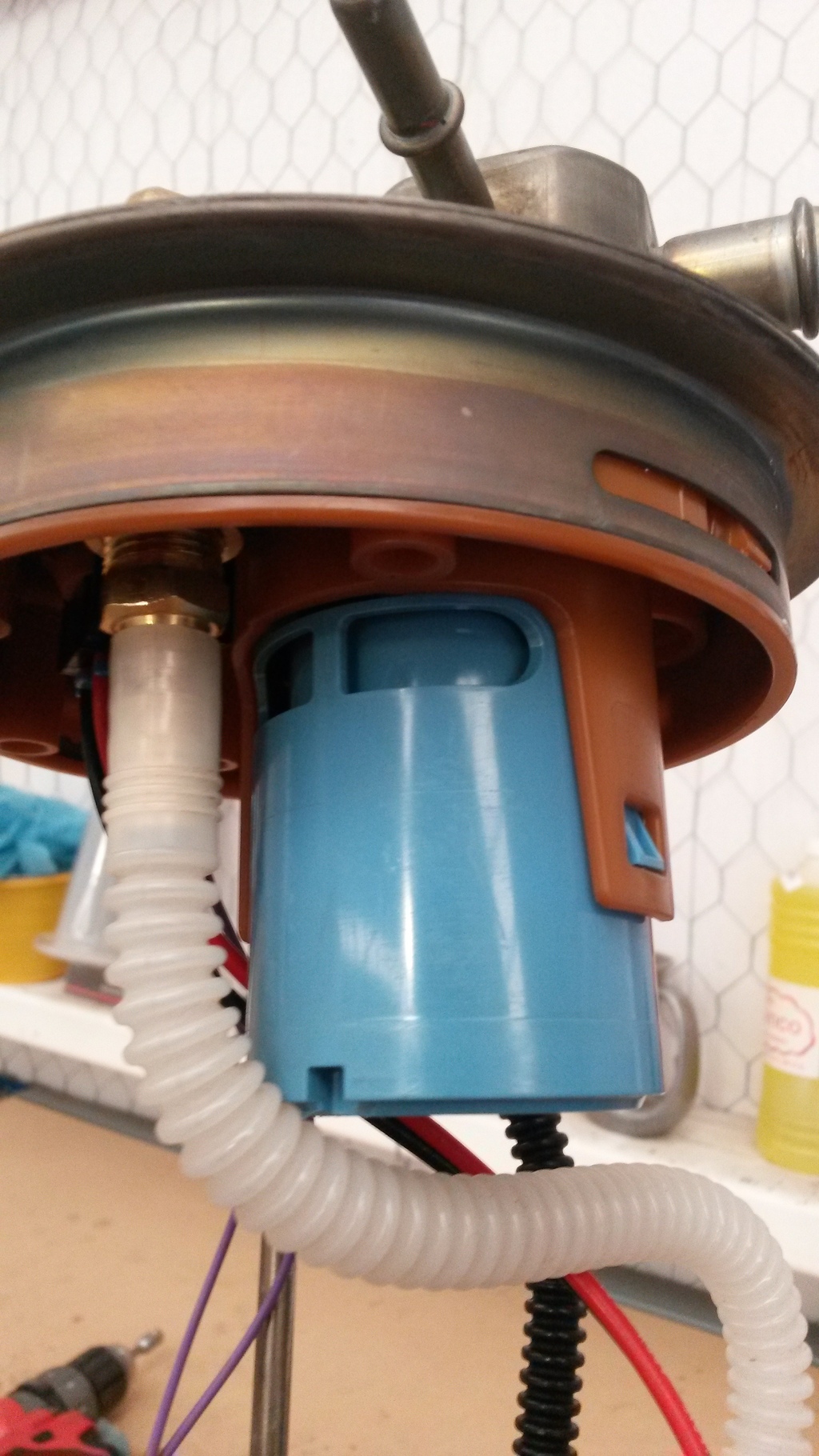

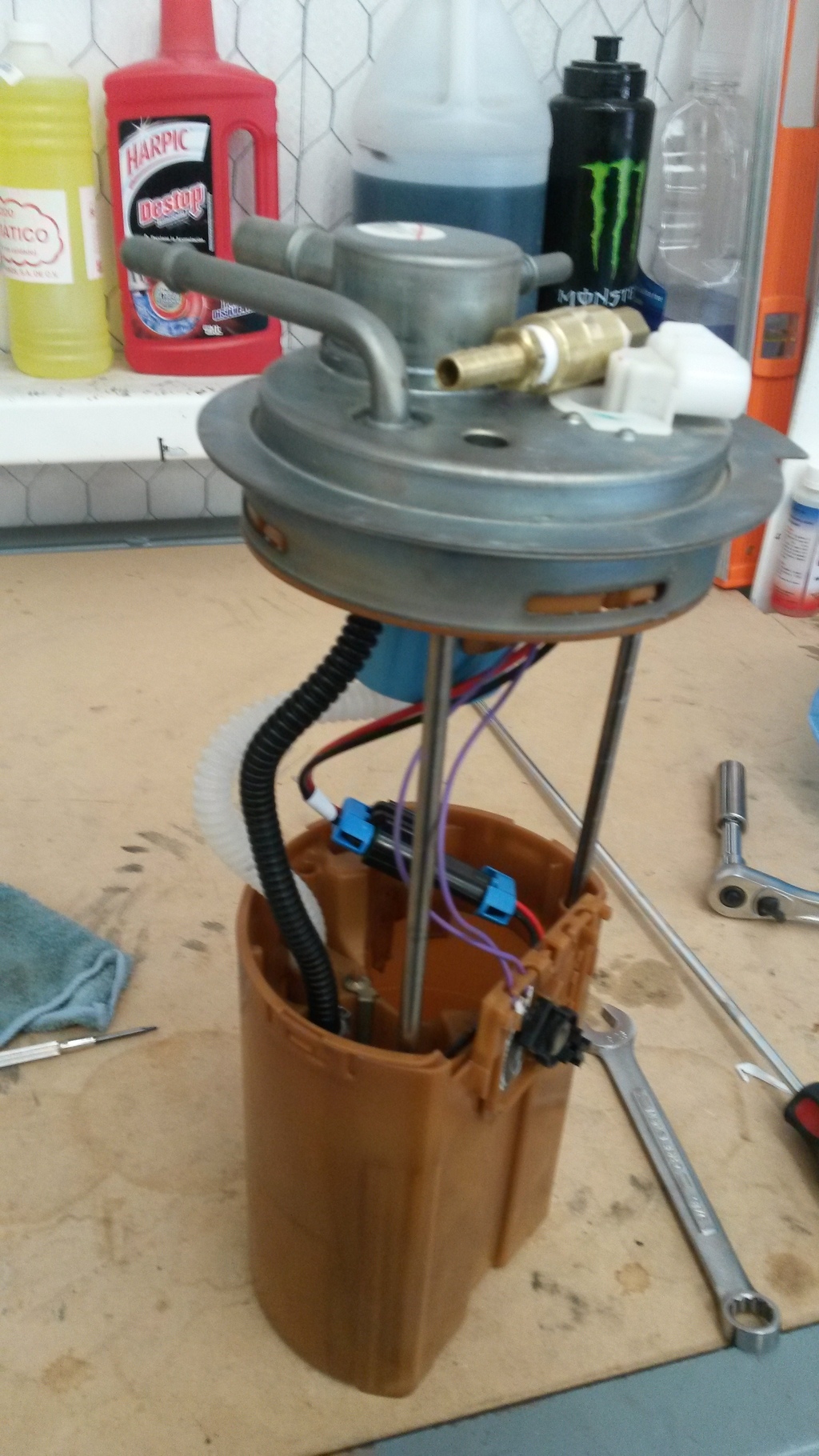

Bucket
Name: 20150330_165941_zpszwssendh.jpg Views: 800 Size: 163.7 KB

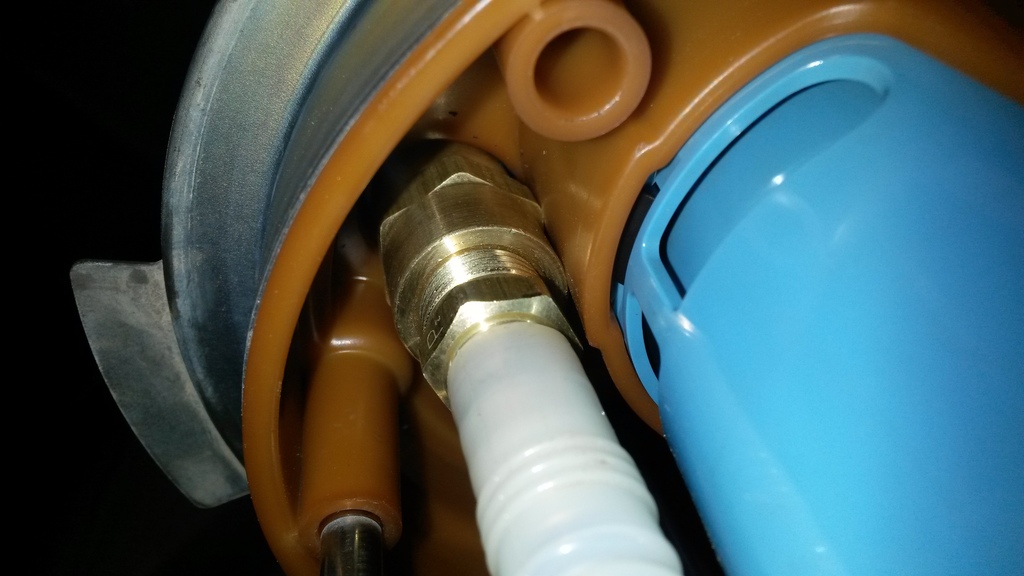

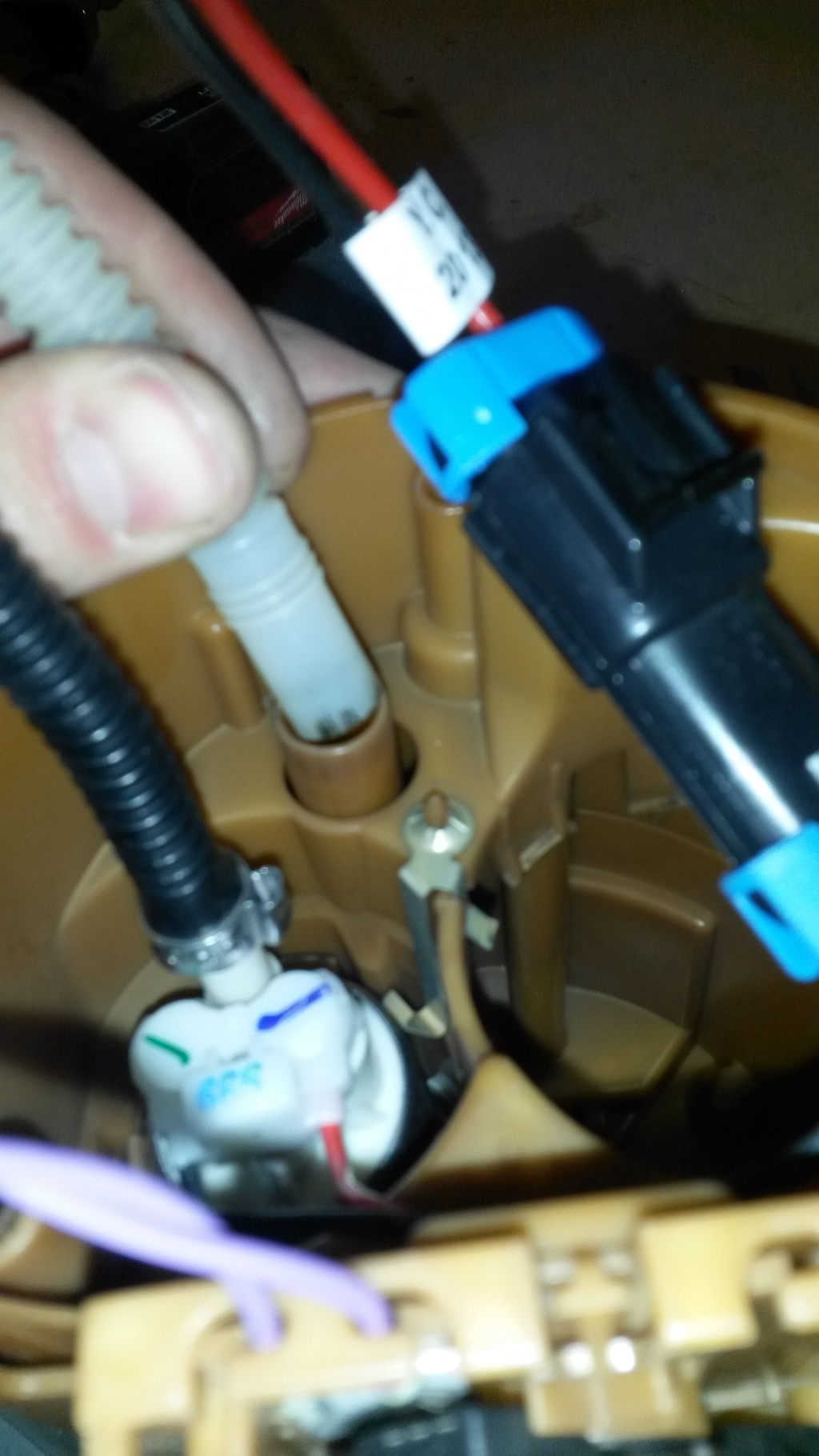

thats where i insert the return line
Name: 20150330_170029_zpsrt7unljf.jpg Views: 817 Size: 469.8 KB

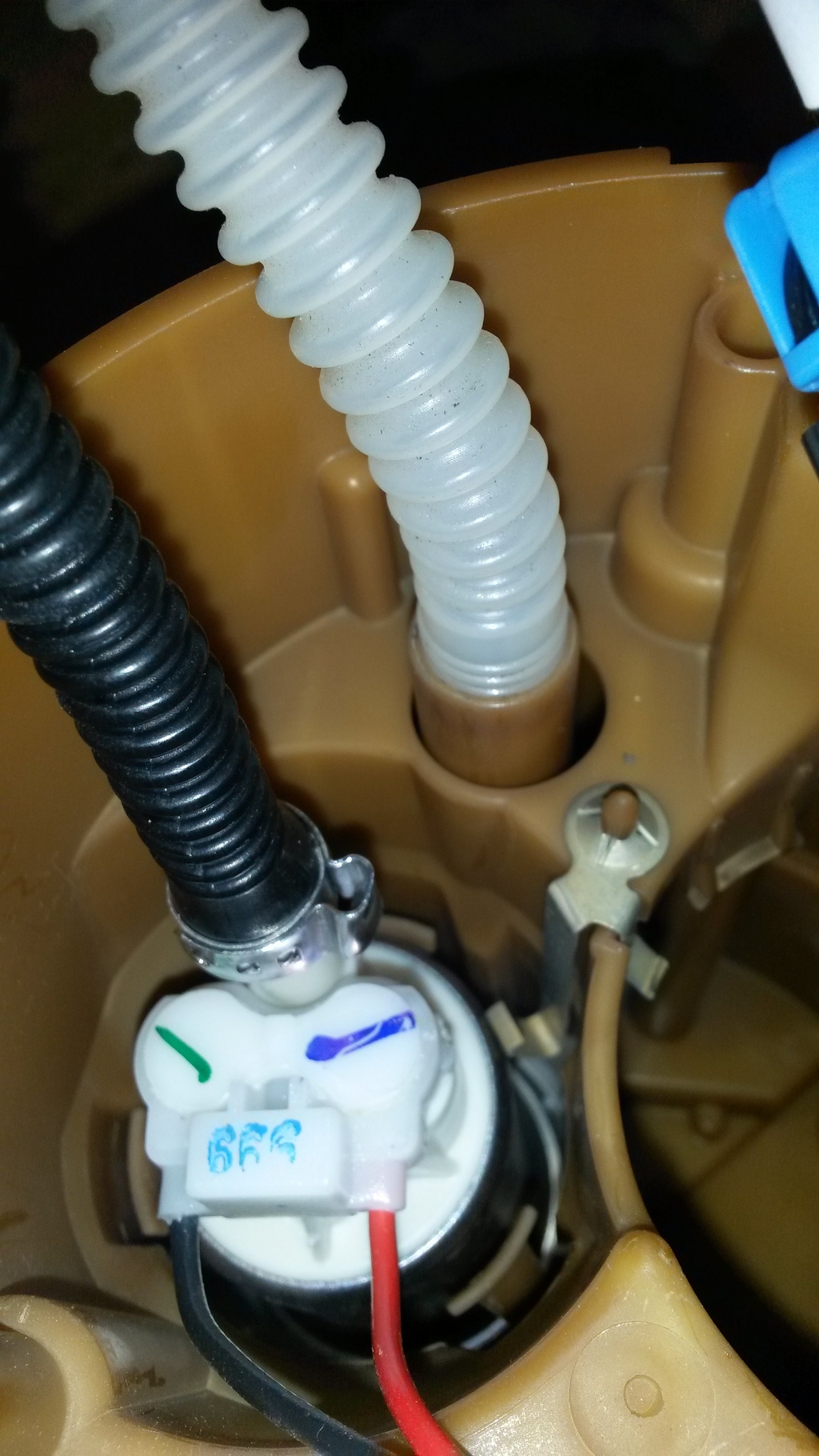

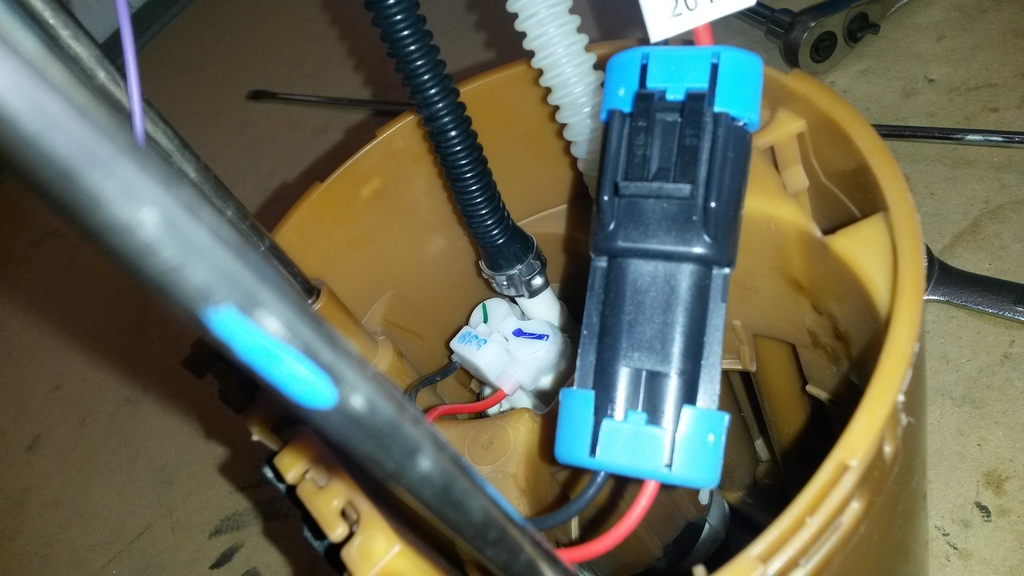

also ordered the intake harness so everything was plug and play
Name: 20150330_165948_zpsffp5nmu3.jpg Views: 819 Size: 195.1 KB
Name: 20150330_170019_zpsn1b1q14n.jpg Views: 814 Size: 520.6 KB
Name: 20150330_170343_zps78ywfrxn.jpg Views: 833 Size: 550.6 KB
Name: 20150330_170009_zpszwejpfn2.jpg Views: 849 Size: 582.1 KB
New stock location sock, dont have a part number for this, a local mecanic had it laying around
Name: 20150330_165959_zpst9ghzb3c.jpg Views: 822 Size: 557.1 KB
Bucket back in the tank al done
Name: 20150330_194703_zpstg1abvzq.jpg Views: 810 Size: 286.8 KB

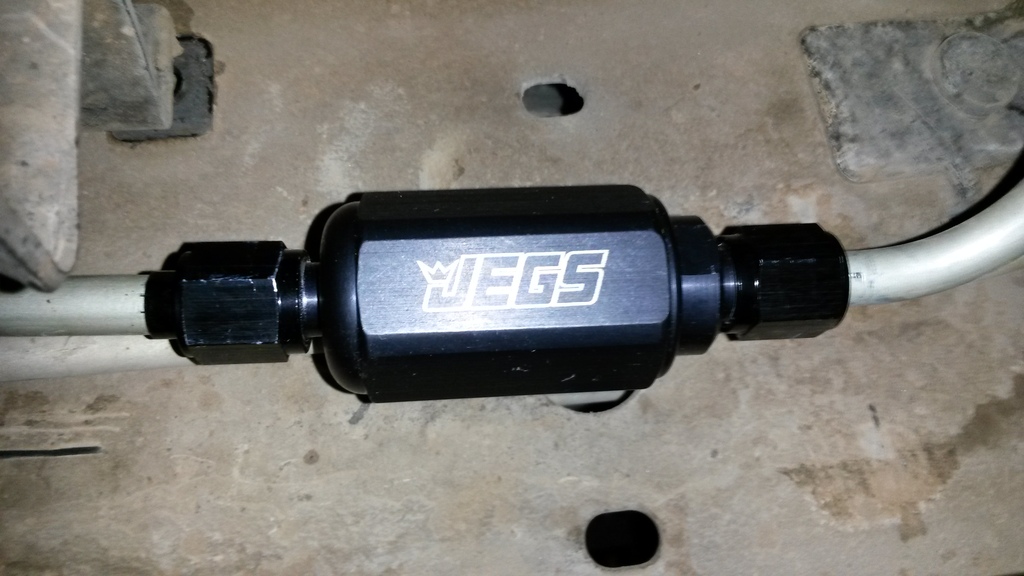

Inline fuel filter
Name: 20150330_210009_zpscgbeci7g.jpg Views: 796 Size: 190.5 KB
walledition is offline
Reply Like
Old 03-31-2015, 05:42 PM
  #37
Staging Lane

jocuzz's Avatar

Join Date: Nov 2014
Location: Great Falls, VA
Posts: 62
Likes: 0
Received 0 Likes on 0 Posts
Default
man this looks like its gonna be sweet
jocuzz is offline
Reply Like
Old 03-31-2015, 05:55 PM
  #38
Teching In

Brazos_Speed's Avatar

Join Date: Jul 2014
Posts: 34
Likes: 0
Received 0 Likes on 0 Posts
Default
Subscribed. Great info and pics. Nice job man
Brazos_Speed is offline
Reply Like
Old 04-02-2015, 05:17 PM
  #39
TECH Fanatic
Thread Starter
iTrader: (3)

walledition's Avatar

Join Date: Mar 2009
Location: Chihuahua, Mexico
Posts: 1,500
Received 7 Likes on 6 Posts
Default

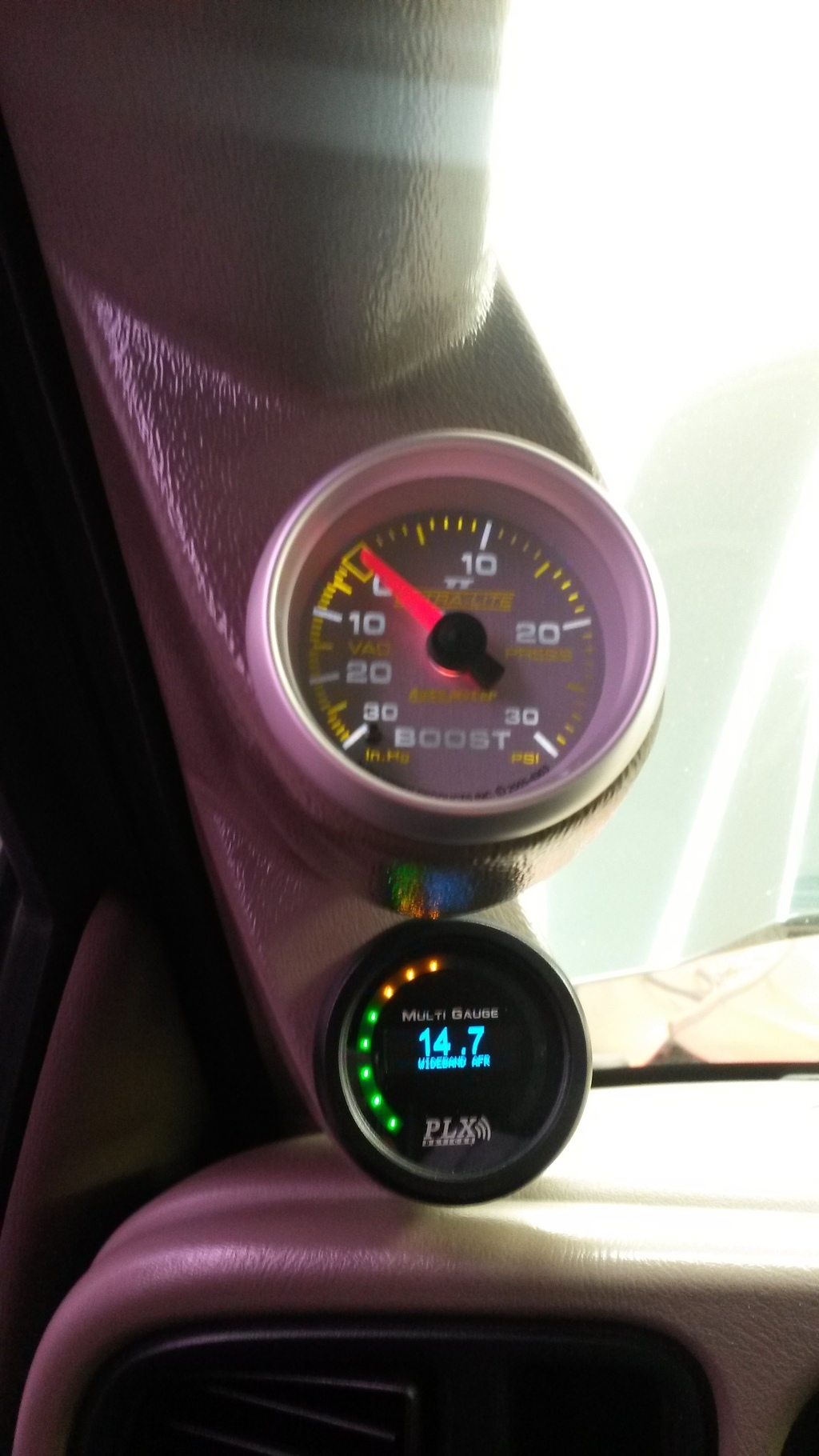

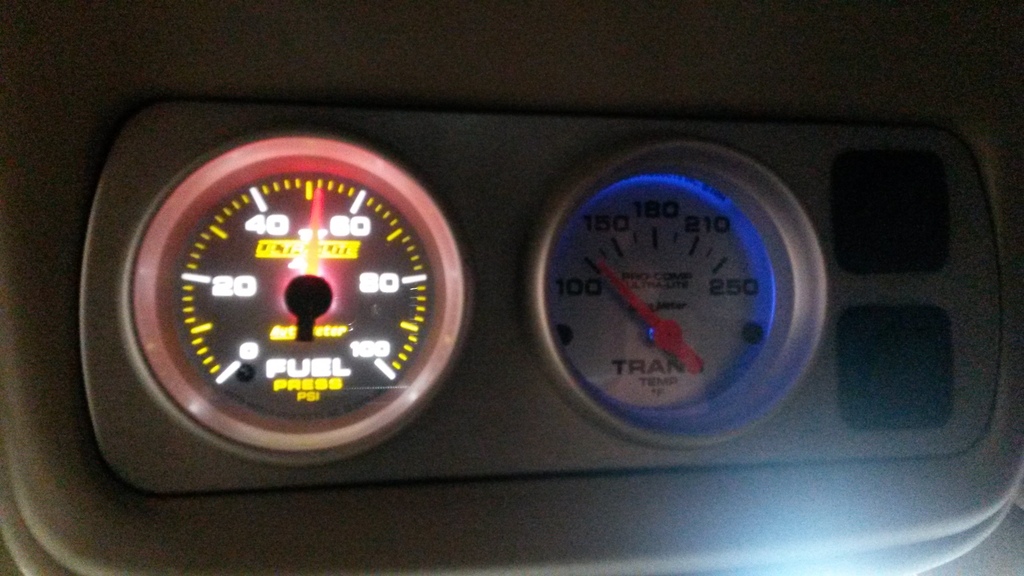

Gauges (electric fuel pressure gauge, mecanic boost gauge) are installed.
Even if the mecanical fuel pressure gauge is more accurate i dont like the idea of having fuel lines in my cab, iŽll check my idle pressure with this gauge and a mecanical test gauge see how far the eletrical is off once i start the truck.
Name: 20150401_134458_zpsaicjaaqe.jpg Views: 800 Size: 403.0 KB
Name: 20150401_175921_zpsmc8wnrrd.jpg Views: 794 Size: 229.7 KB

I like the idea of having the wideband and the boost gauge on the same side

Does anyone know how and where to get the autometer fuel pressure gauge signal to log it with hptuners?
walledition is offline
Reply Like
Old 04-02-2015, 05:38 PM
  #40
Moderator
iTrader: (1)

GM1697's Avatar

Join Date: Oct 2014
Location: in MA or SC
Posts: 1,568
Received 12 Likes on 8 Posts
Default
Looks good, how do you like that PLX gauge?
GM1697 is offline
Reply Like
