Have been looking to do a 2011 HD swap on my NNBS 2007 Silverado, did many of night research and have complied a ton of information. I am posting this so that one, I don’t lose the information that I have compiled and two, so that others might be able to do the same without having looking thru the 500 pages of threads on 10 different forums. This is just a overview of the part numbers and the links are to some sights that I have found some good information on. I know that there are threads on this before with some part numbers but I was trying to compile all the information onto one. I am not supporting nor suggest that the sights from which I have gathered the information is the best nor have the best prices on parts. I just found that they had some of the best information to be able to use. There also are many of threads on this all over the internet and I did not list them all due to them being or looking like the same info. There might have been one or two things in it that is not listed below. But it gets into just about all of them is the cost on all this. I have found some members saying they did it for $600 all the way up to $2000. But to each his own on how much they pay on their parts. There are people that advertise on Craigslist that say they offer the complete swap, I have contacted a few of them trying to get parts, but have yet to have any luck on it. Guess the color on my truck makes it harder to find.

The main part to the bumper swap, aka the bar. The part that I was looking for was with fog lights. All listed below are the items associated with that. The only part number that I am going to type in is the bar 22765737- BAR Painted able, per the All-star dealership. What is listed below is the chrome. In the parts listed below when in this website Chevy Parts, GMC Parts and Cadillac Parts from Tonkin Online Parts | Tonkin Online Parts They list a few different part number on there parts. When I talked with their rep on the phone they stated that there where the same part but GM gave them different part numbers for different models. Not all but some. But you can see when you click on the part number there will be listed as Stock Code, there will be more than one number.

I will be posting a step by step pic on this same mod, I will be starting this in the next few days.

This link that I have first is from the GMPS site on which a member installed the front trim piece on the stock hood that was already on the truck. After reading the only thing that he wishes that he had done different was use a better quality part.
Mounting an HD Chrome Front Molding on to a Silverado 1500 Hood - Chevy Truck Forum | GMC Truck Forum - GmFullsize.com

This link is from the GMPS site also, this member used the factory brackets on the 1500 truck and drill and modified them to get the alignment correct, he also list some part numbers in the thread. This thread has part number all throughout it and some members argue which one is correct and what not. I am putting this one on it to show another option on mounting the bumper. Fore warn you this thread is 333 pages long.
2011 HD front end swap info (part numbers in here) - Chevy Truck Forum | GMC Truck Forum - GmFullsize.com

Below is parts that I have looked up, It does not list all the parts that are there, but it does get you close. The prices that you see are list prices. I know that many of them can be found way cheaper all over the internet. I looked up many numbers but for the most part this gets everything you need to do this. Now this is only if you was going to buy all these parts new. I used the parts number to be able to look on E-bay and craigslist for mine to get the best deals.



001 MOLDING. HOOD PANEL ORNAMENTATION
MOLDING,HOOD FRT(CHROME). EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(03-43-53) CHROME GRL(V22),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $84.82 20963700

001 MOLDING. HOOD PANEL ORNAMENTATION
MOLDING,HOOD FRT(PAINT TO MATCH). EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(43-53) Z71 "PLUS" APPEARANCE PKG(WEA),CHEVROLET(X88) (2012-2012) (2011 - 2012). Required: 01
MOLDING,HOOD FRT(PAINT TO MATCH). EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(43-53) Z71 "PLUS" APPEARANCE PKG(WEA),CHEVROLET(X88) (2012-2012) (2012 - 2012). Required: 01 $186.70 22765886

004 NUT. HOOD PANEL ORNAMENTATION

NUT,HOOD FRT MLDG. EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(03-43-53) SPECIAL GRL(TL1),CHROME GRL(V22) (2011-2011) (2011 - 2012). Required: 02
NUT,HOOD FRT MLDG. EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(03-43-53) SPECIAL GRL(TL1),CHROME RAD GRILLE(VPZ),CHROME GRL(V22) (2012-2012) (2011 - 2012). Required: 02 $3.67 11570742

005 CLIP. RADIATOR GRILLE
CLIP,FRT GRL. BOLT-CLIP-RETAINER, Radiator Grille. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 06
CLIP,FRT GRL. BOLT-CLIP-RETAINER, Radiator Grille. For: CK1,2,3(03-43-53) (2007-2012) (2012 - 2012). Required: 06 $5.15 15883463

006 GRILLE. RADIATOR GRILLE
GRILLE,FRT(BLACK)(GRILLE LESS EMBLEM). COVER-GRILLE-GRILLE PKG, Radiator Grille. For: CK2,3(43-53) RAD GRILLE(TB3),(41U) (2012-2012) (2012 - 2012). Required: 01 $422.58 22842235

006 GRILLE. RADIATOR GRILLE
GRILLE,FRT(CHROME). COVER-GRILLE-GRILLE PKG, Radiator Grille. For: CK2,3(03-43-53) CHROME GRL(V22),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $290.58 20966058

006 GRILLE. RADIATOR GRILLE
GRILLE,FRT(GRAY)(GRILLE LES EMBLEM). COVER-GRILLE-GRILLE PKG, Radiator Grille. For: CK2,3(43-53) RAD GRILLE(TB3),(46U) (2012-2012) (2012 - 2012). Required: 01 $399.42 22842236

006 GRILLE. RADIATOR GRILLE
GRILLE,FRT(RED)(GRILLE LESS EMBLEM). COVER-GRILLE-GRILLE PKG, Radiator Grille. For: CK2,3(43-53) RAD GRILLE(TB3),(74U) (2012-2012) (2012 - 2012). Required: 01 $399.42 22842238

006 GRILLE. RADIATOR GRILLE
GRILLE,FRT(SILVER)(GRILLE LESS EMBLEM). COVER-GRILLE-GRILLE PKG, Radiator Grille. For: CK2,3(43-53) EXTERIOR COLOR(GAN),RAD GRILLE(TB3) (2012-2012) (2012 - 2012). Required: 01 $399.42 22842239

006 GRILLE. RADIATOR GRILLE
GRILLE,FRT(WHITE)(GRILLE LESS EMBLEM). COVER-GRILLE-GRILLE PKG, Radiator Grille. For: CK2,3(43-53) RAD GRILLE(TB3),(50U) (2012-2012) (2012 - 2012). Required: 01 $399.42 22842237

007 EMBLEM. RADIATOR GRILLE AND FRONT END ORNAMENTATION
EMBLEM,FRT GRL(BOWTIE). EMBLEM-NUT, Radiator Grille and Front End Ornamentation. For: CK2,3(03-43-53) CHROME GRL(V22),CHEVROLET(X88) (2012-2012) (2011 - 2012). Required: 01
EMBLEM,FRT GRL(BOWTIE). EMBLEM-NUT, Radiator Grille and Front End Ornamentation. For: CK2,3(43-53) RAD GRILLE(TB3) (2012-2012) (2012 - 2012). Required: 01 $40.32 22829420

Crashtest496

001 BRACKET. BUMPER/FASCIA MOUNTING
BRACKET,FRT BPR IMP BAR INR(W/NUT) - LH. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. LHD. For: CK2,3(03-43-53) 6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02
BRACKET,FRT BPR IMP BAR INR(W/NUT) - LH. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. LHD. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $27.32 25883352

001 BRACKET. BUMPER/FASCIA MOUNTING
BRACKET,FRT BPR IMP BAR INR(W/NUT) - RH. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. RHD. For: CK2,3(03-43-53) 6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02
BRACKET,FRT BPR IMP BAR INR(W/NUT) - RH. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. RHD. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $27.32 25883353

006 BRACKET. BUMPER/FASCIA MOUNTING
BRACKET,FRT BPR IMP BAR. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. For: CK2,3(03-43-53) (2011-2012) (2011 - 2012). Required: 02 $31.12 20966182

010 BRACE. BUMPER/FASCIA
BRACE,FRT BPR IMP BAR - LH. BRACE-NUT-PLATE-STUD, Bumper/Fascia. LHD. For: CK2,3(03-43-53) (2011-2012) (2011 - 2012). Required: 01 $20.50 25848058

010 BRACE. BUMPER/FASCIA
BRACE,FRT BPR IMP BAR - RH. BRACE-NUT-PLATE-STUD, Bumper/Fascia. RHD. For: CK2,3(03-43-53) (2011-2012) (2011 - 2012). Required: 01 $20.50 25848059

012 REINFORCEMENT. FRONT AND REAR BUMPER/FASCIA FACE
REINFORCEMENT,FRT BPR IMP BAR - LH. BAR-BOLT-BRACKET-CLIP-COVER-COVER PKG-EXTENSION-FASCIA-HOUSING-NUT-PAD-PLATE-REINFORCEMENT-RETAINER-SEAL-SENSOR KIT-SPACER, Front and Rear Bumper/Fascia Face. LHD. For: CK2,3(03-43-53) 6.6 (LGH),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01
REINFORCEMENT,FRT BPR IMP BAR - LH. BAR-BOLT-BRACKET-CLIP-COVER-COVER PKG-EXTENSION-FASCIA-HOUSING-NUT-PAD-PLATE-REINFORCEMENT-RETAINER-SEAL-SENSOR KIT-SPACER, Front and Rear Bumper/Fascia Face. LHD. For: CK2,3(03-43-53) 6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $25.42 25883347

012 REINFORCEMENT. FRONT AND REAR BUMPER/FASCIA FACE
REINFORCEMENT,FRT BPR IMP BAR - RH. BAR-BOLT-BRACKET-CLIP-COVER-COVER PKG-EXTENSION-FASCIA-HOUSING-NUT-PAD-PLATE-REINFORCEMENT-RETAINER-SEAL-SENSOR KIT-SPACER, Front and Rear Bumper/Fascia Face. RHD. For: CK2,3(03-43-53) 6.6 (LGH),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01
REINFORCEMENT,FRT BPR IMP BAR - RH. BAR-BOLT-BRACKET-CLIP-COVER-COVER PKG-EXTENSION-FASCIA-HOUSING-NUT-PAD-PLATE-REINFORCEMENT-RETAINER-SEAL-SENSOR KIT-SPACER, Front and Rear Bumper/Fascia Face. RHD. For: CK2,3(03-43-53) 6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $25.42 25883348

013 BRACKET. BUMPER/FASCIA MOUNTING
BRACKET,FRT BPR IMP BAR OTR - LH. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. LHD. For: CK2,3(03-43-53) 6.6 (LGH),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02
BRACKET,FRT BPR IMP BAR OTR - LH. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. LHD. For: CK2,3(03-43-53) 6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $106.78 25883351

013 BRACKET. BUMPER/FASCIA MOUNTING
BRACKET,FRT BPR IMP BAR OTR - RH. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. RHD. For: CK2,3(03-43-53) 6.6 (LGH),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02
BRACKET,FRT BPR IMP BAR OTR - RH. BRACKET-BRACKET KIT-NUT, Bumper/Fascia Mounting. RHD. For: CK2,3(03-43-53) 6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $106.78 25883350

015 FILLER. FRONT END BUMPER
FILLER,FRT BPR - LH. FILLER-SUPPORT, Front End Bumper. LHD. For: CK2,3(03-43-53) 6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $16.18 25883356

015 FILLER. FRONT END BUMPER
FILLER,FRT BPR - RH. FILLER-SUPPORT, Front End Bumper. RHD. For: CK2,3(03-43-53) 6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $16.18 25883357

018 BEZEL. CAPSULE/HEADLAMP/FOG LAMP
BEZEL,FRT FOG LP - LH. BEZEL, Capsule/Headlamp/Fog Lamp. LHD. For: CK2,3(03-43-53) 6.0 (L96),FRT FOG LP(T96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01
BEZEL,FRT FOG LP - LH. BEZEL, Capsule/Headlamp/Fog Lamp. LHD. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),FRT FOG LP(T96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $19.30 25883360

018 BEZEL. CAPSULE/HEADLAMP/FOG LAMP
BEZEL,FRT FOG LP - RH. BEZEL, Capsule/Headlamp/Fog Lamp. RHD. For: CK2,3(03-43-53) 6.0 (L96),FRT FOG LP(T96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01
BEZEL,FRT FOG LP - RH. BEZEL, Capsule/Headlamp/Fog Lamp. RHD. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),FRT FOG LP(T96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $19.30 25883361

025 EXTENSION. RADIATOR AIR
EXTENSION,FRT A/DFL(BLACK). BAFFLE-DEFLECTOR-EXTENSION-RETAINER, Radiator Air. For: CK2,3(03-43-53) CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $51.70 20845670

026 DEFLECTOR. RADIATOR AIR
DEFLECTOR,FRT AIR. BAFFLE-DEFLECTOR-EXTENSION-RETAINER, Radiator Air. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2011) (2011 - 2012). Required: 01
DEFLECTOR,FRT AIR. BAFFLE-DEFLECTOR-EXTENSION-RETAINER, Radiator Air. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88),(EXC Z71 "PLUS" APPEARANCE PKG(WEA) (2012-2012) (2011 - 2012). Required: 01 $176.80 22755086

028 BAR. FRONT AND REAR BUMPER/FASCIA FACE
BAR,FRT BPR IMP(CHROME). BAR-BOLT-BRACKET-CLIP-COVER-COVER PKG-EXTENSION-FASCIA-HOUSING-NUT-PAD-PLATE-REINFORCEMENT-RETAINER-SEAL-SENSOR KIT-SPACER, Front and Rear Bumper/Fascia Face. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),6.0 (L96),FRT FOG LP(T96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $474.18 25883349

031 CAP. BUMPER/FASCIA
CAP,FRT BPR FASCIA TR(CHROME). CAP-COVER-COVER PKG-MOLDING-RETAINER, Bumper/Fascia. For: CK2,3(03-43-53) 6.6 (LGH),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01
CAP,FRT BPR FASCIA TR(CHROME). CAP-COVER-COVER PKG-MOLDING-RETAINER, Bumper/Fascia. For: CK2,3(03-43-53) 6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $280.93 25883355

032 PLATE. BUMPER/FASCIA
PLATE,FRT BPR IMP BAR ANC. BRACE-NUT-PLATE-STUD, Bumper/Fascia. For: CK2,3(03-43-53) 6.6 (LGH),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02
PLATE,FRT BPR IMP BAR ANC. BRACE-NUT-PLATE-STUD, Bumper/Fascia. For: CK2,3(03-43-53) 6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $14.78 25996793

034 REINFORCEMENT. FRONT AND REAR BUMPER/FASCIA FACE
REINFORCEMENT,FRT BPR IMP BAR CTR. BAR-BOLT-BRACKET-CLIP-COVER-COVER PKG-EXTENSION-FASCIA-HOUSING-NUT-PAD-PLATE-REINFORCEMENT-RETAINER-SEAL-SENSOR KIT-SPACER, Front and Rear Bumper/Fascia Face. For: CK2,3(03-43-53) 6.6 (LGH),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01
REINFORCEMENT,FRT BPR IMP BAR CTR. BAR-BOLT-BRACKET-CLIP-COVER-COVER PKG-EXTENSION-FASCIA-HOUSING-NUT-PAD-PLATE-REINFORCEMENT-RETAINER-SEAL-SENSOR KIT-SPACER, Front and Rear Bumper/Fascia Face. For: CK2,3(03-43-53) 6.6-8(LML),6.0 (L96),FRT BPR IMP STR(VG3),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $17.93 25996794

Crashtest496

001 HOOD. PANEL
HOOD. HOOD, Panel. For: CK2,3(03-43-53) CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $623.57 20952912

003 NUT. NUT. BUMPER/FASCIA MOUNTING. CHASSIS ELECTRIC DIAGNOSTIC. DOOR ARM REST MOUNTING. DOOR LOCK INSIDE HANDLE. DOOR WINDOW. FOLDING AND HARD TOP FRONT RAIL. FOLDING TOP SIDE ROOF RAIL. FRONT DOOR ARMREST. FRONT DOOR SILL. FRONT DOOR TRIM. FRONT DOOR WINDOW. FRONT SEAT ADJUSTER. FRONT SEAT CUSHION. FRONT SEAT LUMBAR. LUGGAGE COMPARTMENT AND REAR SEAT TO WINDOW. RADIATOR GRILLE AND FRONT END PANEL. RADIO AUXILIARY SPEAKERS. RADIO RECEIVER. REAR COMPARTMENT LID OR TAILGATE DECORATION. REAR SIDE DOOR ARMREST. REAR SIDE DOOR SILL. REAR SIDE DOOR WINDOW GLASS RUN. ROCKER PANEL MOLDING. TAIL LAMP. TAIL LAMP MOUNTING. (OUTER & INNER)
$3.65 11589183

004 PANEL. COWL VENTILATOR
PANEL,AIR INL GRL (CTR)(BLACK). BOLT-CLIP-PANEL-RETAINER-SPACER-VALVE, Cowl Ventilator. For: CK1,2,3(03-43-53) CHEVROLET(X88) (2009-2012) (2011 - 2012). Required: 01 $149.17 25905501

005 BOLT. COWL VENTILATOR. DISTRIBUTOR. INSTRUMENT PANEL. INSTRUMENT PANEL COMPARTMENT DOOR. INSTRUMENT PANEL COMPARTMENT DOOR LOCK AND CONSOLE COMPARTMENT DOOR LOCK. REAR QUARTER UPPER. WINDSHIELD GARNISH MOLDING. (ALSO KNOCK SENSOR) (ABOVE BELT)
BOLT,AIR INL GRL PNL(10.268). BOLT-CLIP-PANEL-RETAINER-SPACER-VALVE, Cowl Ventilator. For: CK1,2,3 (2007-2012) (2011 - 2012). Required: 04 $4.78 11609797

006 WEATHERSTRIP. HOOD PANEL
WEATHERSTRIP,HOOD RR. WEATHERSTRIP, Hood Panel. For: CK1,2,3(03-43-53) CHEVROLET(X88),G M C(Z88) (2007-2012) (2011 - 2012). Required: 01 $39.50 25865605

008 PANEL. COWL VENTILATOR
PANEL,AIR INL GRL(END CAP)(BLACK) - LH. BOLT-CLIP-PANEL-RETAINER-SPACER-VALVE, Cowl Ventilator. LHD. For: CK1,2,3(03-43-53) CHEVROLET(X88) (2007-2012) (2011 - 2012). Required: 01 $12.73 15946001

008 PANEL. COWL VENTILATOR
PANEL,AIR INL GRL(END CAP)(BLACK) - RH. BOLT-CLIP-PANEL-RETAINER-SPACER-VALVE, Cowl Ventilator. RHD. For: CK1,2,3(03-43-53) CHEVROLET(X88) (2007-2012) (2011 - 2012). Required: 01 $12.60 15946002

009 CLIP. BODY MOLDINGS. COWL VENTILATOR.
CLIP,AIR INL GRL PNL(11.0 X 12.9 X 6.1MM)(08.950). BOLT-CLIP-PANEL-RETAINER-SPACER-VALVE, Cowl Ventilator. For: CK1,2,3(03-43-53) CHEVROLET(X88),G M C(Z88) (2007-2012) (2011 - 2012). Required: 03 $5.63 11609796

010 HOSE. WINDSHIELD WASHER
HOSE,WSWA NOZ. CAP-CLIP-CONNECTOR-CONTAINER-CONTAINER KIT-GROMMET-HOSE-INDICATOR-INDICATOR KIT-PUMP-PUMP KIT, Windshield Washer. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 01 $25.75 25887956

011 MOLDING. HOOD PANEL ORNAMENTATION
MOLDING,HOOD RR - LH. EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. LHD. For: CK2,3(03-43-53) CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $63.85 22753694

011 MOLDING. HOOD PANEL ORNAMENTATION
MOLDING,HOOD RR - RH. EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. RHD. For: CK2,3(03-43-53) CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $63.85 22753693

012 FRONT AND REAR BUMPER/FASCIA FACE. RETAINER. NUT. HOOD PANEL ORNAMENTATION.
RETAINER,HOOD EMB(10.5 X 11.8 X 8.73). BOLT-CLIP-RETAINER-STUD, Hood Panel Ornamentation. For: CK2,3(03-43-53) 6.0 (L96) (2011-2012) (2011 - 2012). Required: 02
RETAINER,HOOD EMB(10.5 X 11.8 X 8.73). BOLT-CLIP-RETAINER-STUD, Hood Panel Ornamentation. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $3.65 11570524

013 EMBLEM. HOOD PANEL ORNAMENTATION
EMBLEM,HOOD SI(ALLISON TRANSMISSION DURAMAX). EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(03-43-53) 6.6 (LGH),6.6-8(LML),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $20.78 25909696

013 EMBLEM. HOOD PANEL ORNAMENTATION
EMBLEM,HOOD SI(VORTEC). EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(03-43-53) 6.0 (L96),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $26.50 25909695

014 BOLT. HOOD PANEL ORNAMENTATION
BOLT,HOOD RR MLDG. BOLT-CLIP-RETAINER-STUD, Hood Panel Ornamentation. For: CK2,3(03-43-53) CHEVROLET(X88) (2007-2012) (2011 - 2012). Required: 04 $4.50 11562351

018 HINGE. HOOD
HINGE,HOOD (HOOD SI) - LH. BRACKET-HINGE-STRUT-STUD, Hood. LHD. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 01 $39.38 15243847

018 HINGE. HOOD
HINGE,HOOD (HOOD SI) - RH. BRACKET-HINGE-STRUT-STUD, Hood. RHD. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 01 $39.38 15243848

019 BOLT. BOLT. BRAKE FLANGE PLATE. BRAKE MOUNTING. BRAKE PEDAL. BUMPER/FASCIA MOUNTING. CAB TILT. CHASSIS/ENGINE WIRING HARNESS. DIFFERENTIAL CARRIER. DISTRIBUTOR. DOOR LOCK STRIKER. ELECTRONIC BRAKE CONTROL. EMISSION CONTROL SYSTEM. ENGINE CYLINDER HEAD. ENGINE FAN COOLANT. ENGINE LIFT. ENGINE MOUNTING. EXHAUST MANIFOLD. EXHAUST PIPE. FAN AND COOLANT PUMP. FUEL LINE. FUEL TANK. FUEL TANK EVAPORATOR CONTROL. FUEL TANK FILLER. GENERATOR MOUNTING. HEX. HOOD LATCH. HYDRAULIC BRAKE HOSE. IGNITION COIL MOUNTING. INFLATABLE RESTRAINT SYSTEM. INSTRUMENT PANEL. PARKING BRAKE APPLY. PROPELLER. RADIATOR FAN SHROUD. REAR AXLE HOUSING. REAR COMPARTMENT LID. REAR COMPARTMENT LID AND END GATE. SEAT BELT. SHOCK ABSORBER/STRUT. STARTER MOTOR. THROTTLE CONTROL LEVER. TRANSMISSION OIL PAN. TURBOCHARGER/SUPERCHARGER OIL DRAIN. (ALSO KNOCK SENSOR)
$4.57 11515755

020 WEATHERSTRIP. HOOD PANEL
WEATHERSTRIP,HOOD SI(ATTACH TO FENDER) - LH. WEATHERSTRIP, Hood Panel. LHD. For: CK2,3 6.6 (LGH),6.6-8(LML) (2011-2012) (2011 - 2012). Required: 01 $59.00 15911808

021 STRAP. BATTERY NEGATIVE AND ENGINE GROUND
STRAP,BODY STATIC GND. CABLE-STRAP, Battery Negative and Engine Ground. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 01 $9.32 15179982

022 BOLT; NUT. NUT. BOLT. FUEL TANK EVAPORATOR CONTROL. INFLATABLE RESTRAINT SYSTEM. FUEL TANK MOUNTING STRAP. A/C ACCUMULATOR. AIR CLEANER AND SILENCER. AMBIENT OUTSIDE AIR TEMPERATURE. ASSIST HANDLE. BATTERY CABLE. BODY MOLDINGS. BODY MULTIFUNCTION ELECTRIC COMPUTER. BODY SIDE WINDOW. BODY WIRING. BRAKE PEDAL. CAPSULE/HEADLAMP/FOG LAMP MOUNTING. CARBURETOR GOVERNOR. CHASSIS/ENGINE WIRING HARNESS. CRUISE CONTROL. DOOR LOCK. DOOR LOCK REMOTE. DOOR OUTSIDE HANDLE. DOOR WINDOW REGULATOR. DRIVER INFORMATION DISPLAY. ELECTRONIC BRAKE CONTROL. EMISSION CONTROL SYSTEM. ENGINE COOLANT. ENGINE COOLANT RECOVERY. ENGINE VALVE ADJUSTING. ENGINE VALVE PUSH ROD COVER. FRONT AND REAR BUMPER/FASCIA FACE. FUEL LINE. FUEL TANK. IGNITION COIL. INSTRUMENT PANEL. MAIN WIRING JUNCTION AND FUSE BLOCK. POWER BRAKE BOOSTER. REAR VIEW MIRROR. ROCKER PANEL MOLDING. SPARE WHEEL CARRIER. STARTER MOTOR. STEERING COLUMN. THROTTLE CONTROL LEVER. TRANSMISSION SHIFT CONTROL CABLE. UPPER END GATE. WIRING JUNCTION. STANDARD PART. HEX.
$5.50 11609411

023 INSULATOR. HOOD PANEL
INSULATOR,HOOD. INSULATOR, Hood Panel. For: CK2,3(03-43-53) CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $55.00 25925254

024 CABLE. HOOD LATCH
CABLE,HOOD PRIM LAT REL(INCLS PULL HANDLE). CABLE-CLIP, Hood Latch. For: CK1,2,3 (2007-2012) (2011 - 2012). Required: 01 $21.10 15894378

025 BOLT; NUT. NUT. BOLT. STABILIZER SHAFT. POWER BRAKE BOOSTER. A/C COMPRESSOR. A/C REFRIGERANT. A/C REFRIGERANT LINES. BATTERY CABLE. BATTERY HOLD DOWN. BRAKE PEDAL. BUMPER/FASCIA ENERGY ABSORBER. BUMPER/FASCIA MOUNTING. CATALYTIC CONVERTER. CHASSIS/ENGINE WIRING HARNESS. COMPUTER CONTROL SENSORS. DOOR HINGE. DOOR LOCK STRIKER. EARLY FUEL EVAPORATION. ELECTRONIC BRAKE CONTROL. EMISSION CONTROL SYSTEM. EMISSION SYSTEM. ENGINE AIR COOLING FAN. ENGINE COOLANT. ENGINE COOLANT BY-PASS. ENGINE COOLANT PUMP. ENGINE FUEL FILTER. ENGINE FUEL INTAKE MANIFOLD. ENGINE LIFT. ENGINE MOUNTING. ENGINE OIL LEVEL. EXHAUST MANIFOLD. EXHAUST MANIFOLD BOLT. EXHAUST MUFFLER/RESONATOR. EXHAUST PIPE. FRONT AND REAR BUMPER/FASCIA FACE. FRONT DOOR LOWER HINGE. FRONT DOOR UPPER HINGE. FRONT SEAT ADJUSTER. FRONT SEAT CUSHION. FUEL INJECTION. FUEL INJECTOR. FUEL LINE. FUEL TANK EVAPORATOR CONTROL. FUEL TANK MOUNTING STRAP. GENERATOR. GENERATOR ADJUST. GENERATOR MOUNTING. HEATER. HOOD LATCH. HORN. HYDRAULIC CLUTCH MAIN CYLINDER. HYDRAULIC POWER BRAKE BOOSTER. IGNITION COIL. IGNITION COIL MOUNTING. INFLATABLE RESTRAINT SYSTEM. INTAKE & EXHAUST MANIFOLD. LOWER HOOD. MULTI PORT FUEL INJECTION THROTTLE BODY. PARKING BRAKE APPLY. PARKING BRAKE CABLE. POWER STEERING. QUARTER WINDOW. REAR AXLE CONTROL ARM. REAR COMPARTMENT LID AND END GATE. REAR SEAT BACK. REAR SEAT CUSHION. SEAT. SEAT BELT. SHOCK ABSORBER/STRUT. SPARK PLUG IGNITION WIRE. STEERING COLUMN ATTACHING. STEERING GEAR MOUNTING. STEERING PUMP IDLER. STEERING PUMP MOUNTING. THROTTLE CONTROL LEVER. TRANSMISSION CONTROL. TRANSMISSION CONTROL CABLE. TRANSMISSION CONTROL LEVER. TRANSMISSION GEARSHIFT LEVER. TRANSMISSION OIL COOLER. TRANSMISSION SHIFT CONTROL. TRANSMISSION SHIFT CONTROL CABLE. TRANSMISSION SHIFT CONTROL LEVER. (METAL AND RUBBER SECTIONS) (WITH FRAME)
$4.50 11514596

027 BOLT. HOOD HINGE
BOLT,HOOD OPEN ASST SPR. BOLT-SPRING, Hood Hinge. For: CK1,2,3(03-43-53) (2008-2012) (2011 - 2012). Required: 02 $3.65 11569992

028 SPRING. HOOD HINGE
SPRING,HOOD OPEN ASST - LH. BOLT-SPRING, Hood Hinge. LHD. For: CK2,3(03-43-53) (2011-2012) (2011 - 2012). Required: 01 $14.78 20940430

028 SPRING. HOOD HINGE
SPRING,HOOD OPEN ASST - RH. BOLT-SPRING, Hood Hinge. RHD. For: CK2,3(03-43-53) (2011-2012) (2011 - 2012). Required: 01 $14.78 20940431

Crashtest496

029 BOLT. BOLT. AIR INJECTION REACTOR PUMP AND MULTI-FUNCTION AIR COMPRESSOR. BRAKE FLANGE PLATE. CHILD SAFETY SEAT. DISTRIBUTOR. EMISSION CONTROL SYSTEM. ENGINE CAMSHAFT. ENGINE LIFT. ENGINE OIL COOLER. ENGINE OIL PAN. FUEL TANK MOUNTING STRAP. HOOD LATCH. INSTRUMENT PANEL. INTAKE & EXHAUST MANIFOLD. PARKING BRAKE CABLE. SEAT BELT. SHOCK ABSORBER/STRUT. TRANSMISSION CONTROL. TRANSMISSION CONTROL LEVER. TRANSMISSION OIL PUMP. TRANSMISSION SHIFT CONTROL. TRANSMISSION SHIFT CONTROL LEVER. TURBOCHARGER/SUPERCHARGER COOLING. (ALSO KNOCK SENSOR)
$14.00 11570082

030 BRACKET. HOOD
BRACKET,HOOD HGE LWR - LH. BRACKET-HINGE-STRUT-STUD, Hood. LHD. For: CK1,2,3 (2007-2012) (2011 - 2012). Required: 01 $25.10 15887400

030 BRACKET. HOOD
BRACKET,HOOD HGE LWR - RH. BRACKET-HINGE-STRUT-STUD, Hood. RHD. For: CK1,2,3 (2007-2012) (2011 - 2012). Required: 01 $25.82 15887401
031 BOLT. DOOR HINGE. DOOR LOCK STRIKER. SIDE STEP.
LHD. $4.34 11609733

032 BRACKET. FRONT FENDER
BRACKET,F/FDR UPR - LH. BRACE-BRACKET-NUT, Front Fender. LHD. For: CK1,2,3 (2007-2012) (2011 - 2012). Required: 01 $49.33 15870422

032 BRACKET. FRONT FENDER
BRACKET,F/FDR UPR - RH. BRACE-BRACKET-NUT, Front Fender. RHD. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 01 $47.40 15951193

033 BUMPER. HOOD PANEL CLOSING
BUMPER,HOOD SI. BRACKET-BUMPER, Hood Panel Closing. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 02 $4.68 15295895

034 FENDER. FRONT FENDER
FENDER,FRT - RH. FENDER, Front Fender. RHD. For: CK1,2,3(03-43-53) CHEVROLET(X88) (2007-2012) (2011 - 2012). Required: 01 $500.92 22768376

035 BUMPER. HOOD PANEL CLOSING
BUMPER,HOOD ADJ FRT. BRACKET-BUMPER, Hood Panel Closing. For: CK1,2,3 (2007-2012) (2011 - 2012). Required: 02 $10.32 25790320

036 RETAINER. CLIP. COWL TOP VENT LOUVER. NUT. BUMPER/FASCIA. COWL VENTILATOR. FRONT AND REAR BUMPER/FASCIA FACE.
$6.87 15999788

037 CLIP. ACCELERATOR CONTROL. CHASSIS/ENGINE WIRING HARNESS. CRUISE CONTROL. HOOD LATCH. TRANSFER CASE. TRANSMISSION SHIFT CONTROL CABLE. WINDSHIELD WASHER. RETAINER. TRANSMISSION CASE.
$3.65 10150076
038 FILLER; NUT; RIVET. NUT. CAPSULE/HEADLAMP/FOG LAMP MOUNTING. EMISSION CONTROL SYSTEM. RIVET. FILLER. RADIATOR. AIR CLEANER AND SILENCER. AIR INJECTION REACTOR PUMP AND MULTI-FUNCTION AIR COMPRESSOR. BUMPER/FASCIA. BUMPER/FASCIA ENERGY ABSORBER. BUMPER/FASCIA MOUNTING. DOOR LOCK REMOTE CONTROL. FRONT AND REAR BUMPER/FASCIA FACE. FRONT FENDER PANEL. HORN. INFLATABLE RESTRAINT SYSTEM. INSTRUMENT PANEL. LUGGAGE ROOF. RADIATOR AND FRONT END TIE. RADIATOR GRILLE AND FRONT END PANEL. REAR COMPARTMENT. REAR QUARTER AND ROOF RAIL ASSIST STRAP. REAR QUARTER TRIM. REAR WHEELHOUSE. ROOF PANEL. TURBOCHARGER/SUPERCHARGER COOLING. WHEEL BRAKE CYLINDER/CALIPER.
NUT,RAD SUPT(M6X1X15)(07.840). BOLT-NUT-SUPPORT, Radiator and Front End Tie. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: AR $6.28 11518908

039 BRACKET. HOOD PANEL CLOSING
BRACKET,HOOD STOP BPR - LH. BRACKET-BUMPER, Hood Panel Closing. LHD. For: CK1,2,3(03-43-53) CHEVROLET(X88) (2007-2012) (2011 - 2012). Required: 01 $36.15 25804172

039 BRACKET. HOOD PANEL CLOSING
BRACKET,HOOD STOP BPR - RH. BRACKET-BUMPER, Hood Panel Closing. RHD. For: CK1,2,3(03-43-53) CHEVROLET(X88) (2007-2012) (2011 - 2012). Required: 01 $36.23 25804173

040 BOLT. LOWER HOOD
$3.65 11569962

041 NUT. ACCELERATOR PEDAL MOUNTING. BRAKE PEDAL. ENGINE CLUTCH PEDAL. REAR COMPARTMENT LID LOCK OR LIFTGATE. ROOF RAIL.
$4.64 11588331

042 BOLT. LOWER HOOD
BOLT,HOOD PRIM LAT(HEX,W/CON WA,M6X1X23,17 THD,22 OD,10.9,GMW3359 BLACK)(08.900). BOLT-LATCH, Lower Hood. For: CK1,2,3 (2007-2012) (2011 - 2012). Required: 03 $3.65 11569962

043 LATCH. LOWER HOOD
LATCH,HOOD PRIM(W/O SWITCH). BOLT-LATCH, Lower Hood. For: CK1,2,3 (EXC REMOTE KEYLESS ENTRY & ENGINE START(AP3),EXT RANGE REMOTE LOCK CONTROL(AP8),REMOTE ENTRY LK CONT(AU0),REAR POWER TAKE OFF(M1F),ANTI-THEFT(UA6) (2008-2012) (2011 - 2012). Required: 01
LATCH,HOOD PRIM(W/O SWITCH). BOLT-LATCH, Lower Hood. For: CK1,2,3 REMOTE ENTRY LK CONT(AU0),(EXC REAR POWER TAKE OFF(M1F),ANTI-THEFT(UA6) (2008-2012) (2011 - 2012). Required: 01 $111.67 25816903

043 LATCH. LOWER HOOD. VEHICLE.
LATCH,HOOD PRIM(W/SWITCH). BOLT-LATCH, Lower Hood. For: CK1,2,3 REAR POWER TAKE OFF(M1F),ANTI-THEFT(UA6) (2008-2012) (2011 - 2012). Required: 01
LATCH,HOOD PRIM(W/SWITCH). BOLT-LATCH, Lower Hood. For: CK1,2,3 REMOTE KEYLESS ENTRY & ENGINE START(AP3),EXT RANGE REMOTE LOCK CONTROL(AP8),(EXC REAR POWER TAKE OFF(M1F) (2008-2012) (2011 - 2012). Required: 01 $121.92 20763454

045 BRACKET. HOOD PANEL CLOSING
BRACKET,HOOD STOP. BRACKET-BUMPER, Hood Panel Closing. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 01 $58.72 25811768

046 CLIP. HOOD LATCH. CLAMP. ENGINE FUEL INTAKE MANIFOLD. FUEL LINE. RETAINER.
$8.68 22695408

048 NUT. HOOD PANEL ORNAMENTATION
NUT,HOOD FRT MLDG. EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(03-43-53) SPECIAL GRL(TL1),CHROME GRL(V22) (2011-2011) (2011 - 2012). Required: 02
NUT,HOOD FRT MLDG. EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(03-43-53) SPECIAL GRL(TL1),CHROME RAD GRILLE(VPZ),CHROME GRL(V22) (2012-2012) (2011 - 2012). Required: 02 $3.67 11570742

049 STUD. HOOD PANEL ORNAMENTATION
STUD,HOOD FRT MLDG. BOLT-CLIP-RETAINER-STUD, Hood Panel Ornamentation. For: CK2,3(03-43-53) CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 02 $10.77 11570693

050 RETAINER. FRONT DOOR SILL. CLIP. HOOD PANEL ORNAMENTATION. REAR SIDE DOOR SILL.
RETAINER,HOOD FRT MLDG(10.352). BOLT-CLIP-RETAINER-STUD, Hood Panel Ornamentation. For: CK2,3(03-43-53) CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $3.72 11570612

051 MOLDING. HOOD PANEL ORNAMENTATION
MOLDING,HOOD FRT(CHROME). EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(03-43-53) CHROME GRL(V22),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $84.82 20963700

051 MOLDING. HOOD PANEL ORNAMENTATION
MOLDING,HOOD FRT(PAINT TO MATCH). EMBLEM-MOLDING-NUT, Hood Panel Ornamentation. For: CK2,3(43-53) Z71 "PLUS" APPEARANCE PKG(WEA),CHEVROLET(X88) (2012-2012) (2011 - 2012). Required: 01 $186.70 22765886

052 BUMPER. HOOD PANEL CLOSING
BUMPER,HOOD FRT. BRACKET-BUMPER, Hood Panel Closing. For: CK1,2,3(03-43-53) (2007-2012) (2011 - 2012). Required: 04 $4.67 15296024

053 WEATHERSTRIP. HOOD PANEL
WEATHERSTRIP,HOOD SI(ATTACH TO FENDER) - RH. WEATHERSTRIP, Hood Panel. RHD. For: CK2,3 6.6 (LGH),6.6-8(LML),CHEVROLET(X88) (2011-2012) (2011 - 2012). Required: 01 $129.00 25890122

AUTOT3K

iTrader: (3)

that's a good write up, lots of info to look over for sure!
now it just needs some how too pics and its set!

Crashtest496

NNBS Bumper and Grille swap
Ok so I was asked for pics, so here we go.

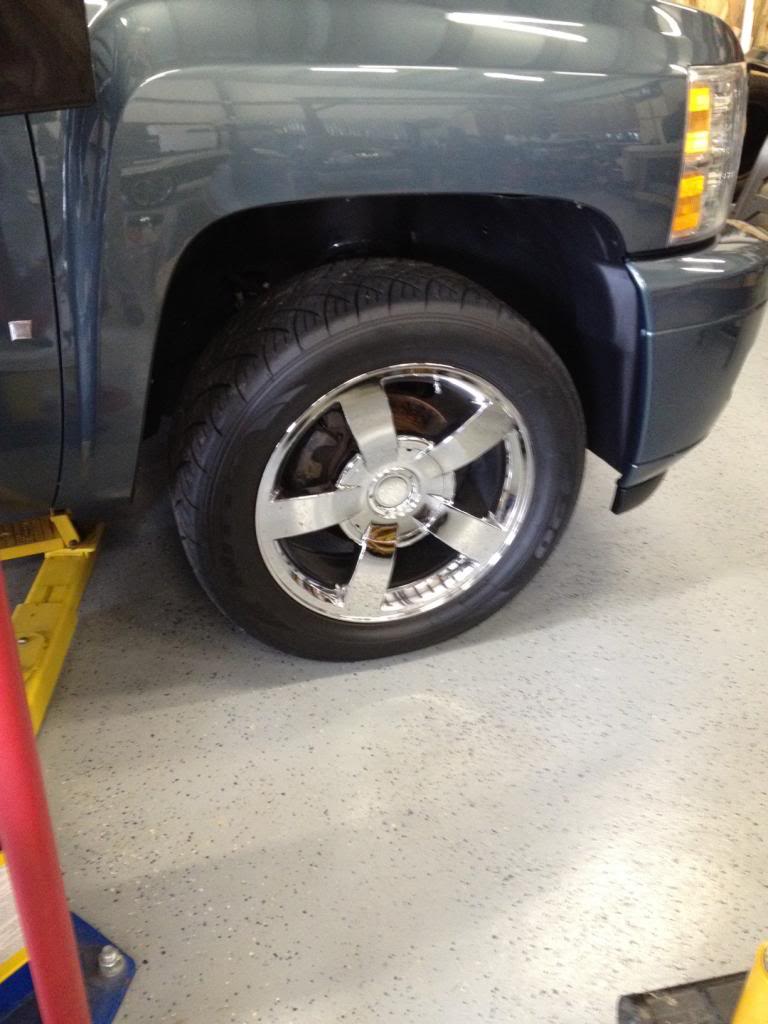

Started off with a 2007 NNBS RCSB

Little lady luck on my side with this Craigslist find less than 100 miles from home with all original paint GM parts

Grille bought GM PART NO 22842236, note the bowtie does not come with this, the grille pops right in, and no modifying of anything is needed

Had got this eBay special from one of the local Chevy dealers that list their parts online GM PART NO 22829420

Before cover on the 07 cover on top of the old grille

After the same cover on the new grille, all holes lined up

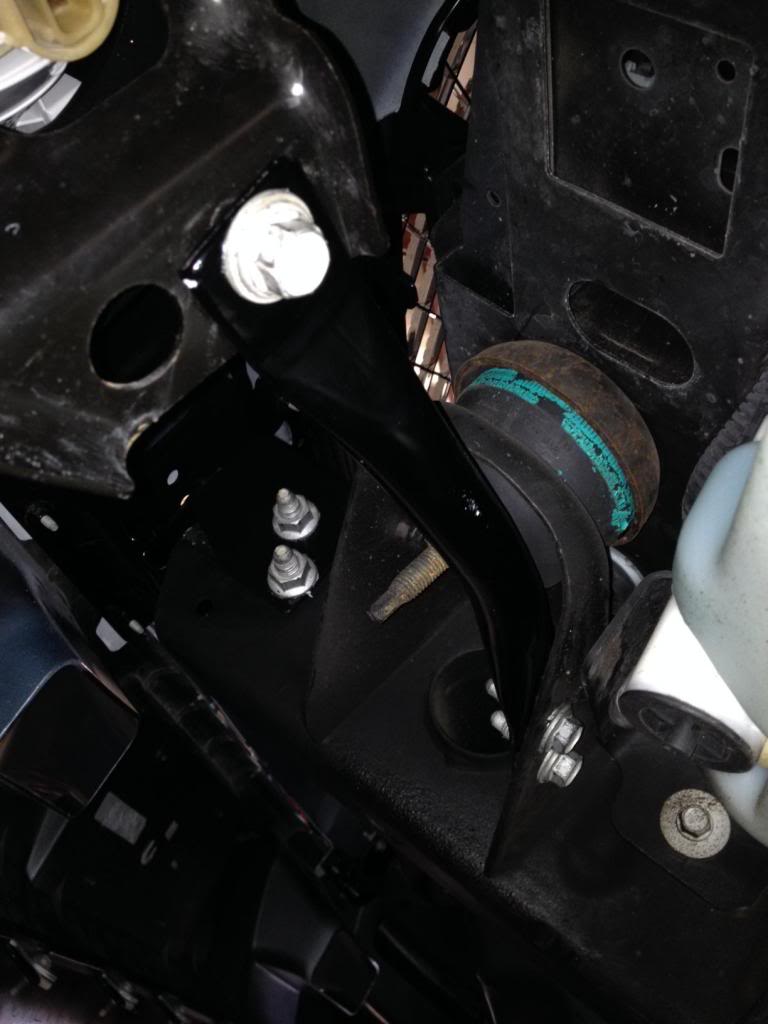

Now for the fun stuff, side brackets next, the pics I took was on the same side, can take other side but it is the same, just different side of the truck below if the factory 08 brackets

Had modified the 2011 brackets that came with the bumper that I had got off Craigslist. The 2011 brackets would not match up like I wanted. They have three holes on the brackets and no matter how I lined it up I could only get two. After a little thinking and a little modifying brackets lined up good without any stress or drilling the bumper or truck

In this pic the one on the right is the 2011 factory and the left is the modified one, as you can tell I only had to straighten it in a vice and drill one hole, the flat section was trimmed to help with the fog light adjustment hole.

Crashtest496

Now the bumper brackets, many stated that you can just drill the backing plate and bolt it up to the factory mounts, what fun is that. I took a few pics to show the difference of the factory 1500 and the 2500 brackets


After thinking about it a little bit and wanting to be able to have some adjustment to get some factory clearances I decided to modify them a little bit. This way the bumper was a straight bolt up, without drilling any holes


Little side by side of the stock and my bracket, as you can tell the part that the bumper will bolt to is now lower by 1 ¼ inches



This is the bracket that if you chose to redrill that you need to more to gain the clearance that you need so that the bumper does not hit the grille

This is a pic of the bumper bolted to the mount, note the factory backing plate still has all three bolts for the stock holes were used

The bumper brackets was made so that they still could be adjust to get the look that you would like on the clearances that I was trying for, nothing rubs and is hitting


Next step was the inner fender liners, the stock ones on the 07 do not line up not even close with the 2011 bumper, so I got the inner liners from the same ebay chevy dealer for 45 each shipped
Side by side lower old, upper new

The look of the final install, it does fit and holes lined up for the most part. The 2011 has a few more holes than the stock 07 ones did so a few extra clips from the local auto parts store and it fits good. The driver side is the same fits just have to trim a little by the strut tower.

Crashtest496

Hood pics and parts write up to come

AUTOT3K

iTrader: (3)

that's a clean install man!
great job!

TIM Z

iTrader: (12)

Awesome job , love that frontend big improvement !
Thanks for all the info
