09-02-2011, 09:03 AM

#11

Bumpers

TECH Addict

iTrader: (10)

Join Date: Nov 2005

Location: Tupelo Ms

Posts: 2,114

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by lownslo

yea the 4wd has a different x member too right? It looks like your talshaft bushing is different mount too. Post up some pics when ya get it all in! Are the wires the same for you as a 2wd? ( I had to add a vss sensor and change two pins in the harness that goes into the trans.)

yea instead of having a tailshaft housing like yours the 4wd has a adapter housing that the transfercase bolts up too

Reply Like

09-02-2011, 10:15 AM

#12

DrX

TECH Addict

iTrader: (7)

Join Date: Jun 2005

Location: Canada

Posts: 2,702

Likes: 0

Received 6 Likes on 6 Posts

Did mine pretty well the same but with square tubing.

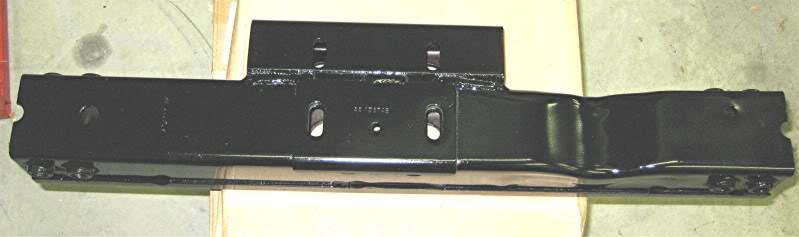

Name: IMG_0358-1.jpg
Views: 3906
Size: 28.5 KB

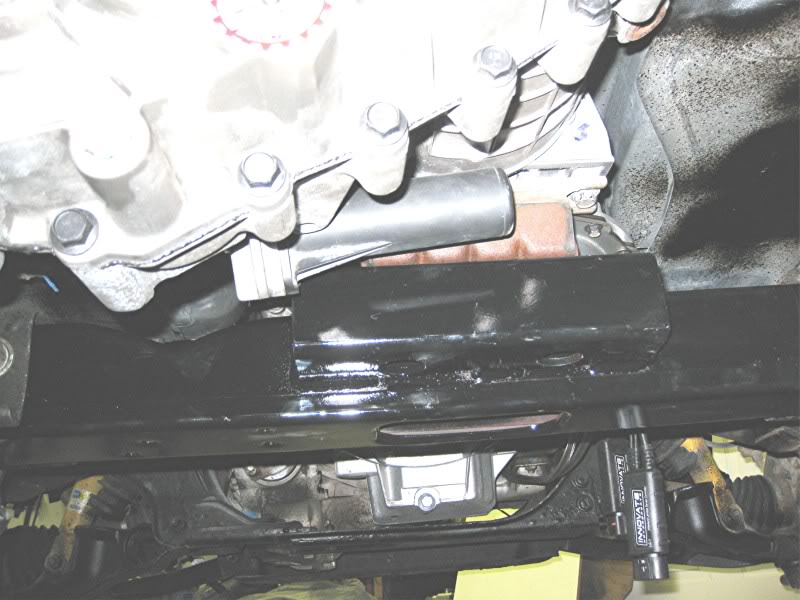

Name: IMG_0366.jpg
Views: 3883
Size: 77.8 KB

Reply Like

09-02-2011, 10:33 AM

#13

sureshot

TECH Resident

Thread Starter

iTrader: (5)

Join Date: Nov 2008

Location: Delaware

Posts: 994

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by lownslo

Yeah, I have to add another vss as well. There a few different ways to do the wiring. I'll be swapping all of my wires at the pcm.

Quote:

Originally Posted by Bumpers

yea instead of having a tailshaft housing like yours the 4wd has a adapter housing that the transfercase bolts up too

Yup!

Quote:

Originally Posted by DrX

Did mine pretty well the same but with square tubing.

I like the way you did yours as well. It just shows there is more than one way to do things!

Reply Like

09-02-2011, 10:38 AM

#14

Atomic

I have a gauge for that

iTrader: (42)

Join Date: Jan 2006

Location: Huntsville, AL

Posts: 16,252

Likes: 67

Received 373 Likes on 254 Posts

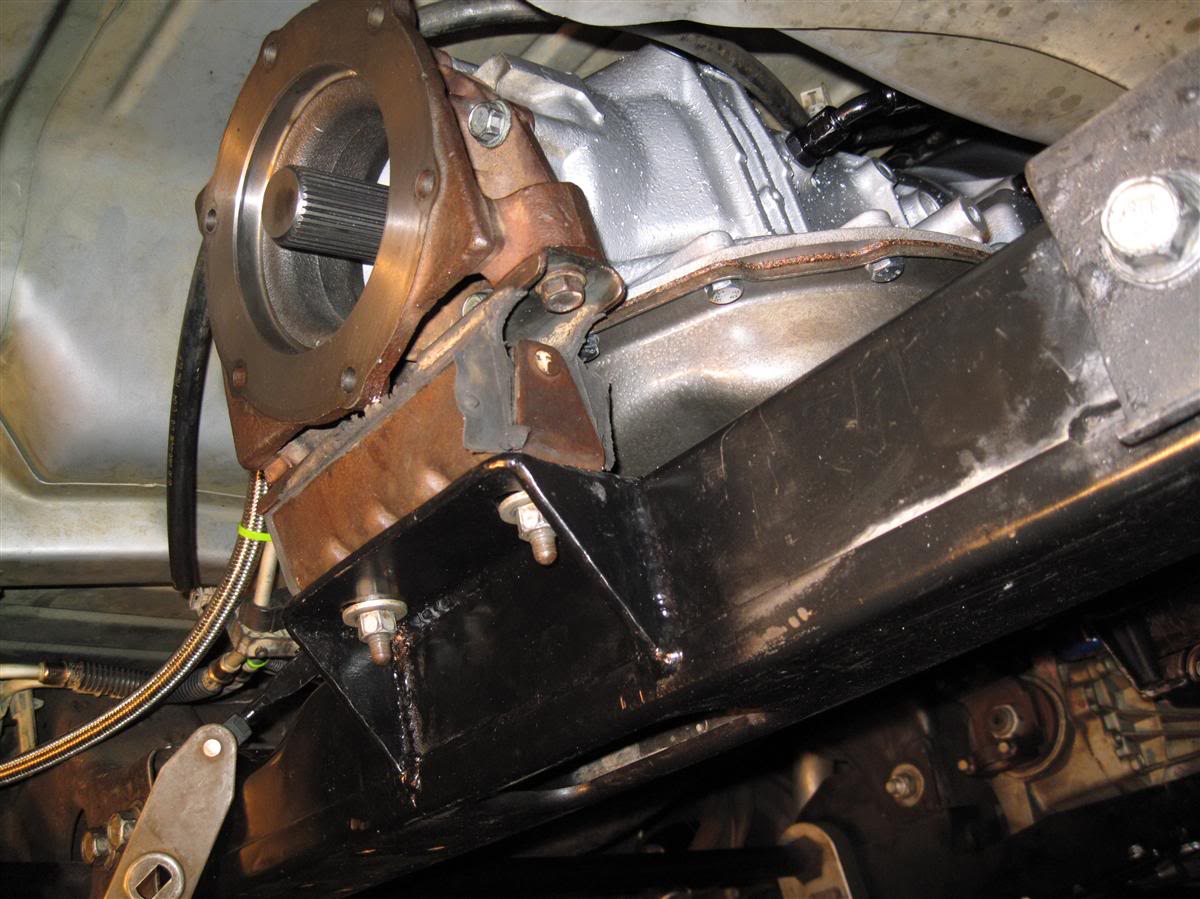

I used angle iron with gussets

Name: IMG_2043Custom.jpg
Views: 4968
Size: 140.2 KB

Reply Like

09-02-2011, 10:45 AM

#15

lownslo

TECH Fanatic

iTrader: (3)

Join Date: Aug 2005

Location: Jxn, Miss

Posts: 1,560

Likes: 0

Received 0 Likes on 0 Posts

I was gonna do something like that, here is the first attempt at getting my angles right.... they guy that helped me weld has mad skillz

Reply Like

09-02-2011, 08:23 PM

#16

sureshot

TECH Resident

Thread Starter

iTrader: (5)

Join Date: Nov 2008

Location: Delaware

Posts: 994

Likes: 0

Received 0 Likes on 0 Posts

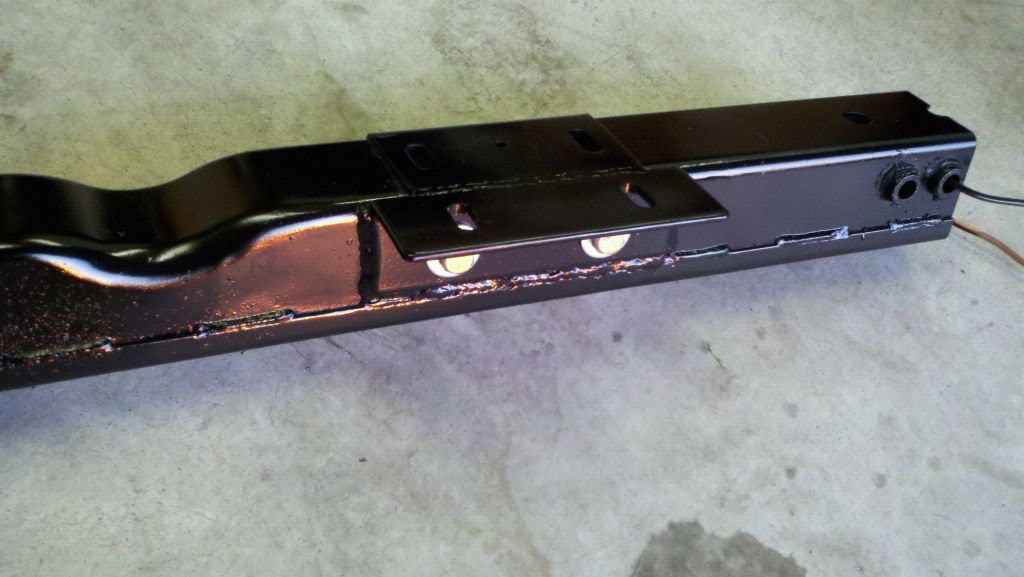

Just a few pics after painting:

Name: 204.jpg
Views: 3869
Size: 61.4 KB

Reply Like

09-02-2011, 09:07 PM

#17

black04

TECH Fanatic

iTrader: (15)

Join Date: Jan 2008

Location: Phoenix, AZ

Posts: 1,406

Likes: 6

Received 10 Likes on 9 Posts

I did mine like that too. I used 3/16" since its what i had laying around. Only took a couple minutes to make.

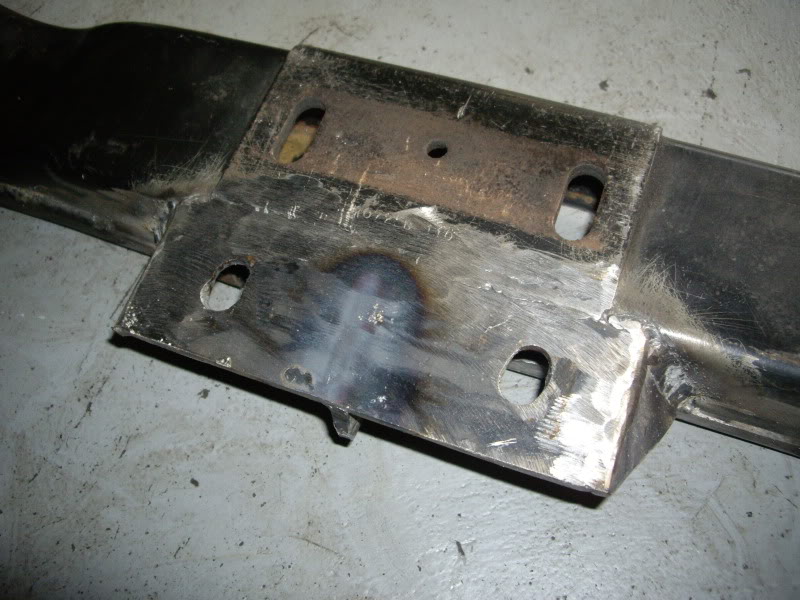

Name: IMGP4126.jpg
Views: 3894
Size: 90.4 KB

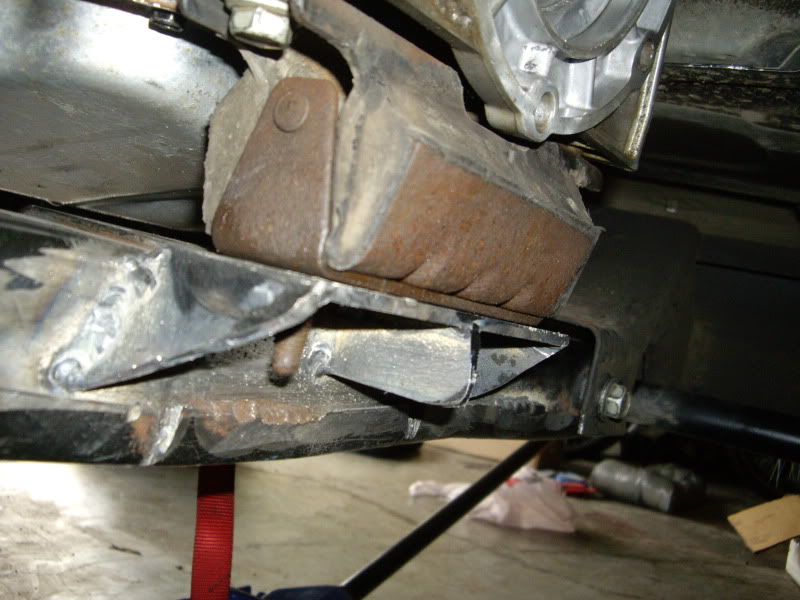

Name: IMGP4123.jpg
Views: 4013
Size: 75.8 KB

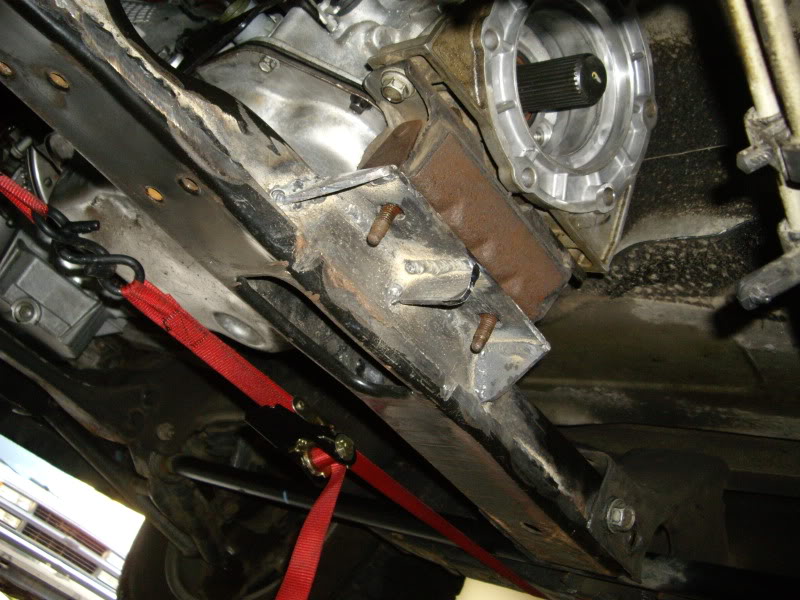

Name: IMGP4124.jpg
Views: 4050
Size: 98.0 KB

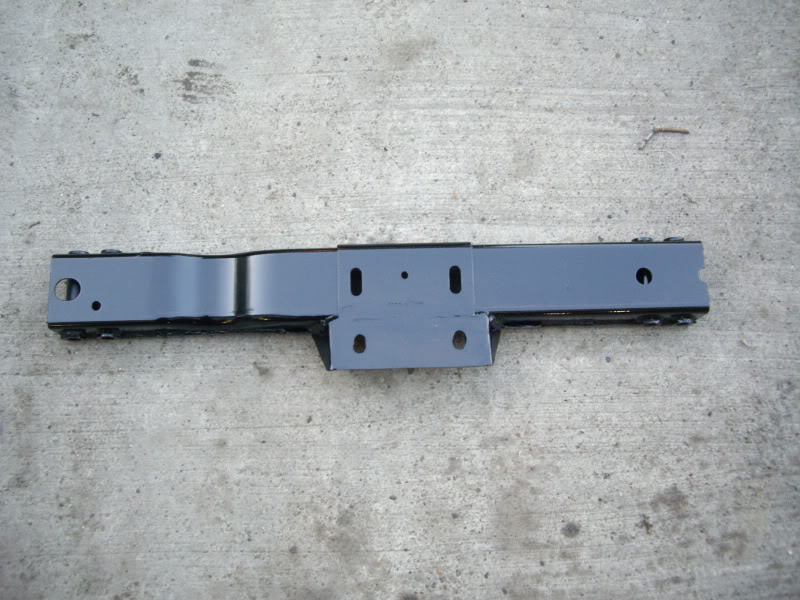

Name: IMGP4128.jpg
Views: 4033
Size: 99.7 KB

Reply Like

09-02-2011, 09:24 PM

#18

TIM Z

11 sec. Truck Mod

iTrader: (12)

Join Date: Dec 2005

Location: OH IO :(

Posts: 9,736

Likes: 0

Received 4 Likes on 4 Posts

Looks good guys!

Mine is identicle to lownslo .

4L80e FTW

Reply Like

09-02-2011, 09:40 PM

#19

AKlowriderZ71

11 Second Hall Moniter

iTrader: (22)

Join Date: May 2008

Location: Wyoming

Posts: 11,651

Likes: 3

Received 8 Likes on 8 Posts

For you guys that added a mounting tab to the back of your crossmember, How much clearance to the pan do you have? Can you pull the pan without removing the crossmember? It's not much extra work to support the t-case & remove the crossmember, but I just want to know. Pics of the pan/crossmember would be cool if anyone has them.

Thanks in advance!
