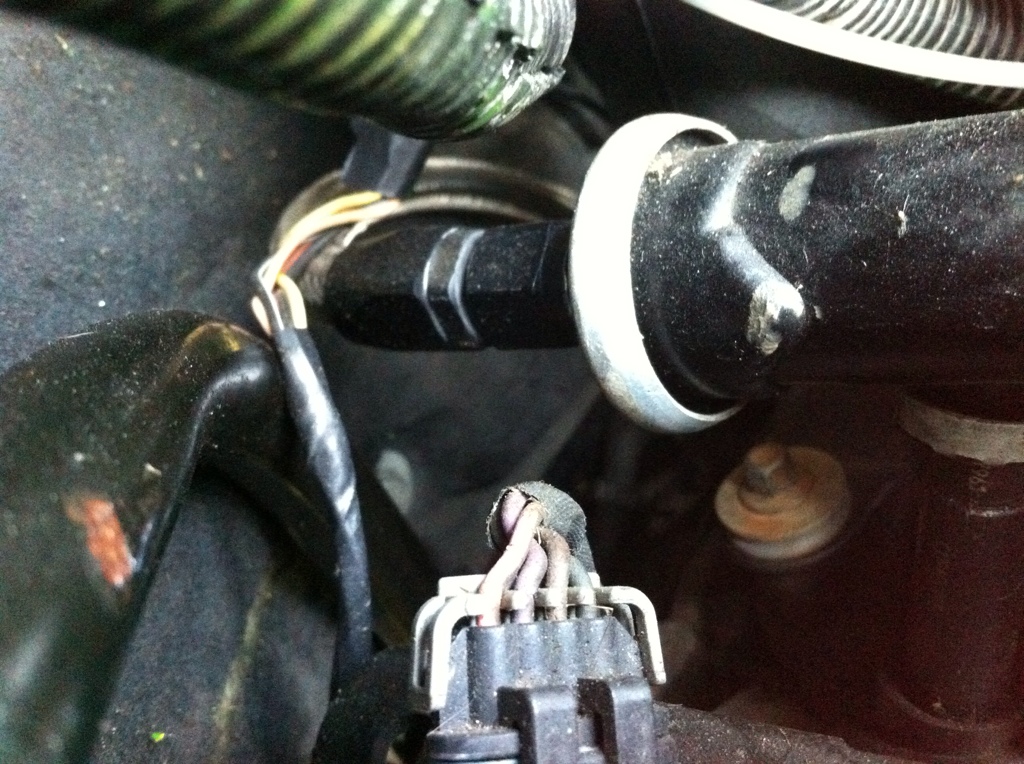

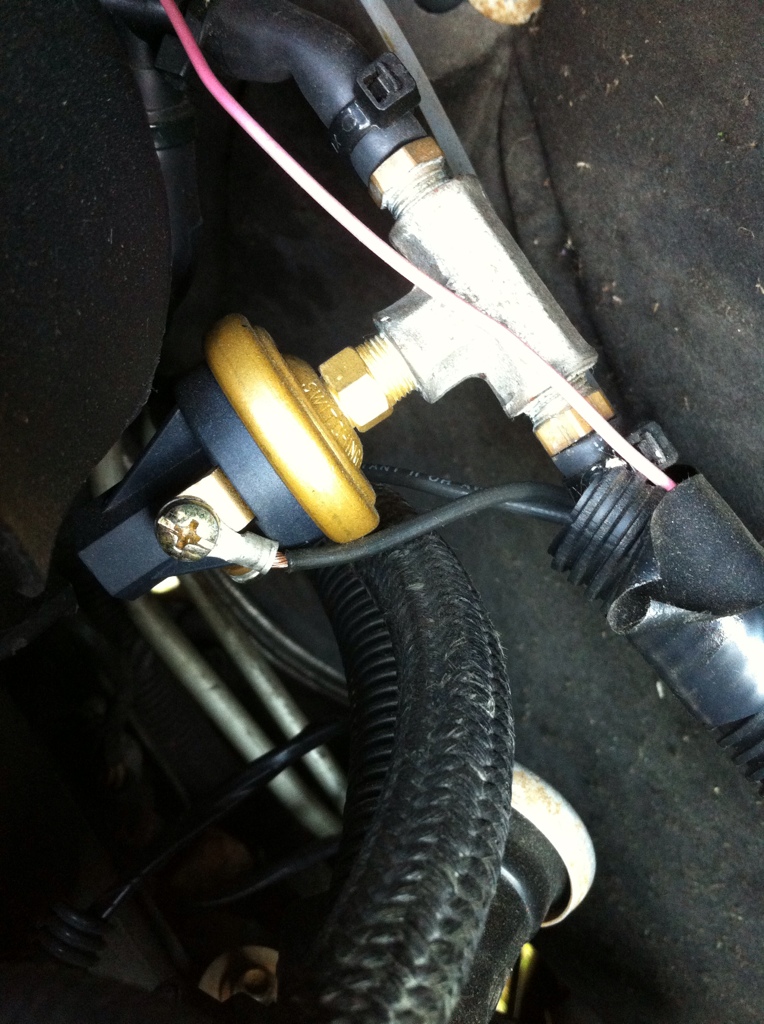

Thanks for posting ur external pump setup. Is that fitting at the back of the tank bolted from inside or just threaded to the plastic tank? What size is your inline feed line and fittings?
I'm going to install my Magnafuel inline fuel pump but afraid to drill the tank and end up with fuel leak. So, can you explain how you drilled the tank and fixed that fitting?
I'm going to install my Magnafuel inline fuel pump but afraid to drill the tank and end up with fuel leak. So, can you explain how you drilled the tank and fixed that fitting?
09-29-2013, 09:01 PM
#55
Launching!
Thread Starter
iTrader: (10)
Join Date: Feb 2008
Posts: 275
Likes: 0
Received 0 Likes
on
0 Posts
It's threaded into the tank, I used a unibit and then just tapped it. Applied thread sealant, the tanks are very thick so you won't have trouble, make sure to get all the shavings out from inside though. The feed line is 3/8" I believe. Make you hole on the small side so your fitting does not bottom out. You want it to start tightening up in the threads pretty early to retain a tight seal!
