I will take it to exhaust shop to cut and adjust the flange location to make sure the WG will clear the oil pan.
Another thing I noticed is that this WG hight is more than the one I posted in the previous picture. Combine that with lower cross over pipe and it's WG saying hello to the oil pan.
Could be also my cross over pipe diameter is larger, not sure though.
Rick mentioned something about 4L80E pan having dented corner compared to my 60E pan.
Another thing I noticed is that this WG hight is more than the one I posted in the previous picture. Combine that with lower cross over pipe and it's WG saying hello to the oil pan.
Could be also my cross over pipe diameter is larger, not sure though.
Rick mentioned something about 4L80E pan having dented corner compared to my 60E pan.
looks good tho so far.
Mar 8, 2013 | 03:15 PM
#64
once water cooling connections are done, will fire it up to check for leaks then off to the exhaust shop for WG flange adjustment and connection of DP to the 3" muffler/tail pipe.
Rick, should I relocate the WG mounting flange or just cut it and rotate it downward little to clear the trans oil pan then re-weld it?
I noticed that my corss over pipe sits further backward and lower compared to pics that I've seen on the forums. So, no matter what cutting I do to shorten the WG mounting flange, it will not clear the trans oil pan beacuse it's so close to it.
Rick, should I relocate the WG mounting flange or just cut it and rotate it downward little to clear the trans oil pan then re-weld it?
I noticed that my corss over pipe sits further backward and lower compared to pics that I've seen on the forums. So, no matter what cutting I do to shorten the WG mounting flange, it will not clear the trans oil pan beacuse it's so close to it.
the water fittings are not supplied. Some customers run them some don't.
I believe the instructions on the turbo said if not running water lines. The housing must be filled with antifreeze and plugs reinstalled.
Mar 9, 2013 | 03:07 AM
#69
Thread Starter
TECH Fanatic
Joined: Dec 2008
Posts: 1,016
Likes: 0
I would cut and angle toward pass side for clearance. No need to make a new hole etc.
the water fittings are not supplied. Some customers run them some don't.
I believe the instructions on the turbo said if not running water lines. The housing must be filled with antifreeze and plugs reinstalled.
the water fittings are not supplied. Some customers run them some don't.
I believe the instructions on the turbo said if not running water lines. The housing must be filled with antifreeze and plugs reinstalled.

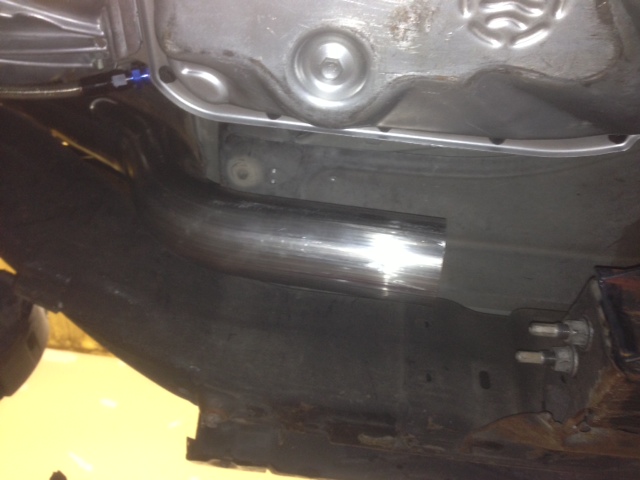

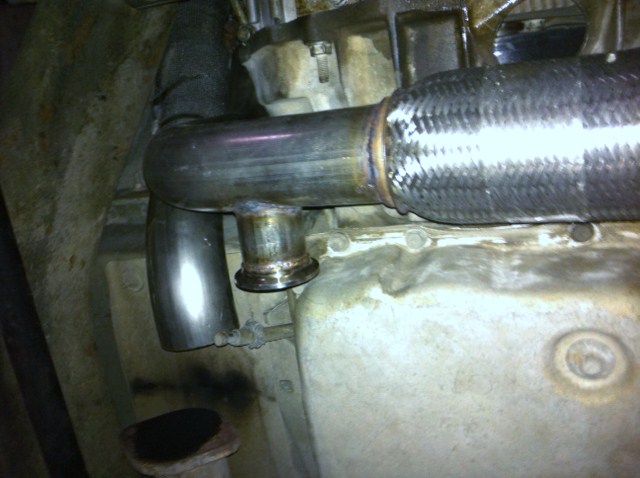

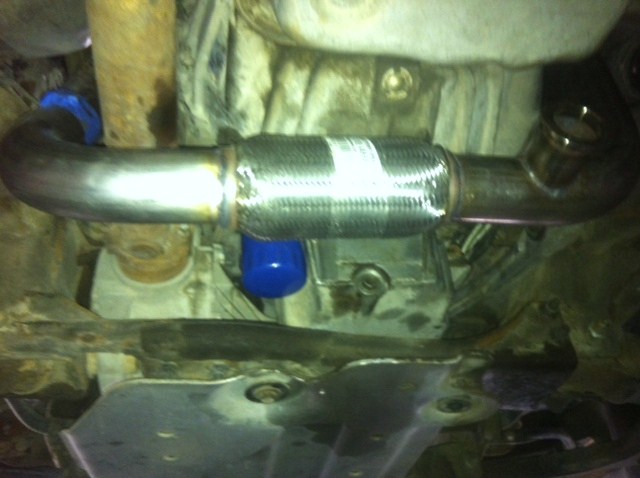

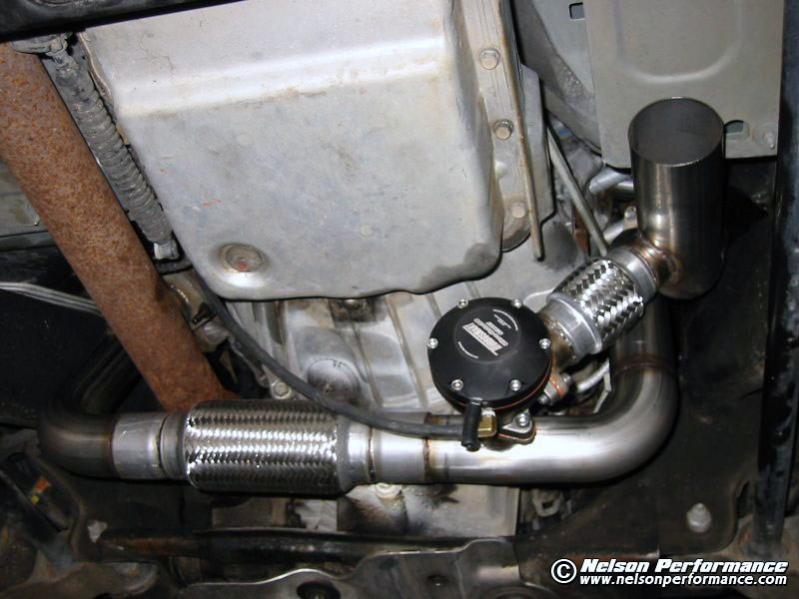

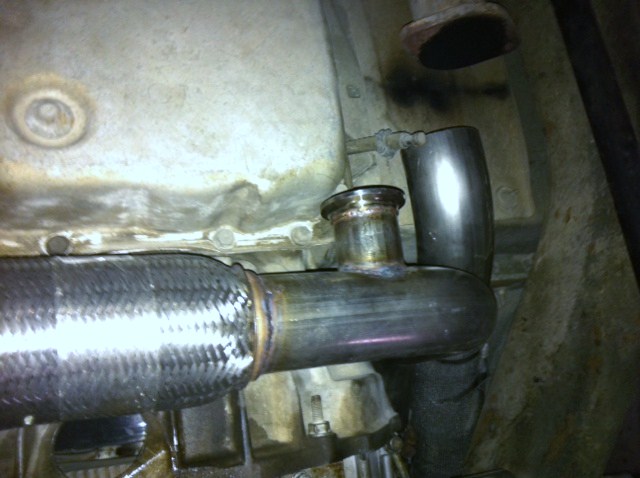

See attached pics showing why my DP is different. It sits further back toward the trans oil pan while the first pic shows dp pushed forward toward the transmission bellhousing and away from the trans oil pan.
Also, my WG total hight, from bottom flange to top of the gate, is more than the WG shown in the 1st pic. These are my observation of what could be the reason for the WG not fitting and hitting the trans oil pan.
So, my options are to relocate the WG flange to the corner near the DP keeping same direction, parallel to the ground or to angle it downward keeping it in the same position.
