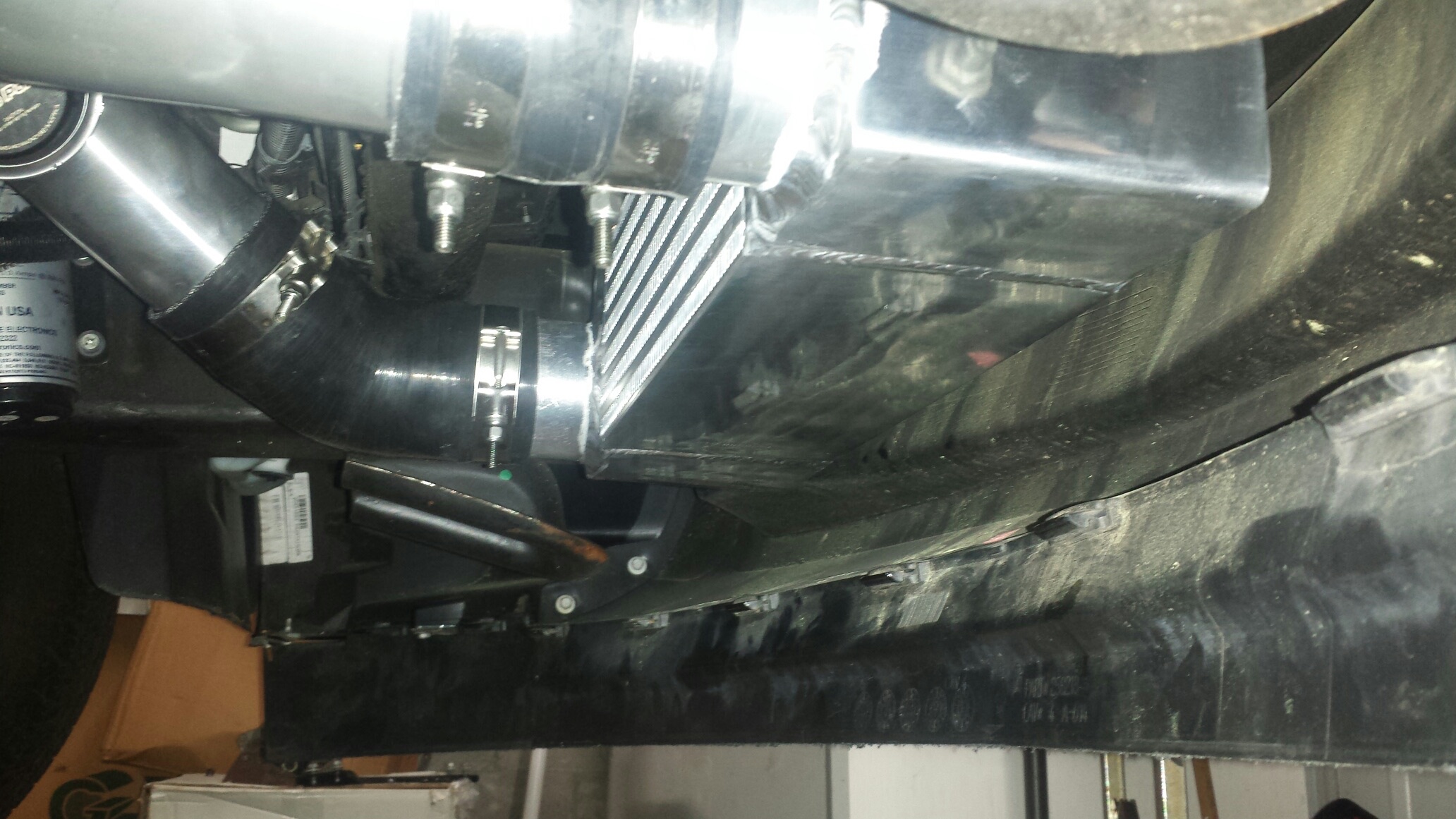

Few pics of the intercooler and tubing.

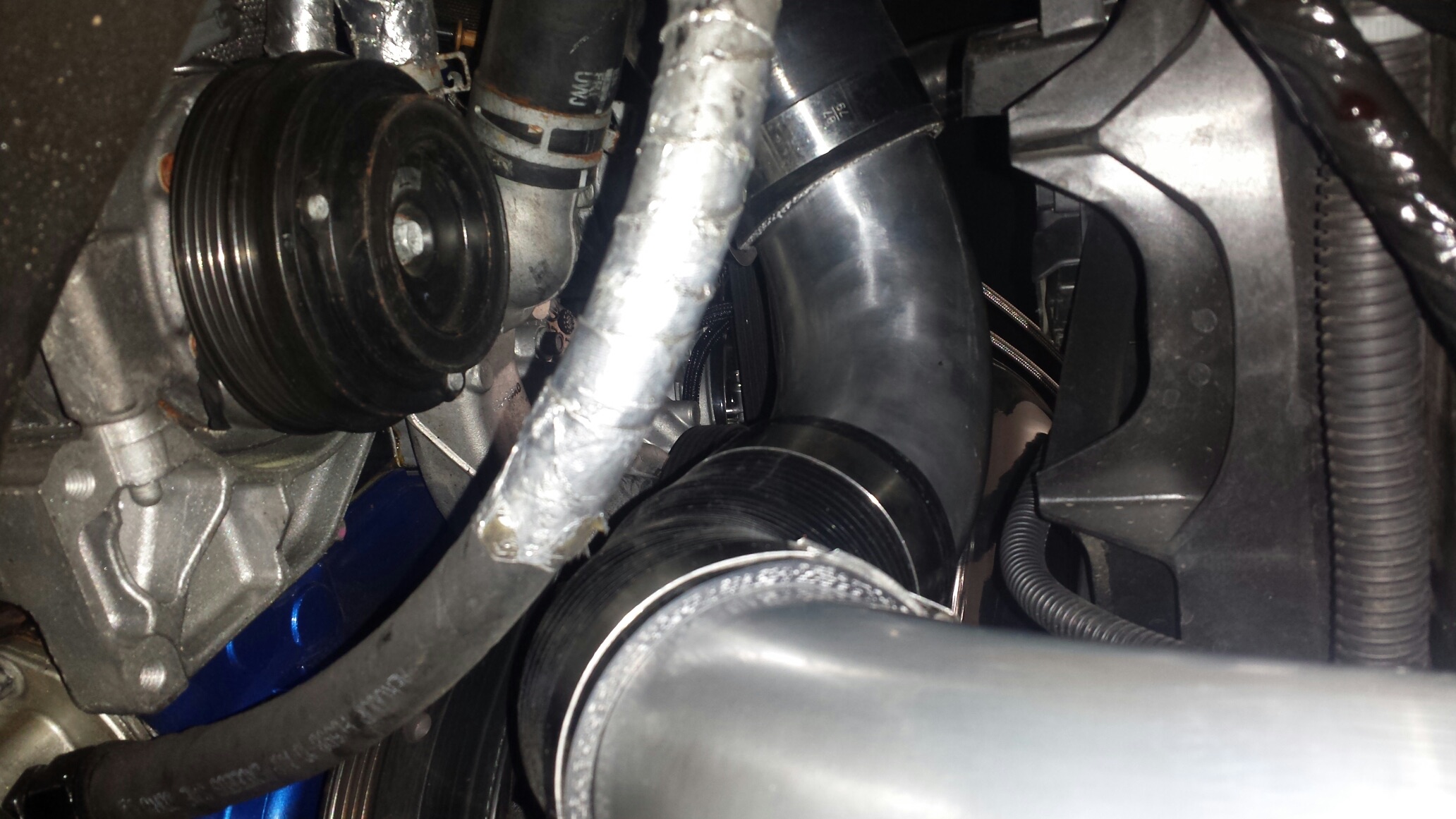

A few pics of the turbo to intercooler routing.



This a pic of bov vacuum.



Awesome setup man,with tricks T6 log did u have to make a new ac line?



I didn't at first but doing one now to get it away from the turbo. low side only



The cast t6 manifold is going to need a new AC line. 07-13 It was created to maximize flow for a twin scroll so the location was set. It just happens to be right in line with ac line.
The 99-06 I'm betting no line will be nedded. Seeing how those trucks lines can be moved farther and easier then the later models.



Yep my 06 did not need a new line. A lot of bending and tweaking and heat wrap but it clears. With that being said I will make a new line someday because it could be better but it works fine like this.



My stock is still on the truck but very close to the turbo housing. I'm building and new line to make sure I won't have problems with the line leaking.
