new engine starter wont work

Thread Tools

Search this Thread

Old 10-03-2012, 11:22 PM
  #11
TECH Fanatic
Thread Starter
iTrader: (5)

greasemykey's Avatar

Join Date: Nov 2005
Location: Portsmouth, VA
Posts: 1,152
Likes: 0
Received 0 Likes on 0 Posts
Default
crank fuse is still good. pulled it and replaced it anyway and still nothing
greasemykey is offline
Reply Like
Old 10-03-2012, 11:23 PM
  #12
TECH Fanatic
Thread Starter
iTrader: (5)

greasemykey's Avatar

Join Date: Nov 2005
Location: Portsmouth, VA
Posts: 1,152
Likes: 0
Received 0 Likes on 0 Posts
Default
where does that wire come from?
greasemykey is offline
Reply Like
Old 10-03-2012, 11:25 PM
  #13
Custm2500's Rude Friend
iTrader: (17)

1FastBrick's Avatar

Join Date: Apr 2007
Location: JunkYard
Posts: 14,328
Received 761 Likes on 630 Posts
Default
The IGN 1 is the 10 amp he is referring to under hood I believe.
1FastBrick is offline
Reply Like
Old 10-03-2012, 11:30 PM
  #14
TECH Fanatic
iTrader: (7)

TXSZ66AVLANCHE's Avatar

Join Date: Sep 2010
Posts: 1,920
Likes: 0
Received 2 Likes on 2 Posts
Default
Originally Posted by greasemykey
where does that wire come from?
Wire comes from starter relay in fuse box under the hood. Ignition triggers starter relay which sends power to starter solenoid. Try jumping relay manually.
TXSZ66AVLANCHE is offline
Reply Like
Old 10-03-2012, 11:32 PM
  #15
TECH Fanatic
Thread Starter
iTrader: (5)

greasemykey's Avatar

Join Date: Nov 2005
Location: Portsmouth, VA
Posts: 1,152
Likes: 0
Received 0 Likes on 0 Posts
Default
what two pins do i jump?
greasemykey is offline
Reply Like
Old 10-03-2012, 11:34 PM
  #16
TECH Fanatic
iTrader: (7)

TXSZ66AVLANCHE's Avatar

Join Date: Sep 2010
Posts: 1,920
Likes: 0
Received 2 Likes on 2 Posts
Default
With key on see which pins have power first
TXSZ66AVLANCHE is offline
Reply Like
Old 10-03-2012, 11:40 PM
  #17
TECH Fanatic
Thread Starter
iTrader: (5)

greasemykey's Avatar

Join Date: Nov 2005
Location: Portsmouth, VA
Posts: 1,152
Likes: 0
Received 0 Likes on 0 Posts
Default
3 pins have power. 85 86 87 but two of them only have about 2 volts or so.
greasemykey is offline
Reply Like
Old 10-03-2012, 11:42 PM
  #18
Custm2500's Rude Friend
iTrader: (17)

1FastBrick's Avatar

Join Date: Apr 2007
Location: JunkYard
Posts: 14,328
Received 761 Likes on 630 Posts
Default

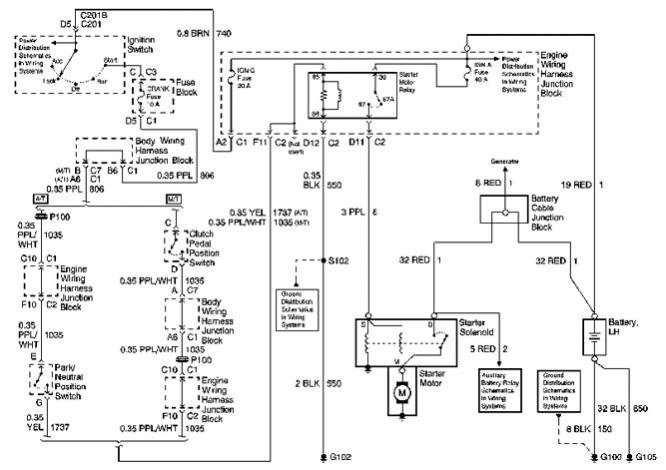

I found a diagram online for you.

Did you say in your other thread that you tested the relay as well or swapped it with one similar???
Attached Thumbnails new engine starter wont work-starter.jpg
1FastBrick is offline
Reply Like
Old 10-03-2012, 11:44 PM
  #19
TECH Fanatic
Thread Starter
iTrader: (5)

greasemykey's Avatar

Join Date: Nov 2005
Location: Portsmouth, VA
Posts: 1,152
Likes: 0
Received 0 Likes on 0 Posts
Default


i think that diagram gave me a headache. lol ok ill try and figure it out
greasemykey is offline
Reply Like
Old 10-03-2012, 11:47 PM
  #20
TECH Fanatic
Thread Starter
iTrader: (5)

greasemykey's Avatar

Join Date: Nov 2005
Location: Portsmouth, VA
Posts: 1,152
Likes: 0
Received 0 Likes on 0 Posts
Default
yes i swapped with the ignition relay thats next to it. its the exact same one.
greasemykey is offline
Reply Like
