Do you have a wire diagram for a 2005 silverado 2500hd 6.0, ground location

Thread Tools

Search this Thread

Old 08-05-2017, 09:30 PM
  #1
Registered User
Thread Starter

Maddworks's Avatar

Join Date: Aug 2017
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Default Do you have a wire diagram for a 2005 silverado 2500hd 6.0, ground location
G100 g101 g102
Maddworks is offline
Reply Like
Old 08-06-2017, 08:44 AM
  #2
DrX
TECH Addict
iTrader: (7)

DrX's Avatar

Join Date: Jun 2005
Location: Canada
Posts: 2,702
Likes: 0
Received 6 Likes on 6 Posts
Default
See below. There is no drawing for G101.

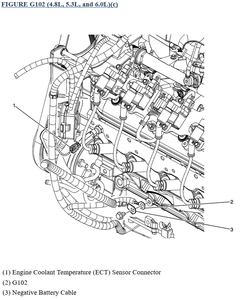

Attached Thumbnails Do you have a wire diagram for a 2005 silverado 2500hd 6.0, ground location-grounds.png   Do you have a wire diagram for a 2005 silverado 2500hd 6.0, ground location-g100.png   Do you have a wire diagram for a 2005 silverado 2500hd 6.0, ground location-g102.png
