Default 90 mm TB wiring

Has anyone figured out the wiring to go from a 03-07 8 pin 78mm throttle body to an 08+ 87/90 mm 6 pin throttle body?? It can't be rocket science, but I refuse to pay more for a harness than I did for the rest of the intake and throttle body setup. I have schematics showing each wire for the plugs. The 8 pin has the same as the 6 pin except 2 each of the low reference and the 5 volt reference. Could I not loop these together and make it work??
Reply
Old Jun 6, 2011 | 12:44 AM
  #2
Fastcount03's Avatar
Thread Starter
12 Second Truck Club
iTrader: (13)

Joined: Sep 2008
Posts: 801
Likes: 0
From: Duncan, OK
Default

Has anyone ran a TBSS intake and throttle body setup on their truck without buying an x link??
Reply
Old Jun 6, 2011 | 04:20 AM
  #3
Gadgetized's Avatar
TECH Junkie
15 Year Member
iTrader: (9)

Joined: Jan 2010
Posts: 3,095
Likes: 3
From: Rochester, NY
Default

There is no way around this unless you can figure out the wiring yourself. The guys that know how to do it are the ones that make the conversion kits, and won't tell. I had to buy one too.
Reply
Old Jun 6, 2011 | 07:33 AM
  #4
beingblueeyes's Avatar
Staging Lane
iTrader: (5)

Joined: Jul 2010
Posts: 93
Likes: 0
Default

^+1 i had to buy one also
Reply
Old Jun 6, 2011 | 07:51 AM
  #5
bullygoat's Avatar
On The Tree

Joined: Sep 2004
Posts: 174
Likes: 0
Default

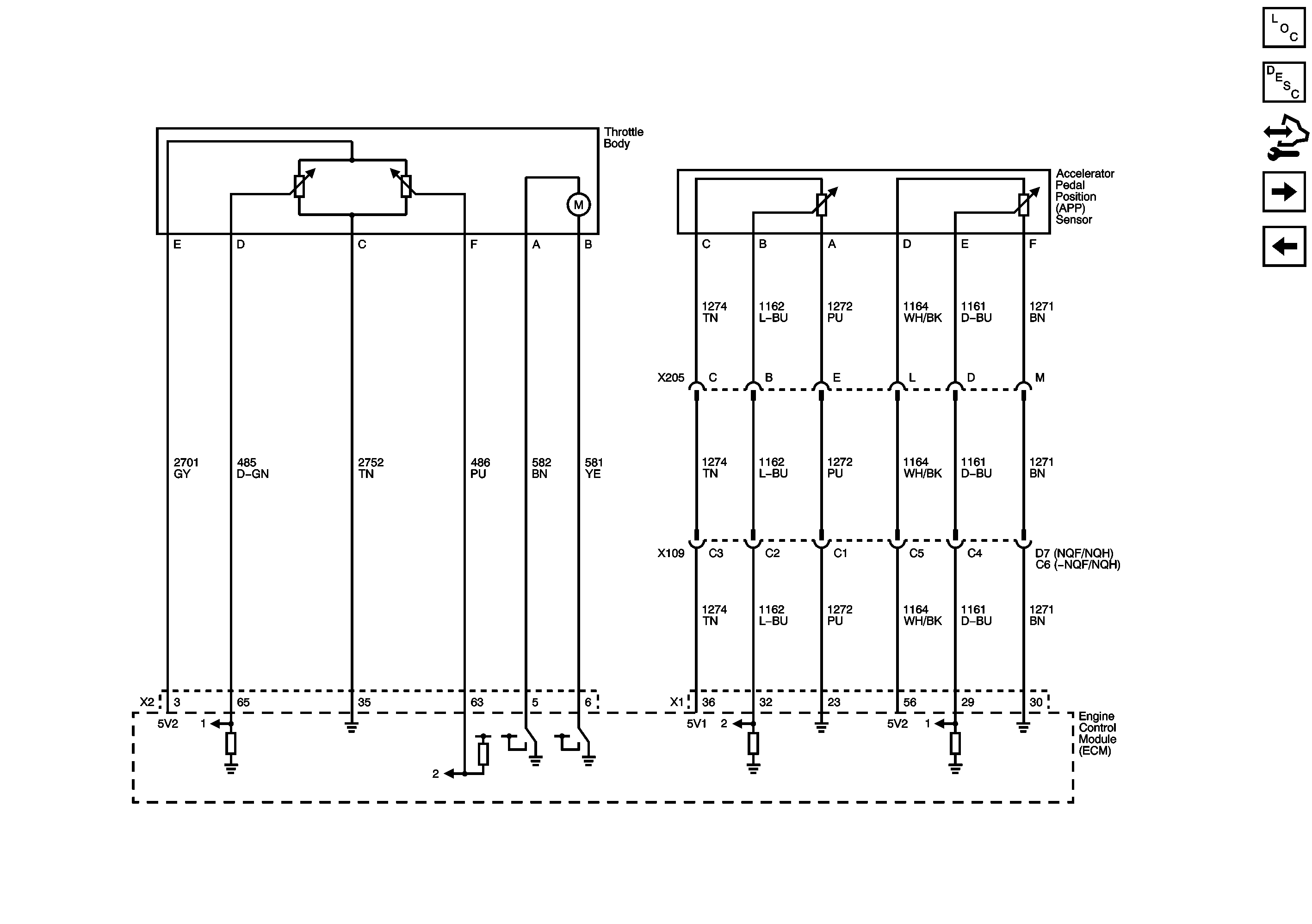

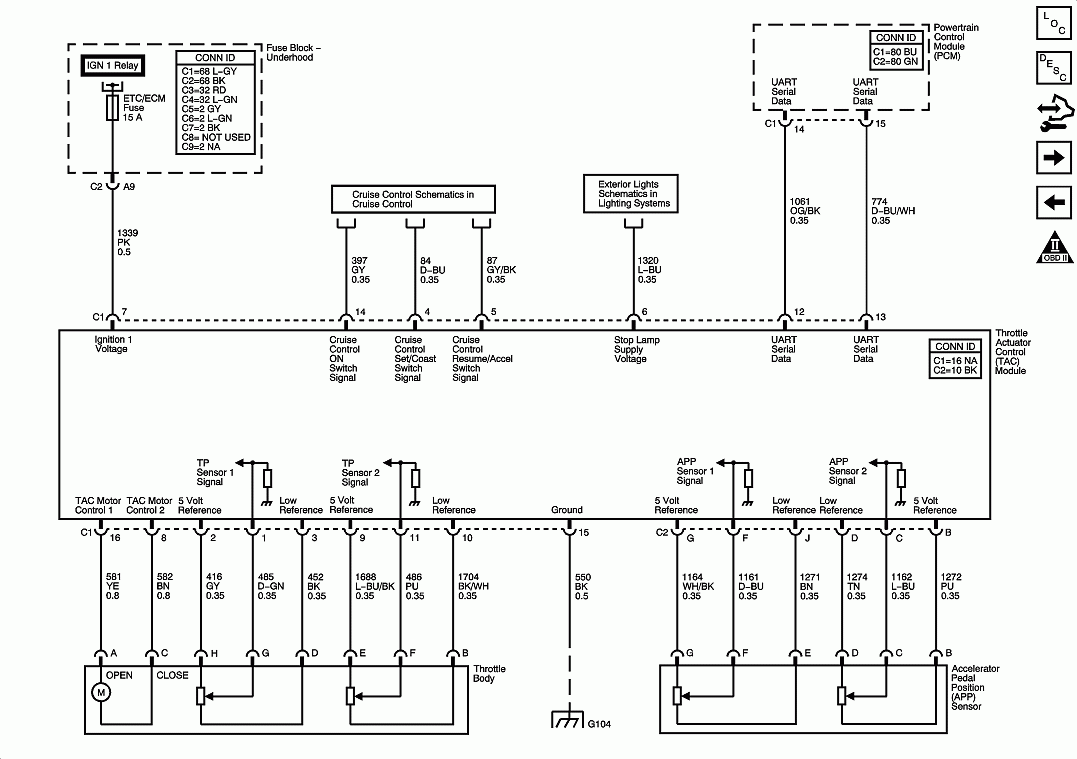

Here's the diagrams for both throttle bodies. I suggest getting someone to run the accelerator pedal for you with the vehicle off to see if the range of motion is correct.
Attached Thumbnails 90 mm TB wiring-05-tb.gif   90 mm TB wiring-09-tb.gif
Reply
Old Jun 6, 2011 | 12:58 PM
  #6
Fastcount03's Avatar
Thread Starter
12 Second Truck Club
iTrader: (13)

Joined: Sep 2008
Posts: 801
Likes: 0
From: Duncan, OK
Default

I have all the diagrams and pinouts from gm, but I still can't figure out why the 8 pin has 2 low references and 2 5 volt references. If I knew exactly what each one did I could figure it out.
Reply
Old Jun 6, 2011 | 07:08 PM
  #7
terravast4's Avatar
TECH Junkie
15 Year Member
Liked
iTrader: (25)

Joined: Jul 2007
Posts: 3,193
Likes: 345
From: Austin, TX
Default

i know there is an issue with voltage sent and voltage returned....when my X-link failed the voltage sent to the throttle body did not match what was returned and it went into limp mode. the computer knows everything is ok if the two match....
Reply
Old Jun 7, 2011 | 03:37 AM
  #8
Fastcount03's Avatar
Thread Starter
12 Second Truck Club
iTrader: (13)

Joined: Sep 2008
Posts: 801
Likes: 0
From: Duncan, OK
Default

hmmm...
