I'm not much of a machinist, just a hack & whack kinda guy. If I had a rotary table or CNC I would have cut the plates and everything myself.
Updates:
Ran into some issues with the C5 rear adapter with the 1pc bearing....

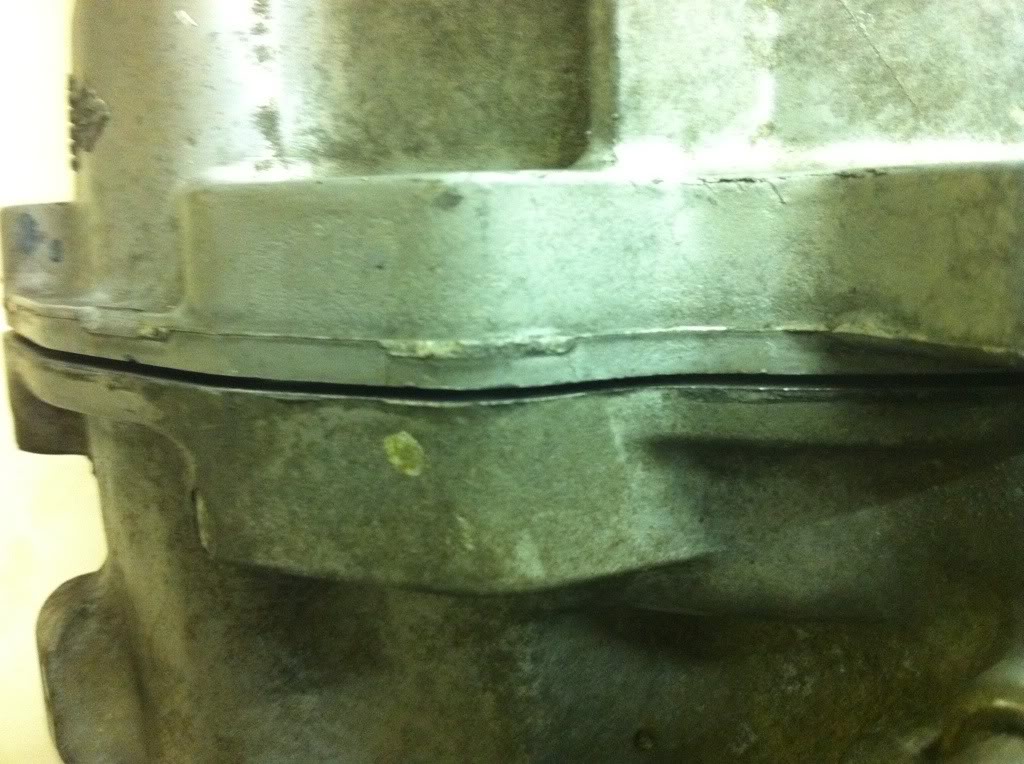

When I bolt everything up, I get this gap

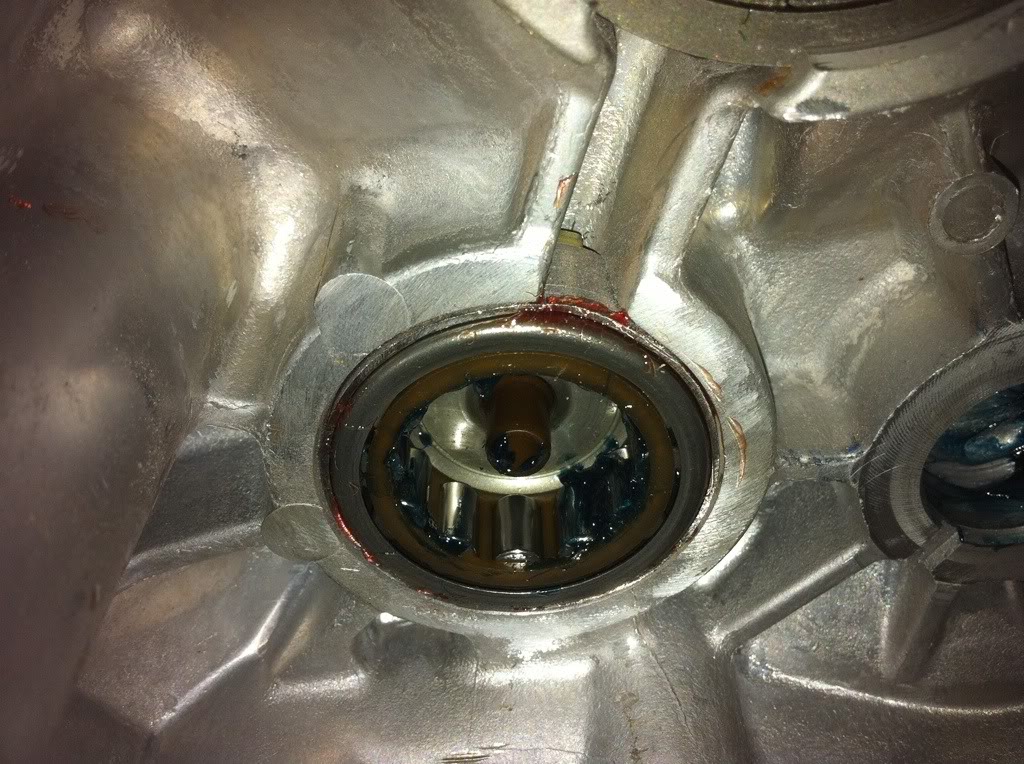

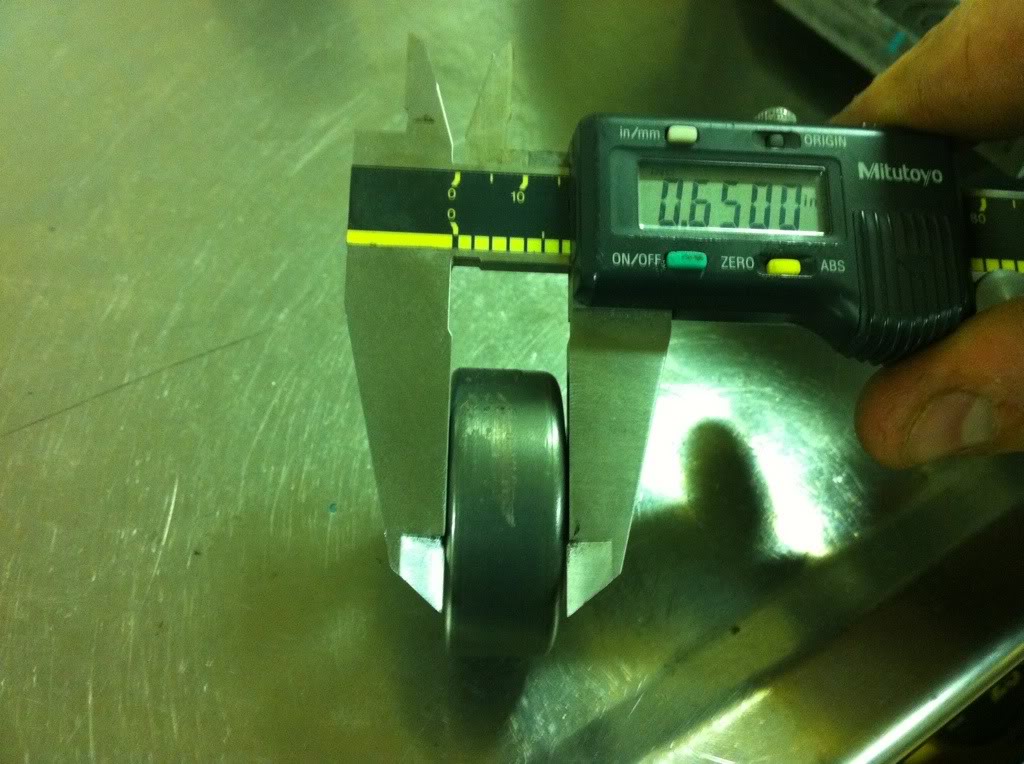

Upon further measuring...

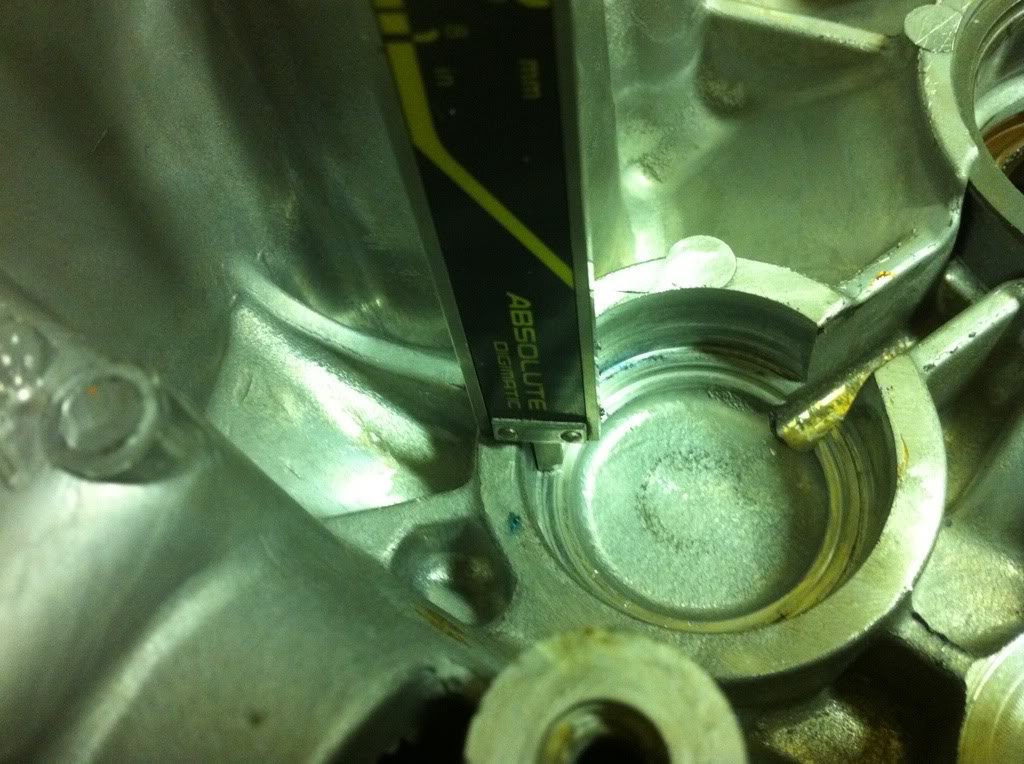

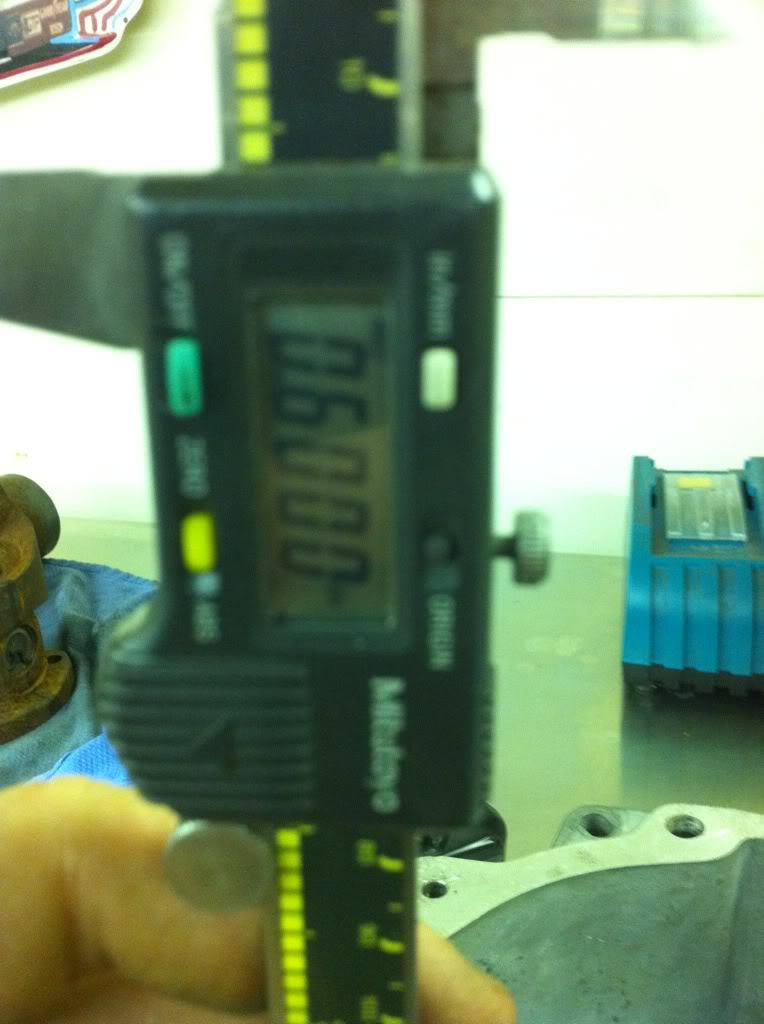

Didn't get any good pics, but it looks like I need to machine down the 'step' in the bore for the oil funnel. It measured about .063-.064ish. The rear cover is lifting approx .054.
Looks pretty easily accessible with an end mill, shouldn't be too bad just indicate in on the hole diameter, touch off and remove the material.
Updates:
Ran into some issues with the C5 rear adapter with the 1pc bearing....
When I bolt everything up, I get this gap
Upon further measuring...
Didn't get any good pics, but it looks like I need to machine down the 'step' in the bore for the oil funnel. It measured about .063-.064ish. The rear cover is lifting approx .054.
Looks pretty easily accessible with an end mill, shouldn't be too bad just indicate in on the hole diameter, touch off and remove the material.
08-09-2011, 11:36 AM
#26
On The Tree
Thread Starter
iTrader: (2)
Join Date: Jul 2010
Location: N. Michigan
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Updates:
The rear housing is being machined and a bearing spacer made, should be done this week. I believe I have to re-think my transfer case mount. I don't think the rear round pattern piece has enough material removed to clear the bearing retainer on the 149. My mistake for modeling it after an NP205, which uses the adapter as a bearing retainer
My solution will probably be to utilize the 4L65E 4x4 adapter. I'll have one to use once I remove my 4L60 and I can easily plasma out a plate and drill the mounting holes. Supposed to go back overseas so we'll see how far I get on it. Taking Thursday/Friday off so hopefully I can make some good progress

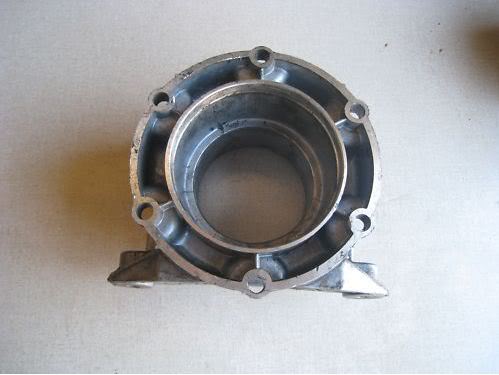

pics so you get an idea of what im thinkin....
The front portion (1st image) has a flange, where it would normally bolt to the rear of the trans. I can mill or keep the flanged portion. This method will also keep the clocking of the transfer case factory and solve my transmission mount, no need to fabricate now
The plate will probably be 3/8 or 1/2 steel and welded to my stub pipe from the vette housing. I have access to a mill, I'll mill everything down once it is welded to address the warping issue caused from welding.
GETTING CLOSE!!!!
The rear housing is being machined and a bearing spacer made, should be done this week. I believe I have to re-think my transfer case mount. I don't think the rear round pattern piece has enough material removed to clear the bearing retainer on the 149. My mistake for modeling it after an NP205, which uses the adapter as a bearing retainer
My solution will probably be to utilize the 4L65E 4x4 adapter. I'll have one to use once I remove my 4L60 and I can easily plasma out a plate and drill the mounting holes. Supposed to go back overseas so we'll see how far I get on it. Taking Thursday/Friday off so hopefully I can make some good progress
pics so you get an idea of what im thinkin....

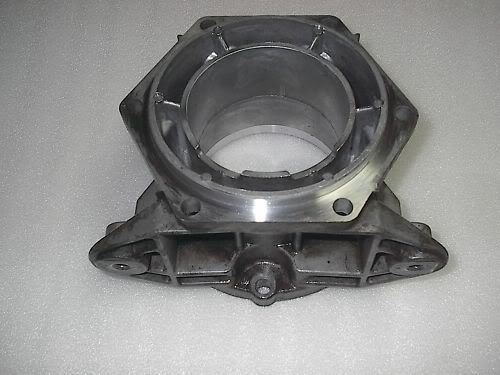

The front portion (1st image) has a flange, where it would normally bolt to the rear of the trans. I can mill or keep the flanged portion. This method will also keep the clocking of the transfer case factory and solve my transmission mount, no need to fabricate now
The plate will probably be 3/8 or 1/2 steel and welded to my stub pipe from the vette housing. I have access to a mill, I'll mill everything down once it is welded to address the warping issue caused from welding.GETTING CLOSE!!!!
