Like it says, lets see em! Foggers, plates, single nozzles, dry setups, whatever! If it's got nitrous on it, I wanna see it! I love solenoids and braided line LOL

Cold Fusion nozzle kit I had for a little bit last year


Nitrous Outlet Plate with Induction Solutions Solenoids



Vic Jr. with NOS BigShot plate and Solenoids

Reply
Old May 23, 2011 | 06:24 PM
  #2
Sales2@SDPC's Avatar
Trucks Sponsor
iTrader: (9)

Joined: Nov 2005
Posts: 585
Likes: 0
From: LUBBOCK T.X.
Default

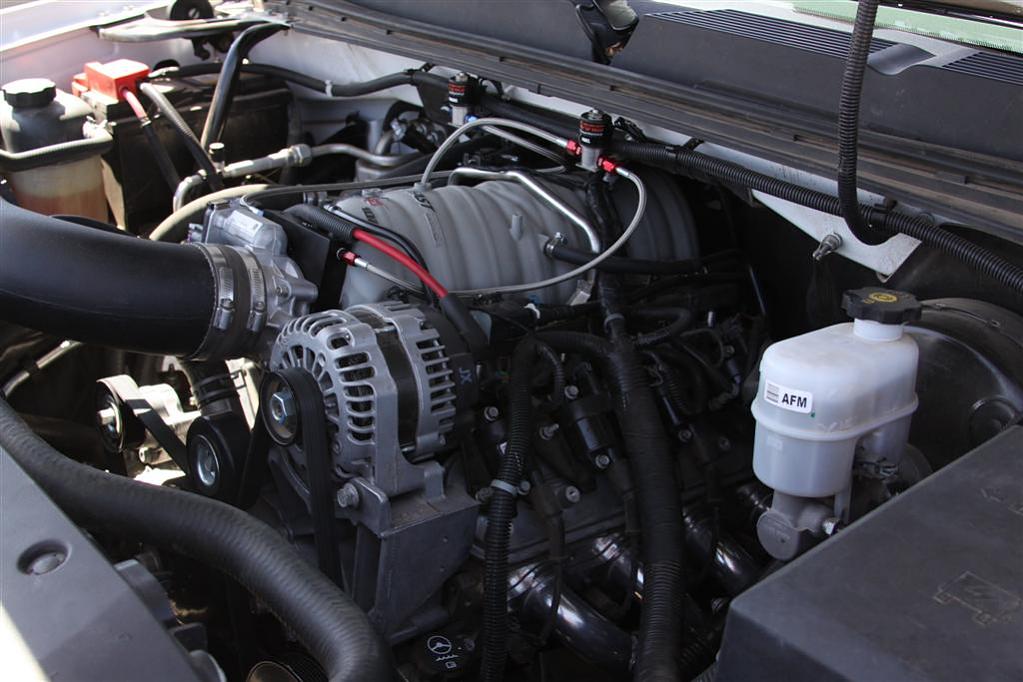

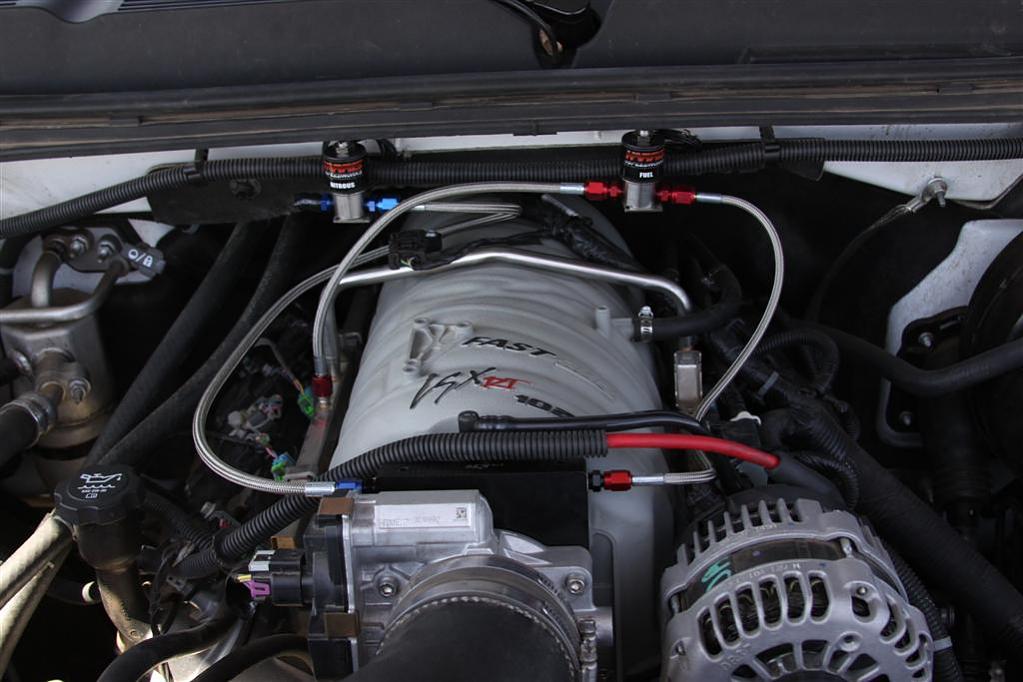

Here is mine that we just got finished up this weekend...
Attached Thumbnails Nitrous Setup Pictures...LET'S SEE 'EM!!!!-2010silverado-012-large-.jpg   Nitrous Setup Pictures...LET'S SEE 'EM!!!!-2010silverado-013-large-.jpg
Reply
Old May 23, 2011 | 07:14 PM
  #3
DBRODS's Avatar
Launching!
iTrader: (1)

Joined: Jan 2009
Posts: 204
Likes: 0
Default

Here is my setup. 4150 TB and SuperVic intake. Nitrous Outlet fogger.





Reply
Old May 23, 2011 | 07:18 PM
  #4
f4tal's Avatar
TECH Fanatic
iTrader: (8)

Joined: Apr 2009
Posts: 1,166
Likes: 0
From: Wichita Falls, TX
Default

John, wth is that funky looking coolant line on top of the valley cover?! I've never seen one like that
Reply
Old May 23, 2011 | 07:29 PM
  #5
DBRODS's Avatar
Launching!
iTrader: (1)

Joined: Jan 2009
Posts: 204
Likes: 0
Default

Its a coolant crossover setup. It ties in all 4 corners and runs to the thermostat housing. It helps with rear cylinder cooling.
Reply
Old May 23, 2011 | 07:40 PM
  #6
f4tal's Avatar
TECH Fanatic
iTrader: (8)

Joined: Apr 2009
Posts: 1,166
Likes: 0
From: Wichita Falls, TX
Default

Originally Posted by DBRODS
Its a coolant crossover setup. It ties in all 4 corners and runs to the thermostat housing. It helps with rear cylinder cooling.
Thanks for showing me that. Now thats one more thing for me to save up for and waste my money on. haha why don't you just run the old style coolant crossover. Whats the advantages to that particuler one?!
Reply
Old May 23, 2011 | 07:59 PM
  #7
DBRODS's Avatar
Launching!
iTrader: (1)

Joined: Jan 2009
Posts: 204
Likes: 0
Default

Originally Posted by f4tal
Thanks for showing me that. Now thats one more thing for me to save up for and waste my money on. haha why don't you just run the old style coolant crossover. Whats the advantages to that particuler one?!
haha No problem. When I finished plumbing the intake i had a few pieces left over and decided to clean up the setup. I had a front one on the rear and just tee'd them together.
Reply
Old May 23, 2011 | 08:05 PM
  #8
la ricky bobby's Avatar
On The Tree

Joined: Nov 2010
Posts: 110
Likes: 0
Default

nice setup dbrods..fastest ecsb that can be driven daily if want to.

Last edited by la ricky bobby; May 23, 2011 at 08:28 PM.
Reply
Old May 23, 2011 | 08:51 PM
  #9
bigboy576103's Avatar
TECH Enthusiast
iTrader: (13)

Joined: Jul 2007
Posts: 714
Likes: 0
From: South of South Ft Worth
Default

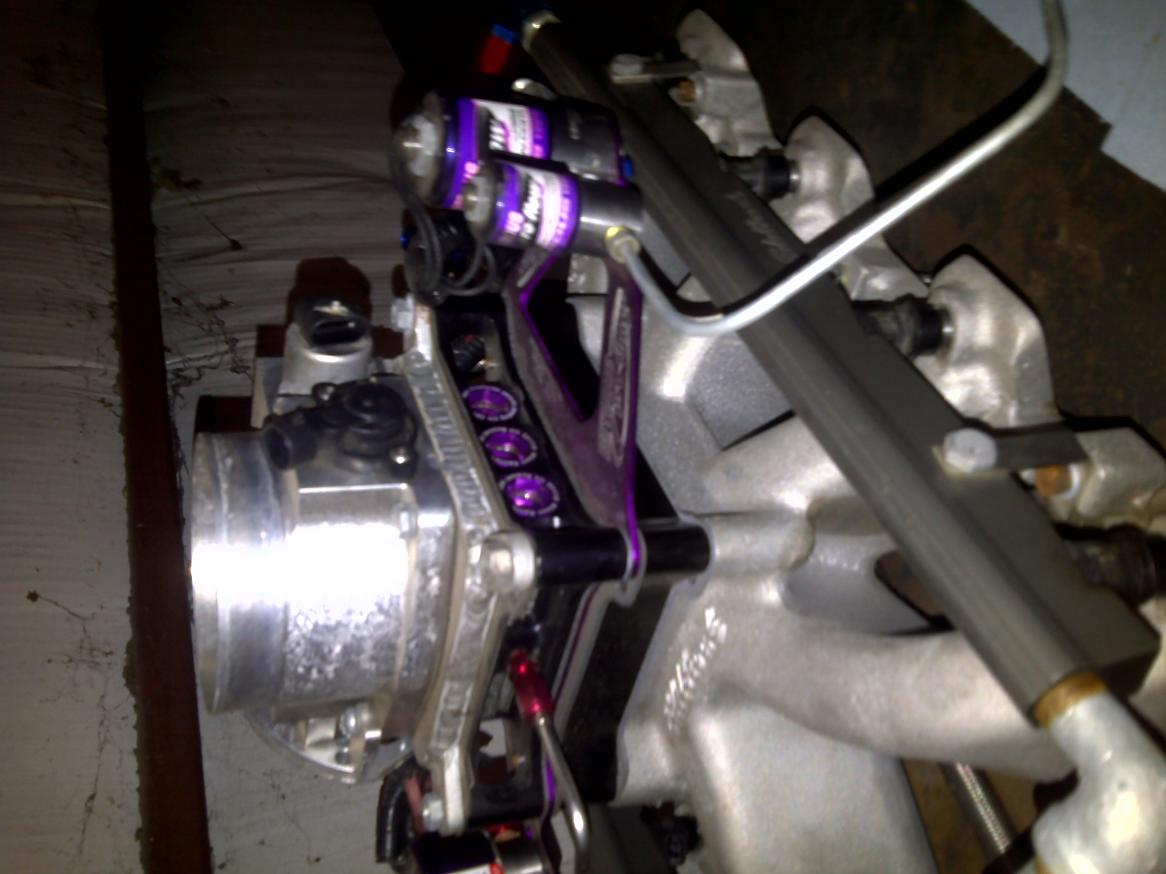

This was my previous setup lota time and $ on that ^^^
Attached Thumbnails Nitrous Setup Pictures...LET'S SEE 'EM!!!!-img-20110228-00101.jpg

Last edited by bigboy576103; May 23, 2011 at 08:57 PM.
Reply
Old May 24, 2011 | 01:22 AM
  #10
BOTLFED_AWD's Avatar
formerly lamborado (1-12-2012)
iTrader: (3)

Joined: Feb 2008
Posts: 323
Likes: 0
From: mcalester,ok
Default

not very clean but it gets the job done.


arming switches and button

bottle heater switches

bottles

bottles incognito

stand alone fuel cell

fuel pump

nitrous outlet solenoids

2 stage nitrous outlet 90mm plate

my new 15# bottles.
