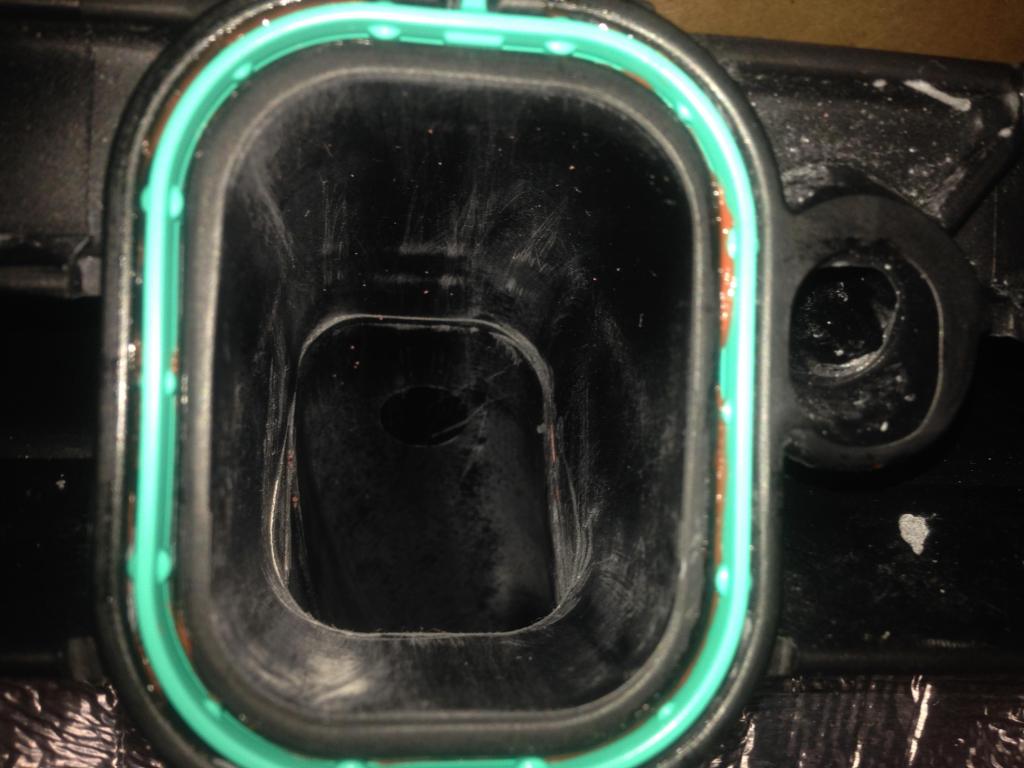

Here is the porting. Only minor cleaning of the weld joints on the outlets. The inlet got some extra work.

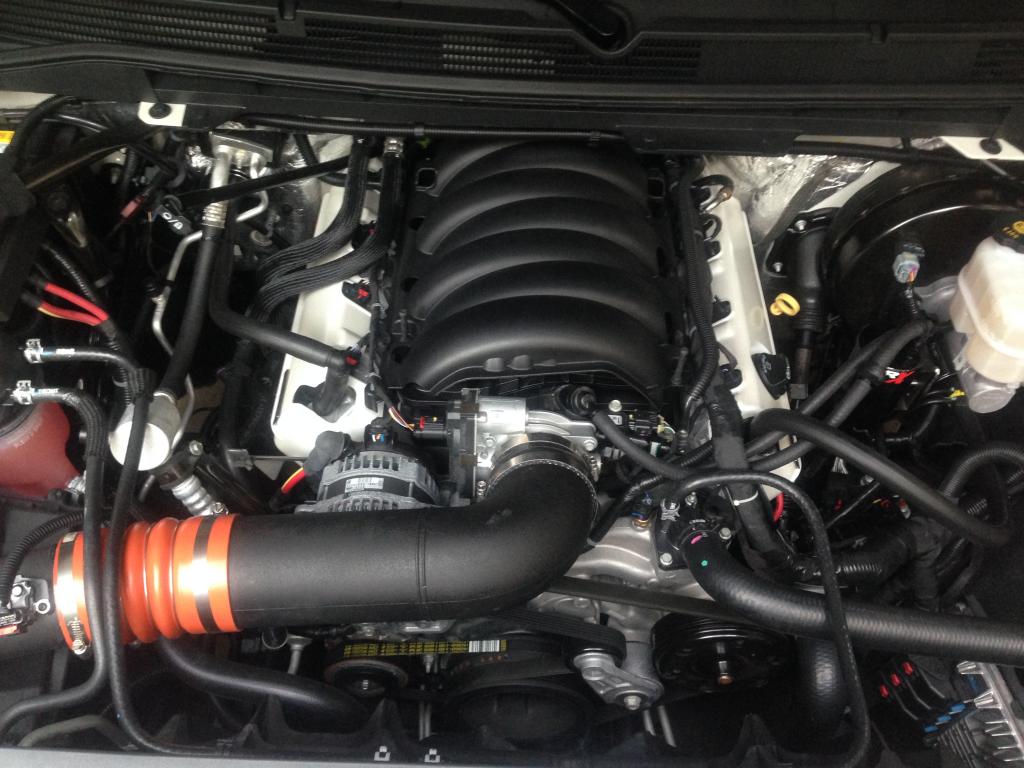

Got my custom 4" U Build It intake tube from Airaid installed today. 4", 90 degree bend with 12" straight section plus a 4" x 3.875" silicone reducer for the throttle body which is a perfect fit. Cost $85.00 I already had the 4" orange expansion section that I got from Cardinal Rubber in Rock Hill, SC. $30.00. That makes a nice and affordable intake tube.

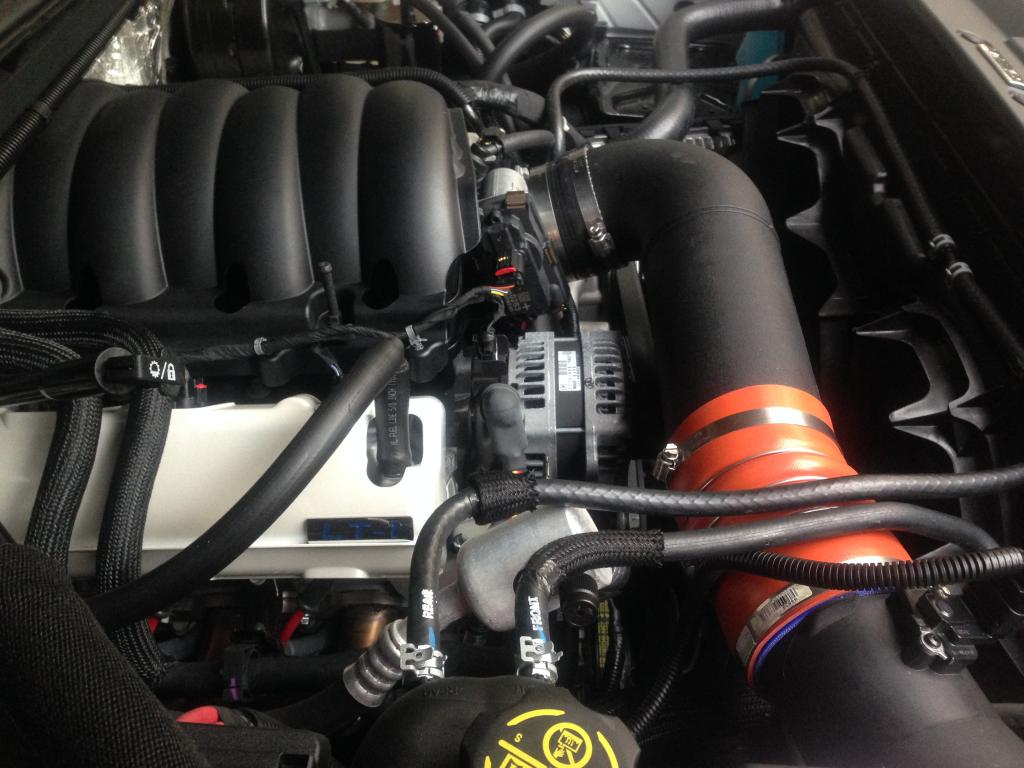

Now I see what you mean about the intake tube hitting the belt with the downward angled C7 intake. The C7 routes the belt lower under the throttle body.

Now I need a 4" x 3.875" 45 degree elbow. Not likely to find one of those. Let me know what you come up with. For now, that's a show stopper.



2X 95mm 102mm 3 75" 4" 45 Degree Silicone Coupler Reducer Turbo Intake Blk Red | eBay

Ha, 4" x 3.75" 45 degree silicone elbow! I think this just might work. I got one extra if you need it.



Got mine on last night. You need to 're route the belt. Trying to get pics attached from my phone but can't find the button.



Definitely interested in seeing how you did that! I would not even imagine it's possible to reroute the factory belt another way and still have everything work.



if you want to email the pics to me I'll post them up for you if you can't get it figured out.

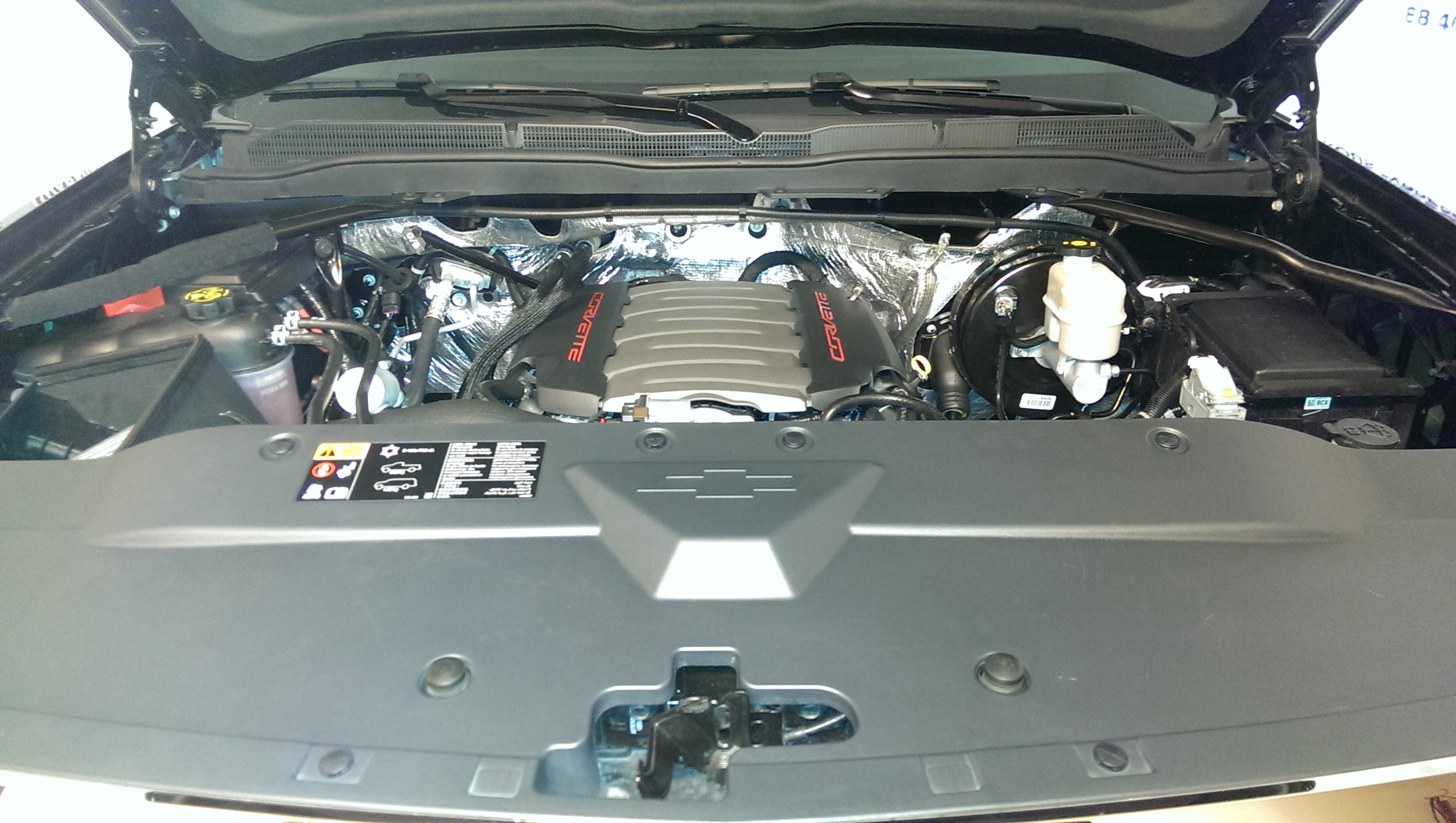

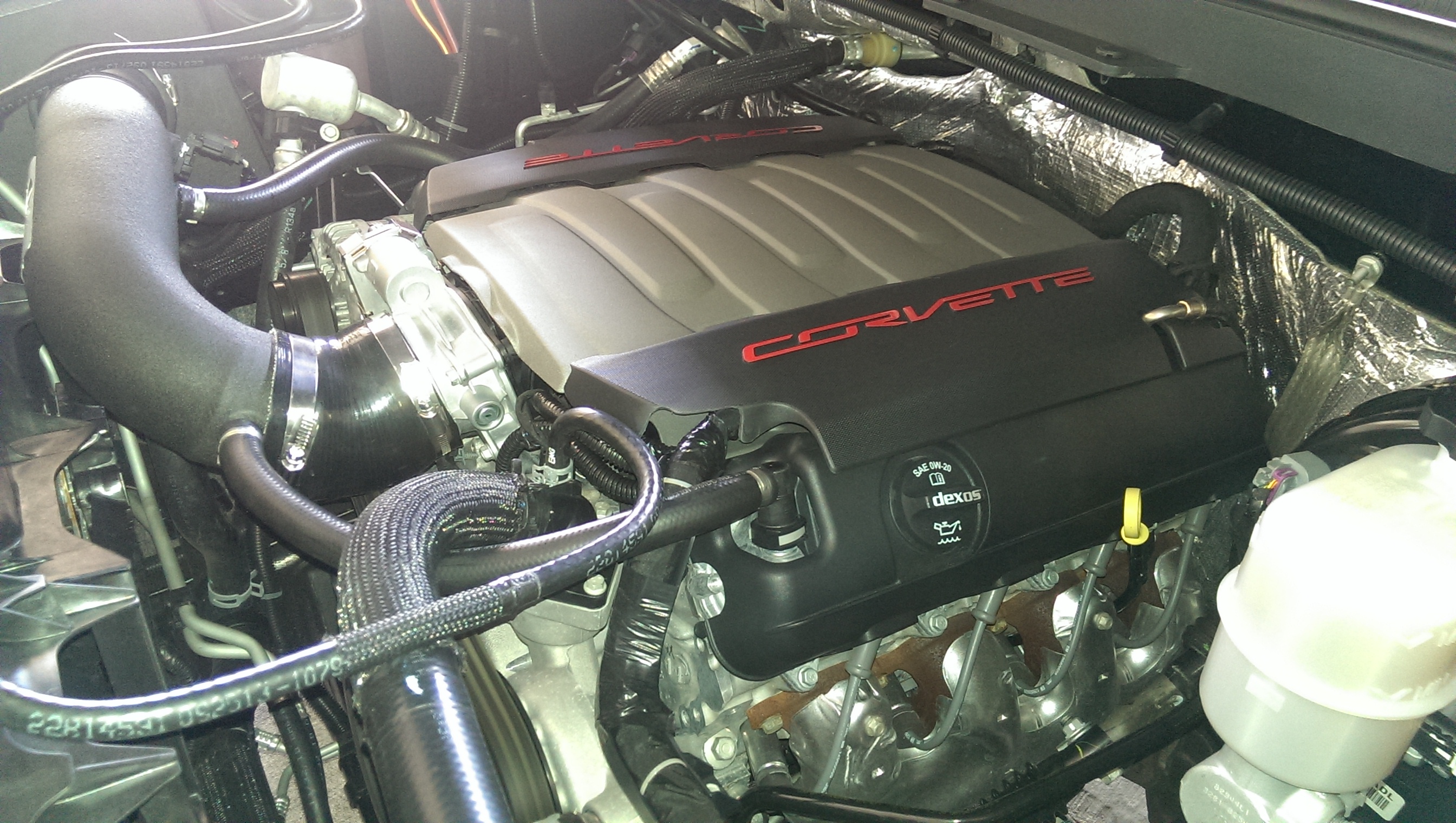

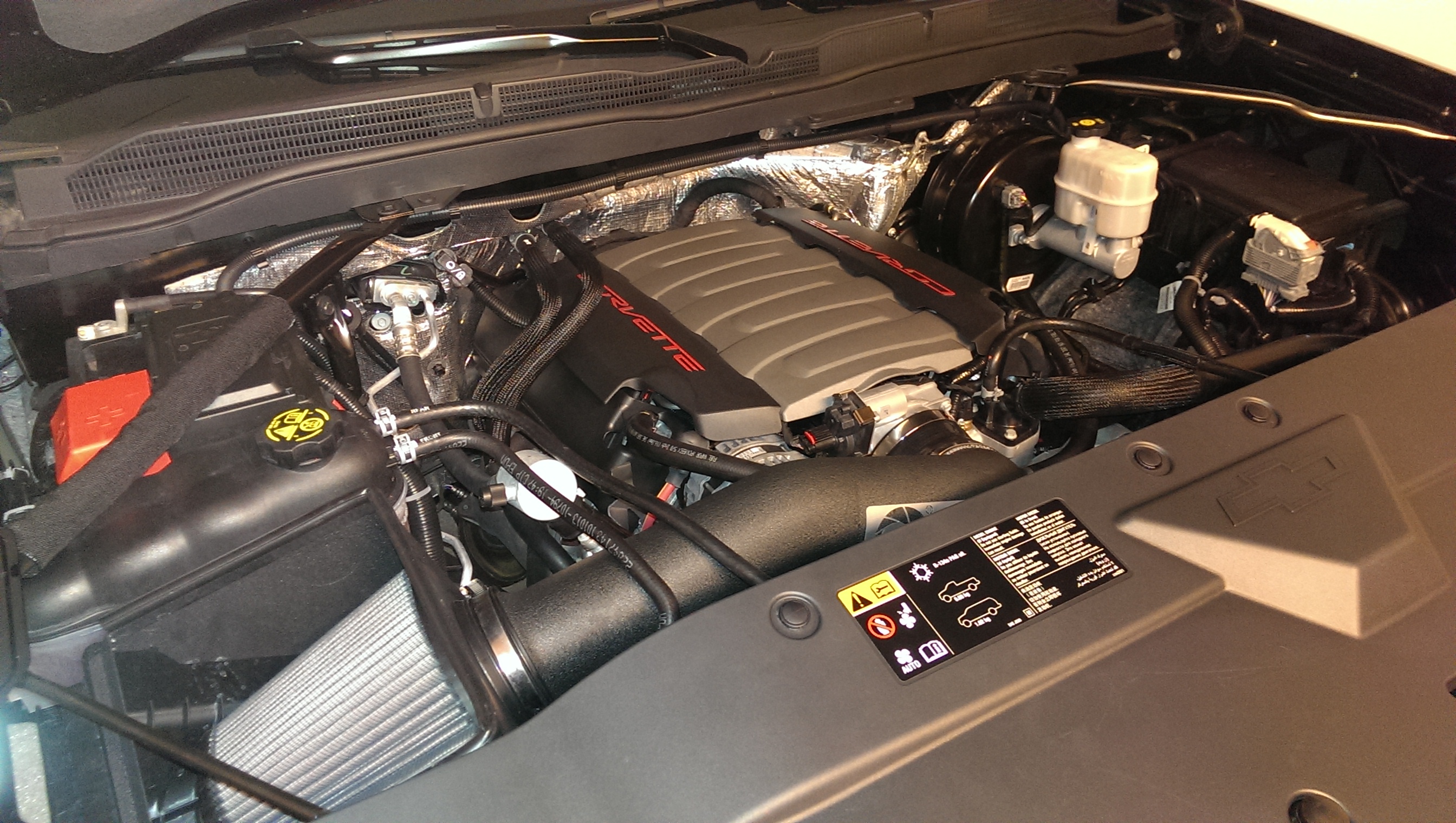

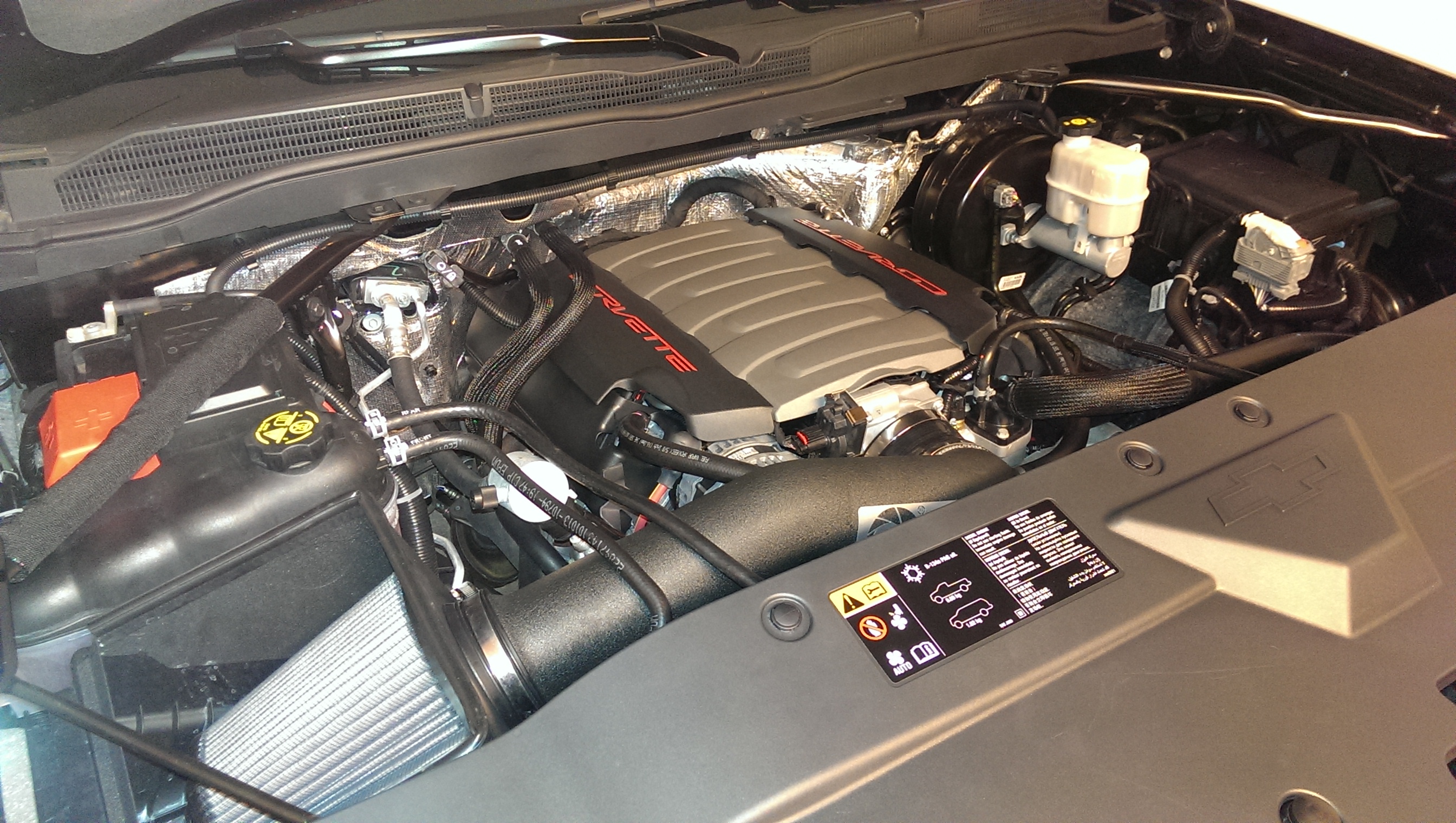

here it is. got a base tune in it right now. will get dyno tuned on 93 octane tomorrow. runs great. no belt issues. Stock belt too.

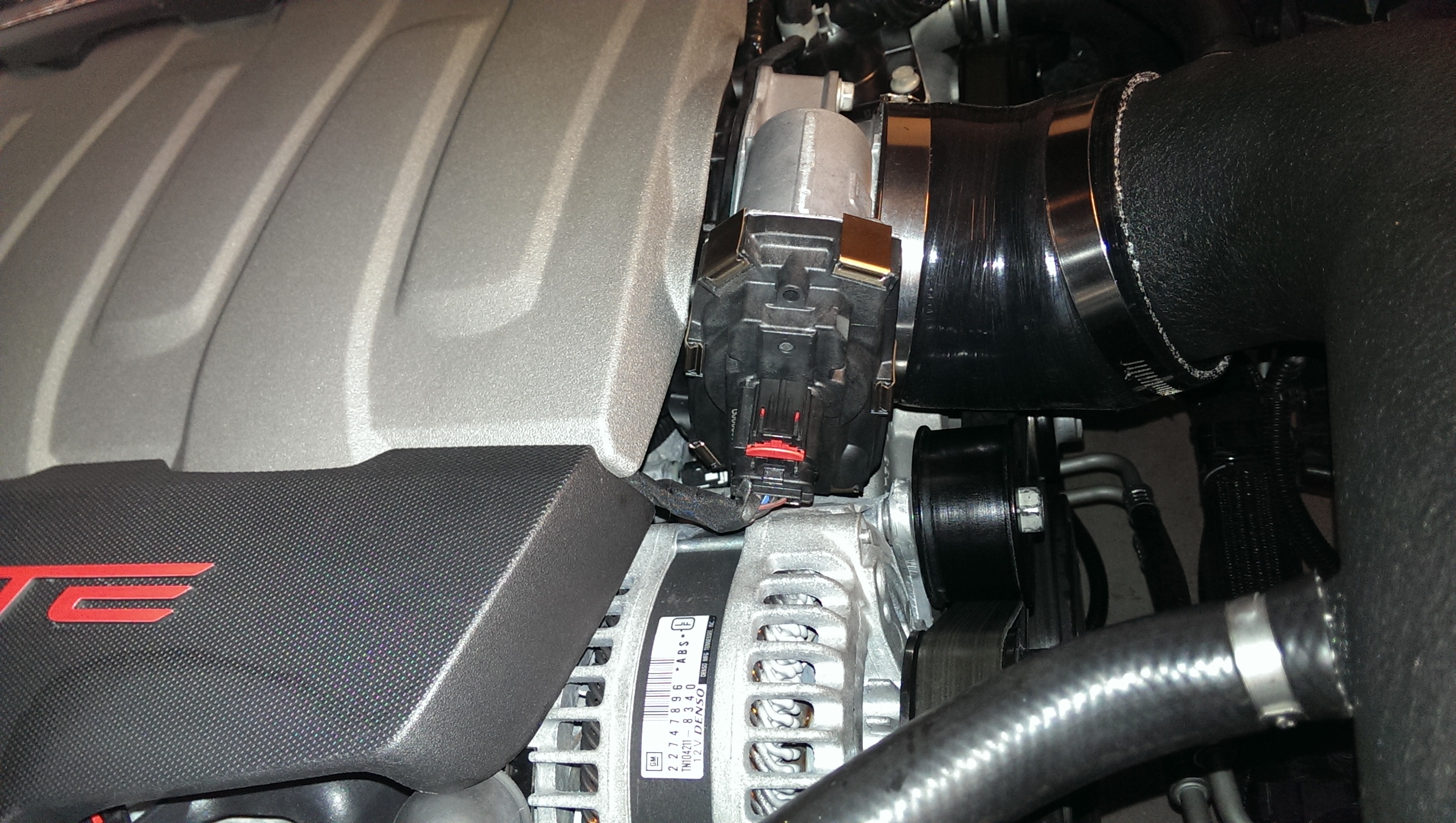

belt re routed.



The aesthetics is a good plus! Love that cover.

Eager to see the results and add to my "to-do" list.



Nice job! I'm betting the C7 intake will give you a nice bump in hp on the top end. Good luck on the dyno.
