Hey everyone

I have asked a few question over the year about t56 swap into auto trucks, and have collected all the info I need to get a really good understanding of how it all works. I wanted to swap 2 years ago, but ended up building my LQ9 and buying a FLT level 7 with a 3600 Triple Disc Circle D instead. Regretted it ever since I did it as I really wanted a 6 speed truck, But my TVS1900 Crew Cab chewed up its 4l60e, so I stole the Level 7 outta the RCSB and put it in the Crew Cab.....Perfect excuse to swap!

So I have collect a lot of the parts I Needed From GM

Pedal Assembly - 15027983
Pedal Assembly Bracket - 15713209

Top and bottom Column Covers to hide shifter - 26072994
Pedal cover - 15706041
Master Cylinder and Line - 15727261
Cross Member - 15748078
Switch - 15027967

I have also already gone through the paces and ordered a Tick Stage 3 viperized GTO T56. Trying to decide which clutch Im gonna run on it, Truck doesn't see alot of driving, only a few thousand a year, but i do beat the ever loving **** out of it.

Few questions I have tho. Looking at the pedal assembly, and clutch master, what is suppose to connect the pedal to the master? I see the master connects the to pedal assembly etc, but were the actual rod to the pedal goes theres nothing....what gives?



thanks for the help

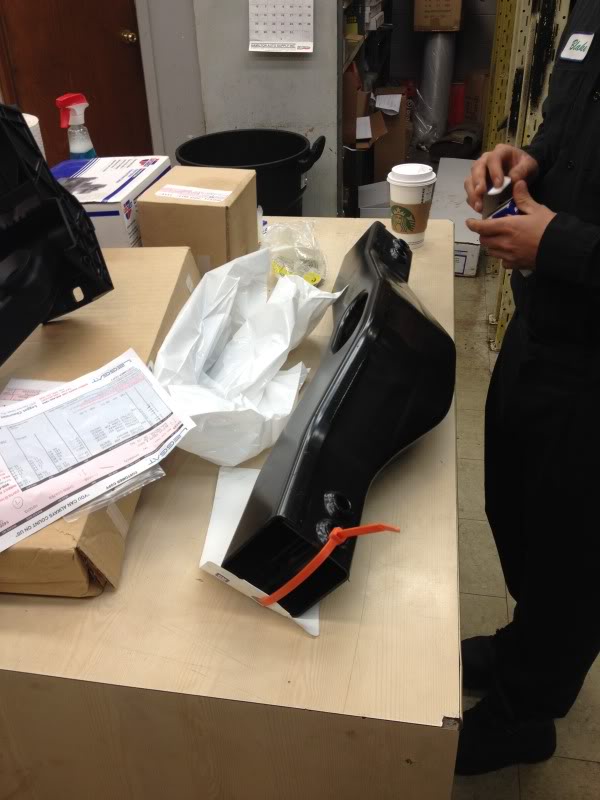

Heres some more pictures of some parts lol




and the truck its going in is a H/C Lq9 sierra that some might know alreayd about

Ferocity02

iTrader: (59)

That master looks wrong, it should have a ball at the end that snaps into the pedal. Here is the one I'm using: Dorman CM350124 Clutch Master Cylinder : Amazon.com : Automotive There is a white ball piece that isn't shown, it's like a bushing between the master rod's black ball and the pedal.

And once you get it, do yourself a favor and make it adjustable. I lathed down some of the black plastic on the rod, cut the rod, tapped both ends at the cut, and installed a coupling nut so I could lengthen or shorten the rod it still installed.

bgray

iTrader: (2)

Have any pics of that?

TICK just called me back and said thye wont sell me the trans casue they dont offer cores lol

Sooo now I need to find another builder who will be willing to charge me a core, any ideas on vendors?

Ferocity02

iTrader: (59)

No pics, but I'm going to 80E soon so I'll pull everything out to sell.

bgray

iTrader: (2)

I just ordered another master setup from my supplier, see what its like when I get it here tomorrow, thanks for the help on that master, it didnt look right to me, but Ive never looked into a OEM 5 speed setup before to see what exactly its suppose to be like

bgray

iTrader: (2)

I got this MAster in today, Looks much better as far as engagment at the pedal, however it doesn't have a very big line on it.....Goes GM make a line I can use? I know I can rob the line from the other master, but Id rather return that whole assembly

Ferocity02

iTrader: (59)

I made my own lines from -3AN stainless braided PTFE hose.

https://ls1tech.com/forums/manual-tr...rs-inside.html

bgray

iTrader: (2)

GM is sending me another part number master, gonna see what its like tomorrow, then go from there. If its wrong, I'll use the one I got today and make a line like you did.

bgray

iTrader: (2)

One I got from gm is the same as the car quest one I got.

My understanding is that everyone bought masters and lines all in 1....or is everyone making a line

PaulyC

i also made my line from -3 line and fittings. didnt want to fool around trying to find a line that might work
