Aeromotive wiring issue
#1
Launching!
Thread Starter
Join Date: Jul 2012
Location: Houston
Posts: 249
Likes: 0
Received 0 Likes
on
0 Posts
Aeromotive wiring issue
On a 2006 Silverado Ext. 5.3 Non-flexfuel.
Finally had time to install my Aeromotive 340 Center inlet fuel pump and Racetronix wire kit.
This is the bulk head I'm having an issue with
Racetronix - Connector, Fuel Bulkhead 4-Way 280/150
It doesn't seem to fit in the fuel pump assembly no matter what(lubed it and everything) So I left the stock one back in place, any tips?
Also in the Hot wire kit I got everything set but their is this connection that doesn't connect to ANY of my trucks factory connections. It's the connection in the top right of the image with the blue clip, any idea were it goes?
This is the wire kit
Racetronix - Pump Wiring Kit MP150/280, Walbro CK* - Kit Configuration Page
Finally had time to install my Aeromotive 340 Center inlet fuel pump and Racetronix wire kit.
This is the bulk head I'm having an issue with
Racetronix - Connector, Fuel Bulkhead 4-Way 280/150
It doesn't seem to fit in the fuel pump assembly no matter what(lubed it and everything) So I left the stock one back in place, any tips?
Also in the Hot wire kit I got everything set but their is this connection that doesn't connect to ANY of my trucks factory connections. It's the connection in the top right of the image with the blue clip, any idea were it goes?
This is the wire kit
Racetronix - Pump Wiring Kit MP150/280, Walbro CK* - Kit Configuration Page
Last edited by TRD_Tundra; 09-08-2012 at 04:09 PM.
#2
Launching!
Thread Starter
Join Date: Jul 2012
Location: Houston
Posts: 249
Likes: 0
Received 0 Likes
on
0 Posts
Well got the bulk head to fit in the tank by dremeling out some of the plastic.
Ran the whole hot wire kit and doesn't seem to be working. There's 1 connection that doesn't go any where from both truck and the hot wire kit. Cant get the fuel pump to work with hot wire kit because of that 1 connection. I checked the ground from the relay and it's good.

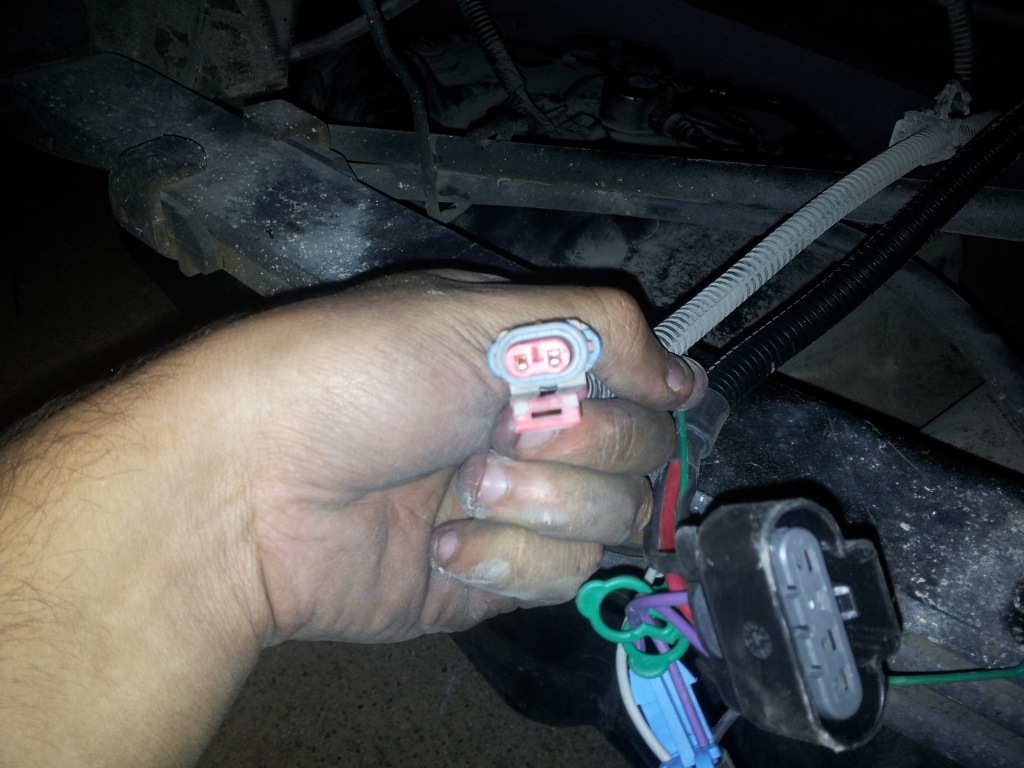

The unknown connection from the Hot wire kit.
[B][SIZE="6"]

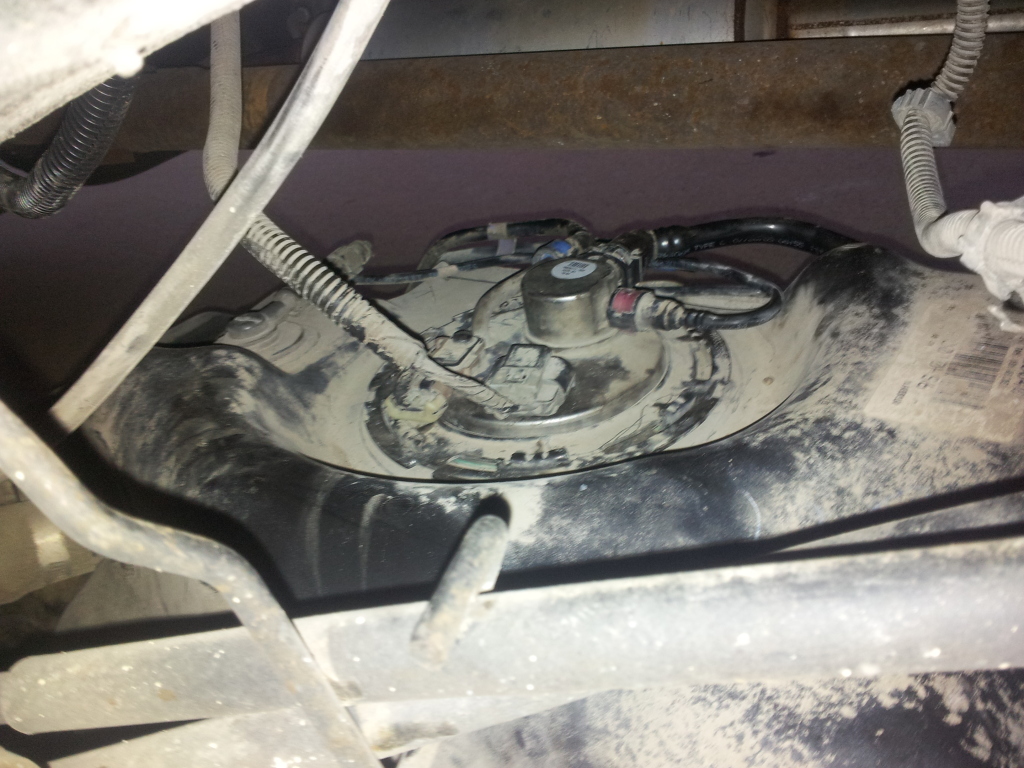

Both connections from the hot wire kit, Connected the larger connector to fuel pump and left the other alone but doesn't work.
[IMG][/IMG]

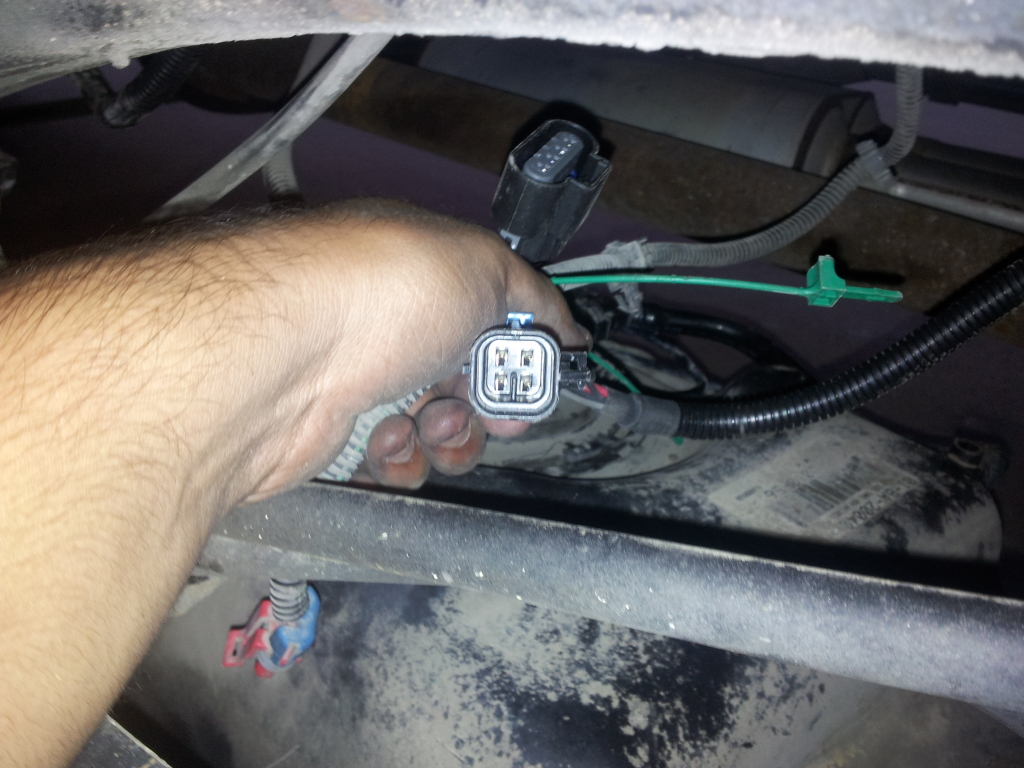

Unknown connection from the truck, Doesn't fit the other connection from hot wire kit.
Just left the factory connections on for now ti'l I get it figured out.
Ran the whole hot wire kit and doesn't seem to be working. There's 1 connection that doesn't go any where from both truck and the hot wire kit. Cant get the fuel pump to work with hot wire kit because of that 1 connection. I checked the ground from the relay and it's good.
The unknown connection from the Hot wire kit.
[B][SIZE="6"]
Both connections from the hot wire kit, Connected the larger connector to fuel pump and left the other alone but doesn't work.
[IMG][/IMG]
Unknown connection from the truck, Doesn't fit the other connection from hot wire kit.
Just left the factory connections on for now ti'l I get it figured out.
#4
Launching!
Thread Starter
Join Date: Jul 2012
Location: Houston
Posts: 249
Likes: 0
Received 0 Likes
on
0 Posts
So it's not needed? Is that the issue my pump doesn't turn on with the hot wire kit? Because it turns on when connected to the factory connections.
#5
Launching!
iTrader: (1)
Join Date: May 2009
Location: easton, md
Posts: 242
Likes: 0
Received 0 Likes
on
0 Posts
Im not familiar with the kit but my guess is your factory harness needs to plug into the square 4 pin plug to energize the relay. It looks like your factory fuel pump connector is the upgraded version so you either need a different harness or need to find an old style plug.
