After a heat wave we had here not so long ago I decided to pull the trigger on doing an intercooler for my setup. Whipple never made one for my kit so I decided to make one work. I gathered what I needed and brought my truck over to Synergy and let Rick work his magic. Many thanks to Rick for the great job he did on the intercooler and my pre-blower cross pipe.

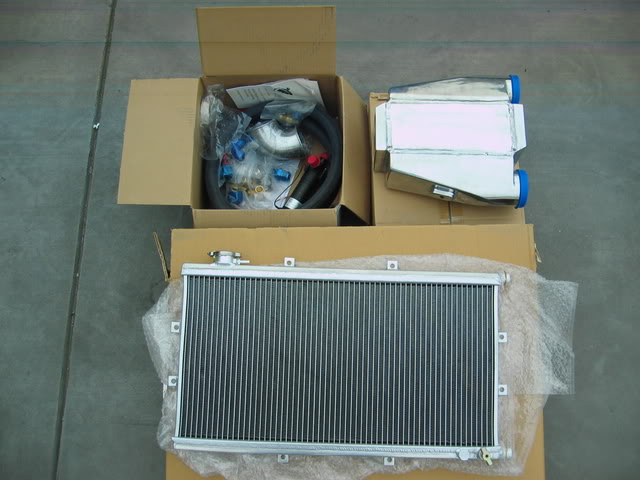

Setup:
A2W Intercooler - core size: 10"x4.5"x4.5"
Heat exchanger - core size: 12"x24"x1"
Pump - Johnson CM30P7-1
Hoses - 3/4" ID
Reservoir - Magnacharger Radix tank

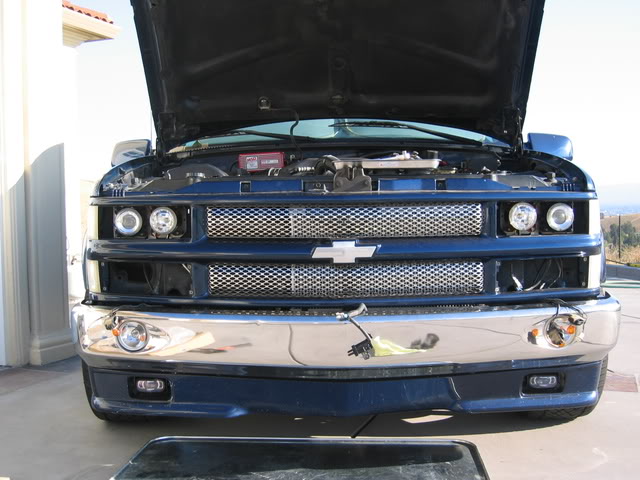

- Test fitted and mounted the heat exchanger first then brought the truck to Synergy.

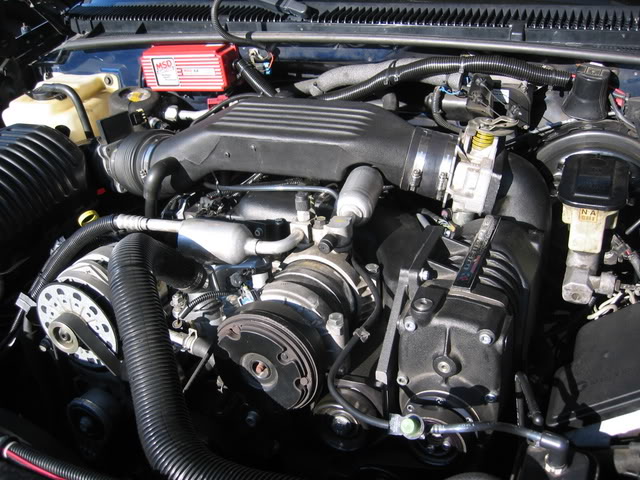

- Before Intercooler

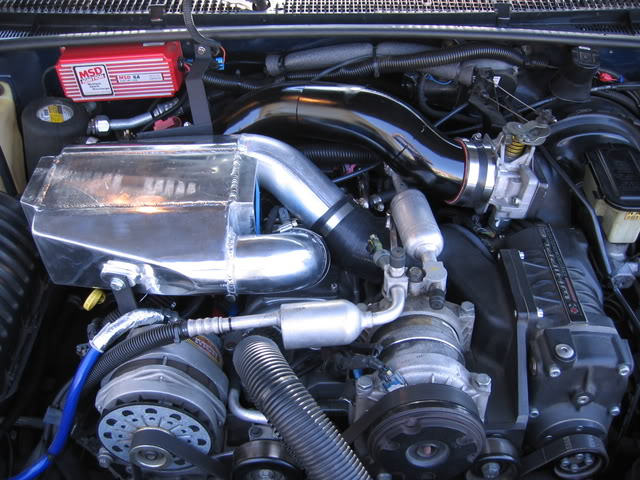

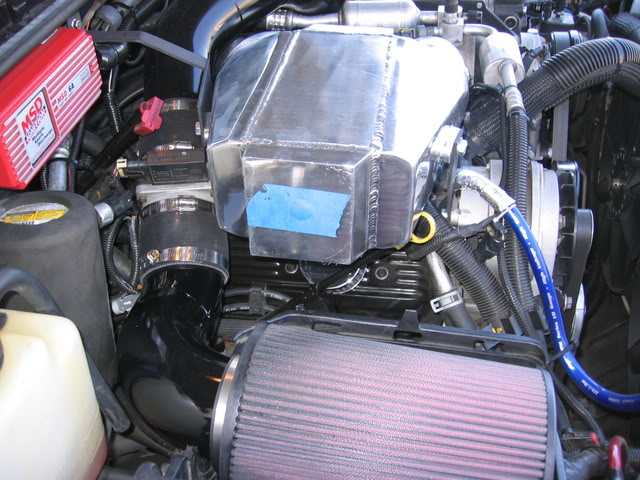

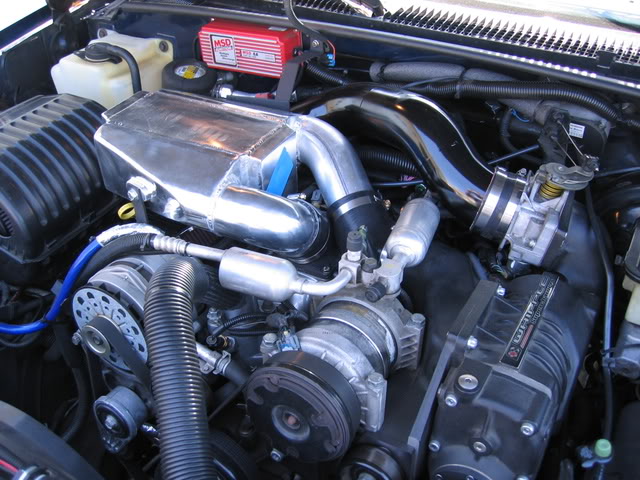

- Pics of the intercooler mounted and the pre-blower intake tube.

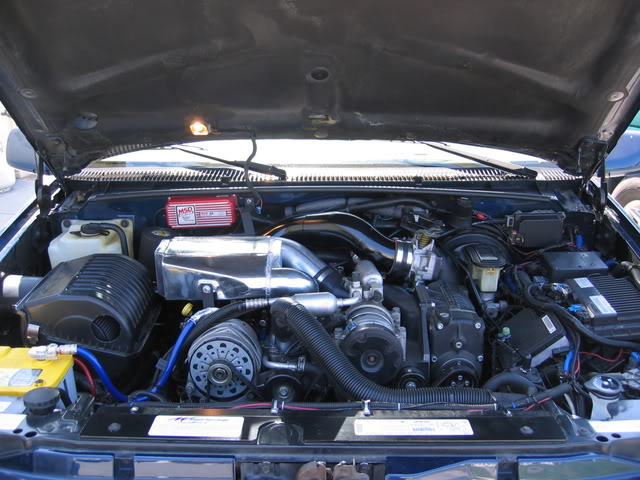

- Finished up mounting the tank, pump, routing the hoses and wiring.



I warmed up the truck to operating temp and went for a 20 min test drive. I just cruised around just barely going into boost. I'm going to have Rick do some tuning before I do any WOT runs.

Outside temp was 60*F (thats what my mirror said). Before the intercooler at this outside temp my IAT's were around 140*F (cruising). Now with the intercooler my IAT's never went above 80*F (cruising). When I got back and just idled for a couple of minutes at my house the temps went up to to 86*F without the e-fans on.

These are just preliminary results, can't wait to see what the IATs are during WOT.



60* outside ..........................you cali guys have it so nice and easy.......we had a cold front come through here this week from the hurricane and the temps dropped from 107* toaround 98-99*...............At least my state is bigger and better!



Archie! That looks great. Rick did a great job of getting all those tubes in that freaking tight space! I can't wait to see you run it on the 16th with me! 20* over ambient is great, now get it tuned!
