Need help with dash harness swap

Reply

Thread Tools Search this Thread
Old 03-28-2013, 03:13 PM   #1
High on diesel fumes
Thread Starter
iTrader: (70)

thunder550's Avatar

Join Date: Mar 2005
Location: Phoenix, AZ
Posts: 12,664
Thanks: 0
Thanked 0 Times in 0 Posts
Default Need help with dash harness swap

I'm hoping that you guys can help me out, as I'm in over my head. As part of a stupid project to put OEM power windows from a 99 LS truck into an 02 W/T, I swapped dash harnesses between the two. I've run into some problems, and I can't go backwards as I have already cut the old harness in several places.

The 99 was a 5.3 4wd truck. The 02 is an 8.1 with the Allison 1000, 2wd, electronic throttle. Although I swapped harnesses, I kept the BCM from the 02 in the 02.


I have no gear indicator lights on the instrument cluster and I have the following codes:
P0700 - TCM malfunction
U1000 - No communication
C0315 - Service 4wd
C0327 - another 4wd error
C0323 - another 4wd error

1. What wire does the TCM use to communicate back to the PCM, BCM, and/or cluster?

2. The dash harness is a 4wd harness but the truck it's in is 2wd, and I kep the 2wd BCM. Why am I getting 4wd codes now? The cluster is flashing Service 4wd.

So here's what I'm working with. I have connectors on both sides that don't have anywhere to plug into.

On the dash harness side, I have these two with no mate. Both of these plugged into the transfer case harness on the 99.



I have these two that fit together. The dash side has 1 more wire than the truck side (looks like it goes to the trans) does.

Pin - Dash side - Truck side
A - Empty - Empty
B - Brown - Brown
C - Lt Blue - Lt Blue
D - Empty - Empty
E - Purple - Purple
F - Tan/white - Empty
G - Empty - Empty
H - Empty - Empty





There's this one that I don't think was plugged into anything in the first place, before I did the swap:


This connector goes into the ECM/TCM harness. There are only two wires that come into it, a yellow one and a purple one. On the original 02 dash harness, I traced the yellow one back to a connector that isn't hooked up to anything, so I don't think that one's an issue. I can't trace the purple on, because like an idiot I cut it along the way.



thunder550 is offline   Reply With Quote
Old 03-28-2013, 03:48 PM   #2
TECH Senior Member
iTrader: (16)

smokeshow's Avatar

Join Date: Feb 2009
Location: Detroit
Posts: 7,048
Thanks: 0
Thanked 12 Times in 12 Posts
Default

So this harness that your questions are referring to is the duramax harness, correct? So you'd be mixing the original BCM from that truck with the ECM and TCM of the duramax harness?
smokeshow is offline   Reply With Quote
Old 03-28-2013, 03:55 PM   #3
TECH Senior Member
iTrader: (16)

smokeshow's Avatar

Join Date: Feb 2009
Location: Detroit
Posts: 7,048
Thanks: 0
Thanked 12 Times in 12 Posts
Default

These may be helpful....hopefully. lol

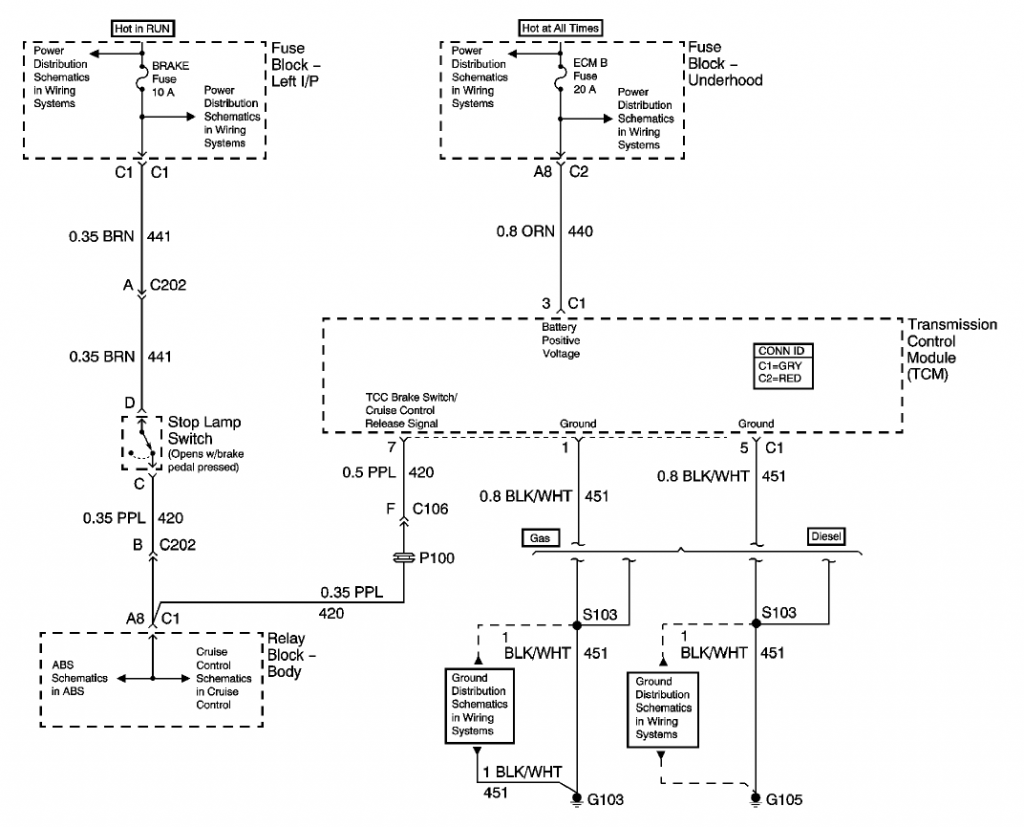

Name:  81allison1_zps34624a63.png
Views: 22
Size:  228.3 KB

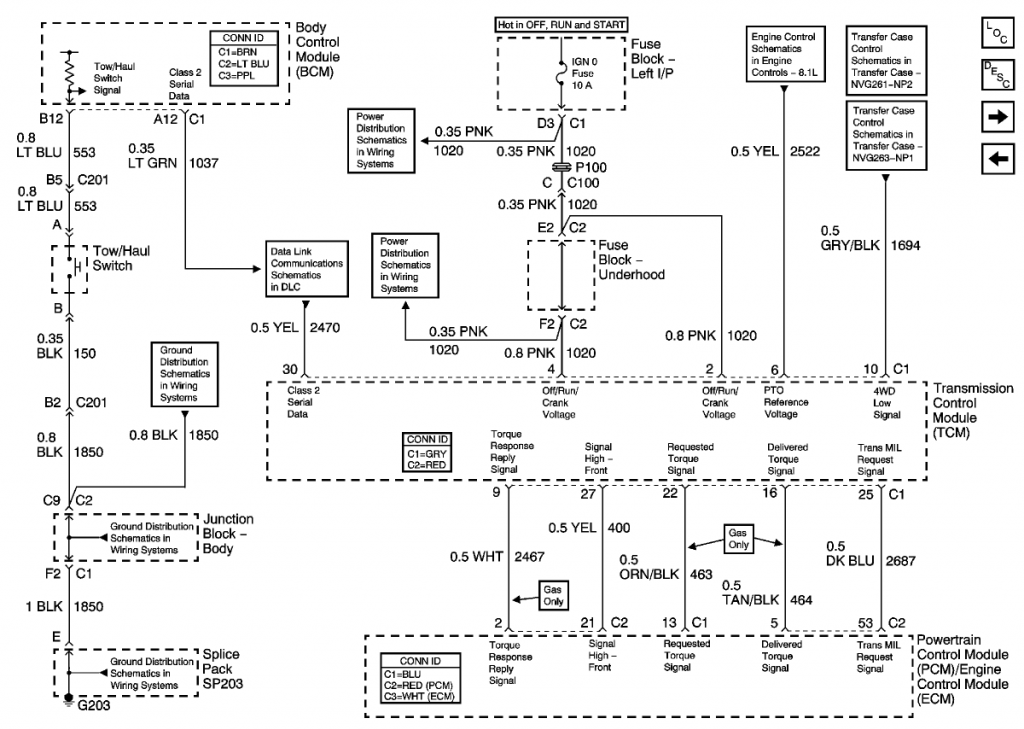

Name:  81allison2_zpsf3638163.png
Views: 28
Size:  315.9 KB

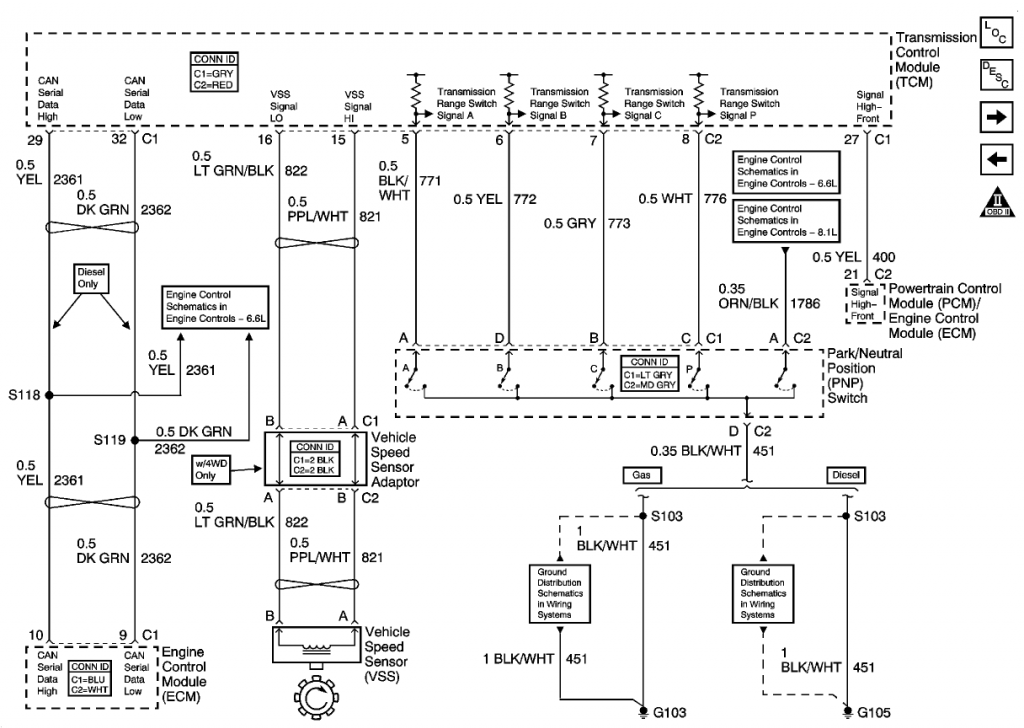

Name:  81allison3_zpsbf66d250.png
Views: 32
Size:  266.4 KB

Name:  81allison4_zpse886793b.png
Views: 24
Size:  237.7 KB

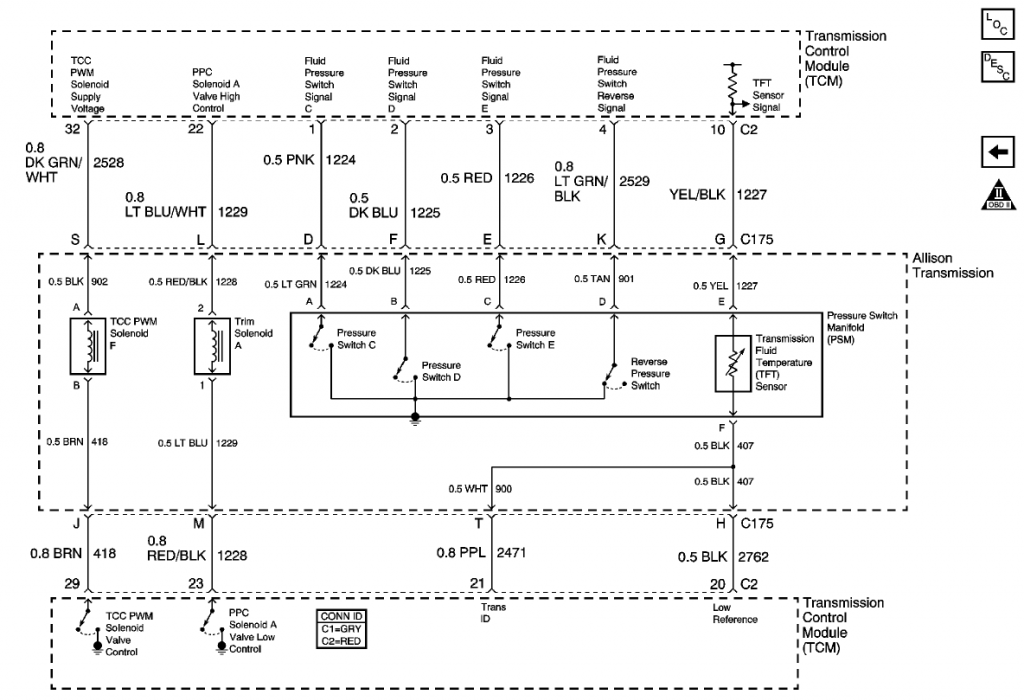

Name:  81allison5_zpsa42990b8.png
Views: 20
Size:  214.3 KB

Last edited by smokeshow; 03-28-2013 at 04:06 PM.
smokeshow is offline   Reply With Quote
Old 03-28-2013, 03:59 PM   #4
High on diesel fumes
Thread Starter
iTrader: (70)

thunder550's Avatar

Join Date: Mar 2005
Location: Phoenix, AZ
Posts: 12,664
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Quote:
Originally Posted by smokeshow View Post
So this harness that your questions are referring to is the duramax harness, correct? So you'd be mixing the original BCM from that truck with the ECM and TCM of the duramax harness?
This is a different deal. It's the dash harness from the 99 with a BCM, ECM, TCM from an 02 8.1/Allison. I agreed to put the factory power windows and locks in this guy's truck before I knew how much of a disaster this project was going to turn into.
thunder550 is offline   Reply With Quote
Old 03-28-2013, 04:05 PM   #5
TECH Senior Member
iTrader: (16)

smokeshow's Avatar

Join Date: Feb 2009
Location: Detroit
Posts: 7,048
Thanks: 0
Thanked 12 Times in 12 Posts
Default

Ok, well disregard those first images I posted. I updated the post with the correct diagrams...
smokeshow is offline   Reply With Quote
Old 03-28-2013, 04:33 PM   #6
High on diesel fumes
Thread Starter
iTrader: (70)

thunder550's Avatar

Join Date: Mar 2005
Location: Phoenix, AZ
Posts: 12,664
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thanks! I think I'm getting close...do you have the diagrams for the DLC that is referenced in the 2nd image above?
thunder550 is offline   Reply With Quote
Old 03-28-2013, 04:40 PM   #7
TECH Senior Member
iTrader: (16)

smokeshow's Avatar

Join Date: Feb 2009
Location: Detroit
Posts: 7,048
Thanks: 0
Thanked 12 Times in 12 Posts
Default

Heres a couple

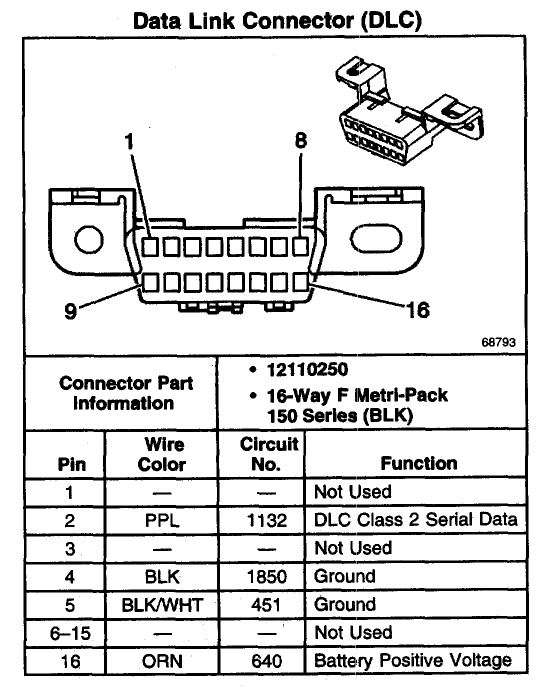

Name:  data1_zps8fcd5a1f.png
Views: 26
Size:  39.5 KB

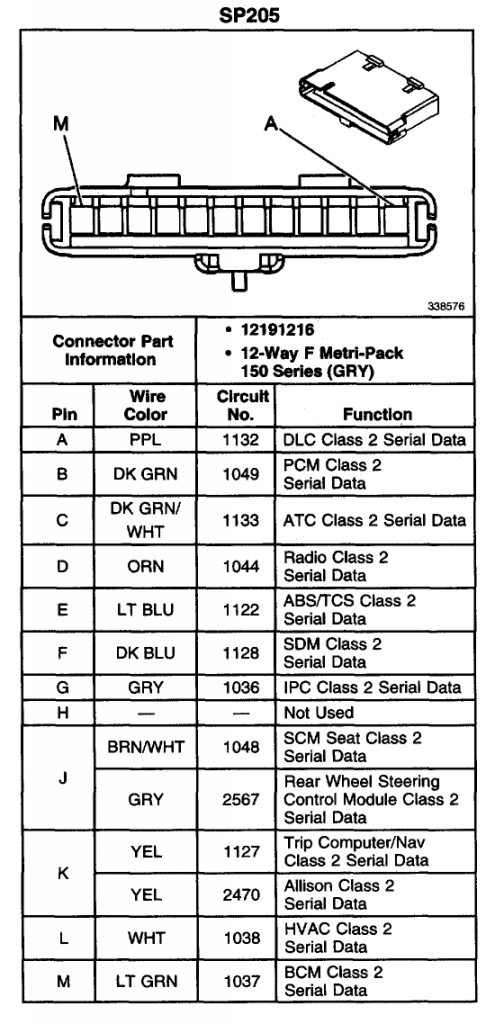

Name:  data2_zps12424ce8.png
Views: 22
Size:  275.6 KB

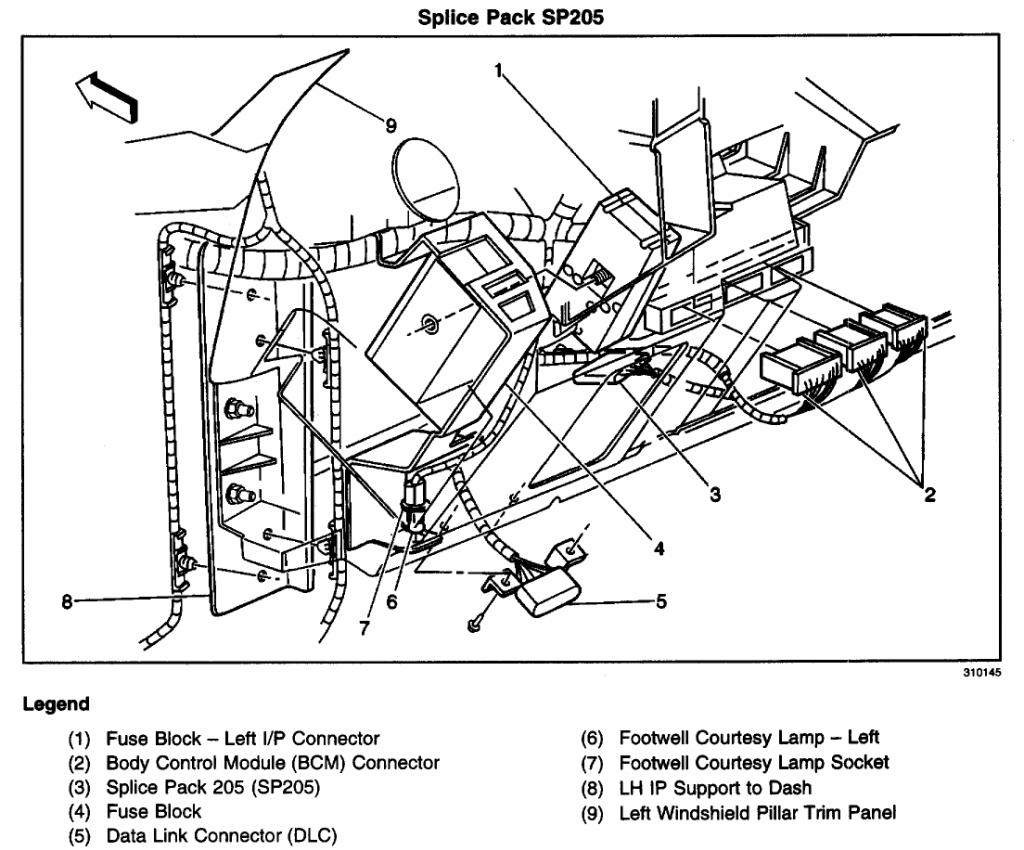

Name:  data3_zps2dc37937.png
Views: 36
Size:  484.1 KB
smokeshow is offline   Reply With Quote
Old 03-28-2013, 04:55 PM   #8
High on diesel fumes
Thread Starter
iTrader: (70)

thunder550's Avatar

Join Date: Mar 2005
Location: Phoenix, AZ
Posts: 12,664
Thanks: 0
Thanked 0 Times in 0 Posts
Default

BINGO!!! The yellow class 2 Allison data wire was missing from the DLC connector from the 99 dash harness. WOOHOO!!!!! Thank you!!!
thunder550 is offline   Reply With Quote
Old 03-28-2013, 05:25 PM   #9
TECH Senior Member
iTrader: (16)

smokeshow's Avatar

Join Date: Feb 2009
Location: Detroit
Posts: 7,048
Thanks: 0
Thanked 12 Times in 12 Posts
Default

So does it work?!
smokeshow is offline   Reply With Quote
Old 03-28-2013, 06:38 PM   #10
High on diesel fumes
Thread Starter
iTrader: (70)

thunder550's Avatar

Join Date: Mar 2005
Location: Phoenix, AZ
Posts: 12,664
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Yep
