Need help with running fuel lines
11-02-2017, 07:02 PM
#1
Need help with running fuel lines
Hey guys I wanna run some nice steel braided fuel line with AN fittings when I do my nnbs intake swap but I just have no exsperince in doing this.when I did my v6 to v8 swap I adapted my lines with compression fittings and while my truck sat for 6 weeks waiting for parts I can see it just barley starting to leak and it just looks like a total hack job down there so I wanna run some new line.Also,my tuner said that my fuel pump is toweak for my new set up and gonna be running bigger injectors so wanna make sure there's no problems.Now is there any write ups or advice anybody can shoot my way I've never used or orderd AN fittings and it's a little confusing on the summit page thanks in advance fir any info or suggestions
11-05-2017, 08:42 AM
#2
we did this on my sons engine swap we used AN tube nut and sleeves, you slide the nut on then the sleeve once those are in place you flare the tube
tube nut & sleeves to male/male union to a AN to hose fitting, you can rent the flaring tool if you dont have one from local auto parts
you have to know your stock fuel line size since you already have braided hose you can get a union in combo sizes if you need (example -6 to -8, -3 to -6)
if you give a call to summit and tell them what your doing and the sized stuff your working with they should be able to guide you
tube nut & sleeves to male/male union to a AN to hose fitting, you can rent the flaring tool if you dont have one from local auto parts
you have to know your stock fuel line size since you already have braided hose you can get a union in combo sizes if you need (example -6 to -8, -3 to -6)
if you give a call to summit and tell them what your doing and the sized stuff your working with they should be able to guide you
11-11-2017, 10:48 PM
#3
we did this on my sons engine swap we used AN tube nut and sleeves, you slide the nut on then the sleeve once those are in place you flare the tube
tube nut & sleeves to male/male union to a AN to hose fitting, you can rent the flaring tool if you dont have one from local auto parts
you have to know your stock fuel line size since you already have braided hose you can get a union in combo sizes if you need (example -6 to -8, -3 to -6)
if you give a call to summit and tell them what your doing and the sized stuff your working with they should be able to guide you
tube nut & sleeves to male/male union to a AN to hose fitting, you can rent the flaring tool if you dont have one from local auto parts
you have to know your stock fuel line size since you already have braided hose you can get a union in combo sizes if you need (example -6 to -8, -3 to -6)
if you give a call to summit and tell them what your doing and the sized stuff your working with they should be able to guide you
11-13-2017, 07:45 AM
#4
If you want to run braided line all the way it is pretty easy.
First off both the evap and fuel line are going to be 3/8th sized.

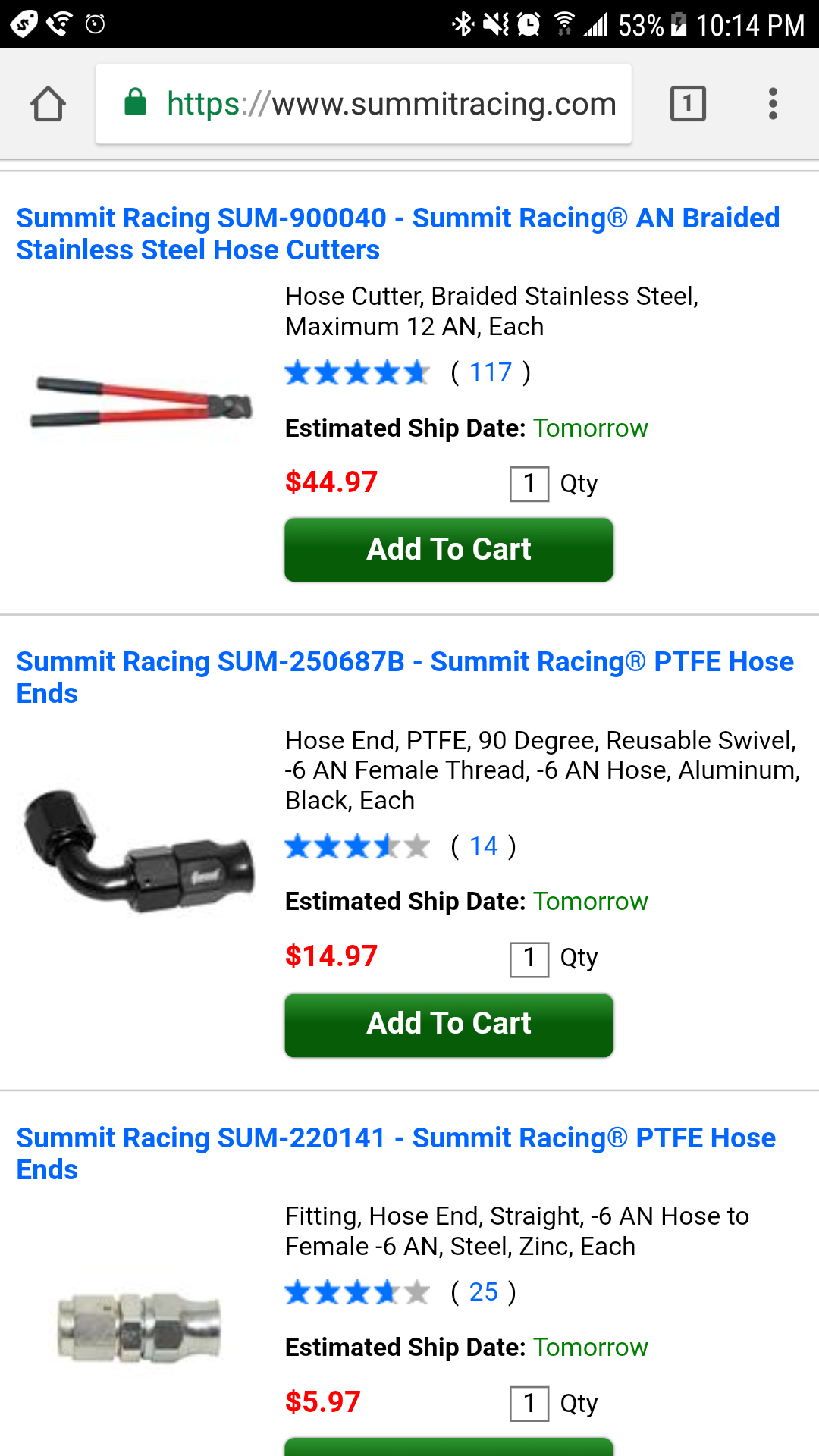

So you will want to buy two female quick disconnect fittings in 3/8ths for the gas tank side. Then you need to select line size. I would suggest you go with PTFE -6 hose. Now you need something to connect the hose to the QD fittings. I used a 90 degree on the evap and a 90 degree on the fuel size. The end fittings for PTFE are not the same as regular hose so be careful which you buy.
For the engine side you will need 1 male QD (evap) and one female QD (fuel rail). I used straight fittings to connect the hose to the QD on this side.
Some mounting and routing and then you are done...
First off both the evap and fuel line are going to be 3/8th sized.
So you will want to buy two female quick disconnect fittings in 3/8ths for the gas tank side. Then you need to select line size. I would suggest you go with PTFE -6 hose. Now you need something to connect the hose to the QD fittings. I used a 90 degree on the evap and a 90 degree on the fuel size. The end fittings for PTFE are not the same as regular hose so be careful which you buy.
For the engine side you will need 1 male QD (evap) and one female QD (fuel rail). I used straight fittings to connect the hose to the QD on this side.
Some mounting and routing and then you are done...
11-13-2017, 09:59 PM
#5
If you want to run braided line all the way it is pretty easy.
First off both the evap and fuel line are going to be 3/8th sized.
So you will want to buy two female quick disconnect fittings in 3/8ths for the gas tank side. Then you need to select line size. I would suggest you go with PTFE -6 hose. Now you need something to connect the hose to the QD fittings. I used a 90 degree on the evap and a 90 degree on the fuel size. The end fittings for PTFE are not the same as regular hose so be careful which you buy.
For the engine side you will need 1 male QD (evap) and one female QD (fuel rail). I used straight fittings to connect the hose to the QD on this side.
Some mounting and routing and then you are done...
First off both the evap and fuel line are going to be 3/8th sized.
So you will want to buy two female quick disconnect fittings in 3/8ths for the gas tank side. Then you need to select line size. I would suggest you go with PTFE -6 hose. Now you need something to connect the hose to the QD fittings. I used a 90 degree on the evap and a 90 degree on the fuel size. The end fittings for PTFE are not the same as regular hose so be careful which you buy.
For the engine side you will need 1 male QD (evap) and one female QD (fuel rail). I used straight fittings to connect the hose to the QD on this side.
Some mounting and routing and then you are done...
11-13-2017, 10:24 PM
#6
If you want to run braided line all the way it is pretty easy.
First off both the evap and fuel line are going to be 3/8th sized.
So you will want to buy two female quick disconnect fittings in 3/8ths for the gas tank side. Then you need to select line size. I would suggest you go with PTFE -6 hose. Now you need something to connect the hose to the QD fittings. I used a 90 degree on the evap and a 90 degree on the fuel size. The end fittings for PTFE are not the same as regular hose so be careful which you buy.
For the engine side you will need 1 male QD (evap) and one female QD (fuel rail). I used straight fittings to connect the hose to the QD on this side.
Some mounting and routing and then you are done...
First off both the evap and fuel line are going to be 3/8th sized.
So you will want to buy two female quick disconnect fittings in 3/8ths for the gas tank side. Then you need to select line size. I would suggest you go with PTFE -6 hose. Now you need something to connect the hose to the QD fittings. I used a 90 degree on the evap and a 90 degree on the fuel size. The end fittings for PTFE are not the same as regular hose so be careful which you buy.
For the engine side you will need 1 male QD (evap) and one female QD (fuel rail). I used straight fittings to connect the hose to the QD on this side.
Some mounting and routing and then you are done...
Trending Topics
11-20-2017, 08:08 AM
#8
10 feet will work for just the fuel line. Probably need 20 for both the evap and fuel line.
