Default LT1 fans FS. Includes relay/stat, wires, looms & brackets.

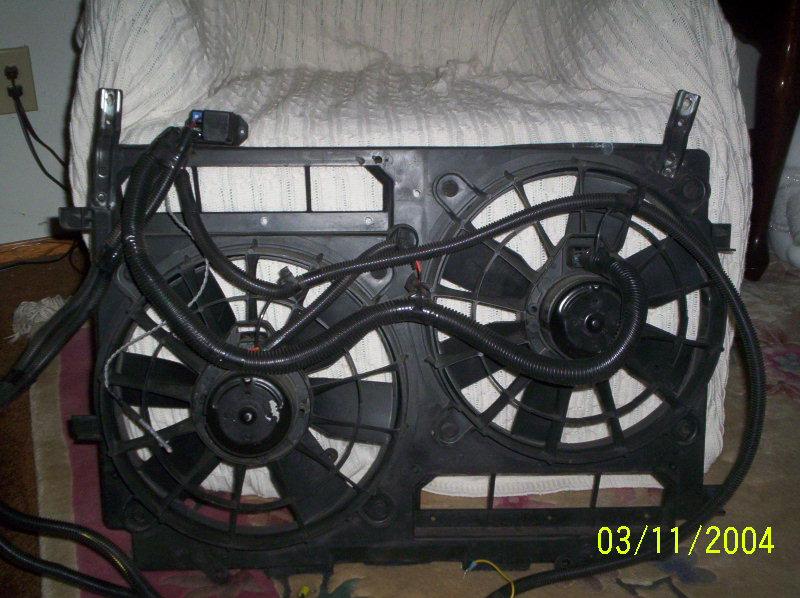

Guys, all the other stuff I listed earlier is on Ebay now but I thought I would give these one more chance. I can't believe someone doesn't want them? They are all wired up and ready to be installed. $150 shipped, check the pics out.
Jim
Attached Thumbnails LT1 fans FS. Includes relay/stat, wires, looms & brackets.-000_0244.jpg   LT1 fans FS. Includes relay/stat, wires, looms & brackets.-fan-pic.jpg   LT1 fans FS. Includes relay/stat, wires, looms & brackets.-relay-pic.jpg   LT1 fans FS. Includes relay/stat, wires, looms & brackets.-red-wire-red-box-yellow-wire-fuse-box.jpg
Reply
Old Mar 11, 2004 | 10:03 PM
  #2
2000SIERRA's Avatar
On The Tree
iTrader: (2)

Joined: Mar 2004
Posts: 139
Likes: 0
From: Central Jersey
Default

I might be interested. I am wondering how hard are they to hook up, what is involved? What else would I need to buy, new thermostat? Thanks
Reply
Old Mar 12, 2004 | 10:12 AM
  #3
Thread Starter
Moderator

Joined: Feb 2002
Posts: 1,908
Likes: 0
From: Clyde, California
Default

Originally Posted by 00serria
I might be interested. I am wondering how hard are they to hook up, what is involved? What else would I need to buy, new thermostat? Thanks

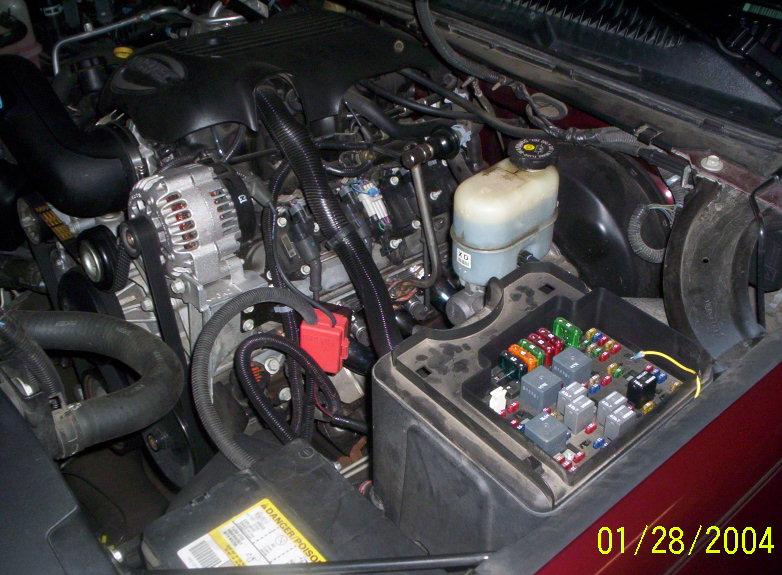

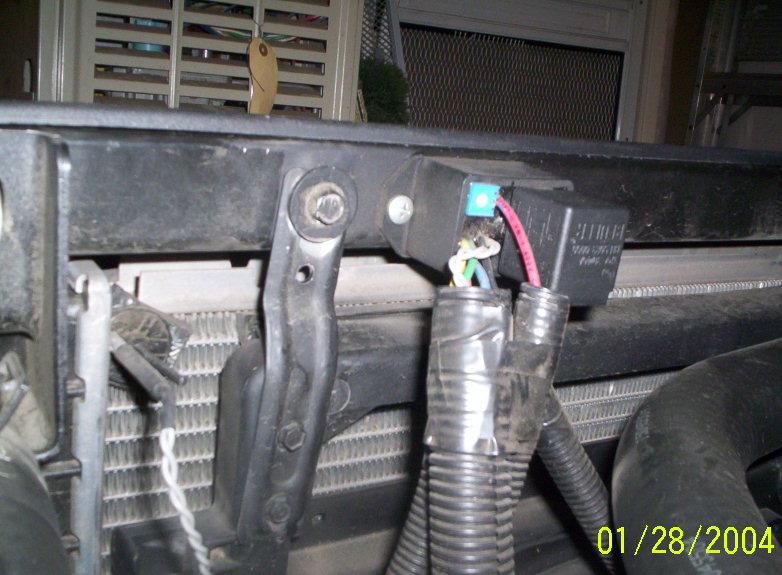

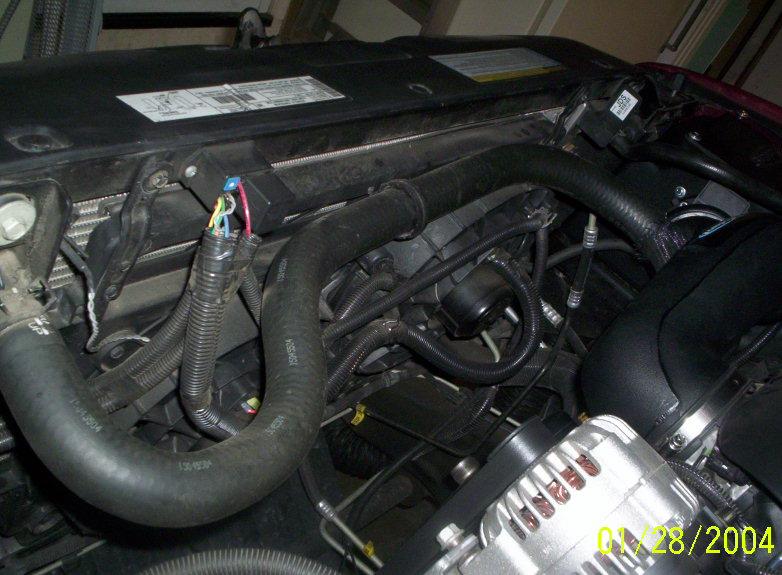

Installation will be pretty simple since they are now basically pre-wired. First step, remove top fan shroud, clutch fan and lower fan shroud. Then install e-fans, they sit in the lower channel where the lower fan shroud was. The two top brackets use the screws and screw holes that held the top fan shroud in place, just line up the fans. The two lower brackets just get screwed into the frame. Wiring will be simple! Three black ground wires attach to the grounding nut straight down on the frame, right below the crank pulley, should be easy to see. The red wire goes the red box on the driver side of the engine. The yellow wire goes to an empty slot in the fuse box that's only hot when the ignition is on, use a multimeter to find one. That's it, you're done. The e-fans have a stat, it's set for about 190*. You can install a lower temp stat in the engine if you want but it's not necessary. Check the pics out, one shows the red and yellow wire connections, you can see them run. One shows where I had the relay/stat mounted and the sensing probe slipped into the radiatior fins. It's pretty simple. let me know.
Jim
Reply
Old Mar 12, 2004 | 11:23 AM
  #4
mudz5.3's Avatar
TECH Resident

Joined: May 2003
Posts: 959
Likes: 0
From: Glendale, AZ
Default

Y2k, I am interested. 125 shipped?
Reply
Old Mar 12, 2004 | 11:53 AM
  #5
nightmarechevy's Avatar
TECH Fanatic
iTrader: (5)

Joined: Oct 2003
Posts: 1,230
Likes: 0
From: San Angelo, Texas
Default

What kind of gains did you see with this?
Reply
Old Mar 12, 2004 | 12:28 PM
  #6
Thread Starter
Moderator

Joined: Feb 2002
Posts: 1,908
Likes: 0
From: Clyde, California
Default

Originally Posted by mudz5.3
Y2k, I am interested. 125 shipped?
How about $140. These things aren't lite, I figure shipping will be at least $30-$40.
Jim
Reply
Old Mar 12, 2004 | 12:30 PM
  #7
Thread Starter
Moderator

Joined: Feb 2002
Posts: 1,908
Likes: 0
From: Clyde, California
Default

Originally Posted by nightmarechevy
What kind of gains did you see with this?
Some one dynoed some on here at one time but I can't remember exactly, I think it was like 7 hp and 7 tq gained.
Jim
Reply
Old Mar 12, 2004 | 01:00 PM
  #8
nightmarechevy's Avatar
TECH Fanatic
iTrader: (5)

Joined: Oct 2003
Posts: 1,230
Likes: 0
From: San Angelo, Texas
Default

I might be able to take it for $150 if mudz doesn't want it, let me check my funding situation and I will get back with you.
Reply
Old Mar 12, 2004 | 02:44 PM
  #9
mudz5.3's Avatar
TECH Resident

Joined: May 2003
Posts: 959
Likes: 0
From: Glendale, AZ
Default

ok pm the info
Reply
Old Mar 12, 2004 | 02:53 PM
  #10
Thread Starter
Moderator

Joined: Feb 2002
Posts: 1,908
Likes: 0
From: Clyde, California
Default

Originally Posted by mudz5.3
ok pm the info
PM sent.
Jim
