VSC Pin Out ?

Reply Subscribe

Thread Tools

Search this Thread

May 31, 2004 | 07:28 PM

GMC SKI

Thread Starter

TECH Fanatic

Joined: Mar 2002

Posts: 1,452

Likes: 0

From: toronto

VSC Pin Out ?

I just got my replacement VSC unit looks different than the one i have
It has numbers above the terminals ..and no in out instrctions
anyobody happen to know where stuff goes ?

May 31, 2004 | 07:44 PM

XLR8NSS

Adkoonerstrator

iTrader: (4)

Joined: Nov 2001

Posts: 21,436

Likes: 3

From: Deep in the seedy underworld of Koonerville

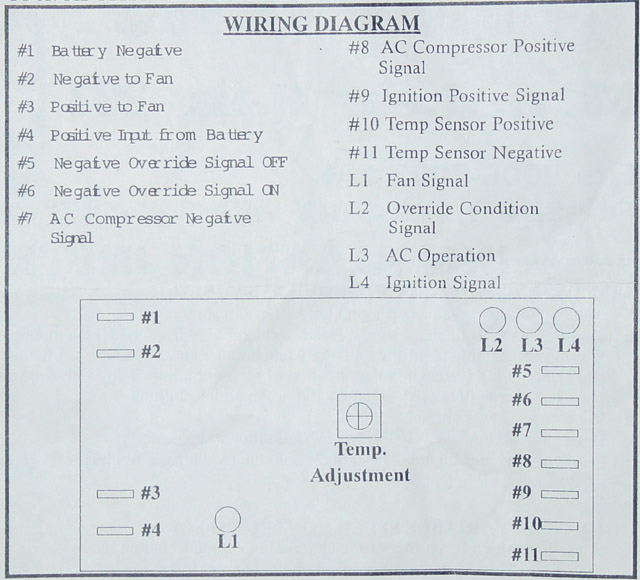

I don't remember if mine was numbered or not but, here is a pic of the instructions with the terminals labeled. Hope it helps.

Attached Thumbnails

May 31, 2004 | 08:12 PM

MacADaYear

TECH Addict

Joined: Apr 2002

Posts: 2,527

Likes: 0

From: Cali

Quote:

Originally Posted by XLR8NSS

I don't remember if mine was numbered or not but, here is a pic of the instructions with the terminals labeled. Hope it helps.

Mine looks like that too... both the 25amp and 40amp VSC's use the same terminal numbering

May 31, 2004 | 11:49 PM

one03sierra

Formerly one92rs

iTrader: (1)

Joined: Apr 2003

Posts: 4,205

Likes: 1

From: league city texas

ahh. on the older vsc's they did not have the cover that the newer ones have thus no numbers on them.
