Originally Posted by metalchip
Hello,

Well 3 months ago I pulled the 5.3 out to OVH it. After many delays I started to reinstall and for the life of me I could not find where this bolt came from. Hoping to find where the bolt went, I put everything back on, but no luck. My truck is in my signature.

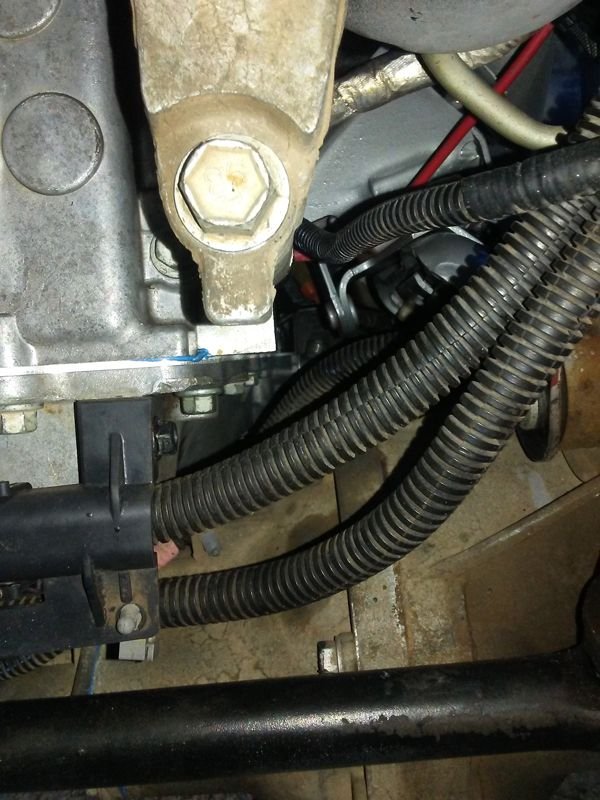

I found the bolt in the bag for the driver’s side front along with the power steering mount bolts. So, it should go in that top side general area. The picture shows it with a larger power steering mount bolt.
It has a shallow head, 2 ½” long and has 8mm-1.25 thread. It did not have any road grime-dust on it.
NOT 2 1/2" BUT 1 1/2" CORRECTION MADE
I replaced the front right axle seal and the front right wheel hub when I had the engine out, but the bolt would not have ended up in that bag of bolts.

This is the 1st LS type engine I have pulled out so any help would be appreciated.

Thanks




NOT 2 1/2" BUT 1 1/2" CORRECTION MADE
Good catch--OOpooterSS.
Reply
0
Old Sep 2, 2020 | 11:15 PM
  #22
metalchip's Avatar
metalchip
Thread Starter
Teching In
5 Year Member
Liked

Joined: Mar 2019
Posts: 37
Likes: 2
From: Bismarck, ND
Default
Originally Posted by 1FastBrick
What year is the truck?
Looks like an Ac compressor line to Compressor bolt?
Hello,
2002, it is in my signature. I did not break open the AC lines.
Maybe it is the fuel saver bolt? Leave it out and they is less weight to haul around?
Thanks
Reply
0
Old Sep 2, 2020 | 11:20 PM
  #23
metalchip's Avatar
metalchip
Thread Starter
Teching In
5 Year Member
Liked

Joined: Mar 2019
Posts: 37
Likes: 2
From: Bismarck, ND
Default Nope
Originally Posted by arthursc2
That looks like a radiator upper bolt to me. Did you pull the radiator by chance?
Hello, no I left the radiator in. Removing the water pump gives just enough room to get by the rad. top piece.
Reply
0
Old Sep 2, 2020 | 11:43 PM
  #24
arthursc2's Avatar
arthursc2
TECH Veteran
iTrader: (5)

Joined: Jan 2014
Posts: 4,341
Likes: 1,517
Default
Yeah I went and looked at my truck (02 5.3 Tahoe 4x4) to try to help

I thought it might be a motor mount bolt but all those are marked 10.9

I thought was the idler bolt but it's marked 8.6 (never heard of that grade before)

so I dunno what it is, but if it's working, roll with it 😂
Reply
0
Old Sep 3, 2020 | 05:11 AM
  #25
randeez's Avatar
randeez
Launching!

Joined: Dec 2011
Posts: 275
Likes: 32
Default
Nevermind, didn't read
Last edited by randeez; Sep 3, 2020 at 05:22 AM.
Reply
0
Old Sep 3, 2020 | 08:57 AM
  #26
metalchip's Avatar
metalchip
Thread Starter
Teching In
5 Year Member
Liked

Joined: Mar 2019
Posts: 37
Likes: 2
From: Bismarck, ND
Default close
Originally Posted by randeez
just looks like one of the bolts for the valley or rear cover
Hello, close but not same length.
I will keep looking!
Thanks
Reply
0
Old Sep 3, 2020 | 12:18 PM
  #27
00pooterSS's Avatar
00pooterSS
TECH Junkie
15 Year Member
Loved
Liked
Community Favorite
iTrader: (40)

Joined: Mar 2008
Posts: 3,193
Likes: 261
From: Dallas
Default
Is this a hole here that takes a shorter bolt than the other bracket bolts?


Reply
0
Old Sep 3, 2020 | 09:46 PM
  #28
metalchip's Avatar
metalchip
Thread Starter
Teching In
5 Year Member
Liked

Joined: Mar 2019
Posts: 37
Likes: 2
From: Bismarck, ND
Default
Originally Posted by 00pooterSS
Is this a hole here that takes a shorter bolt than the other bracket bolts?

Hello, I will take a look in the morning, thanks.
Reply
0
Old Sep 4, 2020 | 10:09 AM
  #29
metalchip's Avatar
metalchip
Thread Starter
Teching In
5 Year Member
Liked

Joined: Mar 2019
Posts: 37
Likes: 2
From: Bismarck, ND
Red face More pics
Hello,

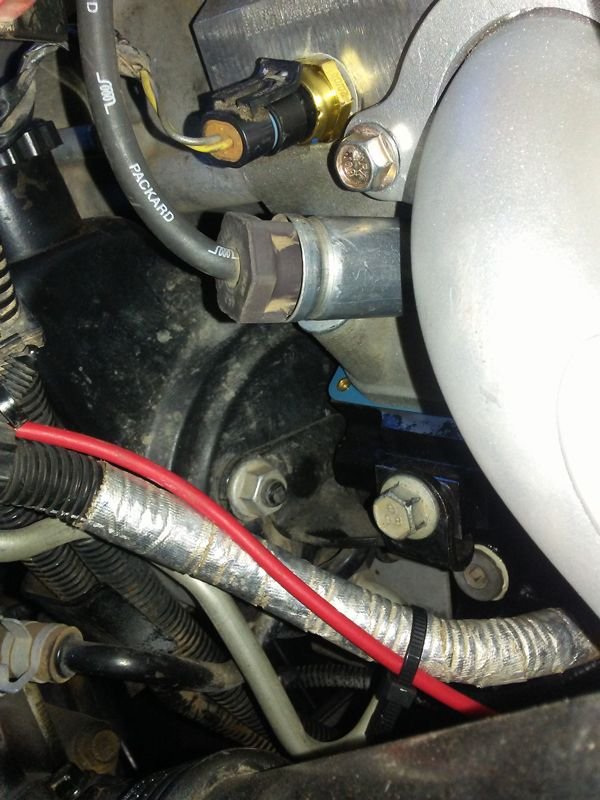

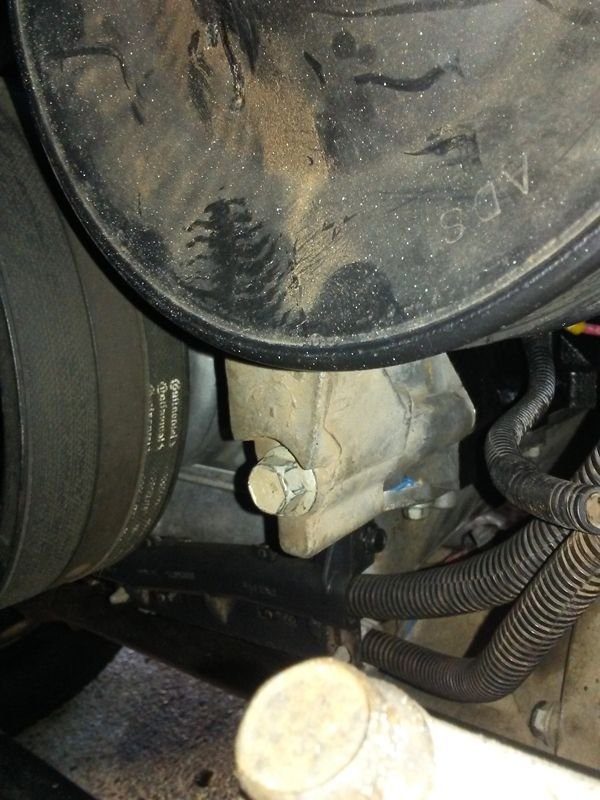

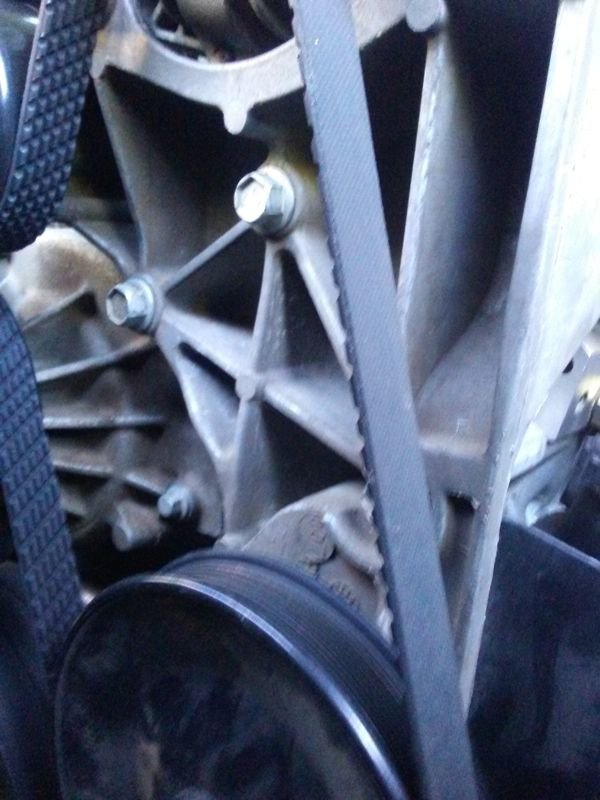

Here are some pics of the power steering mounting and my home made fan shroud.
There are 3 bolts on top and 1 on the bottom that go in from the front. Only 2 top ones are in the photo but there are 3.
And 2 [studs with nuts] on the back side of the PS pump and 1 15mm bolt in the block for the rear bracket.
The red wire is a extra frame to block ground.
I am still looking to where to put the EXTRA BOLT! It makes me feel old, I remember that "was an odd place for a bolt, I am sure I will remember that!" WRONG!!!
All the PS bolts are in, they all have 15mm wrench size head bolts, not the 13mm I have EXTRA.
Thanks for looking and your help.

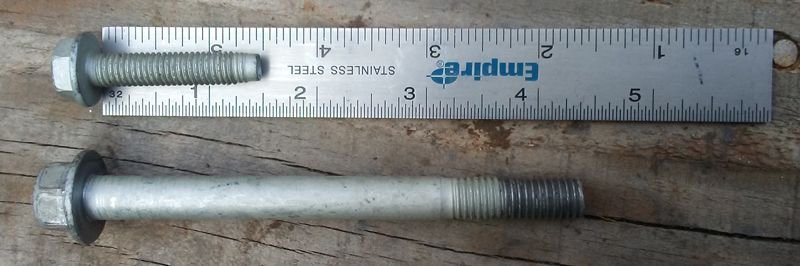

Power Steering bolt [larger] and the EXTRA BOLT

front

Back PS bracket showing 2 of 3 15mm bolts

bottom

bottom front

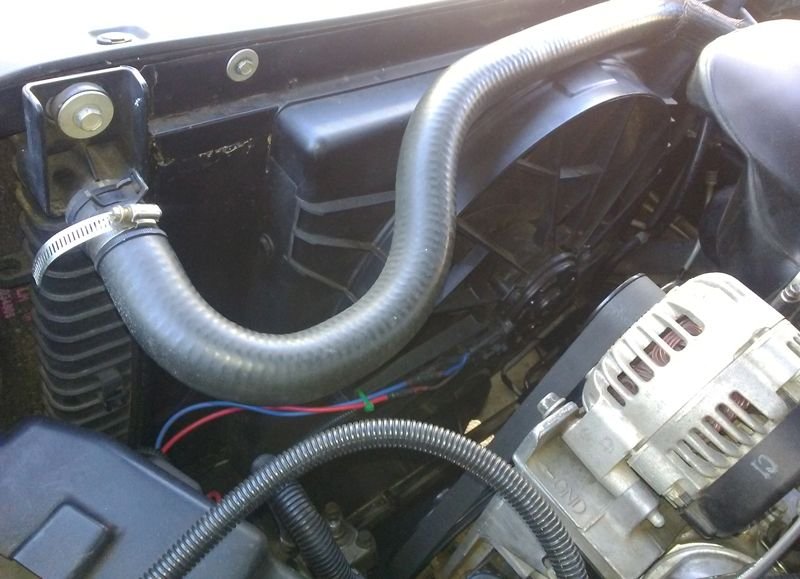

Ford Torino fan

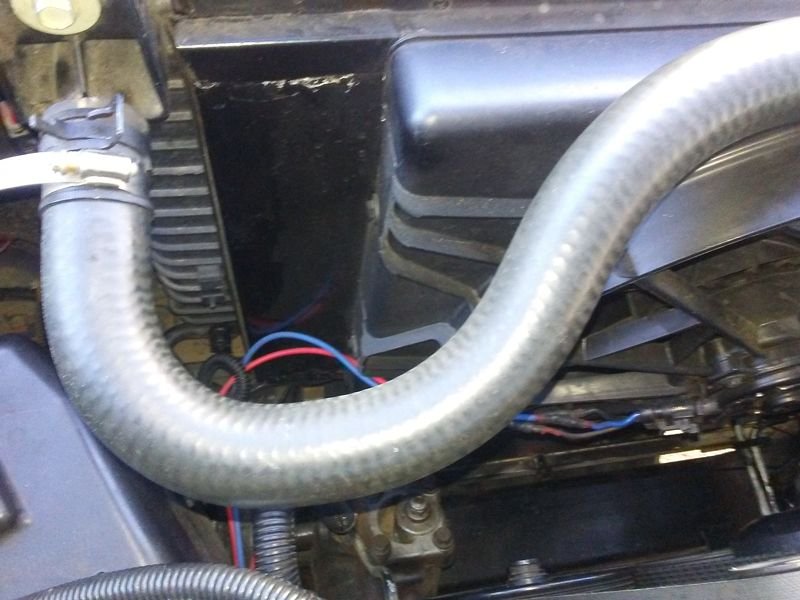

Home made shroud
Last edited by metalchip; Sep 4, 2020 at 10:38 AM. Reason: more information
Reply
0
Old Sep 4, 2020 | 11:02 AM
  #30
1FastBrick's Avatar
1FastBrick
Custm2500's Rude Friend
15 Year Member
Loved
Liked
Community Favorite
iTrader: (17)

Joined: Apr 2007
Posts: 14,592
Likes: 900
From: JunkYard
Default
Is The Ac compressor mounted?
Are the lines hooked up?
Last edited by 1FastBrick; Sep 4, 2020 at 11:12 AM.
Reply
0
