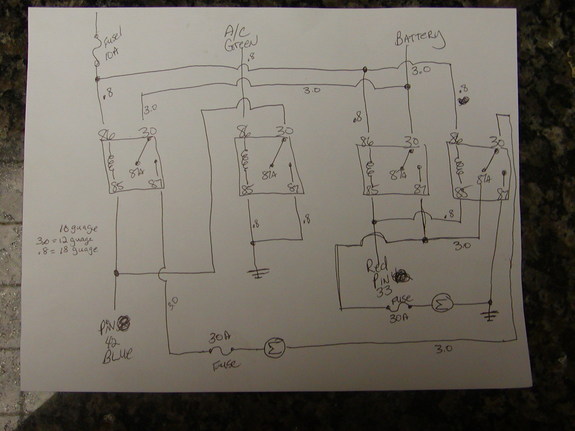

Anyone who has the Nelson harness and have or had problems with large draw on the Alt when A/C is on , lights flickering with A/C clutch cycle , Alt gage dropping when A/C clutch cycles , here is a diagram that will cure the problem .
I have a 2005 1500HD (3/4 so no e-fans) and did the 2005 fan install and Nelson harness , the Nelson harness is designed for LS1 or Flexlite fans and not the 2005 stock fans , so the harness does not work to well , but with this diagram the 2005 fans work great .
I have a 2005 1500HD (3/4 so no e-fans) and did the 2005 fan install and Nelson harness , the Nelson harness is designed for LS1 or Flexlite fans and not the 2005 stock fans , so the harness does not work to well , but with this diagram the 2005 fans work great .
#3
Banned
Thread Starter
Join Date: Nov 2005
Location: In a shack
Posts: 133
Likes: 0
Received 0 Likes
on
0 Posts
Upstream or downstream of the fans , one relay acts as a converter so to speak , converts 12 volts (+) hot to a (-) ground trigger , the fan modes are, NOTE FOR 2005 FACTORY FANS , they draw alot of amps when both running on high speed . MAY NOT WORK FOR LS1 OR Flex-A-Lite FANS
1.No temp , no A/C no fans
2.No temp , A/C on 2 fans low
3.Temp , A/C on 2 fans low
4.Temp , no A/C 2 fans low
5.Exterme temp , no A/C 2 fans high
6.Extreme temp , A/C 2 fans high
I did not design this harness it was actually designed by RedHeartbeat , he used a diagram posted by Aklim on LS1truck.com .
This is designed for a 2005 PCM with the ability to have two PCM pins activate it , pin42 low temp and pin 33 high temp , one could use the high temp pin wire as a trigger , triggered by a high pressure switch or sending unit .
GM
1.No temp , no A/C no fans
2.No temp , A/C on 2 fans low
3.Temp , A/C on 2 fans low
4.Temp , no A/C 2 fans low
5.Exterme temp , no A/C 2 fans high
6.Extreme temp , A/C 2 fans high
I did not design this harness it was actually designed by RedHeartbeat , he used a diagram posted by Aklim on LS1truck.com .
This is designed for a 2005 PCM with the ability to have two PCM pins activate it , pin42 low temp and pin 33 high temp , one could use the high temp pin wire as a trigger , triggered by a high pressure switch or sending unit .
GM
#6
Banned
Thread Starter
Join Date: Nov 2005
Location: In a shack
Posts: 133
Likes: 0
Received 0 Likes
on
0 Posts
To be honest I have not used the setup in hot weather yet , but the way the fans run are just the way a 05-06 1/2 ton work .
Had a freind use his 05 1/2 ton as a example of the way the fans needed to cycle and the modes I described is just the way the fans worked on his 05 1/2 ton .
Remember these are the 05 stock factory fans (34" radiator) and not the LS1 fans .
I live in Texas , so summers get hot here also .
GM
Had a freind use his 05 1/2 ton as a example of the way the fans needed to cycle and the modes I described is just the way the fans worked on his 05 1/2 ton .
Remember these are the 05 stock factory fans (34" radiator) and not the LS1 fans .
I live in Texas , so summers get hot here also .
GM
Last edited by HD6.0l; 04-12-2006 at 03:44 PM.
