Turbo piping help
Well decided i was going with a rear mount turbo system im gonna attempt to do it myself. That being said, i ordered a t70 turbo, compressor wheel 91/61mm, turbine wheel 74.7/62mm, .70 A/R compressor housing and .81 A/R turbine housing.
So far i have a list of parts im gonna need. Here is my start yall can add as you please.
Wastgate flange 38mm
T70 Oil feed and return line kit
3in vband clamp and flange
12v Performance oil scavenge pump
Aem wideband gauge and controller kit
38mm external waste gate with 6psi spring
Boost controller
2.5 BOV
Boost Gauge
T4 manifold inlet
To fab cold piping from TB to coldside of turbo with Bov mounted
Weld t4, and wastegate flange on exhaust
Help me out guys trying to get all my parts togther here soon after i get my turbo in

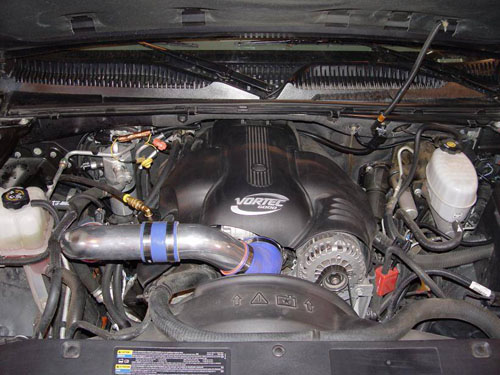

This is how i want my cold pipe ran with MAF half down the pipe
So far i have a list of parts im gonna need. Here is my start yall can add as you please.
Wastgate flange 38mm
T70 Oil feed and return line kit
3in vband clamp and flange
12v Performance oil scavenge pump
Aem wideband gauge and controller kit
38mm external waste gate with 6psi spring
Boost controller
2.5 BOV
Boost Gauge
T4 manifold inlet
To fab cold piping from TB to coldside of turbo with Bov mounted
Weld t4, and wastegate flange on exhaust
Help me out guys trying to get all my parts togther here soon after i get my turbo in
This is how i want my cold pipe ran with MAF half down the pipe
#3
Staging Lane
Thread Starter
Join Date: Apr 2013
Location: Brownwood TX
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
No to the intercooler at the moment but I will soon afterwards, just a shift kit and converter with vette servo. Should be good for 6psi. PVC will be taped at the pan and pumped back into the oil cap
Trending Topics
#9
Staging Lane
Thread Starter
Join Date: Apr 2013
Location: Brownwood TX
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
I'm gonna run by my tranny guy and see if he would do just a straight swap with mine since it's low miles and what not, any special adapting or is it kind plug and play?
#10
Staging Lane
Thread Starter
Join Date: Apr 2013
Location: Brownwood TX
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
How far does the MAF need to be from the TB and whats the limit on the distance from the TB, and correct me if im wrong it needs to be in a straight piece with no bends?
