Supercharged Engine Bay Pics

Thread Tools

Search this Thread

Old Dec 15, 2012 | 03:24 PM
  #31
Pocket's Avatar
TECH Addict
iTrader: (17)

Joined: Apr 2009
Posts: 2,256
Likes: 1
From: NC
Default

Ive had a few over the years

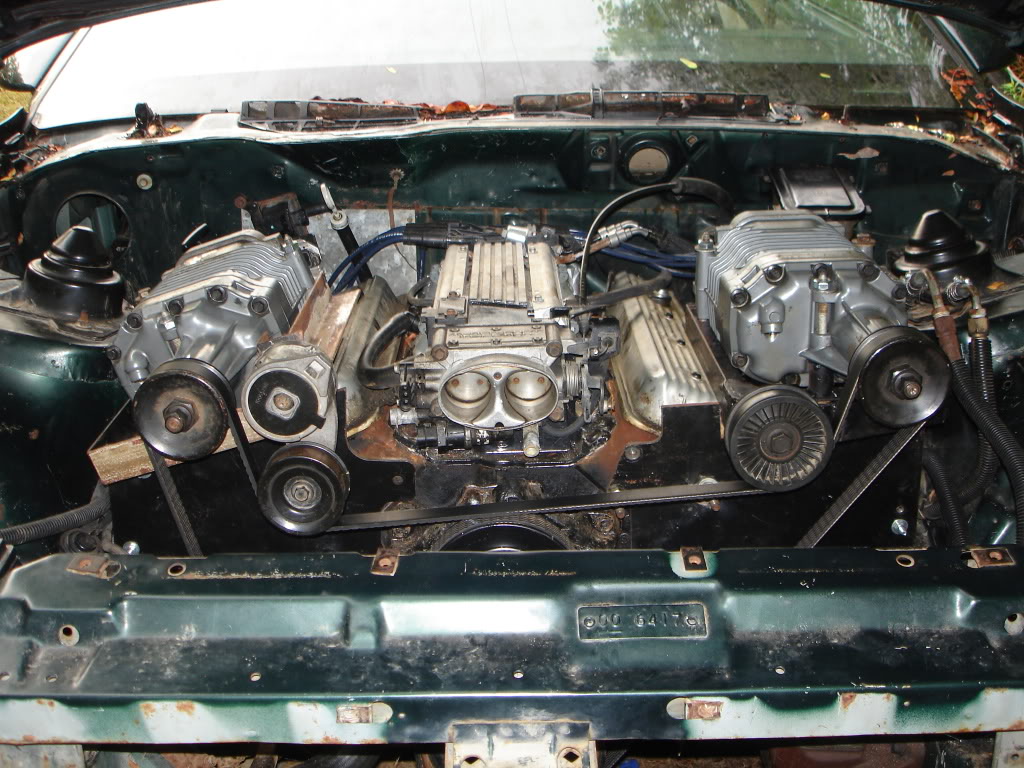

Twin M90's on a L98
Name:  DSC01295.jpg
Views: 2792
Size:  195.4 KB

M90 on a 5.3
Name:  DSC02038.jpg
Views: 2211
Size:  194.4 KB

M122 on a 6.0
Name:  DSC02677.jpg
Views: 2269
Size:  161.5 KB

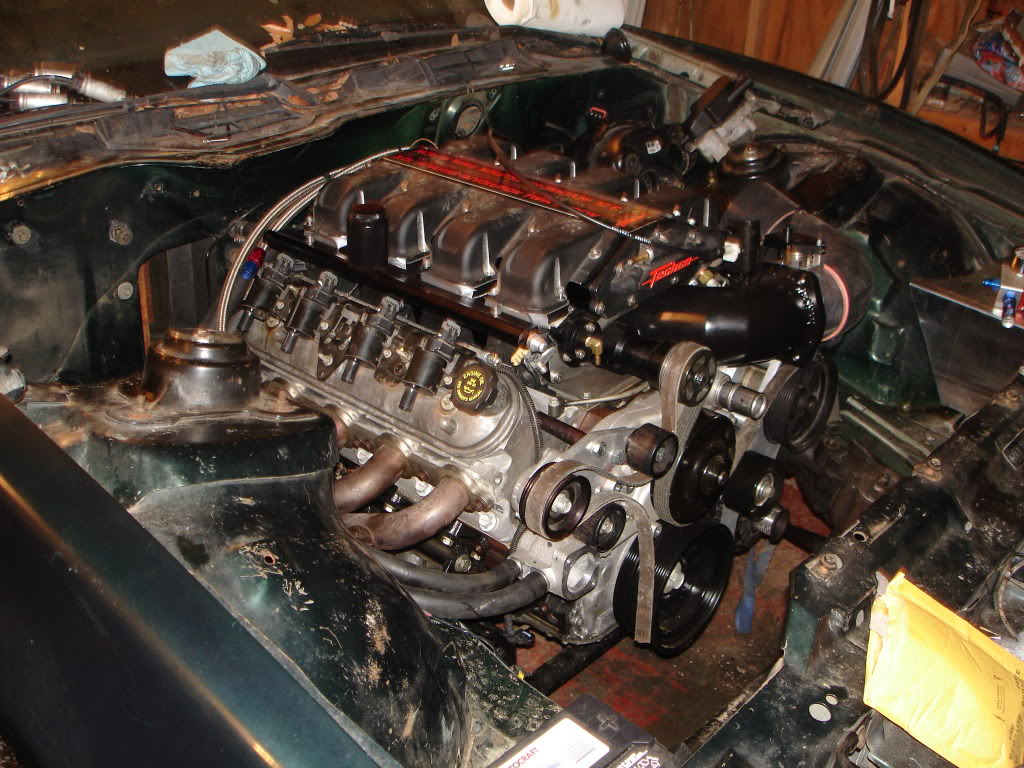

Nearly done with my latest. 3.0L twin screw on a 6.0L
Name:  DSC02816.jpg
Views: 1993
Size:  168.6 KB
Reply
Old Dec 15, 2012 | 03:30 PM
  #32
03sierraslt's Avatar
Admin
iTrader: (22)

Joined: Jul 2004
Posts: 19,007
Likes: 221
From: Western PA
Default

Who makes that blower in the last picture above?
Reply
Old Dec 18, 2012 | 01:08 PM
  #33
03SuperSLADE's Avatar
On The Tree
10 Year Member

Joined: Feb 2012
Posts: 106
Likes: 2
From: Davie, FL
Default

Originally Posted by TX Tahoe Z71
You have any dyno numbers, times or videos of that beast?
Haven't been able to get it to the track yet. Waiting for the weather to cool down here is South Florida which should be coming soon. At 17lbs of boost my IAT's are pulling timing just as I am going into 3rd at around 95mph. only numbers I have are from my G-Tech 0 - 60 in 4.35, 731 HP, the qtr mile said 13.2 at 98mph but I am pretty sure I let off before the G-Tech measured the full qtr. I like the 0-60 time and am thinking I can break into the sub 4's once I see some cold weather but I was disappointed I didn't see the 12's in the qtr even in the warmer weather. I may be expecting too much from this AWD Escalade ESV which I just had weighed in at 6550lbs.

Does anyone else have any #'s?

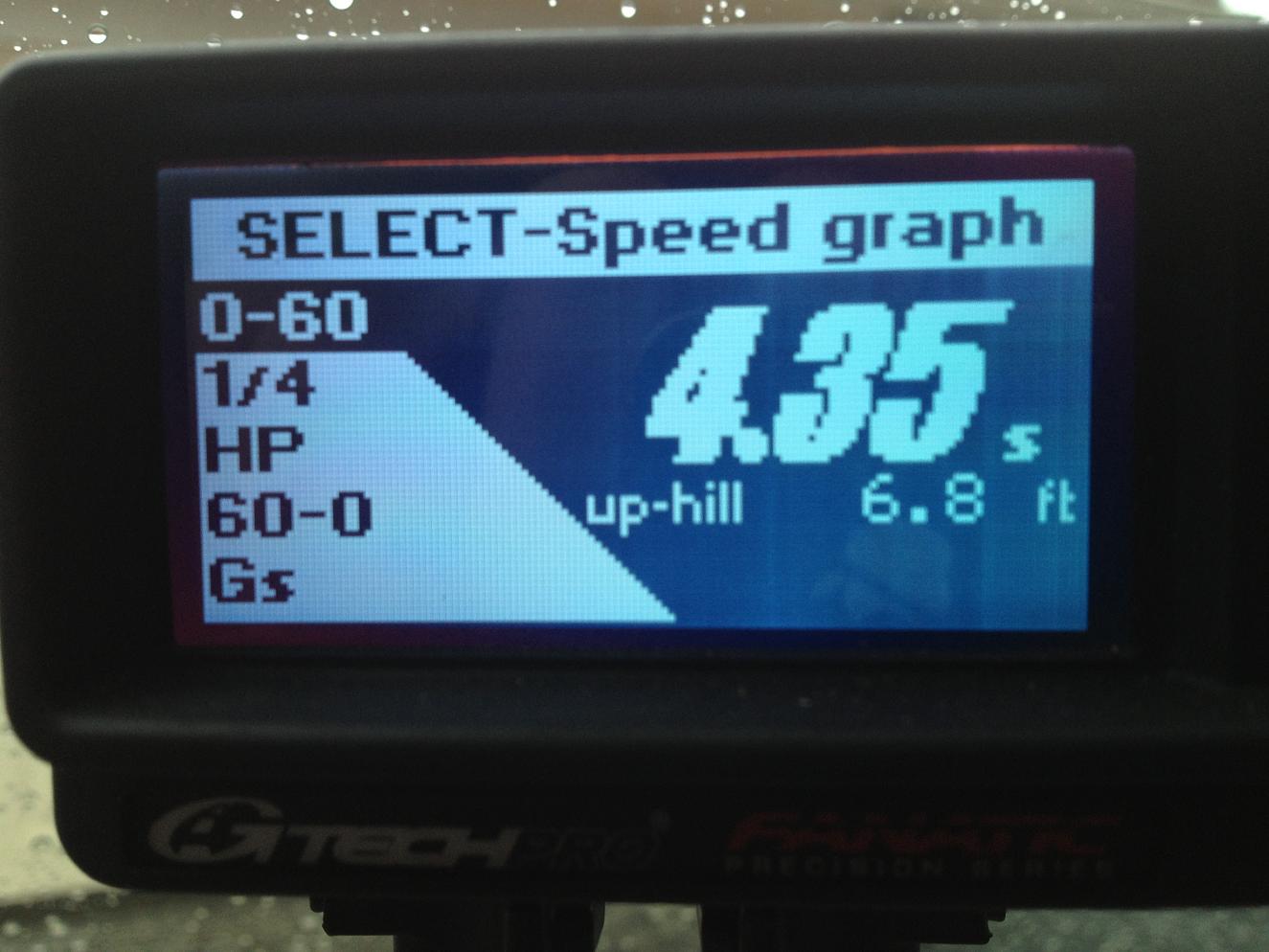

Attached Thumbnails Supercharged Engine Bay Pics-g-tech-4.35.jpg   Supercharged Engine Bay Pics-hp.jpg
Reply
Old Dec 18, 2012 | 01:55 PM
  #34
Sales2@SDPC's Avatar
Trucks Sponsor
iTrader: (9)

Joined: Nov 2005
Posts: 585
Likes: 0
From: LUBBOCK T.X.
Default whipple

Here is a pic of my 2.3L whipple

Name:  3976eeef.jpg
Views: 2026
Size:  49.2 KB
Reply
Old Dec 18, 2012 | 03:23 PM
  #35
lt1s10's Avatar
Launching!
iTrader: (2)

Joined: Jun 2005
Posts: 263
Likes: 1
Default

Originally Posted by 03sierraslt
Who makes that blower in the last picture above?
TechCo! The real question is... Where did he find it?? lol
Reply
Old Dec 18, 2012 | 05:10 PM
  #36
03sierraslt's Avatar
Admin
iTrader: (22)

Joined: Jul 2004
Posts: 19,007
Likes: 221
From: Western PA
Default

Originally Posted by lt1s10
TechCo! The real question is... Where did he find it?? lol
Never heard of them before but just looked them up and found some. Interesting, another twin screw. Learned something new.
Reply
Old Dec 18, 2012 | 10:07 PM
  #37
JKmotorsports's Avatar
Staging Lane
iTrader: (1)

Joined: Jul 2009
Posts: 69
Likes: 0
From: ATX
Default

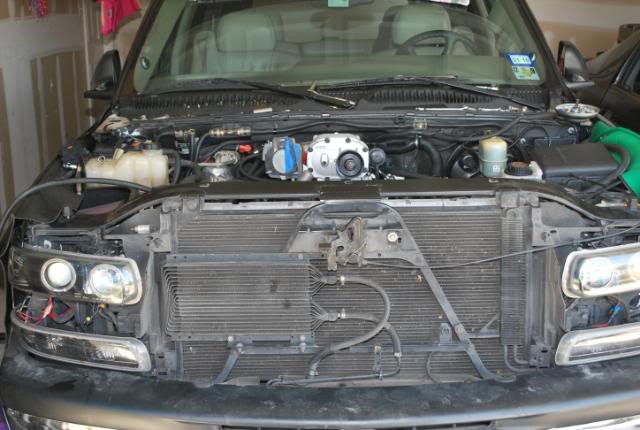

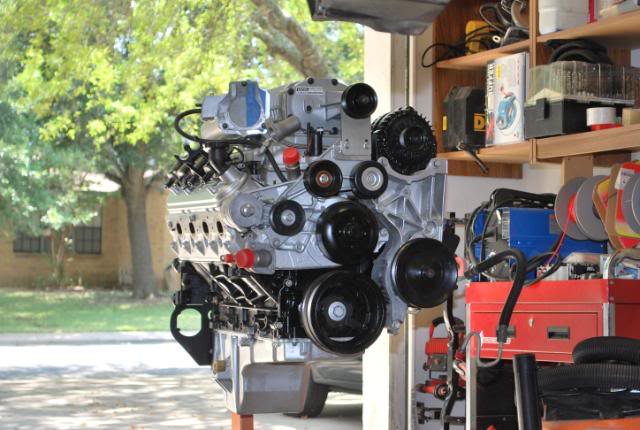

Just another typical Maggie'd 6 liter:

Name:  DSC_2701.jpg
Views: 1903
Size:  63.2 KB

Name:  DSC_2754.jpg
Views: 1885
Size:  56.8 KB

Name:  DSC_2437.jpg
Views: 1955
Size:  92.4 KB

Originally Posted by 03SuperSLADE
Haven't been able to get it to the track yet. Waiting for the weather to cool down here is South Florida which should be coming soon. At 17lbs of boost my IAT's are pulling timing just as I am going into 3rd at around 95mph. only numbers I have are from my G-Tech 0 - 60 in 4.35, 731 HP, the qtr mile said 13.2 at 98mph but I am pretty sure I let off before the G-Tech measured the full qtr. I like the 0-60 time and am thinking I can break into the sub 4's once I see some cold weather but I was disappointed I didn't see the 12's in the qtr even in the warmer weather. I may be expecting too much from this AWD Escalade ESV which I just had weighed in at 6550lbs.

Does anyone else have any #'s?
Mine weighs in around 6100lbs. Only had a chance to run it with the 24s on street tires and pulled a 12.85 @ 105.9mph with the old 3.73 gears. I left the hole spinning and let off a bit at the start. Haven't ran it with different wheels and slicks yet though.

Last edited by JKmotorsports; Dec 18, 2012 at 10:19 PM.
Reply
Old Dec 19, 2012 | 03:54 PM
  #38
Pocket's Avatar
TECH Addict
iTrader: (17)

Joined: Apr 2009
Posts: 2,256
Likes: 1
From: NC
Default

Originally Posted by lt1s10
TechCo! The real question is... Where did he find it?? lol
Yep, its a Techco. Found one of the 3 known LS3 kits on ebay
Reply
Old Dec 22, 2012 | 11:02 AM
  #39
Duntov1967's Avatar
Launching!
iTrader: (21)

Joined: Oct 2009
Posts: 205
Likes: 1
From: Merritt Island, FL
Default


2002 Tahoe, 416ci, 2.9L Whipple.


Last edited by Duntov1967; Aug 11, 2016 at 10:05 AM. Reason: Add photo
Reply
Old Dec 22, 2012 | 06:37 PM
  #40
travieso's Avatar
12 Second Truck Club
iTrader: (5)

Joined: Jan 2005
Posts: 323
Likes: 1
From: Los Skandales
Default

Man that looks good man.... have you ever ran it at the track?
