I made these for my S10 but the same can be done for a fullsize. I have two buddies that have this same set-up on their Cummins with tons of luck.

Here is what I started with.
3 Point hitch Top link for a tractor (2)
Rectangle tubing
Square tubing (I used this so I could turn/load the bar)
Flat steel
3/4" bolts (4)
Longer U-bolts for the rear axle (I was swapping my axle so I had them made longer)





Then I cut the top link in half.

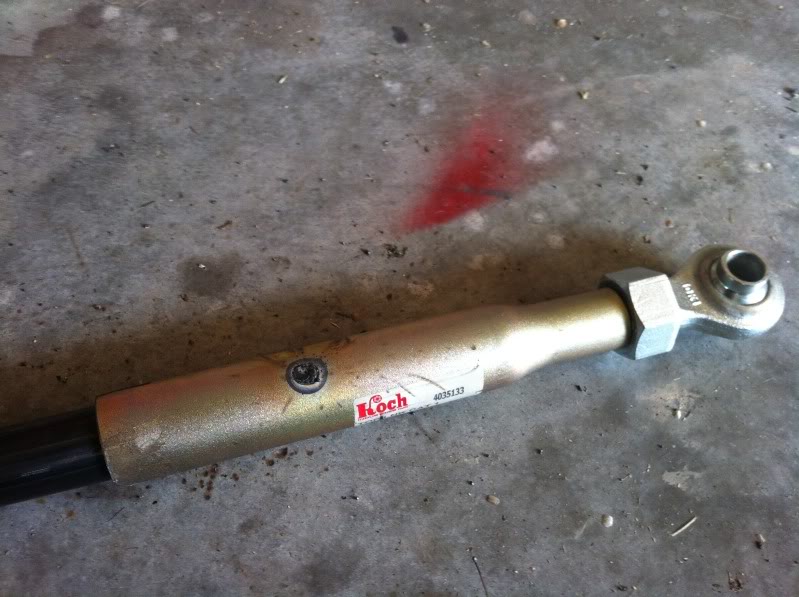

I cut part of some square tubing so I could use them to adjust the traction bars.


Then welded them in the middle (just spot welded)


I took the top link and screwed it all the way in and then drilled holes to fill weld to make the ends stronger on the rod. Right now I am just spot welding everything and I will weld all around the ends.






The rear mount without a hole for the bolt


Front mount without the hole


The square tube welded on so I can pre-load and adjust the springs


Some mock up pics



Lowest point of the bar in front of the rear wheel


The height of the front mount







Continued....

LSGUNSS

iTrader: (41)

I measured from center bolt to center bolt.

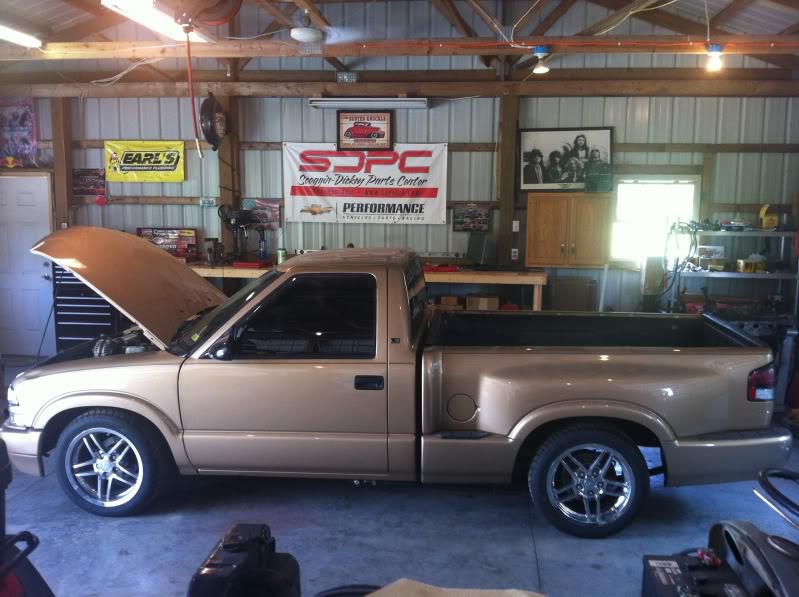

Finished look

RS/SS 4.8

iTrader: (13)

So this setup is bolted to the frame and not the front leaf bolt? I guess as long as it prevents axle wrap its good correct?

Blackbird-WS6

iTrader: (15)

nice setup. does any company make long bars for 99-06 1500 anyways? i know they make them for fords.

s10 looks badass. always wanted to do a s10 like that but it becomes pita with a turbo and whatnot in that engine bay.

LSGUNSS

iTrader: (41)

This setup bolts to the bottom of the axel with the U-bolt and then attaches to the frame in the front. I have zero axel wrap, zero wheel hop and these make this thing plant the rear.

LSGUNSS

iTrader: (41)

I don't know for sure. They do make the caltrac bars for them but i wanted something that did the same but pulled up on the front while pushing down on the rear. I do know that a company make these for the 1500 but they do for the duramax trucks.

Blackbird-WS6

iTrader: (15)

yea the fords use this setup and it works very very well. idk why someone doesnt make a set for GM trucks. they would make a killing.

im ify with caltrac. iv seen them bend and or break or not help as much as they should. i rather have a long bar setup like pictured above.

LSGUNSS

iTrader: (41)

I know people have success with them but I have also read about how they bend the mono-leaf springs on S10's. On top of that they still don't transfer weight like I want them to. So far I couldn't be happier with them. I will post up some videos with them shortly. If I get a GoPro I will try to get a video of them up close holding the rear from turning.

RS/SS 4.8

iTrader: (13)

Is there a certain length and or angle to shoot for on the bar?

kelsey_canard

iTrader: (5)

Good write up!
