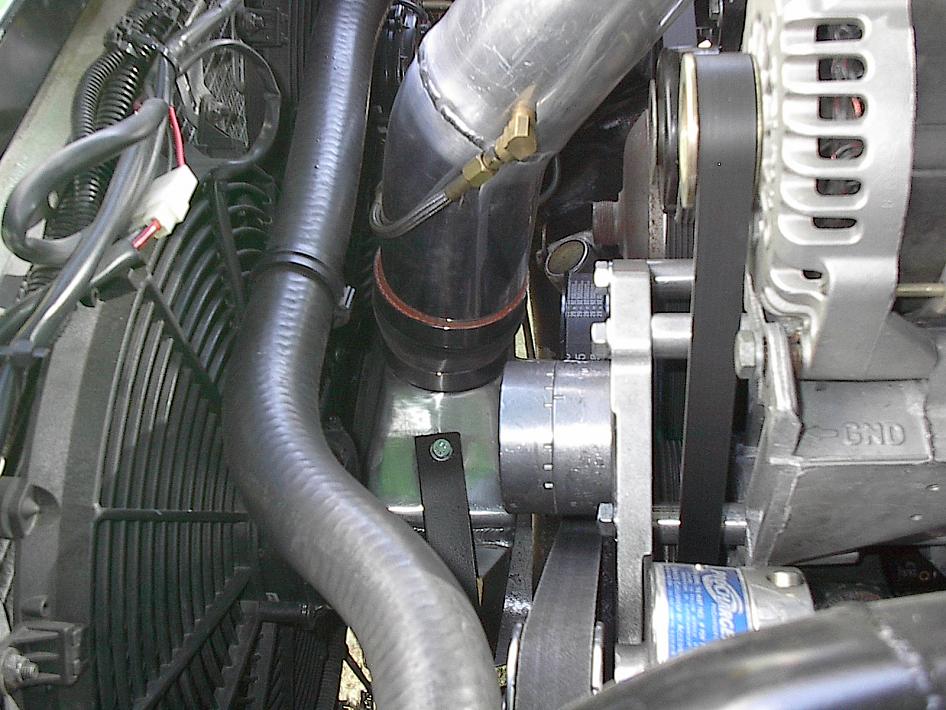

Here is one pic of a very cramped engine bay



You can see the intercooler in front on the e-fan and in my sig pic you can see the heat exchanger behind my black grill. I put the ice box in the truck bed beside my meth tank. Sounds funny to some thinking I'm a drug dealer when talking about the ice and meth in my truck, lol.



wow thanks for the pic id like to see more



any more pics?



Here is all I have. I haven't really taken much and it's still parked for the winter now. Let me if it helps at all and if not then I'll add more when I pull it out in the spring.



HEY TYMBOM what valve is that..?? btw how did you do the spacing so the brackets will move foward..??



I'm sorry man, you completely lost me. Are you talking about the supercharger bracket? And ohhhhhhh, the BOV, lol. It's a 50mm TurboSmart Race Port.



yea the bov and yea how did you do to fit the 8 rib in there..??



With a lot of *&%&^$ around, lol. I started with the GTO bracket assembly from Procharger and a new harmonic balancer. Then hours of plotting and drilling into the GTO assembly to mount it. I believe I also had to get the blower reclocked at ATI for the new postitioning as well. It's been a while, lol.



so they dont sell no kit so i can space up the truck bracket
