Got any underhood pics of your supercharger and intercooler setup?

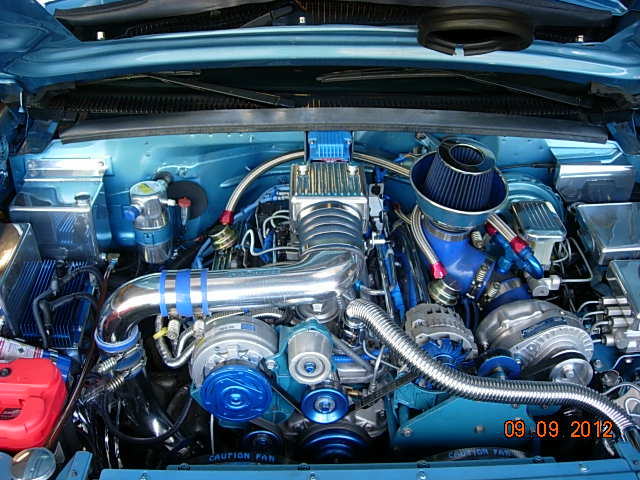

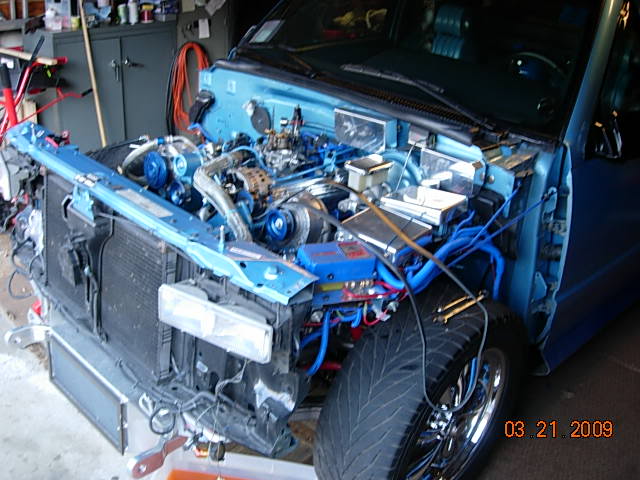

here is under hood

the intercooler mounts between the frame ...had it custom made by BELL intercoolers

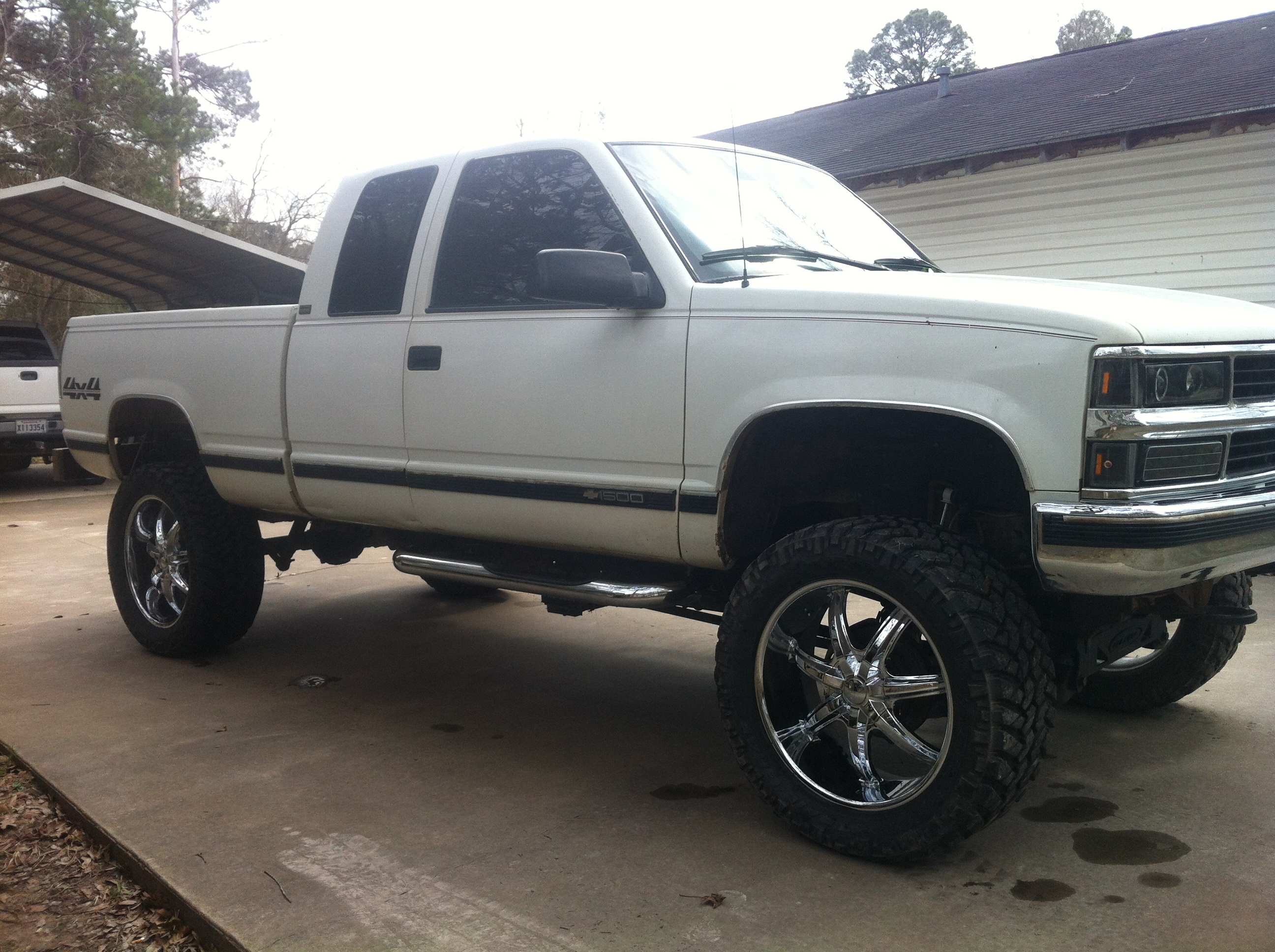

95 k1500 6 inch procomp lift 3 inch body, 22x9.5 U2 35s wrapped in 325/55/22 nitto trail grapplers. built 4l60e tbi 350 with a few mods. In the process of putting LQ9 6.0 and 4l80 in it and powder coating the frame and lift kit now debating on putting a nbs dash out of an 01



89 Chevy C1500 in progress





95 swb 5 speed 4.3
Planning to do a 6.0 swap soon
​​​​​​​

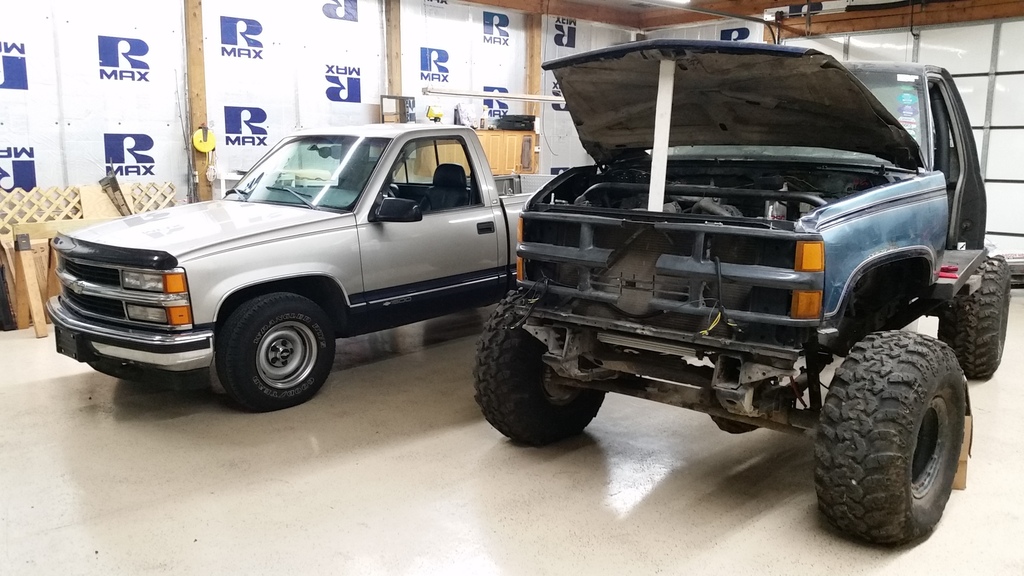

Just a couple OBS hanging out



99 classic with lq4/80E swap. 22x9 oem gm wheels.

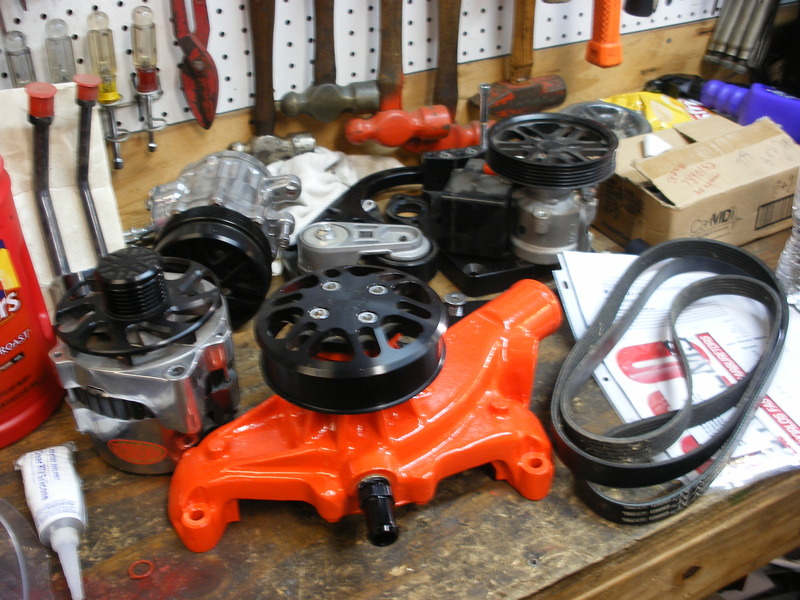

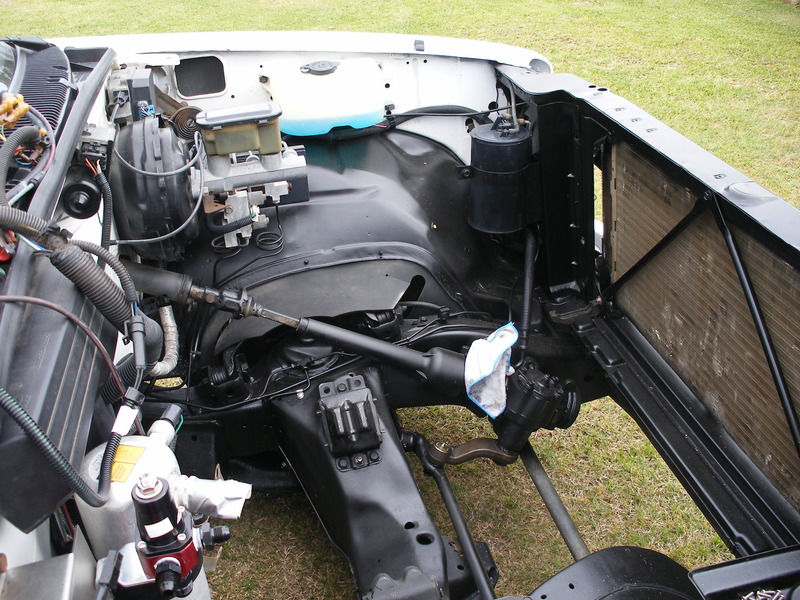

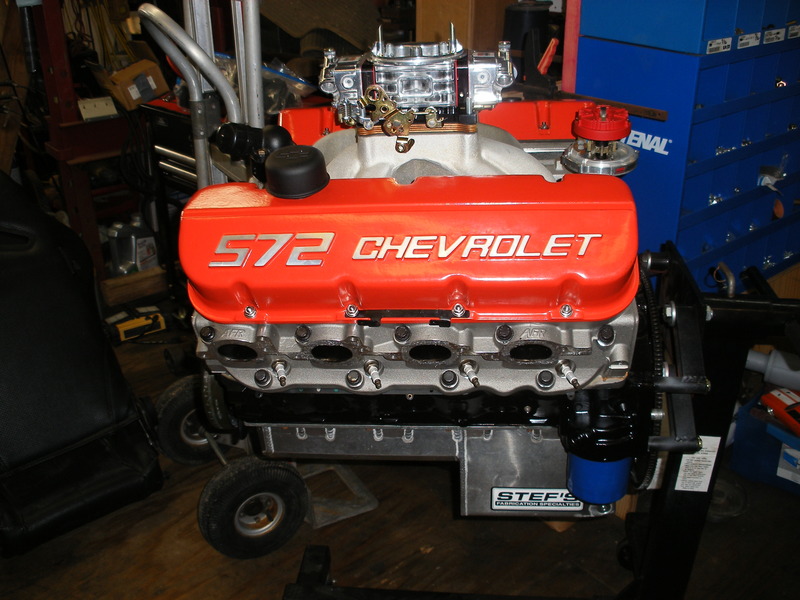

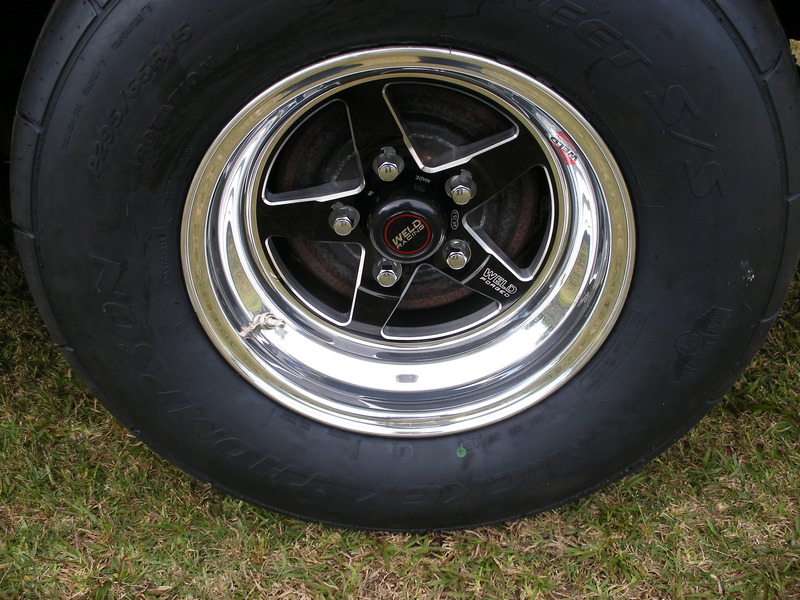

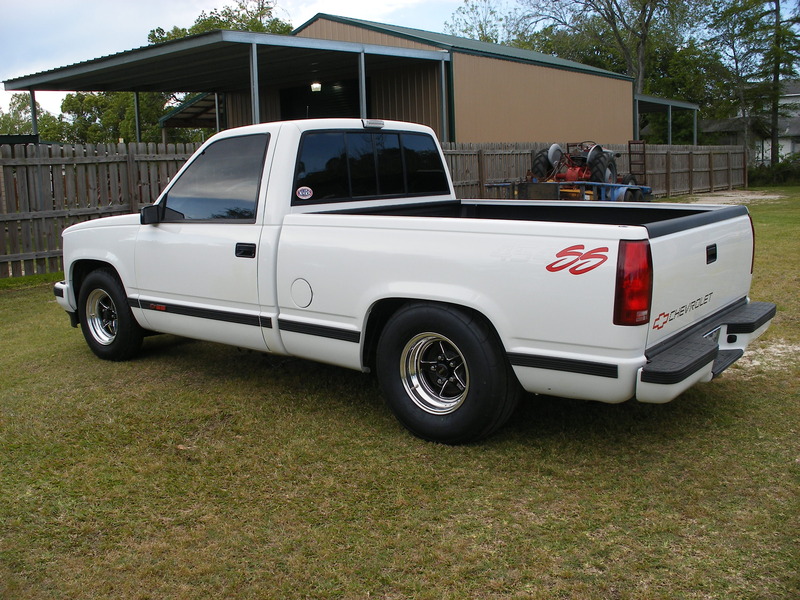

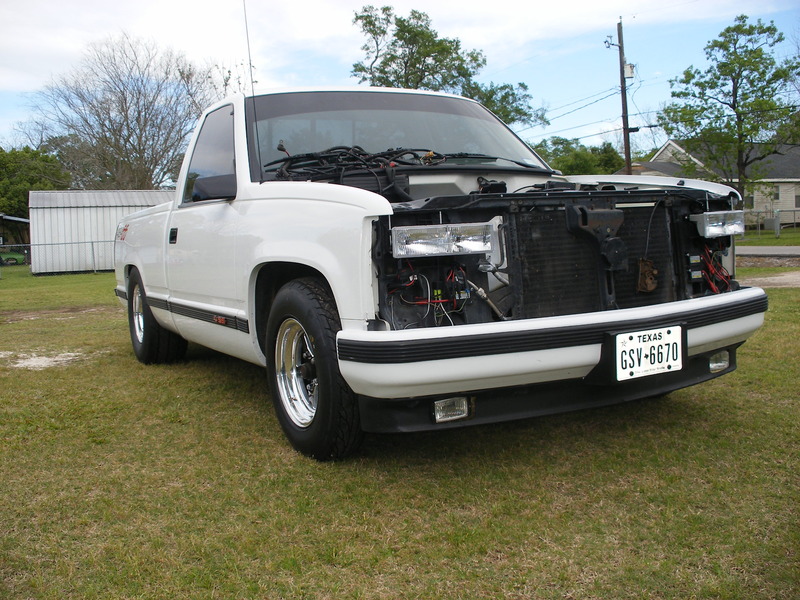

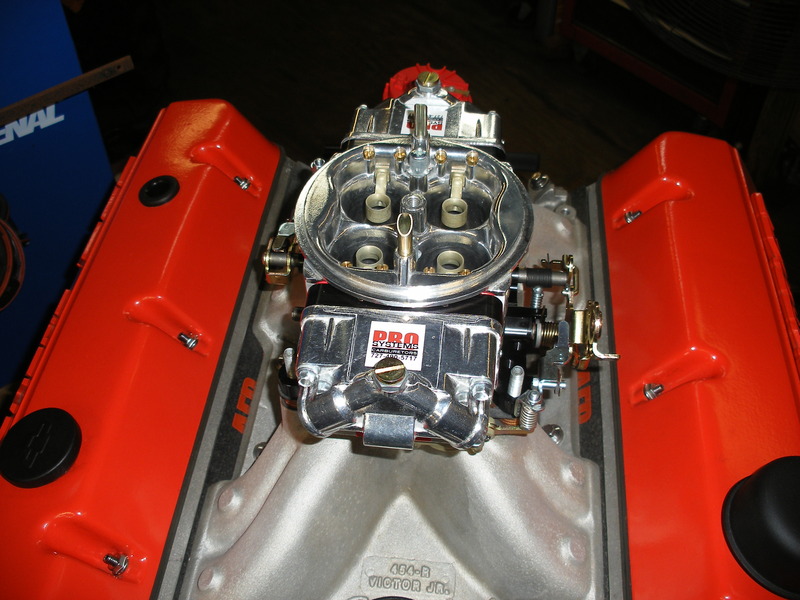

Here is a couple of quick pics of my project 1992 454 SS White/Grey 77K mile truck. Have had it for a little over a year now, just pulled the stock 454 and getting ready to drop in a built 572" Big Block, Dart block, Callies Dragon slayer crank/ Manley H-beam rods/Diamond pistons/AFR CNC Rect port heads/Victor JR 454R/Pro Systems 1000 HP carb/4L80E & 3200 Circle D converter.
Hoping to have it running here in the next month or so.
