Default THE Tru-Cool 40K GVW Transmission Cooler Install Thread

I installed one of these way back in the day(2004) and since then get questions about it about once a week sometimes more. This last time around when I installed one I took a bunch of pictures and will be doing a little write up. I installed mine with -6 AN lines and fittings but I know many do it with factoy lines. The purpose of this thread is to condense ALL of the tru-cool info into one thread so we can stop having the 40 threads a week about it. If you have some helpful links/pics post them up. Im going to slice and dice this thread as we go to get the info into a more readable format. When I get home tonight Ill add my pics and instructions in.

The things we need to add are:
Rear fitting for the 80e when using -6 line
Mounting hardware
Re-using factory trans lines
What to do if you dont have a factory cooler
Routing of lines when using an AN setup
Any part numbers relevant to installation
Where to buy

I think I can find most of these when I get home, Id do it right now but Im on my phone. I just figured some people may have some useful advice to add to this type of thread.
1slow01Z71 is offline   Reply With Quote
Old 10-06-2010, 05:02 PM   #2
Trader Rating: 19
PT's Slowest Truck


budhayes3's Avatar

Join Date: Apr 2004
Location: Hackensack, NJ
Posts: 17,872
Default

I've got some info I can share about using factory lines, when your truck wasn't originally equipped with them. I can't remember the part number for the kit, but it may actually be in one of the pics that I posted up a while ago...I had a bunch of questions and threads not too long ago when I was researching how I wanted to install mine...
__________________
Billy
[SIGPIC][/SIGPIC]
[URL=http://www.cardomain.com/memberpage/648999]My CarDomain Page[/URL]
[FONT=Garamond]99 5.3 Z71 RC/SB - [COLOR="Blue"]FLT Level7 65E[/COLOR], [COLOR="Purple"]Circle-D Billet 258mm 2B Multi-Disc[/COLOR], Comp 206/212 515/520 114, LS6 Springs, Harland Sharp 1.7's, [COLOR="Red"]BlackBear 02 PCM[/COLOR], 02 Injectors, 160* stat, 05 E-fans, Nelson Harness, Volant CAI w/ Ram Air, StainlessWorks Headers and !Catted! Y-Pipe, DMH 3" E-Cutout, 18" Magnaflow dumped over axle, 3.73 G80, Dropped on Gibbs 20's [B]**H/C LQ9, 4.10's, and TruTrac eventually**[/B] [/FONT]
budhayes3 is offline   Reply With Quote
Old 10-06-2010, 06:17 PM   #3
Trader Rating: 35
I need a gauge for that


Atomic's Avatar

Join Date: Jan 2006
Location: Huntsville, AL
Posts: 10,210
Default

Big things people (like me) need to know:

-What is the fitting thread size on the trucool cooler?
-What is the fitting thread size on the 4l60e?
-What is the fitting thread size on the 4l80e?
-What is the approximate length from the cooler ports to the front central location of the truck?
-What size hose is adequate to use?
Atomic is offline   Reply With Quote
Old 10-06-2010, 06:29 PM   #4
Trader Rating: 21
11 Second Hall Moniter

AKlowriderZ71's Avatar

Join Date: May 2008
Location: Wyoming
Posts: 10,408
Default

Quote:
Originally Posted by Atomic View Post

-What is the fitting thread size on the trucool cooler?
Here's the fitting that you can buy at Napa, part number 730-4953. The factory cooler line will snap right in.

__________________
AKlowriderZ71 is offline   Reply With Quote
Old 10-06-2010, 06:37 PM   #5
Trader Rating: 35
I need a gauge for that


Atomic's Avatar

Join Date: Jan 2006
Location: Huntsville, AL
Posts: 10,210
Default

I dont want to use the factory lines at all, I want to make some hoses and need to know the fitting sizes...
Atomic is offline   Reply With Quote
Old 10-06-2010, 07:23 PM   #6
Trader Rating: 16
TECH Senior Member

smokeshow's Avatar

Join Date: Feb 2009
Location: Tucson, AZ
Posts: 6,231
Default

Quote:
Originally Posted by Atomic View Post
-What is the fitting thread size on the trucool cooler?
-What is the fitting thread size on the 4l60e?
-What is the fitting thread size on the 4l80e?
-What is the approximate length from the cooler ports to the front central location of the truck?
-What size hose is adequate to use?
Also tuning in for some info...good stuff to know right before a tranny swap. Might just have to switch over to an AN setup...
__________________
Jake

1994 Geo Metro...the warpig
2004 Silverado RCSB...with power adders. All slow and no go.
smokeshow is offline   Reply With Quote
Old 10-06-2010, 10:10 PM   #7
Trader Rating: 19
PT's Slowest Truck


budhayes3's Avatar

Join Date: Apr 2004
Location: Hackensack, NJ
Posts: 17,872
Default

Quote:
Originally Posted by Atomic View Post
Big things people (like me) need to know:

-What is the fitting thread size on the trucool cooler?
-What is the fitting thread size on the 4l60e?
-What is the fitting thread size on the 4l80e?
-What is the approximate length from the cooler ports to the front central location of the truck?
-What size hose is adequate to use?
I'm going to point Tom (fastnblu) in the direction of this thread also, as he did a complete AN setup when he swapped his trans...I remember he used -6AN...

quick search for "trucool" (I knew that I'd find some of my old threads lol)
http://www.performancetrucks.net/for...archid=2998154
__________________
Billy
[SIGPIC][/SIGPIC]
[URL=http://www.cardomain.com/memberpage/648999]My CarDomain Page[/URL]
[FONT=Garamond]99 5.3 Z71 RC/SB - [COLOR="Blue"]FLT Level7 65E[/COLOR], [COLOR="Purple"]Circle-D Billet 258mm 2B Multi-Disc[/COLOR], Comp 206/212 515/520 114, LS6 Springs, Harland Sharp 1.7's, [COLOR="Red"]BlackBear 02 PCM[/COLOR], 02 Injectors, 160* stat, 05 E-fans, Nelson Harness, Volant CAI w/ Ram Air, StainlessWorks Headers and !Catted! Y-Pipe, DMH 3" E-Cutout, 18" Magnaflow dumped over axle, 3.73 G80, Dropped on Gibbs 20's [B]**H/C LQ9, 4.10's, and TruTrac eventually**[/B] [/FONT]
budhayes3 is offline   Reply With Quote
Old 10-06-2010, 10:23 PM   #8
Trader Rating: 19
PT's Slowest Truck


budhayes3's Avatar

Join Date: Apr 2004
Location: Hackensack, NJ
Posts: 17,872
Default

Quote:
Originally Posted by 1slow01Z71 View Post
I
What to do if you dont have a factory cooler
Any part numbers relevant to installation
Where to buy
Here's the PN for the GM aux cooler kit: PN:12497071

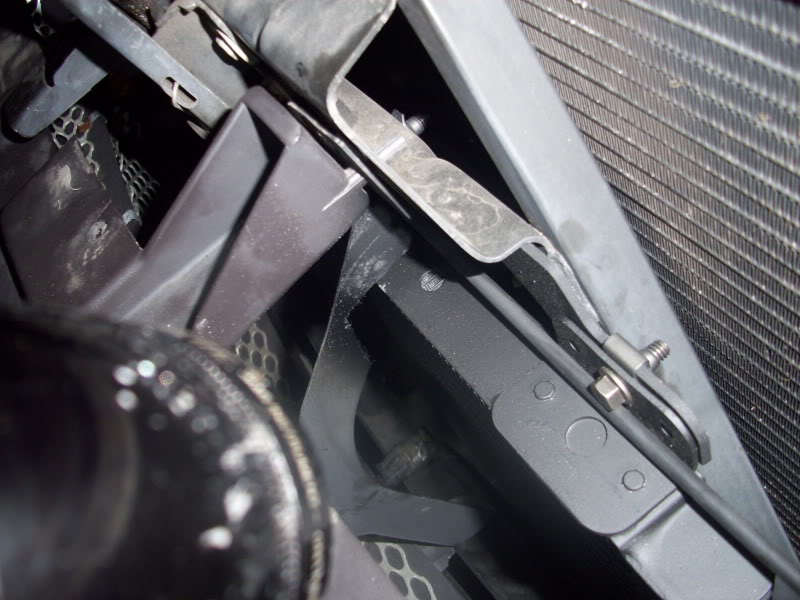

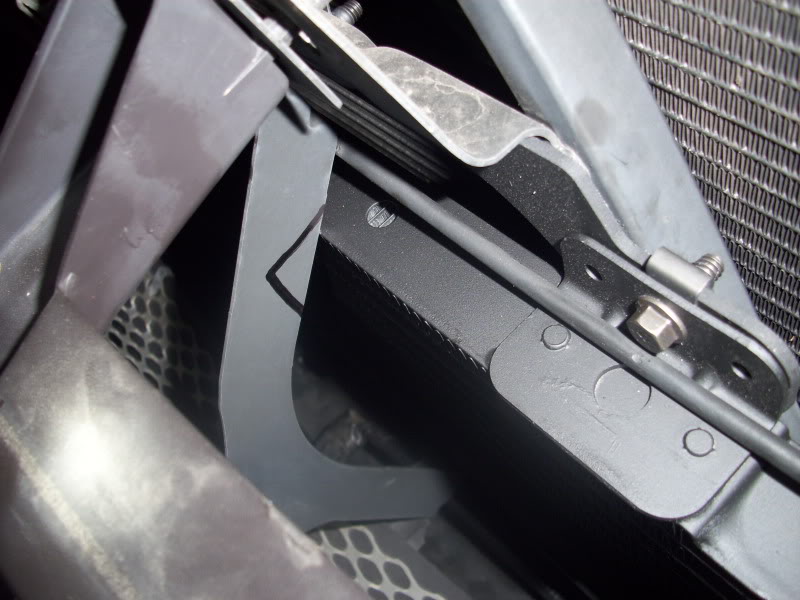

I combined this along the the bracket and hardware kit available from EAD for a plug and play set up.
*Non Sponsor Link Removed...my bad*

One note, when using the EAD brackets, it was necessary for me to notch the center support bracket of my grille...this is not necessary on 03+ models...





some of my old threads...

FLT Level7 is finally here!! **PICS**

Plumbing a TruCool
__________________
Billy
[SIGPIC][/SIGPIC]
[URL=http://www.cardomain.com/memberpage/648999]My CarDomain Page[/URL]
[FONT=Garamond]99 5.3 Z71 RC/SB - [COLOR="Blue"]FLT Level7 65E[/COLOR], [COLOR="Purple"]Circle-D Billet 258mm 2B Multi-Disc[/COLOR], Comp 206/212 515/520 114, LS6 Springs, Harland Sharp 1.7's, [COLOR="Red"]BlackBear 02 PCM[/COLOR], 02 Injectors, 160* stat, 05 E-fans, Nelson Harness, Volant CAI w/ Ram Air, StainlessWorks Headers and !Catted! Y-Pipe, DMH 3" E-Cutout, 18" Magnaflow dumped over axle, 3.73 G80, Dropped on Gibbs 20's [B]**H/C LQ9, 4.10's, and TruTrac eventually**[/B] [/FONT]

Last edited by budhayes3; 11-12-2010 at 11:22 AM.
budhayes3 is offline   Reply With Quote
Old 10-06-2010, 11:00 PM   #9
Trader Rating: 15
14 Second Truck Club

double047's Avatar

Join Date: Jul 2010
Location: Texas
Posts: 1,631
Default

Subscribed.
__________________
2013 EC Silverado aka redruM (Just a couple bolt ons.)

"Your pull your truck to the track on a trailer, I race you with a truck that pulled a trailer to the track."
double047 is offline   Reply With Quote
Old 10-07-2010, 03:13 AM   #10
Trader Rating: 31
TECH Junkie


Blown06's Avatar

Join Date: Apr 2006
Posts: 3,153
Default

I know that on a 4l80e the rear fitting (return side) needs to be made with a tube that extends into the case. About 3/4" if I remember correctly. I have one at home I can take a pic of when I get home this weekend.

Here's a little tip on running modified factory lines I had to learn the hard way. When converting from the 60 to the 80 it requires that the return side be lengthened significantly as the return port on the 80 is in the rear of the tranny. I cut the factory line and lengthened it with a rubber hose. Secured the line very well (or so I thought). I was using the factory type fitting and line that use the little e-clip to hold in place. Over time the rubber line let the hard line move around in the fitting enough that the clip no longer held it in place. I was on the freeway when it happened and it wasn't pretty.
__________________
06 Silverado rcsb, 9's on spoolin's old heads

2010 Chevy Tahoe Texas Edition w/5.3 6-speed auto. Wifes Ride.

2012 Dodge Ram 2500 Crew Cab w/HO Cummins 6-speed auto. 5" Turbo Back w/Magnaflow Muffler, H&S Mini Max, H&S EGR Delete
Blown06 is online now   Reply With Quote
