Default T56 Front shift conversion Install

Im getting ready to replace my NV3500 with a T56 and wanted to keep my jumpseat so I picked up a front shift conversion kit. The instructions tell you to remove the tail housing and main case which requires pulling gears and quite a bit of disassembly. After taking the access cover off where the new shifter will bolt up I realized there was a decent amout of room and I could make the proper modifications to the rail without removing it. Figured I would post some pics of what I did since it saved a TON of work and the front shift conversion is a nice option in a truck.

Note: This is not the "correct" way to install, just an illustration of how I did it.

Here's what all comes with the relocation kit.
Name:  DSC00982.jpg
Views: 526
Size:  51.7 KB

Factory offset lever under front access plate.
Name:  DSC00991.jpg
Views: 640
Size:  81.4 KB

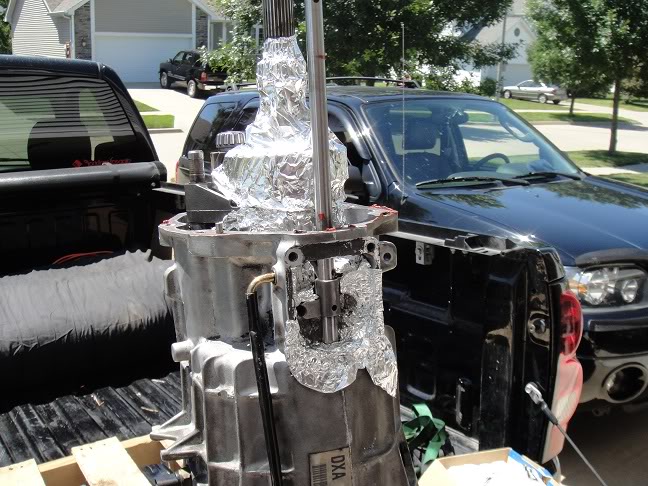

Tail housing, CAGS solenoid, and shift detent assembly removed. Stuffed full of aluminum foil to keep metal out of trans during cutting.
Name:  DSC01009.jpg
Views: 413
Size:  92.0 KB

Used an air cut off tool with small disc and cut top portion of offset lever. Tip: A pocket magnet pick up tool works perfect for cleaning up all the metal around the shaft from cutting.


Offset lever and shift guide plate removed. The replacement lever uses the original roll pin hole the original one did so you dont have to worry about alignment for that hole. Careful when taking the lever out so you dont lose the detent ball or spring because they go back in the new piece.
Name:  DSC01015.jpg
Views: 407
Size:  78.9 KB

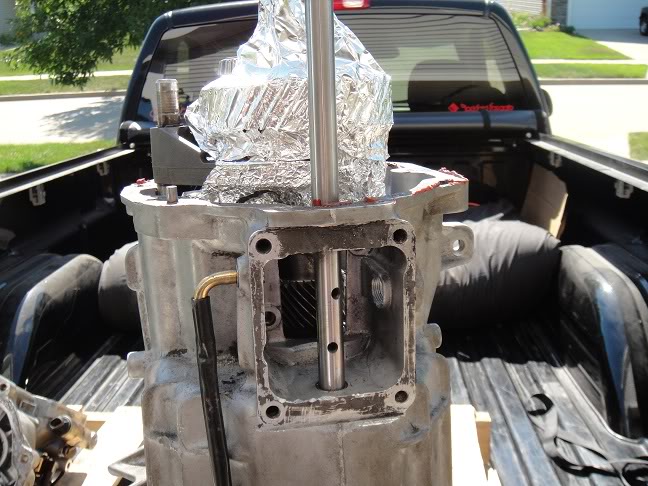

Shift rail cut off and the rear piece removed. This works nice because you can cut and drill the removed chunk outside of the trans.
Name:  DSC01020.jpg
Views: 441
Size:  86.4 KB

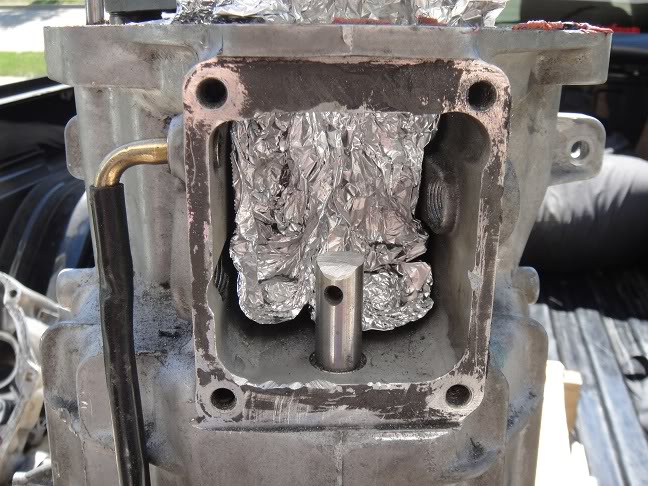

Rail slipped back in to mark where new hole will be for the second roll pin as well as how much shaft to cut out.
Name:  DSC01023.jpg
Views: 446
Size:  81.7 KB

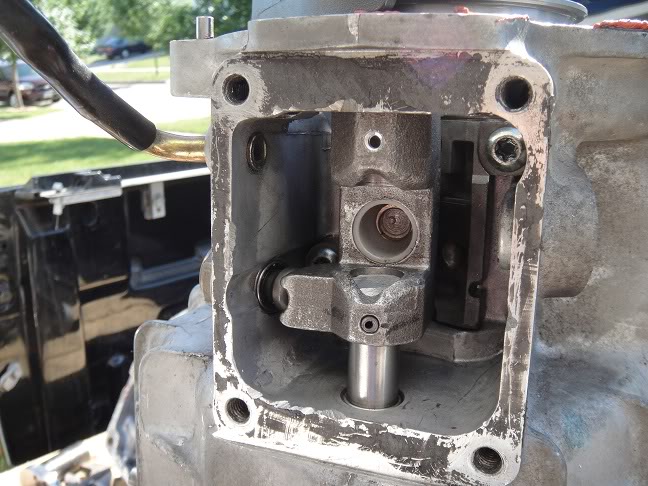

First roll pin, shift guide plate, and shift detent assembly installed.
Name:  DSC01032.jpg
Views: 417
Size:  79.4 KB

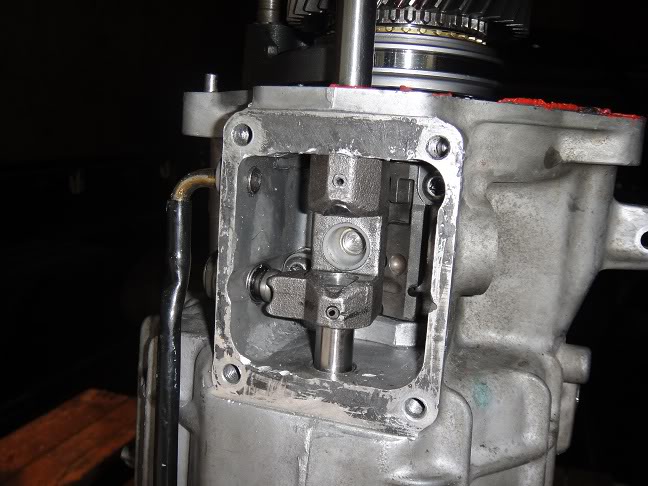

Second hole drilled, shaft cut and ends ground to contour per instructions, roll pins installed. The shaft is surface hardened so drilling it is tough even though a cut off wheel goes through it no problem. I had a guy drill it for me in the machine shop at work. Otherwise grinding a small flat spot and then drilling will also work. Just make sure you have good hard bits, HSS wont cut it, litterally.
Name:  DSC01040.jpg
Views: 406
Size:  65.2 KB

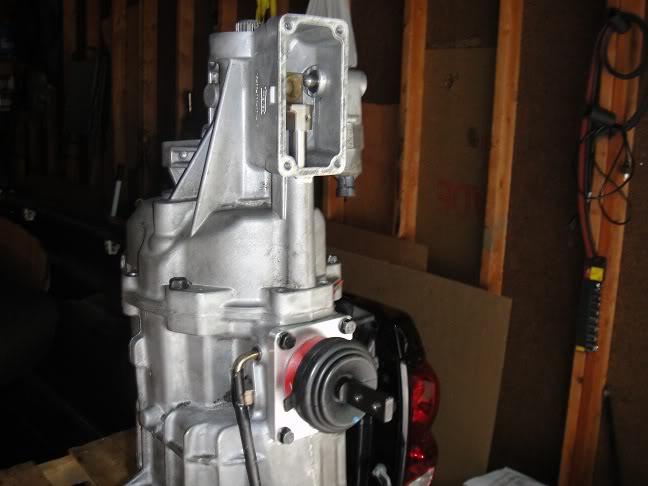

Shifter installed. With original shift cup installed you can still make use of the reverse lockout solenoid.
Name:  DSC01043.jpg
Views: 404
Size:  41.7 KB
Name:  DSC01045.jpg
Views: 479
Size:  61.5 KB

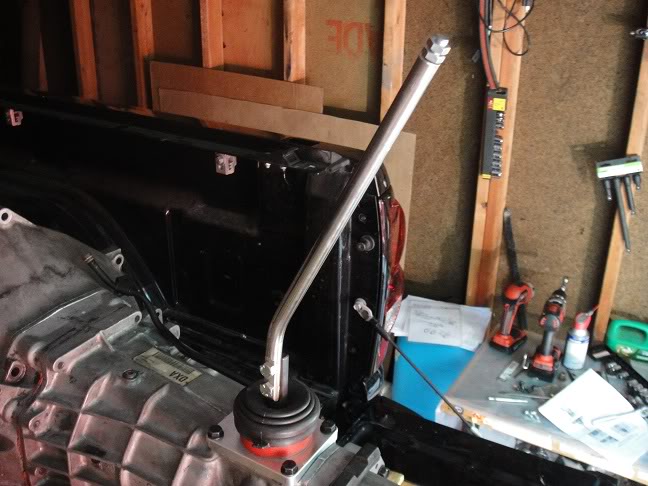

The custom shift lever I made. Its 5/8" stainless that I polished with some wheel cleaner. Looks really good in person. Its angled back and towards the driver. These are just ballpark bends I made to resemble my factory 5 speed shifter. I will fine tune the bends as needed once its actually in the truck.
Name:  DSC01063.jpg
Views: 502
Size:  58.1 KB
Name:  DSC01067.jpg
Views: 397
Size:  62.8 KB

The only thing you have to be careful about is getting the new hole you have to drill for the 2nd roll pin aligned with the rear hole for the factory cup so it doesnt hit the trans case. Mine was off a tiny bit and it hit the case when trying to go into first so I ground it off a little. Not a big deal just something to keep in mind. Otherwise its all back together and shifts fine. Just need to figure out which pin on the pcm to hook the reverse lockout too. Its set up in my tune to enable over 8mph and disable under 6mph. I hooked a wire to unused pin 44 (where the f-bodys lockout is) and hooked up a test light to a hot lead in the cab and it didn't work so I still need to figure out how to get that to work because I want to use the lockout. Any ideas? I have an 04 factory 5 speed so there was no auto trans stuff in the tune to begin with.
