4L80E Build


Here are a bunch of pictures of the build, basically a bunch of random ones through the build. First off I have to thank a good friend of mine Mark ( Mark Buck on here) for building it for me, he built my 65E that kicked ass behind my setup and I have no doubt this 80E will also. I would also like to thank Vince B for all the tips he provided, as well as Corey, Roger and Tim. What started out as a basic build turned into a one thing here and another there and next thing you know this trans is getting allot of cool parts. It ended up being built allot more then initially planned. For the PCM I did a segment swap and I did the wiring for the ISS a bit different, Mark came up with the idea and I really like it. Once I get the diagrams scanned into my computer I will add the info in this thread and into the sticky. Its all done with the factory wiring by using two unused wires in the trans connector to run the ISS.

Here is a basic list that I can think of, I am sure when Mark sees this he will chime in.

CK Performance 300m Billet Input Shaft
Ck Performance Billet Fwd. Clutch Hub W/ Bushing Stabilizer
Transgo HD-2 Kit
New Seals and Gaskets
Precision Industries Pump Spring
Sonnax boost valve
Sonnax AFL valve
Borg Warner Hi-energy clutches
Modified steel direct clutch drum (34 element)
Dual Feed Mod
Improved lube circuits
New Bushing and Bearings
Rollerized
Precision Industries 2600-2800 10.5" Triple Disk Converter
TCI Flexplate
EAD Adapter to run the NVG 149 AWD Tcase with the 80E

Here are some cleanup and prep pictures.

Day 1
Attachment 117509

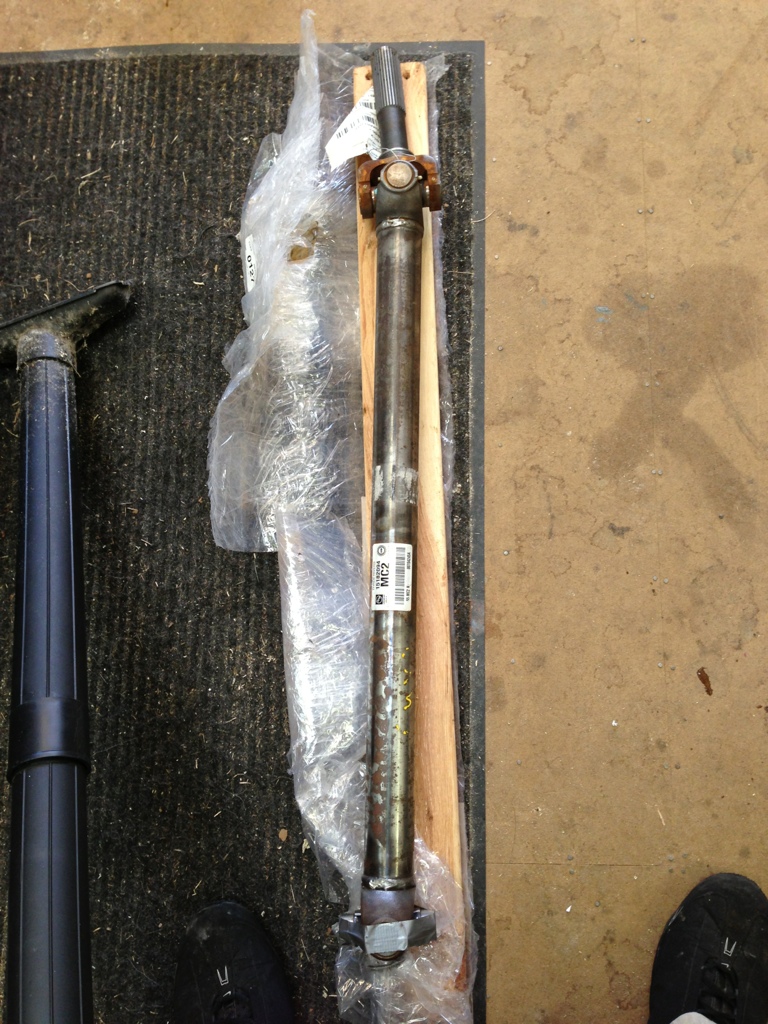

Driveshaft, Zero mile take out.

Attachment 117510

Painted up

Attachment 117511

Being stripped down to clean up
Attachment 117512

Tabs removed


Attachment 117513

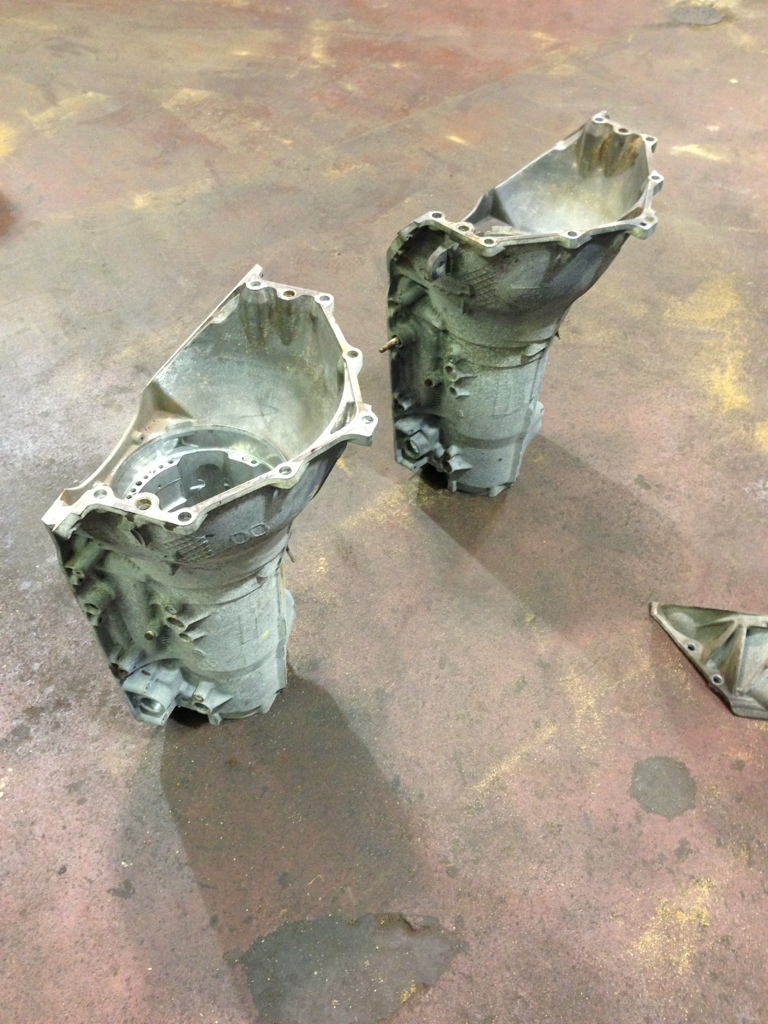

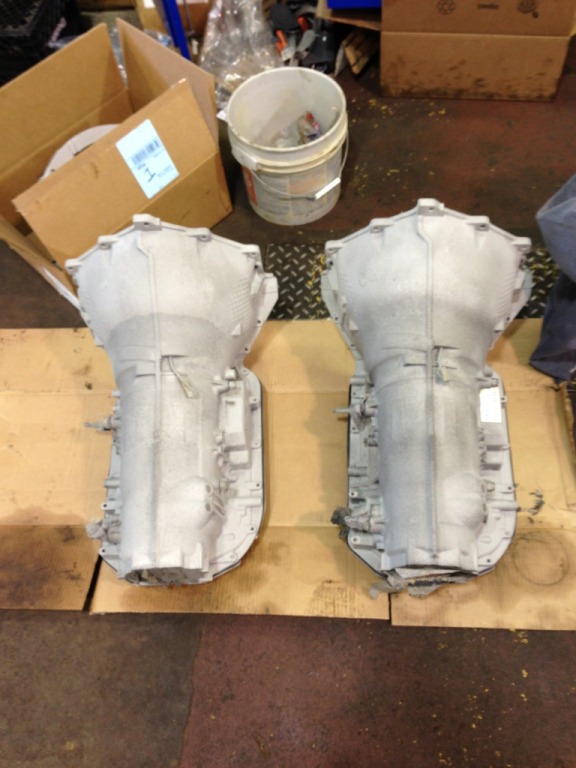

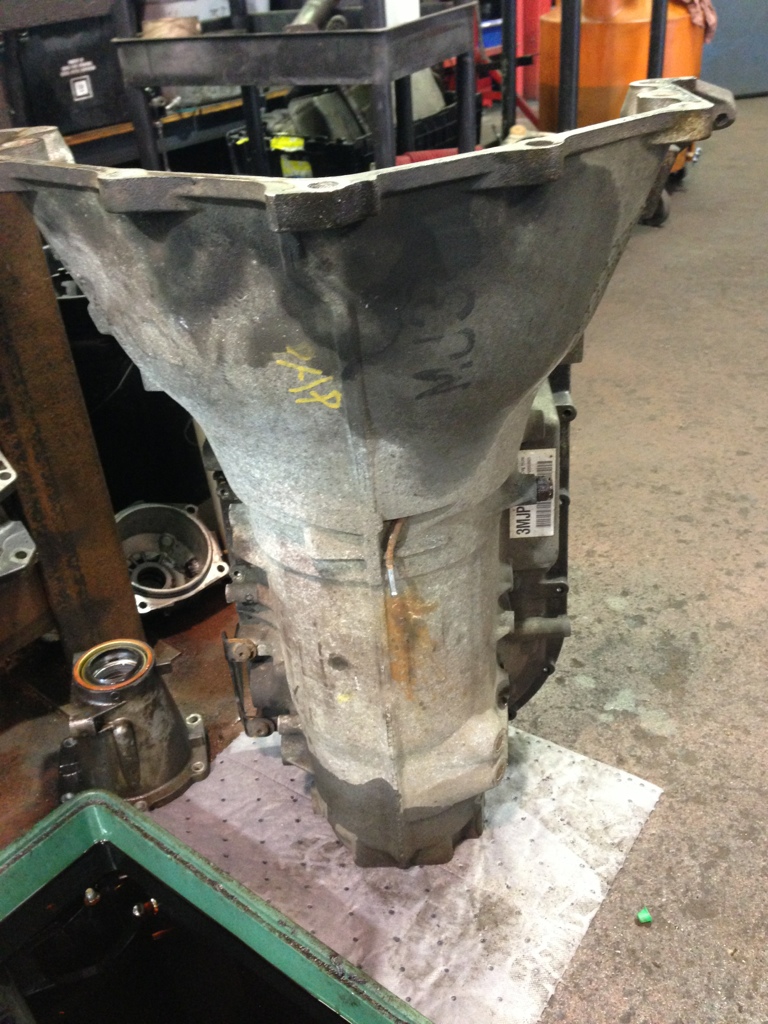

Mine and Mark's(Who is building my trans) Before media blasting. Trans are case only with old pump in place to block off.

Attachment 117514

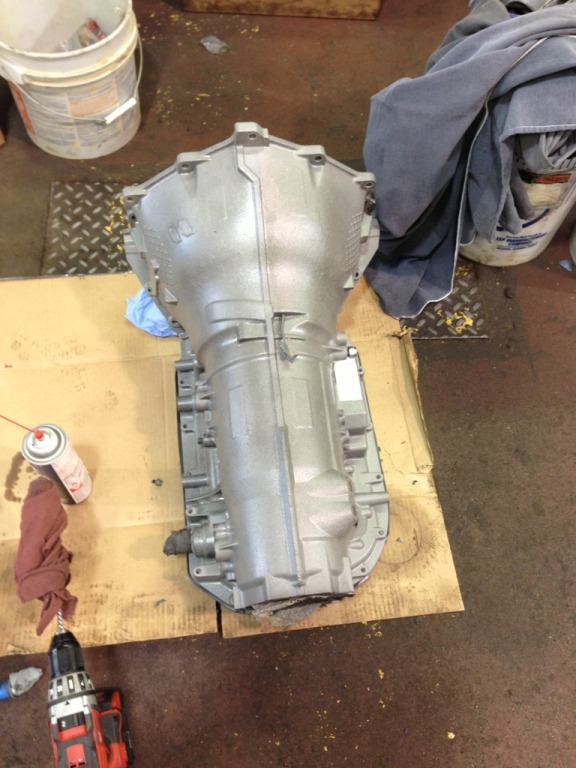

After media Blast

Attachment 117515

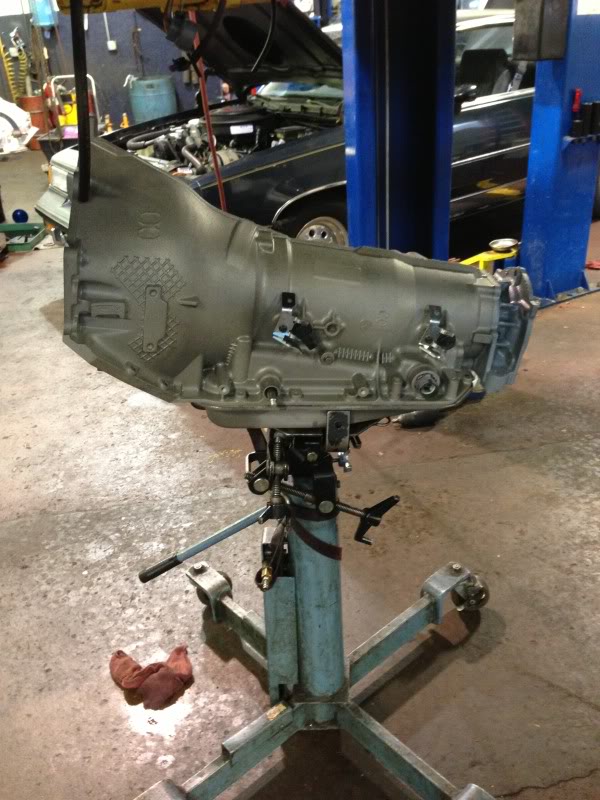

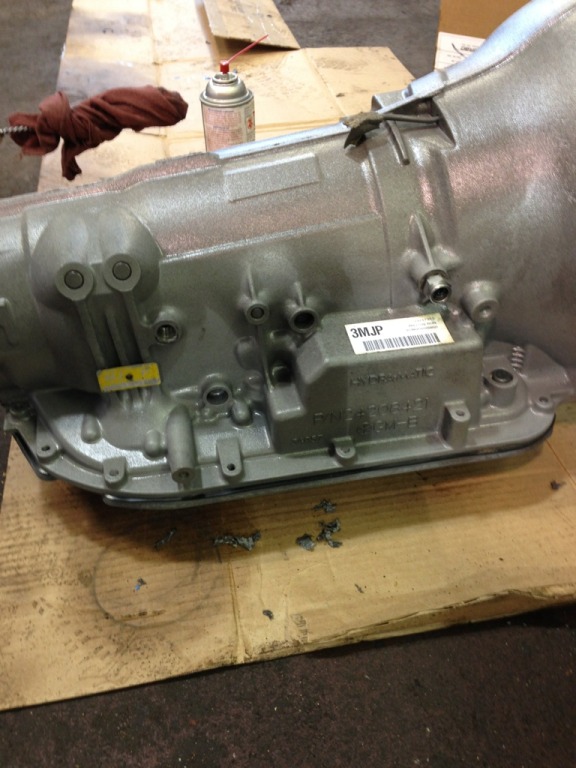

Clear coated

Attachment 117516

Attachment 117517

Attachment 117518

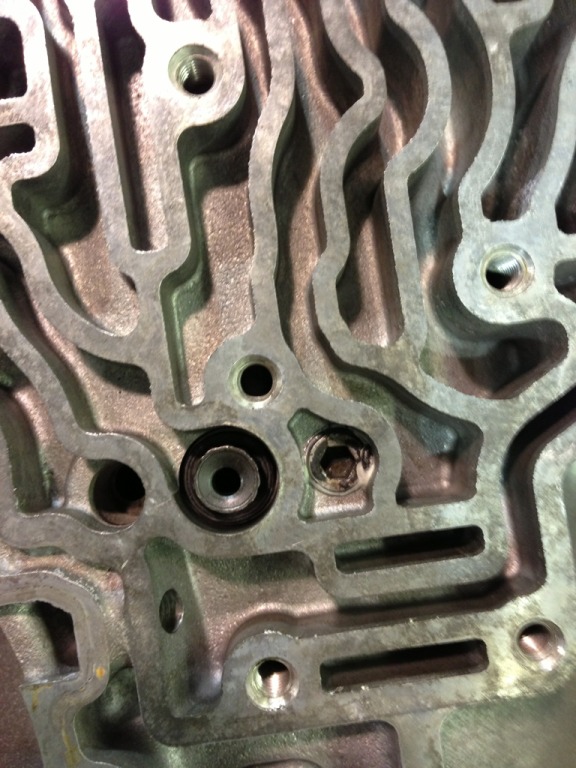

Couple Random Pics

Low Reverse Band

Attachment 117519

Attachment 117520

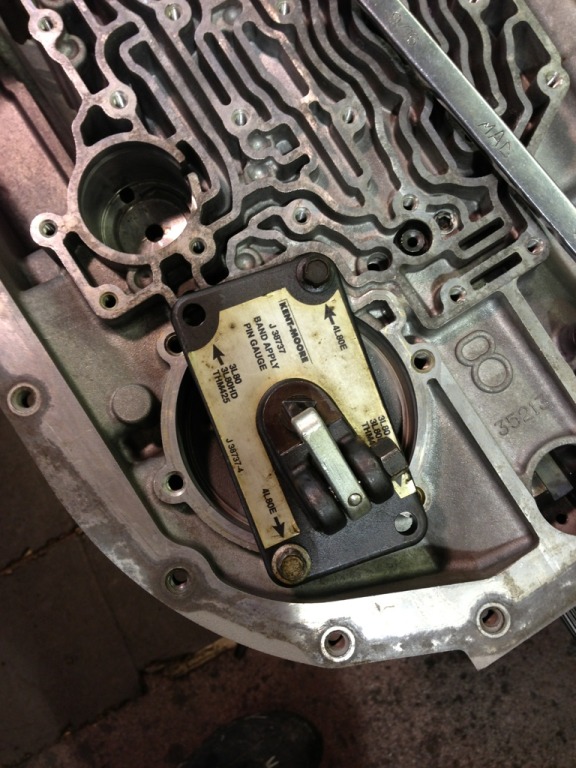

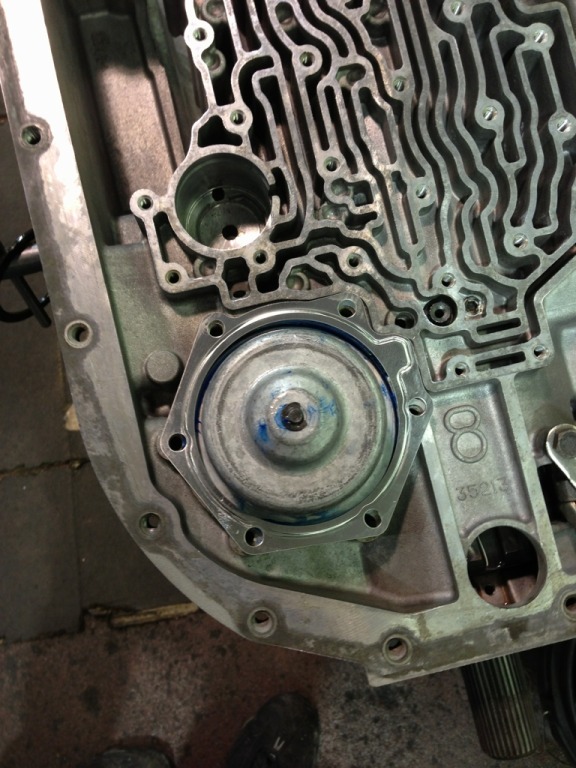

Checking Low Reverse Pin Length

Attachment 117521

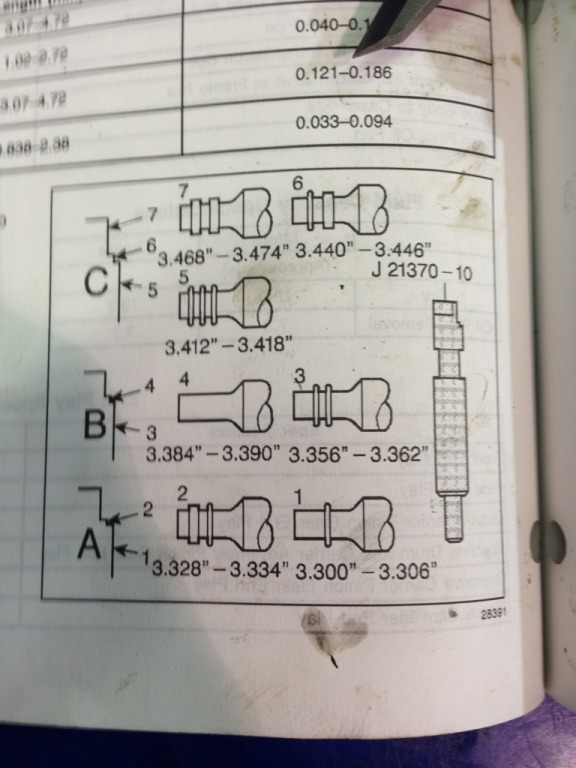

Low Reverse Pin Chart- Mine was a A2 We ran a pin with a 3.331 measurement, I took another pin and shortened it a bit so I could get a measurement I was happy with.

Attachment 117522

Attachment 117523


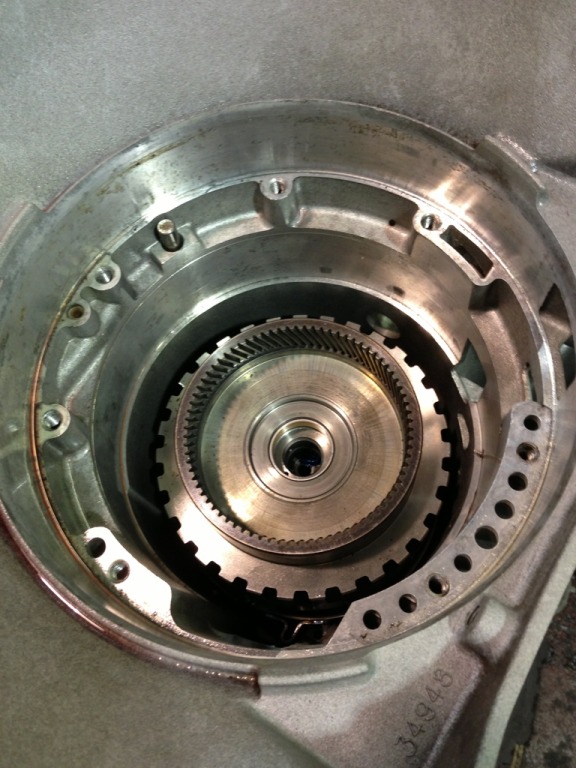

Center Support Bolted in and Tq'd

Attachment 117524

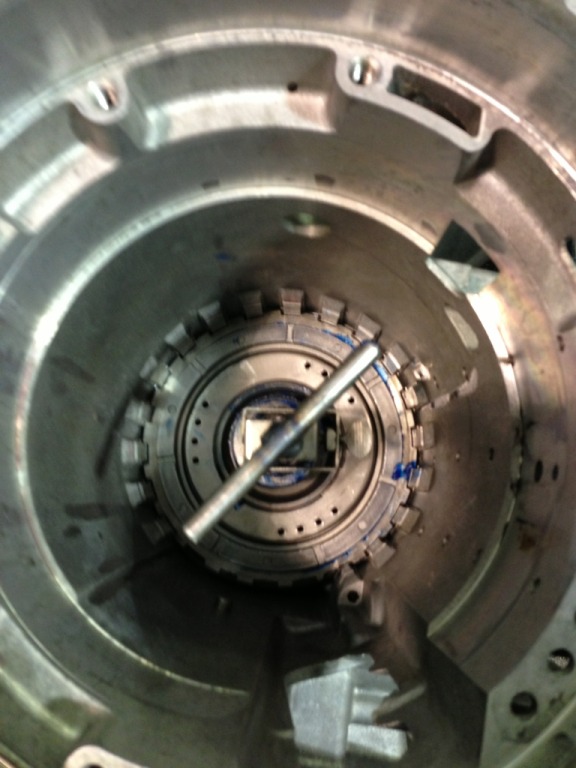

Lower half is in, endplay is at .010 Spec is .005-.025 IIRC

Flexplate.

Attachment 117525

Note the bushing

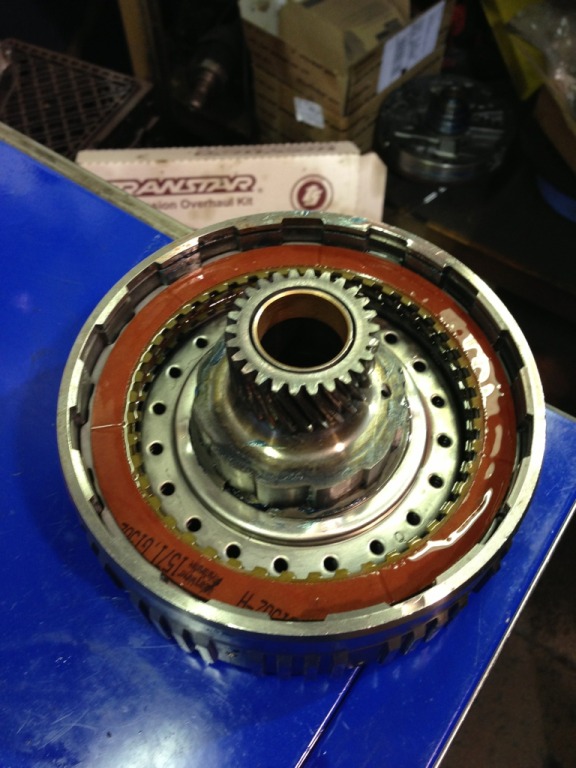

Direct drum with bushing
Attachment 117526

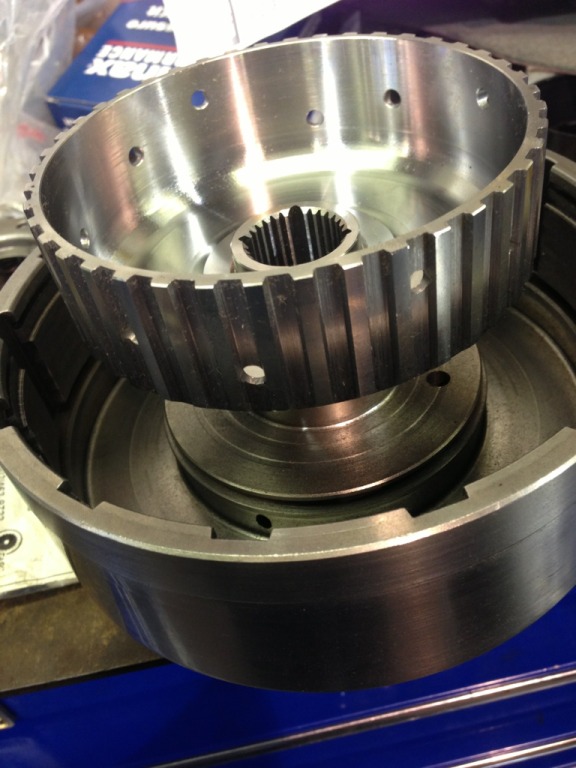

Rollerized forward hub
Attachment 117527


Forward hub in place on direct drum
Attachment 117528

Bottom of direct drum, you can see intermediate sprag slightly in picture.
Attachment 117491

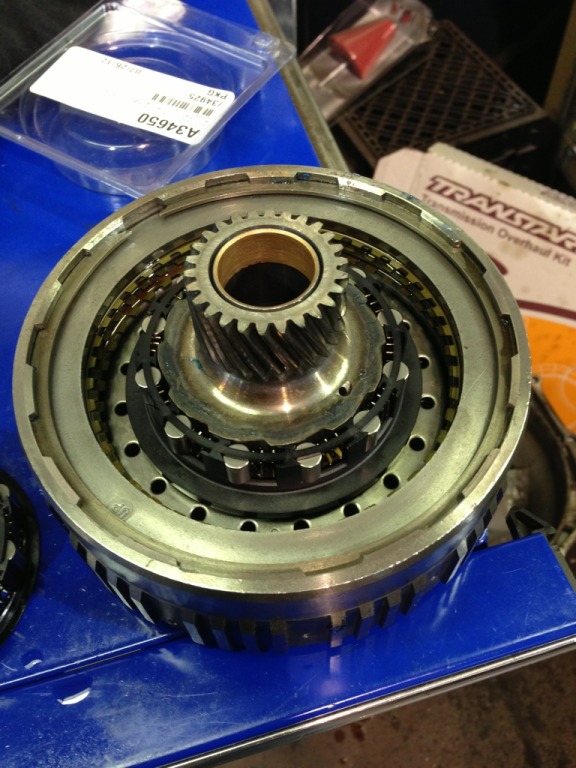

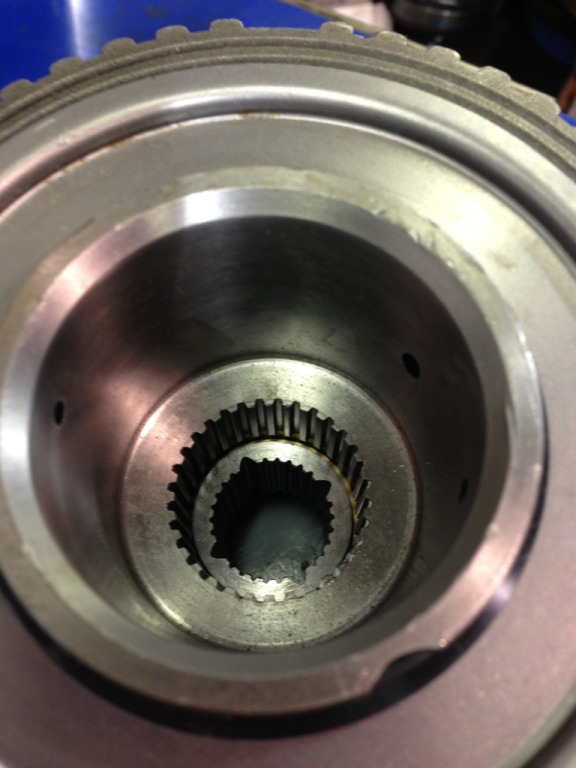

The bushing is installed in the Direct drum, the forward hub basically floats in the middle of the direct drum ( the clutches keep it centered) The added bushing stabilizes the two of them. On the bottom of the direct drum is the intermediate sprag, this setup adds the bushing and also the forward hub is a billet piece that has been setup so that it is now rollerized. If you look in the bottom picture you can see a little bit of the bushing (Tan color in picture) in the center of the two assemblies.



Dislaimer- This is all based off of my understanding, I am learning this as I go..... haha

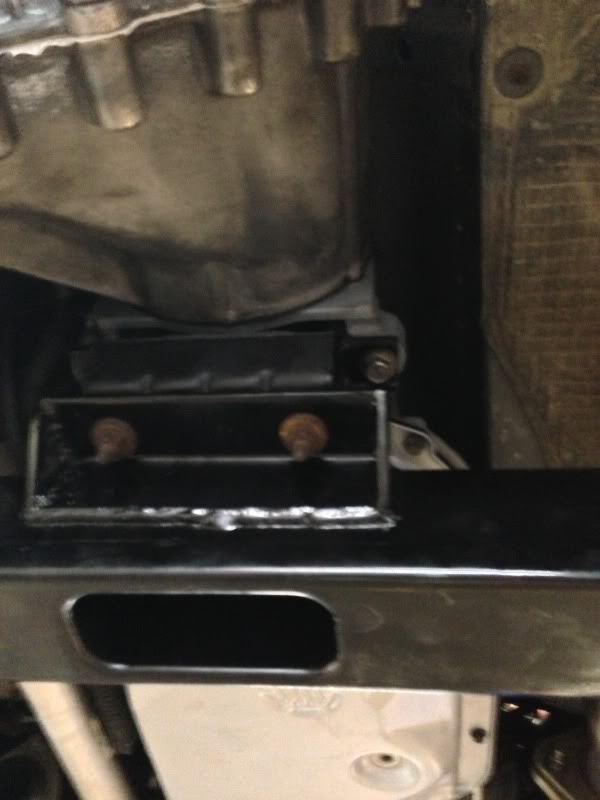

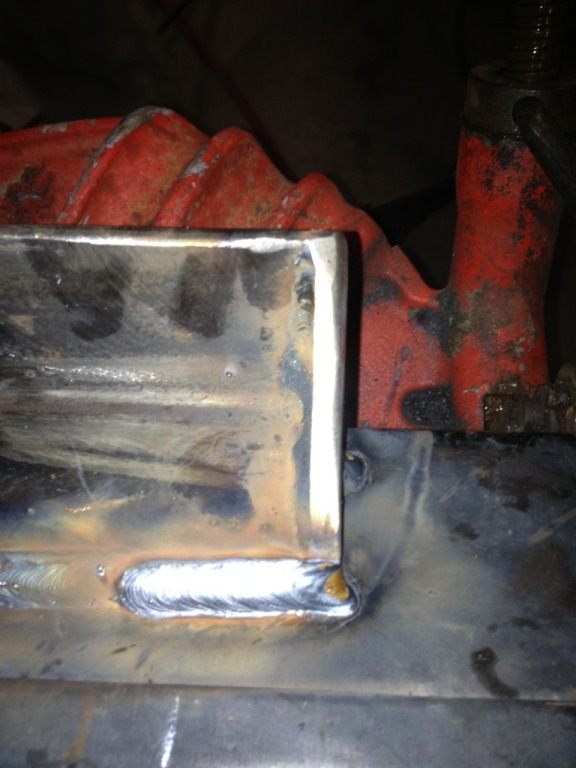

Pictures TimZ took of me when I was welding up my crossmember.
Attachment 117492

Attachment 117493

Attachment 117494

Attachment 117495

Attachment 117496

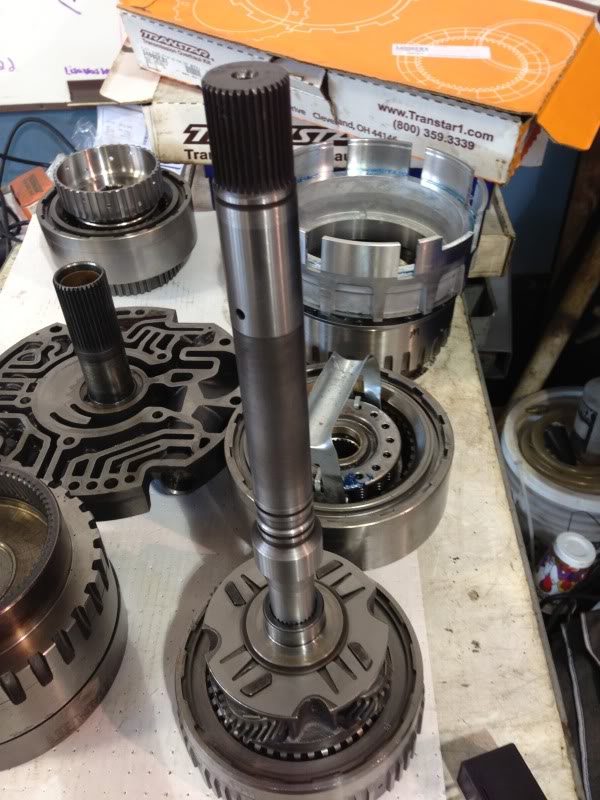

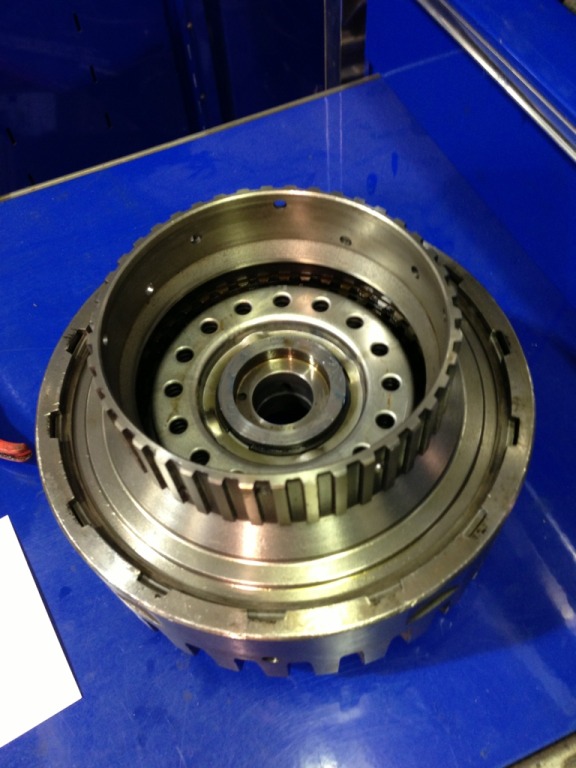

Forward Drum Assembled

Attachment 117497


Attachment 117498

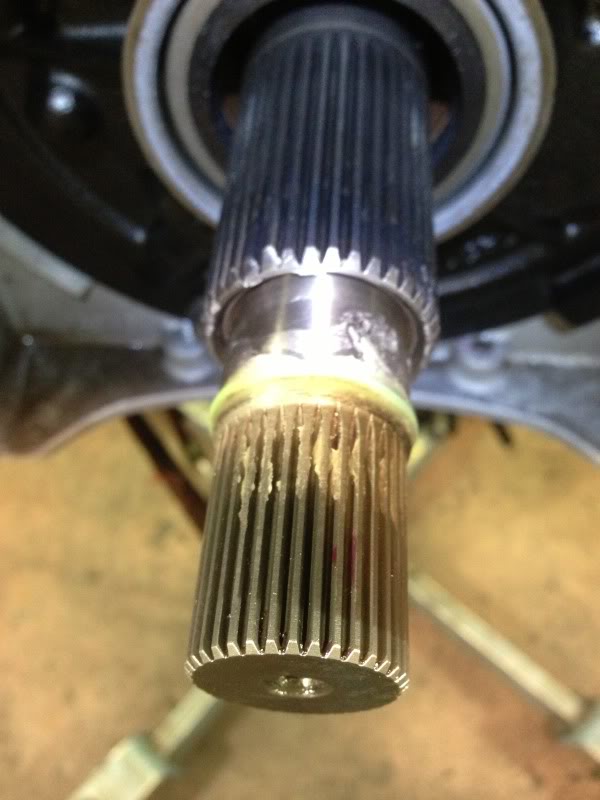

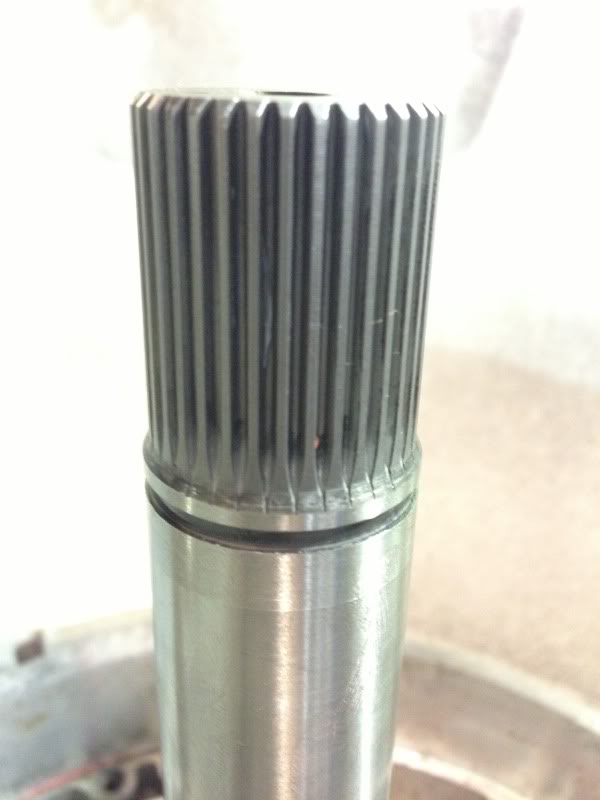

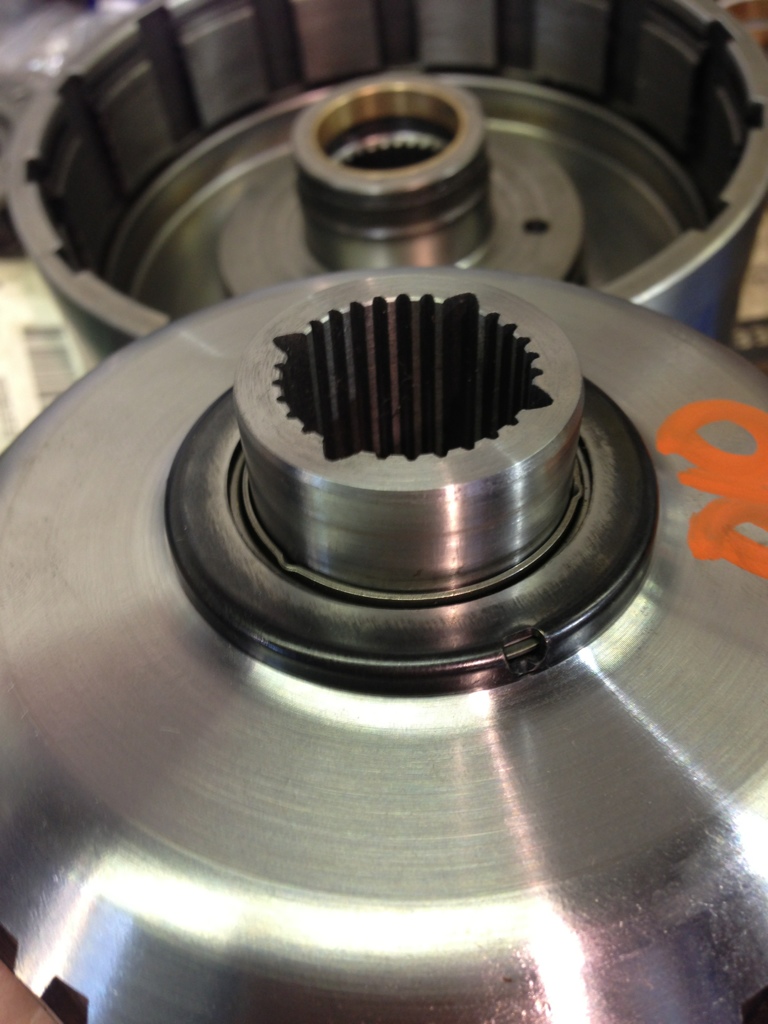

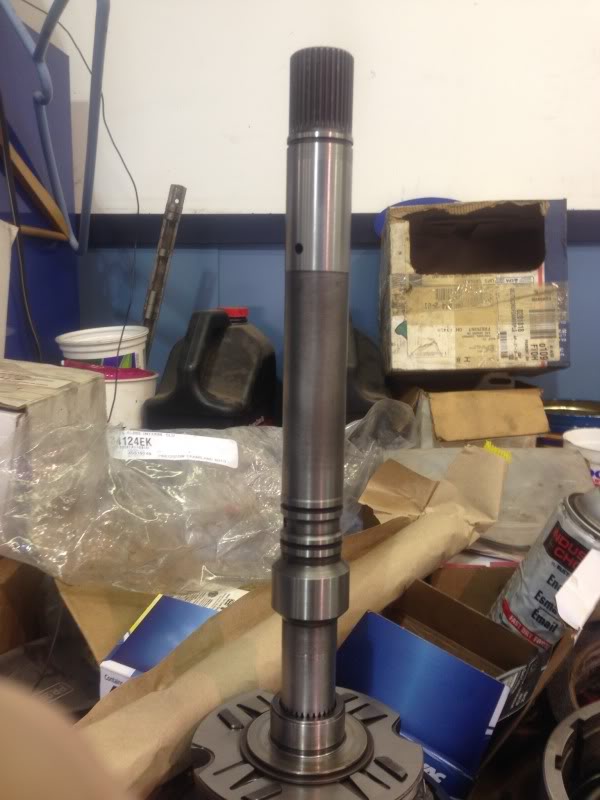

CK Performance Billet 300m Input shaft. For those familiar with 80e input shafts pay close attention to the splines where it engages the converter. No reduction in size to accommodate tooling so should be stronger in that area. Not all billet shafts are this way.

Attachment 117499

Attachment 117500

Attachment 117501


Attachment 117502


Attachment 117503

Attachment 117504

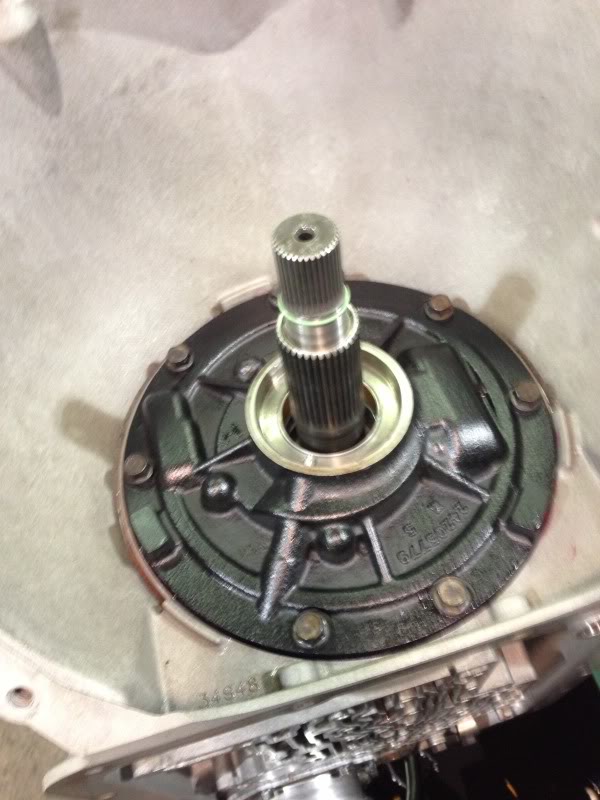

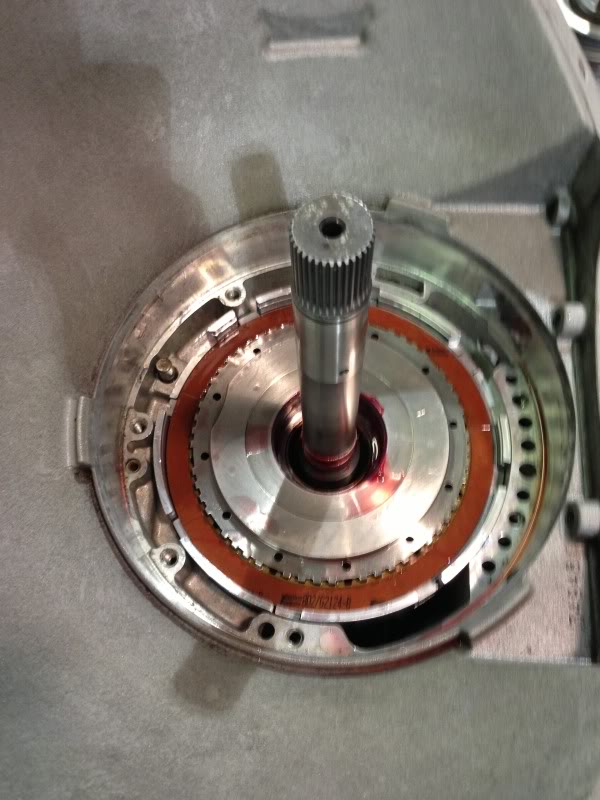

End play worked out to .012 with a .075 shim. Spec is .004 to .022 The seal is in now but was not in the picture.


Attachment 117505

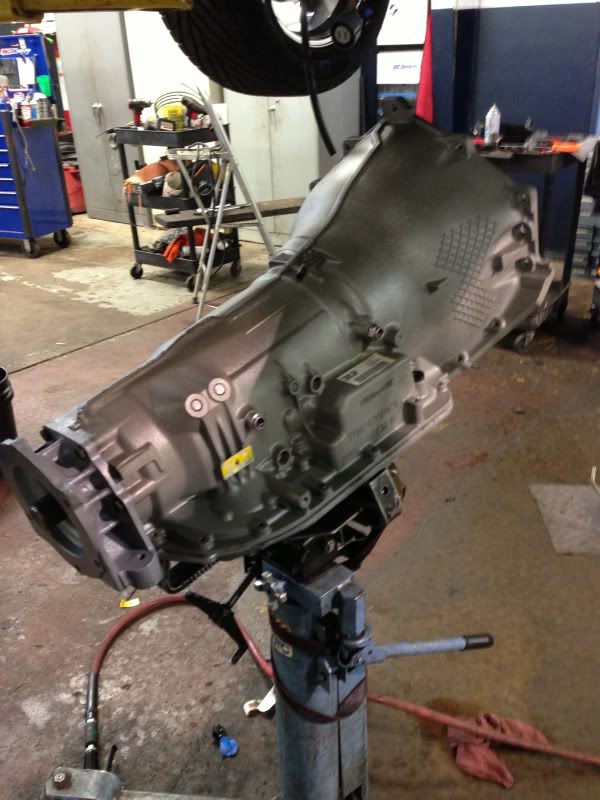

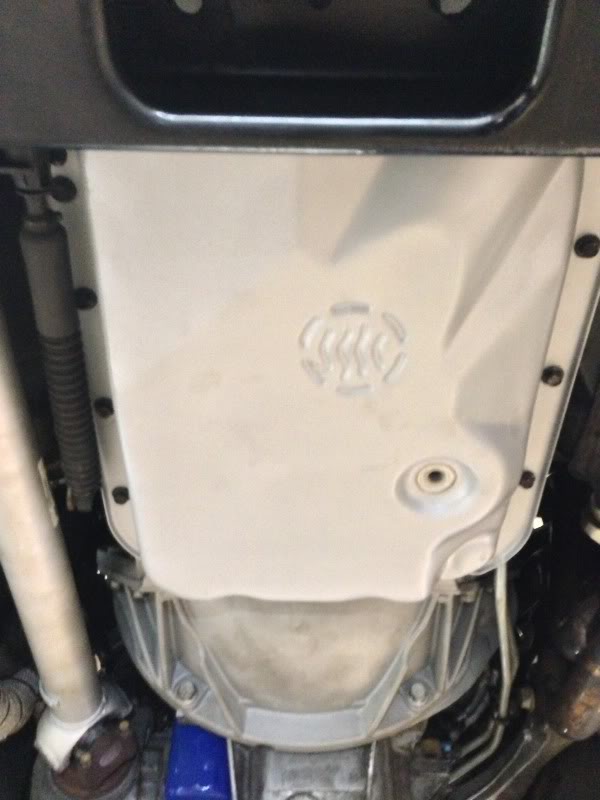

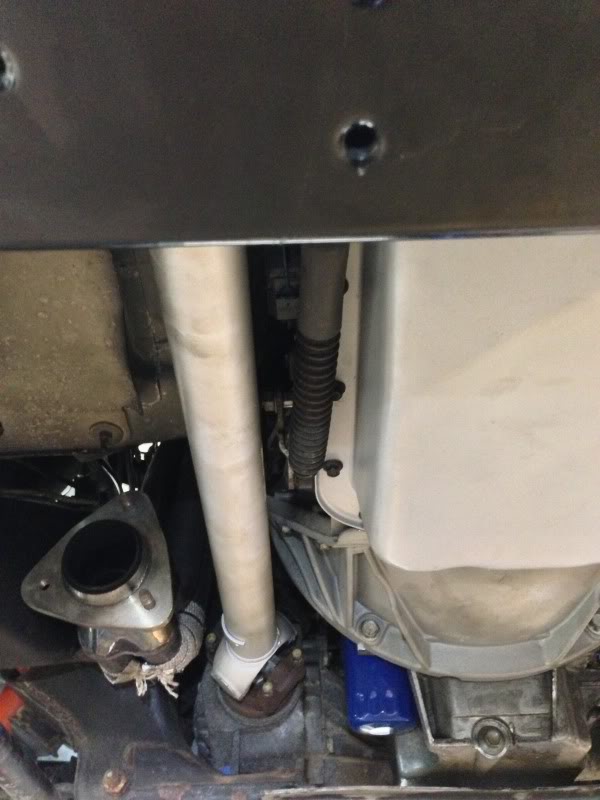

Well its in and running, got it done earlier today. I have not drove it a whole lot as I had other stuff that I needed to get done but I did drive it enough to get a feel for it. I like it, the shift is allot different as its a very fast shift but yet smooth at the same time. It feels like it just clicks into gear instantly, the downshifts is what caught me off guard. The downshifts are so smooth compared to the 65E, on the 65E there was no mistake when it downshifted even at part throttle where as the 80E seems more seemless. I can feel the taller 1st gear and the closer ratios but I have not went WO yet as I want to break it in a bit before beating on it. I only have maybe 10 miles on it, I am off tom and the weather is going to be nice so I hope to put some miles on it and get some WO pulls in.

Attachment 117506

Attachment 117507

Attachment 117508

Attachment 117479

Attachment 117480

Attachment 117481

Attachment 117482

Attachment 117483

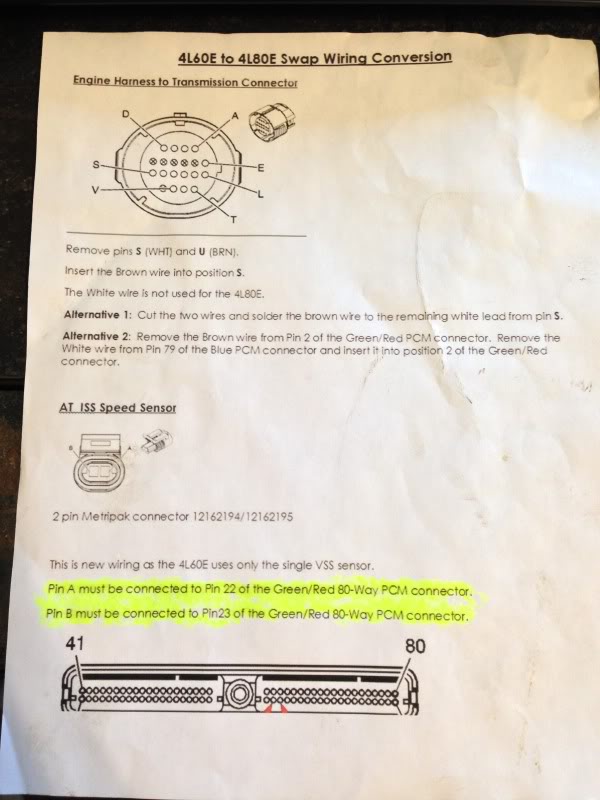

When you go from a 4L60E / 4L65E to a 4L80E there are two unused pins in the Trans connector. Part of the wire swap that everyone does is below.

By doing it this way you can utilize all factory wiring, all you have to do is add a plug at the trans end and move the pins at the PCM end. Credit for this method is due to Mark (Mark Buck).

Attachment 117475

You take the white wire that is no longer used ( Was pin S ) and you also take Tan/Blk Wire ( T ) and remove them both from the vehicle trans plug, pull the wires out of the loom about a foot and separate them from the main harness as they will now be used for your Input Speed Sensor ( ISS) You will need the proper plug and terminal ends to use on the wires to attach to your ISS. You will also need the appropriate crimper for those terminals.

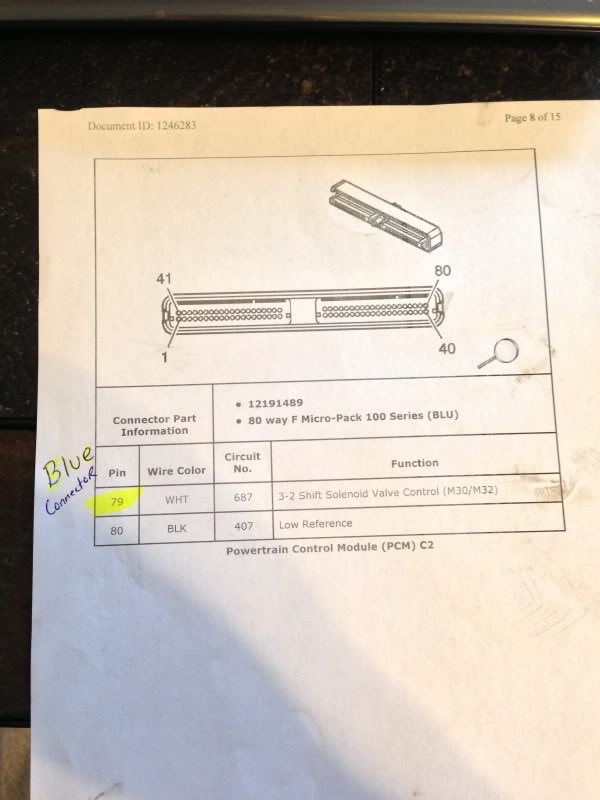

At the PCM end, you will have to remove the loom and tape going to the PCM harness. The main harness divides into two and splits for each PCM connector. You remove the White Wire from the Blue connector ( Pin 79) and move it so that it can be run to the Green connector.

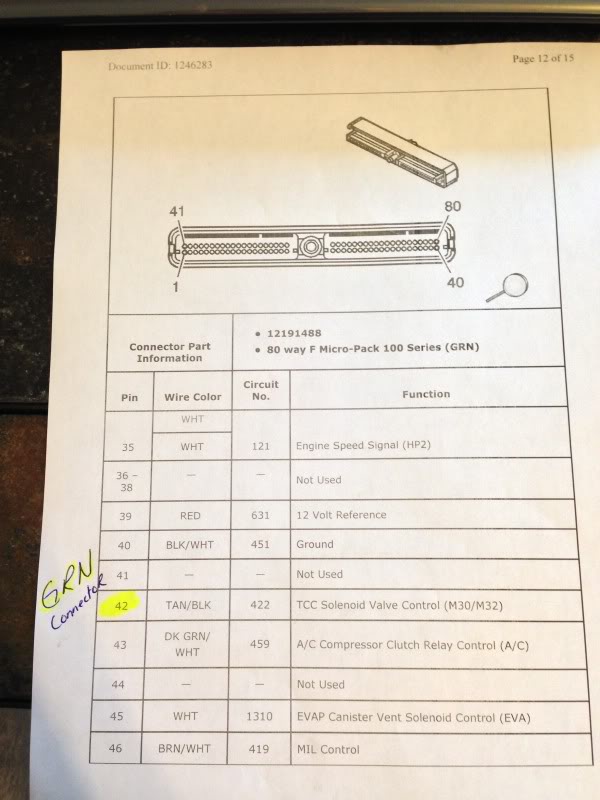

The Tan/Blk wire (pin 42) is already in the Green connector so all you have to do is remove it from Pin 42 and move it to its new location.

Myself I used the White wire as Pin A / Green Connector Pin 22
Tan/Blk wire as Pin B / Breen Connector Pin 23


Trans connector

Attachment 117476

Attachment 117477

Attachment 117478

Man that thing is a monster lol

We gotta set up a g2g as soon as you get that thing buttoned up man... looks like all the salt is washed off the roads :D

It's buttoned up, I was driving it yesterday.

Put some miles on it today, and finally did a couple WO pulls. I LIKE IT, the shifts are super fast and smooth and the shift extensions between gears is much better then the 65e.

Thats awesome pat. This thing looks great! Glad you like it.

Whats your initial impression of the difference in 1st gear? Both WOT and cruising around town.

I notice it when starting out, but once cruising I dont notice. WO is nice because before it seemed that I no more then got on the throttle and I was in 2nd gear where as now 1st gear doesnt feel so useless. The shift extensions are very nice, the RPM does not fall off as much between gears. I dont really notice the lower 4th gear on the highway, it turns another 100 RPM or so at cruise. I have not went WO enough from a dead stop to be able to say as far as coming out of the hole.

Sweet man! Is the the first trans you've built?
