Turbo LSX 2011 Escalade EXT build


Thought I would post my build.
Note: Ran lean and melted a piston on crate engine. All new internals engine build further in thread

2011 Cadillac Escalade EXt AWD

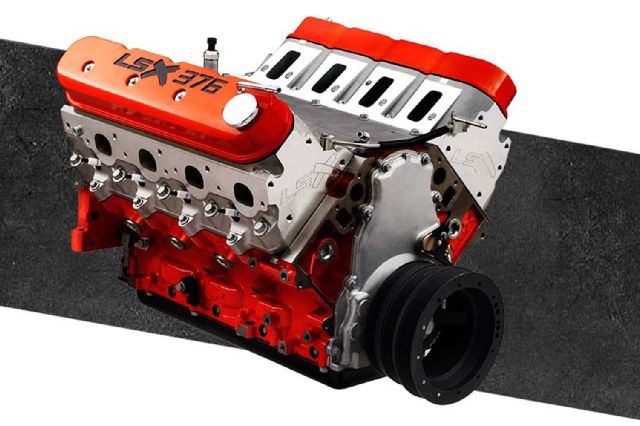

GMPP 376 LSXB15A Crate Engine
ATI Dampner
Tci flex plate
ID 1300's injectors
10mm Plug wires
Lonnies twin pump fuel system return billet fuel rails boost ref fuel reg
Turbo BW 80/92 1.25 AR Fully Polished cover
PTP turbo blanket
46mm Precision Wastegate
Trick Performance turbo oil adapter
Trick Performance Pro line oil line kit
Trick Performance Log Manifold Hot pipes
Trick Performance 5" race intercooler kit
Alky control twin nozzle Meth kit
Circle-D 3000 pro multi disk stall
Grimmspeed mbc
RX Monster Catch can
Wilwood Big brake kit
TA 1807A - Chevy 8.2"/8.5" 10 Bolt
Low Profile Rear End Girdle
Fully built 6L80E Trans Circle-D
26" GIANELLE YEREVAN RIMS Matte Black
NORCAL SS 07 Up Lowering/Cornering Package
Panhard bar
Spohn 07+ GM SUV Rear Adjustable Lower Control Arms and Spohn 07+ GM SUV Rear Adjustable Upper Control Arms.
LS aluminum 6061 steam vent kit
Holley Hi-Ram Efi Intake
Dash Logic
New ZO6 silver blade TB
4" Elec Cutout Quick Time Performance
More parts too come

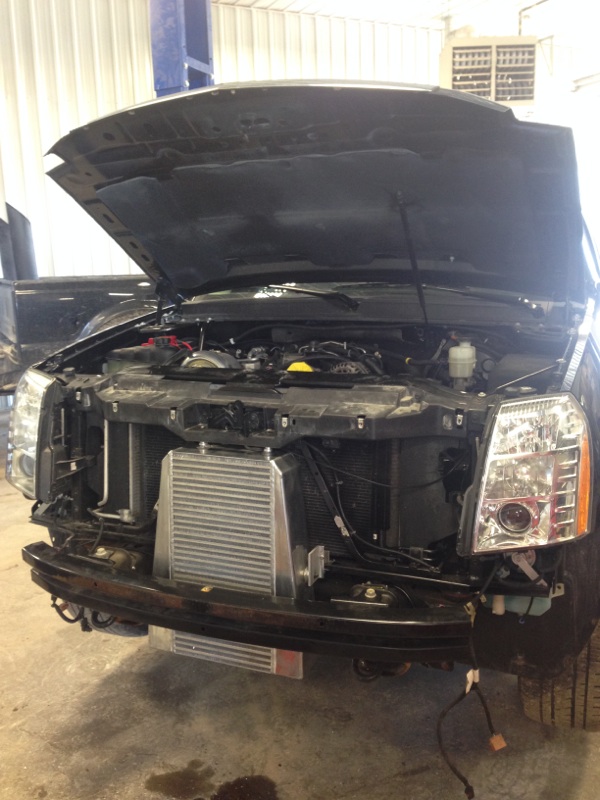

Some pics......

Attachment 102028
Attachment 102029


Attachment 102030

Attachment 102031

Its gonna be a pig, but it looks like a lot of fun. That intercooler is interesting.

Where is the gate located. We def need more pics please

Looking good. Once you get it wrapped could you post up install pics.
So we can add to the documents for future customers.

Gate is under cross over. Will get more pics when I can.

Ya not a light truck! But its going to be no slug @ 20+ psi 😀

I will do that Rick.

That's a sick fkn project damn !

Something different :) gonna be a fast suv

Could have just bought my truck and saved yourself time and head ache and money haha
