Holley Dominator Install
06-25-2016, 08:54 PM
#11
Got some carbon fiber composite $$.
Sorted out the PNP switch operation so I could add a gear range indicator to the dash. (The Dominator only displays the commanded gear) This way I can also control relays, etc based on the position of the shifter. I have a D1 brake and the Dominator has no provision for the PNP switch.
Not sure if maybe I should install 2 of these .96" OLED displays in the cluster in case I want to add something else. This one is white, but the same ones also come in blue or yellow/blue split(top/bottom).
Sorted out the PNP switch operation so I could add a gear range indicator to the dash. (The Dominator only displays the commanded gear) This way I can also control relays, etc based on the position of the shifter. I have a D1 brake and the Dominator has no provision for the PNP switch.
Not sure if maybe I should install 2 of these .96" OLED displays in the cluster in case I want to add something else. This one is white, but the same ones also come in blue or yellow/blue split(top/bottom).
Last edited by DrX; 06-25-2016 at 09:49 PM.
06-26-2016, 03:49 PM
#13
Added contrast(dimmer) control to the display...single wire from the controller, momentary to ground, to step through 5 levels.

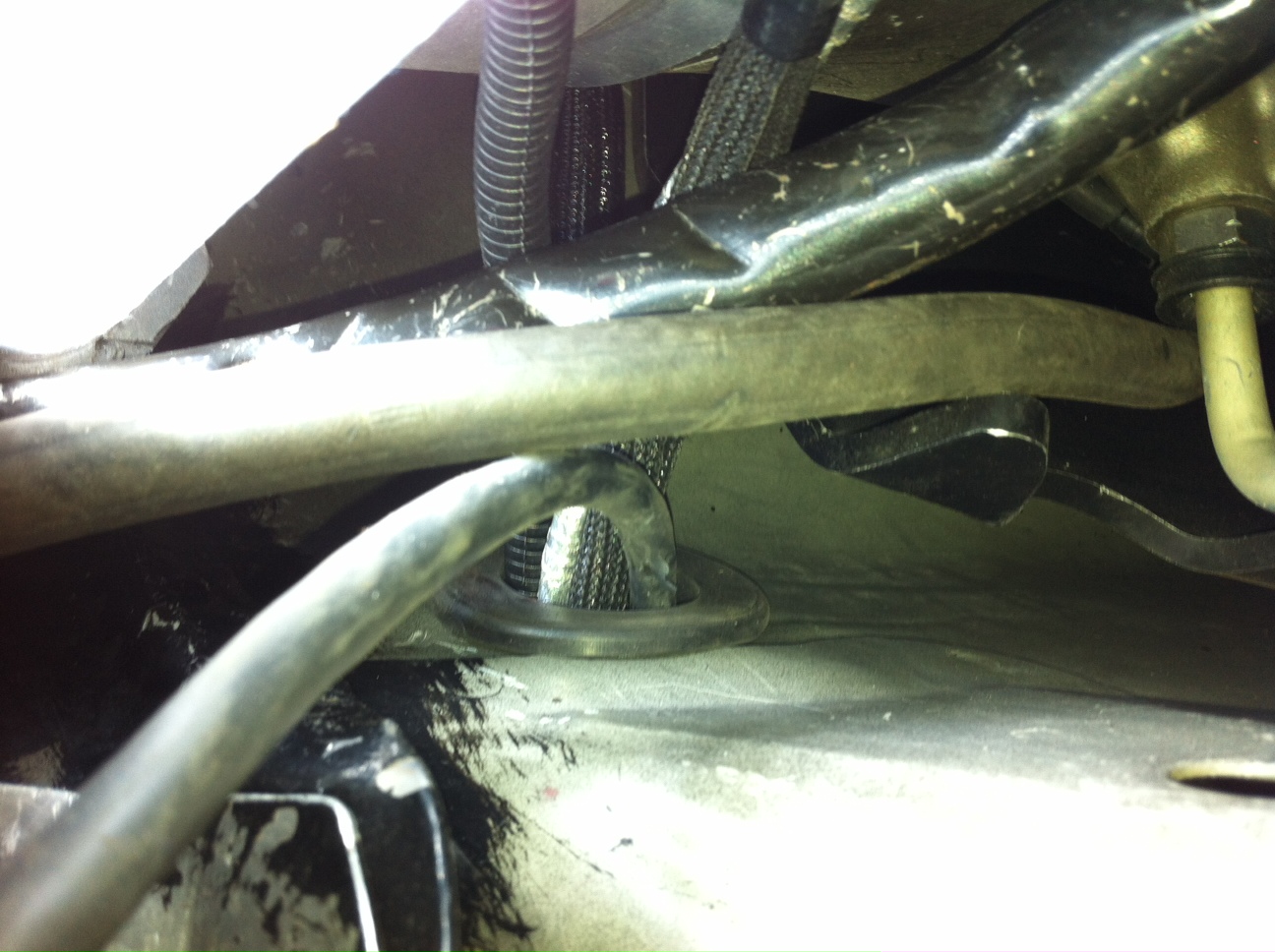

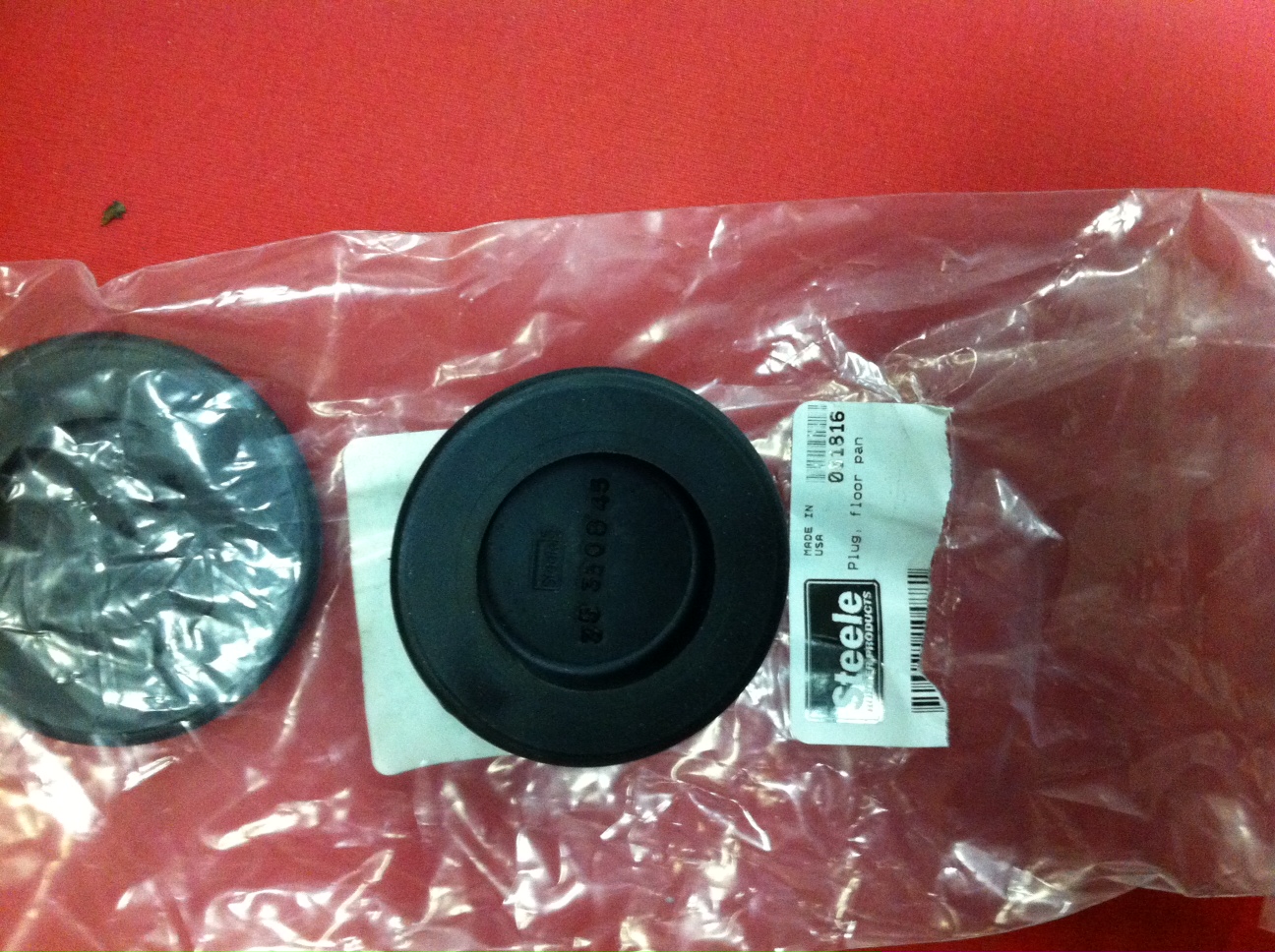

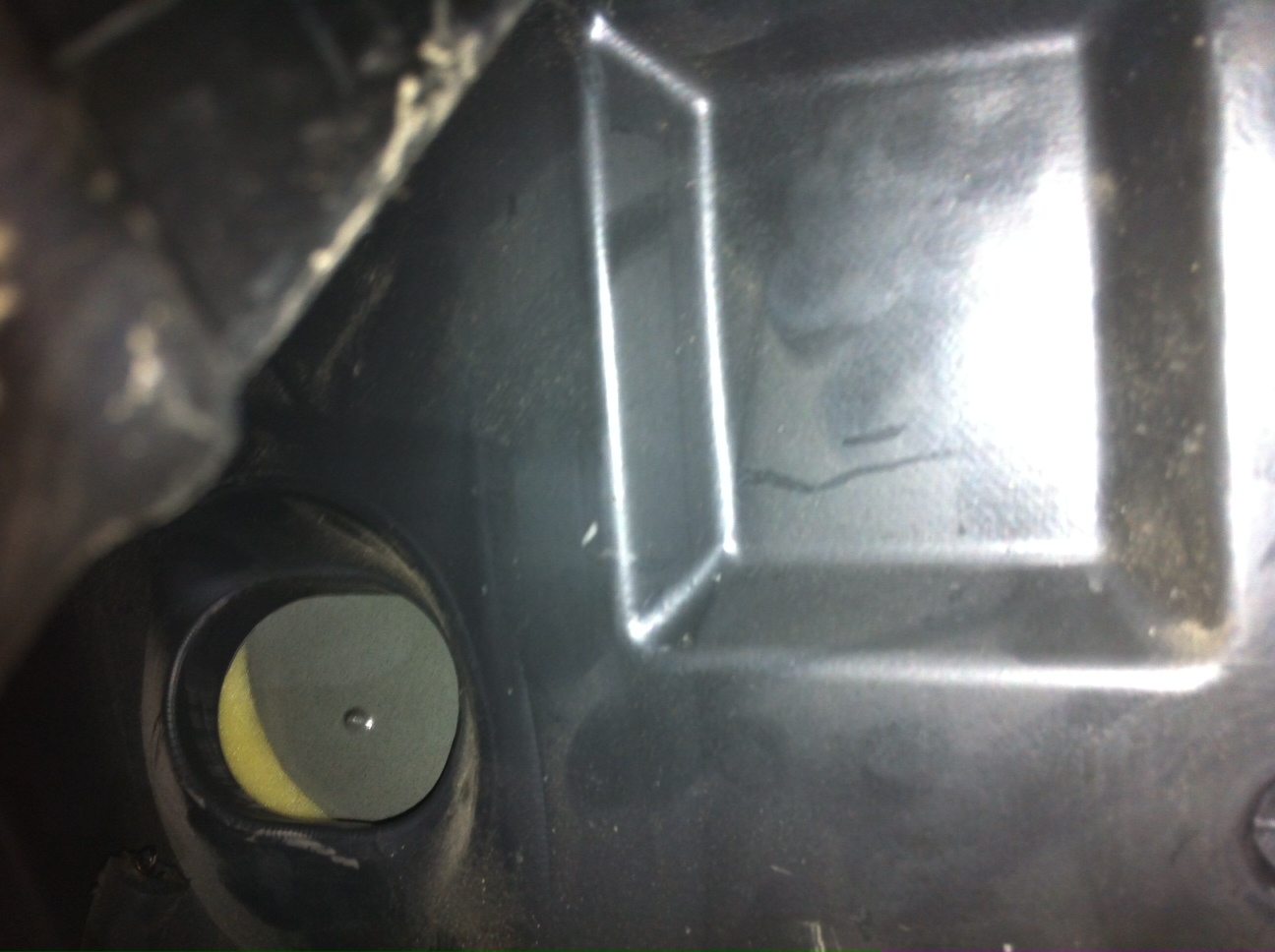

Looks like GM left me a spot on the firewall to pass the mess of wires through....above and right of the throttle pedal. But the flat is only about 2" which is Holley's recommended hole size. So I won't be able to use one of the metal-flanged split grommets, which are 3" OD.
Looks like GM left me a spot on the firewall to pass the mess of wires through....above and right of the throttle pedal. But the flat is only about 2" which is Holley's recommended hole size. So I won't be able to use one of the metal-flanged split grommets, which are 3" OD.
Last edited by DrX; 07-14-2017 at 05:18 PM.
06-28-2016, 09:19 AM
#14
Launching!
Got some carbon fiber composite $$.
Sorted out the PNP switch operation so I could add a gear range indicator to the dash. (The Dominator only displays the commanded gear) This way I can also control relays, etc based on the position of the shifter. I have a D1 brake and the Dominator has no provision for the PNP switch.
Not sure if maybe I should install 2 of these .96" OLED displays in the cluster in case I want to add something else. This one is white, but the same ones also come in blue or yellow/blue split(top/bottom).
Range2 - YouTube
Sorted out the PNP switch operation so I could add a gear range indicator to the dash. (The Dominator only displays the commanded gear) This way I can also control relays, etc based on the position of the shifter. I have a D1 brake and the Dominator has no provision for the PNP switch.
Not sure if maybe I should install 2 of these .96" OLED displays in the cluster in case I want to add something else. This one is white, but the same ones also come in blue or yellow/blue split(top/bottom).
Range2 - YouTube
06-28-2016, 10:32 AM
#15
Built and programmed it. Operates off the PNP switch on the trans. Minimum 4 wires plus ground connection to the switch. 2 more wires for the starter relay enable circuit(neutral safety). I'm running that circuit on 5V from my circuit board as nothing else is connected to the range switches. Can still run the 12V backup light circuit through the PNP as that is completely separate. See diagrams in post # 11.
06-28-2016, 04:49 PM
#16
Launching!
Built and programmed it. Operates off the PNP switch on the trans. Minimum 4 wires plus ground connection to the switch. 2 more wires for the starter relay enable circuit(neutral safety). I'm running that circuit on 5V from my circuit board as nothing else is connected to the range switches. Can still run the 12V backup light circuit through the PNP as that is completely separate. See diagrams in post # 11.
You should make some up and sell them man!
08-19-2016, 08:33 PM
#17
Finally got a chance to get back to this. Spent a few hours backtracking today. I tore down the main harness so that half of it will route through the firewall and half through the right side of the tunnel in order for the wiring to be long enough without extending it. Right coils, right WB02, trans wiring and crank sensor will run through the tunnel. Lost my rear seat heat duct though...not that I have a rear seat anymore, or drive the truck in cold weather.

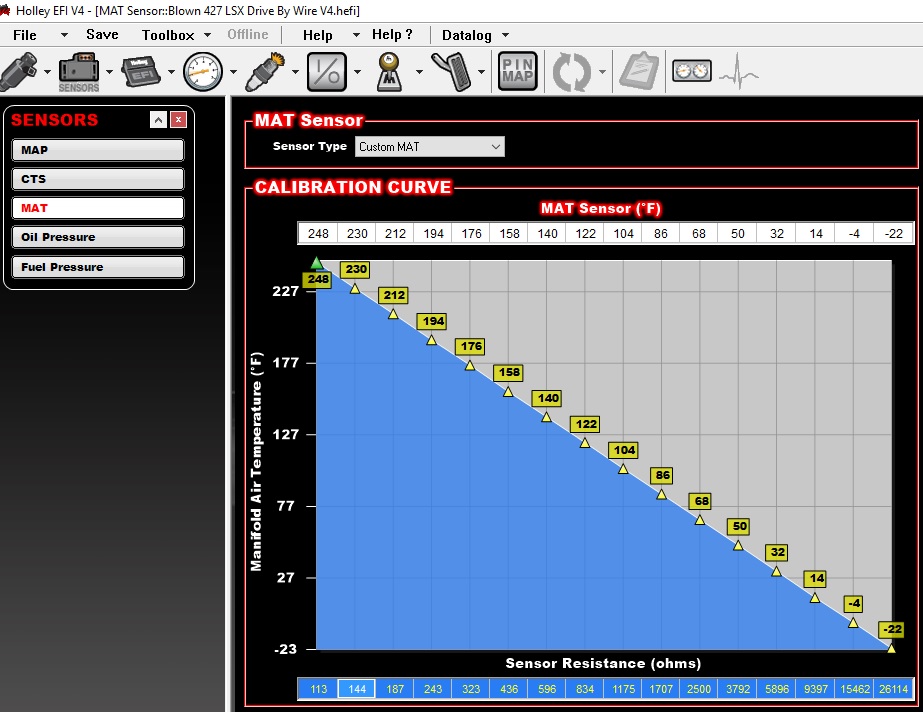

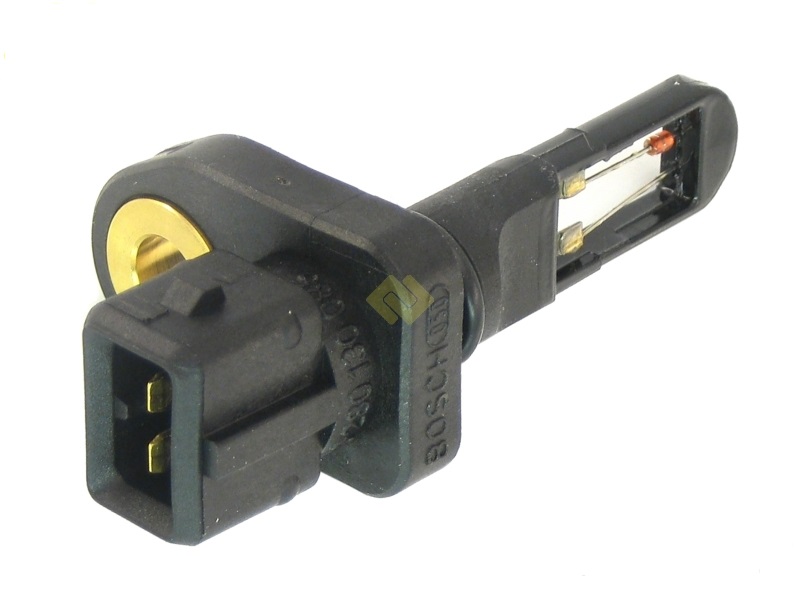

Also removed some unneeded wires for TPS sensor and IAC as I am keeping a twin DBW setup which is also a Dominator option. Breaking down the harness will also allow better routing of the individual sensor wiring.

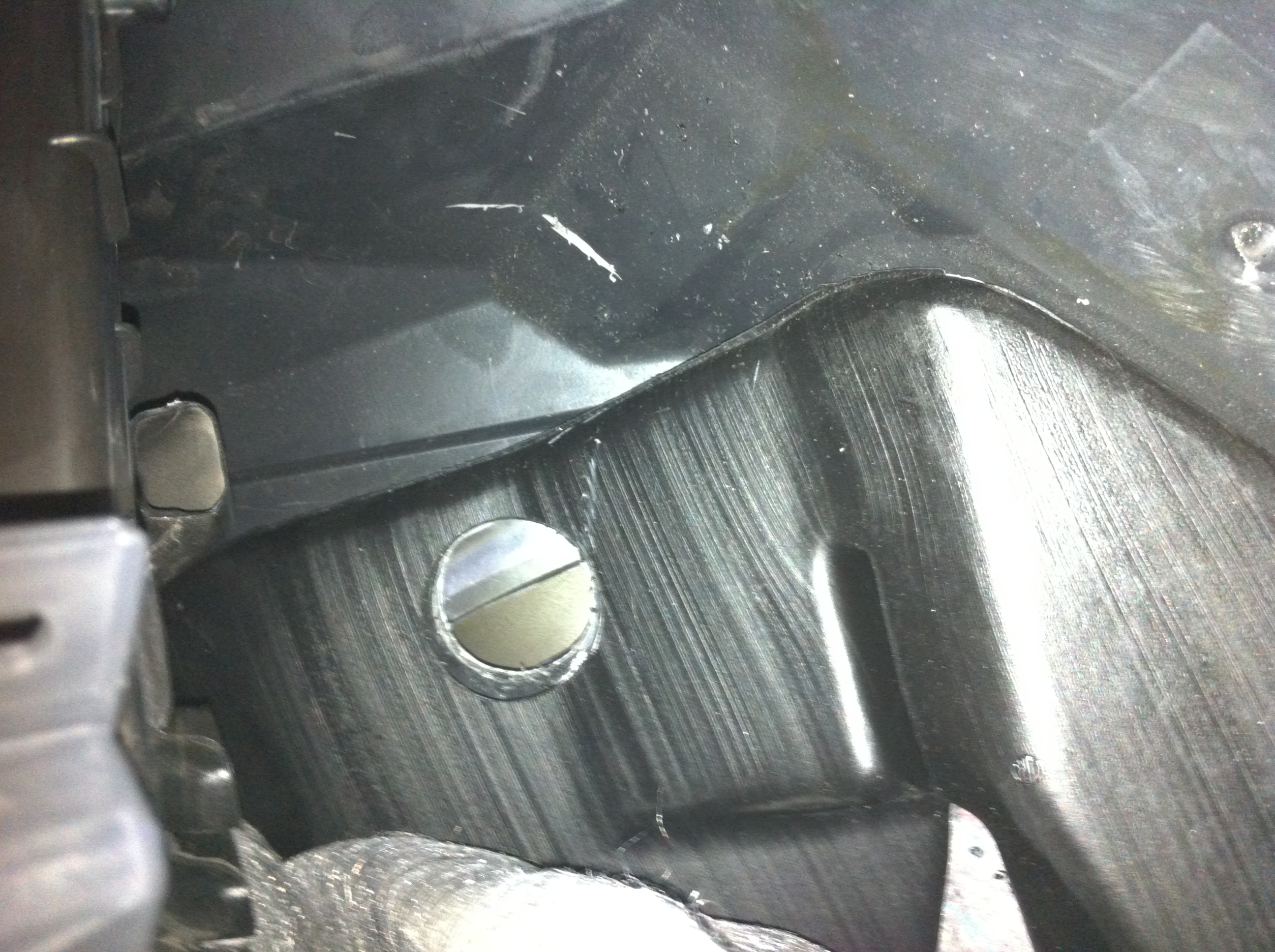

Carpet rolled back and hole cut. You can see the bellhousing/80E case junction through the hole.
Also removed some unneeded wires for TPS sensor and IAC as I am keeping a twin DBW setup which is also a Dominator option. Breaking down the harness will also allow better routing of the individual sensor wiring.
Carpet rolled back and hole cut. You can see the bellhousing/80E case junction through the hole.
Last edited by DrX; 07-14-2017 at 05:33 PM.
