Budget turbo 4.8 van
This will not be a sexy build. Cheap and quick. I'm sure you will spot a number of "wrong" things.
First some background:
I rock crawl and dirt bike and live in the high rockies. I built a tear drop camper earlier this year. My crawler doubles as a tow rig. Loaded with dirt bikes and the tear drop the old Toyota 5vzfe, as much as I love it, doesn't cut it in the mountain highways. Especially on 37" tires towing a camper.
We live at 7000ft above sea level, and have to go over a 9,000ft pass quite often.
Rock crawling doesn't need much HP. I've never owned a V8, or an auto or a forced induction powered vehicle before.
Initially I was looking for a V8 pickup. But nothing decent near by, and then I had the idea that with a van, the dirt bike could live in it and free up some limited garage space.
I came across a '97 Chevy 3500 Express van nice and cheap. The high mileage 5.7 was disappointingly tired. Rather than dump money into that, I was thinking LM7 swap with turbo.
So not necessarily looking to go super fast.
Ability to overtake uphill with a load when necessary. Good fuel economy when empty.
I found a wrecking '04 Tahoe and seller would part with the all I needed for reasonable money.

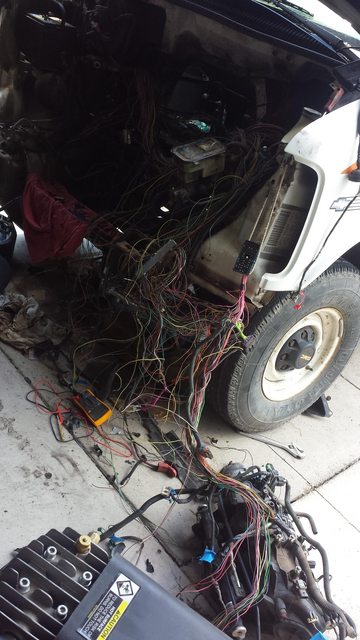

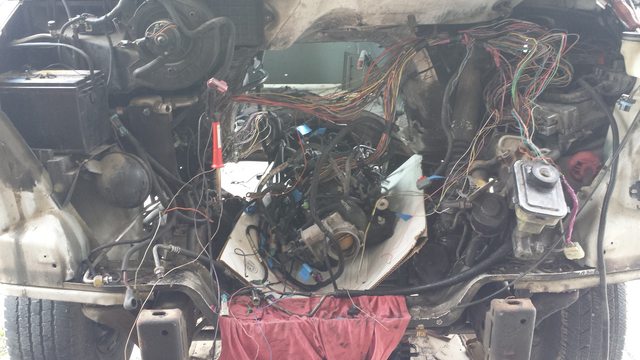

Swapped that into the van, which I admit was a much bigger job that I anticipated. Everything on the van is tight and hard to get to.
I assumed the motor was the 5.3 but when I got HP tuners to do the segment swap for the van's existing 4L80e, I discovered it was actually a 4.8.
Turbo time definitely. I was only about $1500 all in at this point.
The missus was against a 3rd vehicle of course, so politically this could not be a spendy project.
No off-the-shelf kit will fit an LS swapped van of course.
Consulted a friend and decided on a smaller turbo. Borg Warner S300SX3. Hoping for lower RPM spool than most guys.
The initial plan was to flip the manifolds and run the turbo up front. But that just won't fit in the van.
So plan B was rear mount. Ebay, scav pump, intercooler, BOV, wastegate. Custom to fit.
First some background:
I rock crawl and dirt bike and live in the high rockies. I built a tear drop camper earlier this year. My crawler doubles as a tow rig. Loaded with dirt bikes and the tear drop the old Toyota 5vzfe, as much as I love it, doesn't cut it in the mountain highways. Especially on 37" tires towing a camper.
We live at 7000ft above sea level, and have to go over a 9,000ft pass quite often.
Rock crawling doesn't need much HP. I've never owned a V8, or an auto or a forced induction powered vehicle before.
Initially I was looking for a V8 pickup. But nothing decent near by, and then I had the idea that with a van, the dirt bike could live in it and free up some limited garage space.
I came across a '97 Chevy 3500 Express van nice and cheap. The high mileage 5.7 was disappointingly tired. Rather than dump money into that, I was thinking LM7 swap with turbo.
So not necessarily looking to go super fast.
Ability to overtake uphill with a load when necessary. Good fuel economy when empty.
I found a wrecking '04 Tahoe and seller would part with the all I needed for reasonable money.
Swapped that into the van, which I admit was a much bigger job that I anticipated. Everything on the van is tight and hard to get to.
I assumed the motor was the 5.3 but when I got HP tuners to do the segment swap for the van's existing 4L80e, I discovered it was actually a 4.8.
Turbo time definitely. I was only about $1500 all in at this point.
The missus was against a 3rd vehicle of course, so politically this could not be a spendy project.
No off-the-shelf kit will fit an LS swapped van of course.
Consulted a friend and decided on a smaller turbo. Borg Warner S300SX3. Hoping for lower RPM spool than most guys.
The initial plan was to flip the manifolds and run the turbo up front. But that just won't fit in the van.
So plan B was rear mount. Ebay, scav pump, intercooler, BOV, wastegate. Custom to fit.
08-10-2015, 10:16 PM
#3
Teching In
Thread Starter
Join Date: Jun 2015
Location: San Juans, CO
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts

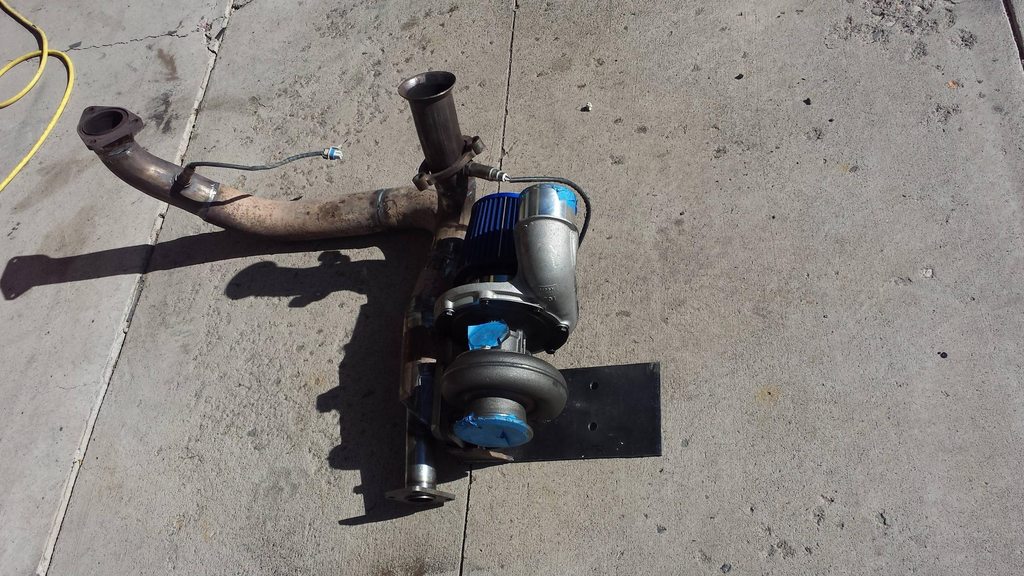

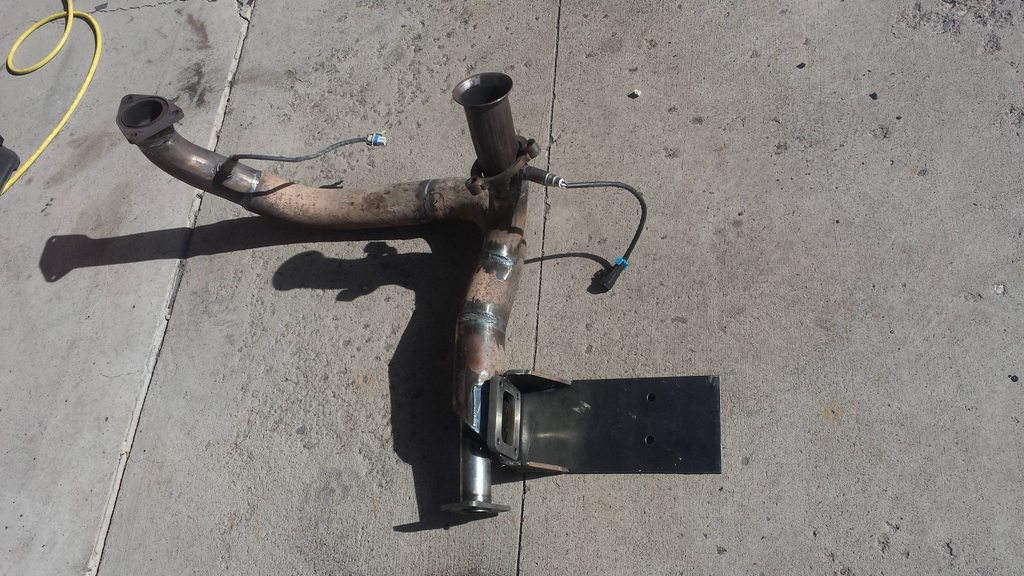

This is pretty much the only config I could find to work for the turbo. Next to the trans. Only just fits between trans and frame. Not ideal to have exhaust turn sharply like that but the only option.
Couldn't even get a 90 degree bend to fit in there. Not great for pressure waves or flow rates.
TIGing up the charge pipe.

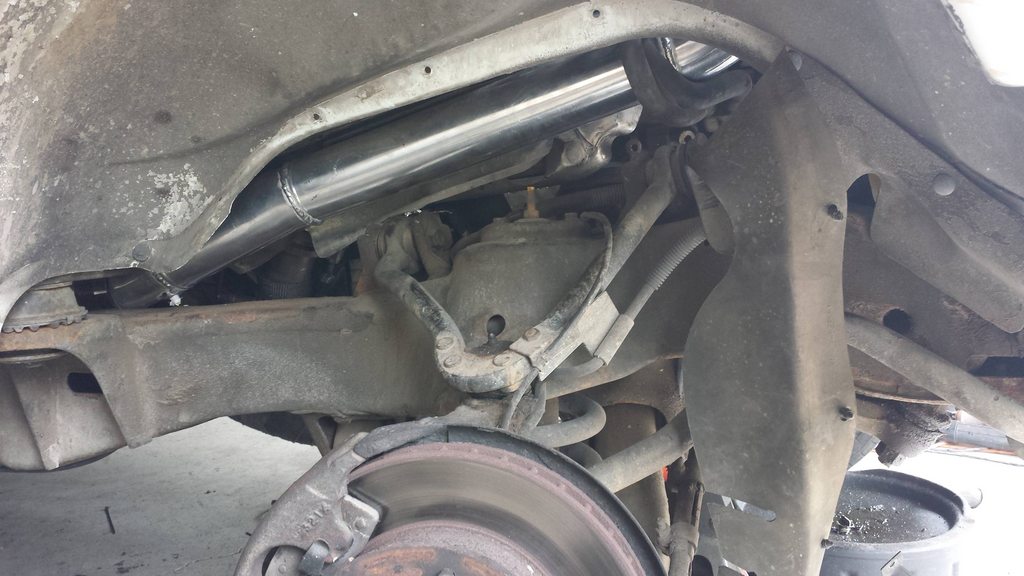

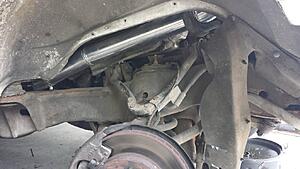

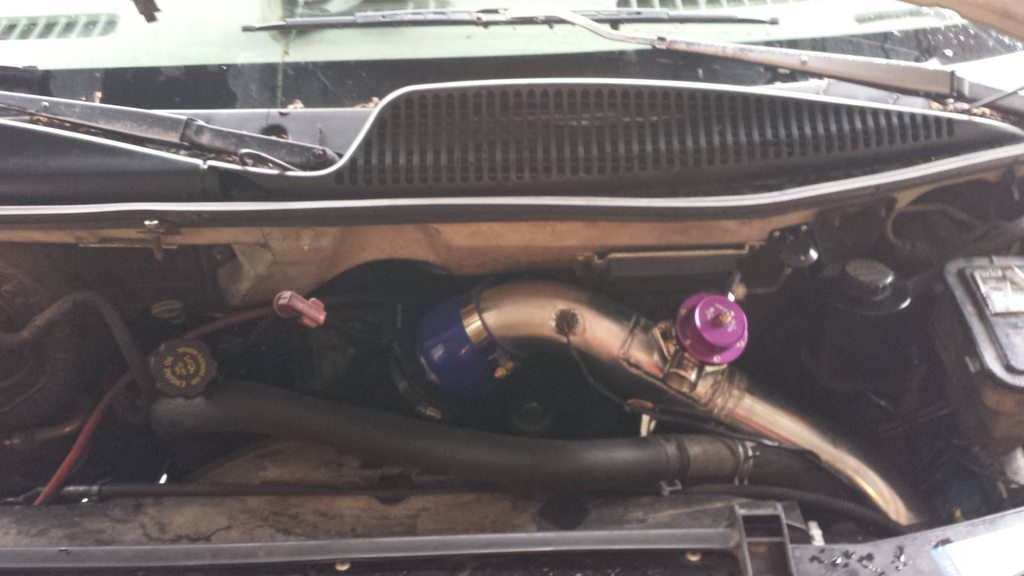

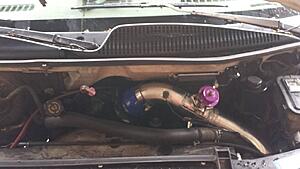

Charge pipe follows the frame rail.
