Finally some more progress!!!

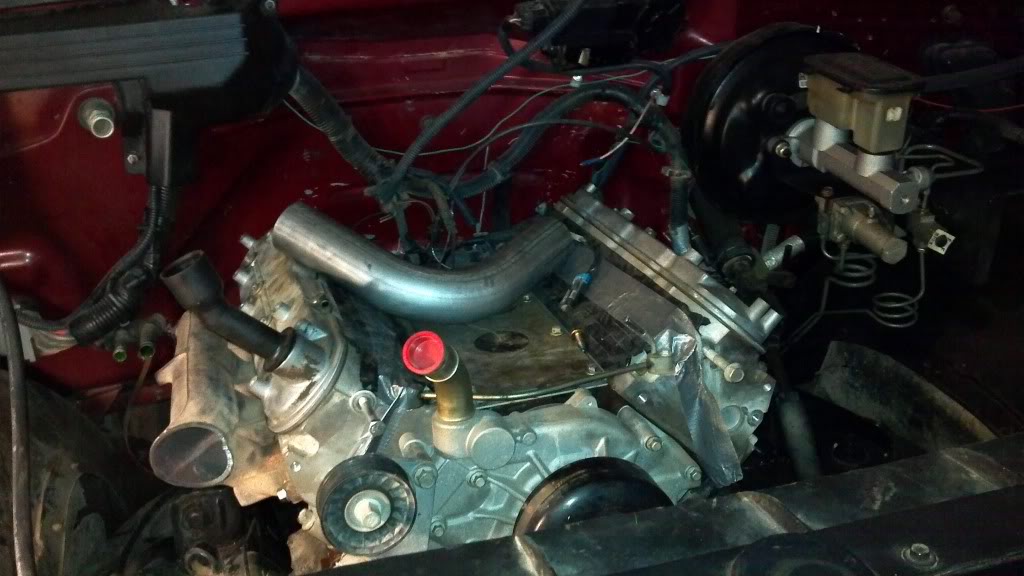

Got the motor/trans in:

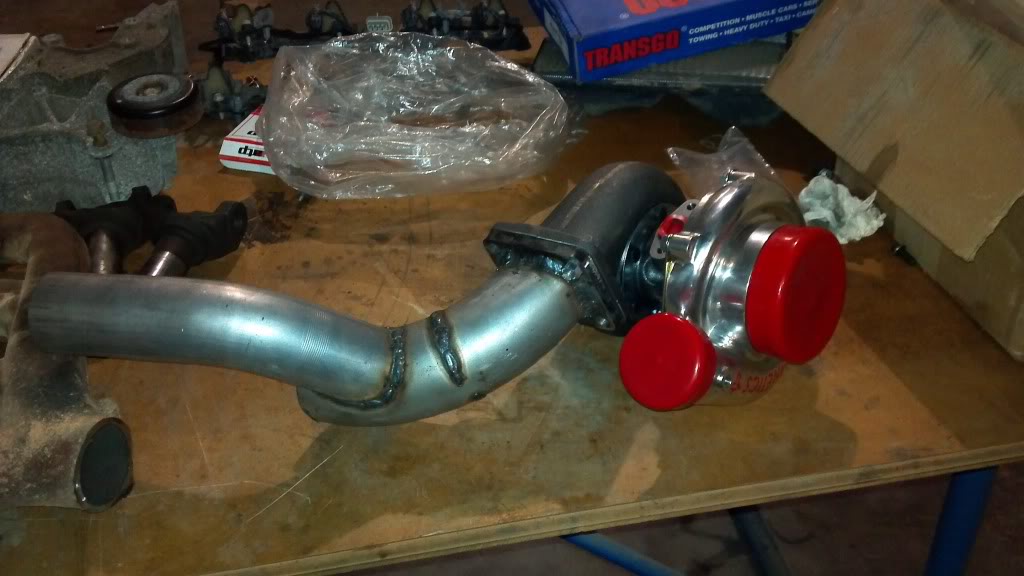

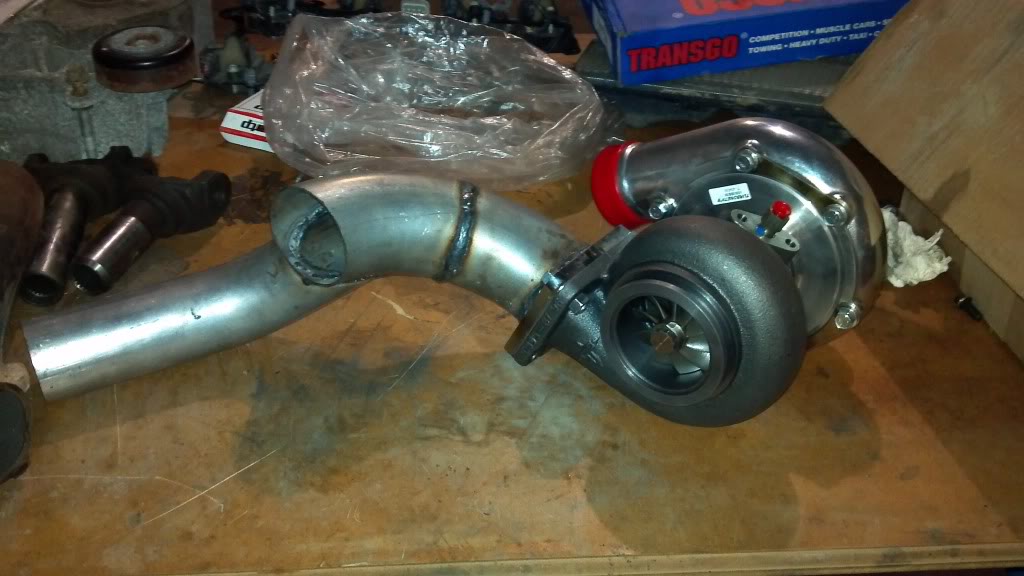

Started building hot pipes:

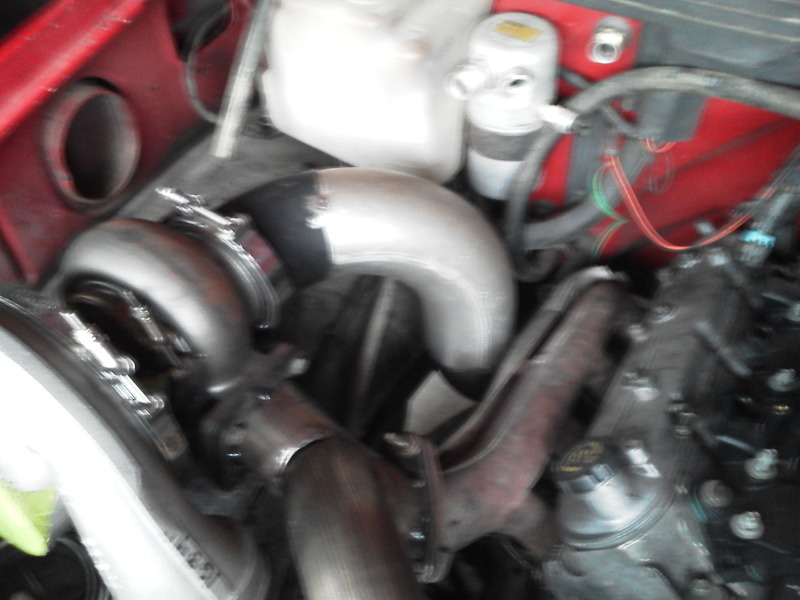

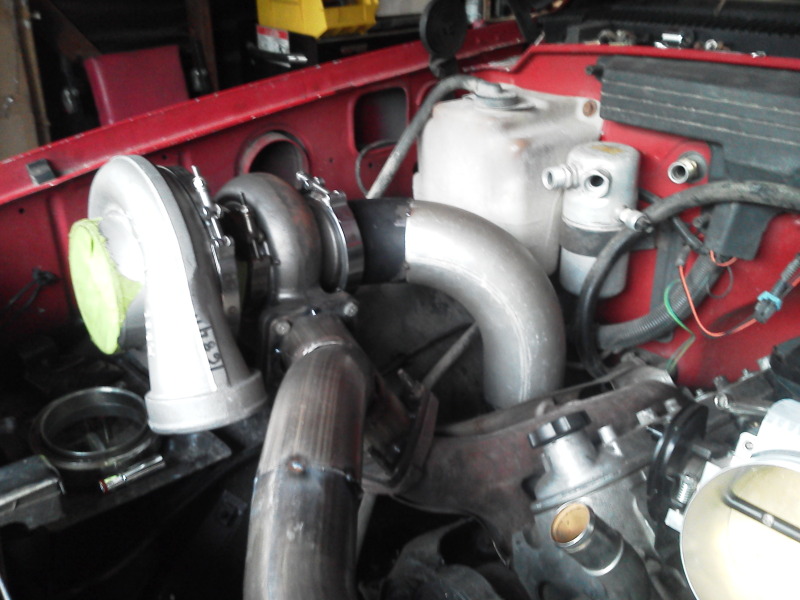

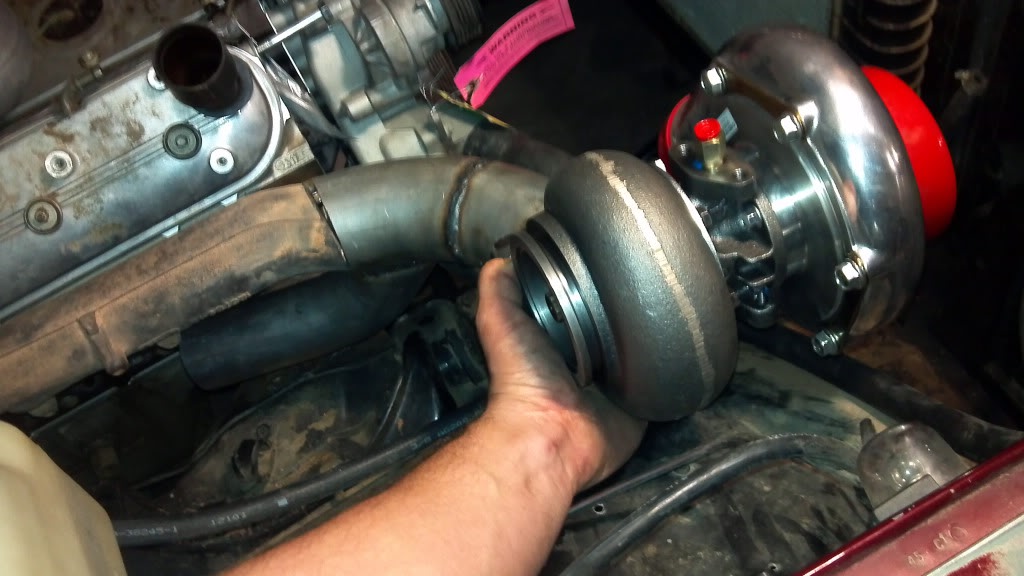

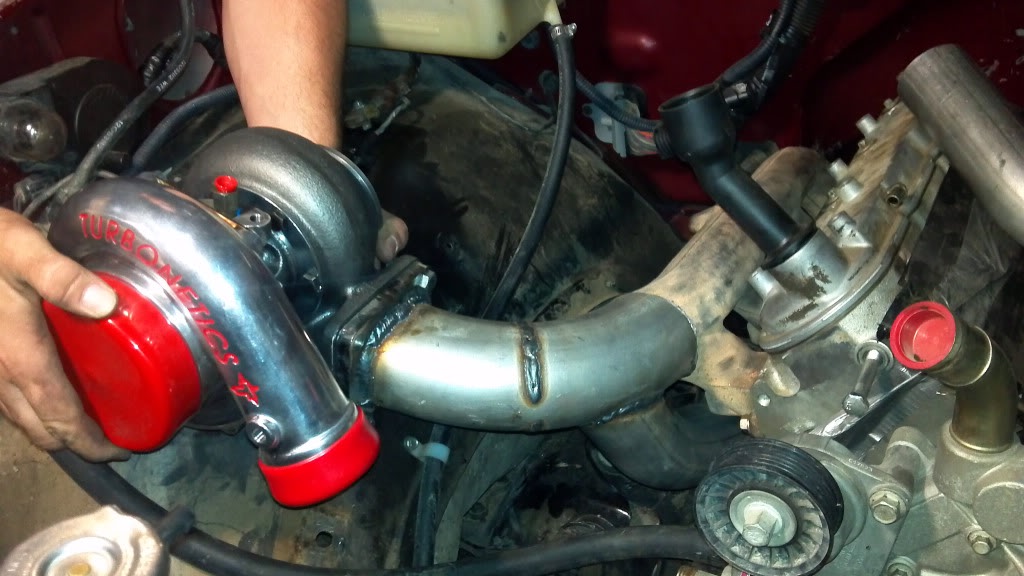

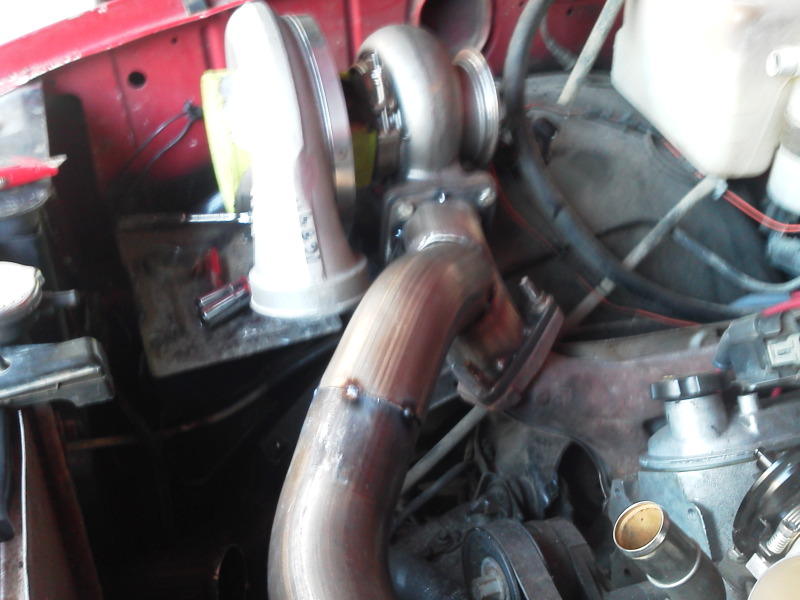

The turbo is gonna be way out there I know, so we'll be making some braces to help hold it. More pics to come!

vicalma03

iTrader: (8)

Looking good. I mounted mine in the same spot, is that 3" tubing ? Ant pics of the crossover?

vicalma03

iTrader: (8)

I flipped the stock manifolds and placed the crossover in front of the engine. That left me with plenty of room to run a 4" dp.. Ill post some pics to give you an idea of how I routed it.

pewterliftedz

iTrader: (4)

are you going to weld on some V-Bands?
Definately going to need some bracing lol..

thunderwagen

iTrader: (3)

Not to hijack the thread but I saw where you were going to sell your truck. Are you keeping it now? If so lets see some progress.

thunderwagen

iTrader: (3)

Trucks looking good LS1freak! I cant wait till mine is at that point. I actually got a little bit done on mine last weekend. Im curious to see how yall do your down pipes.

vicalma03

iTrader: (8)

It was for sale but not anymore. Long story...

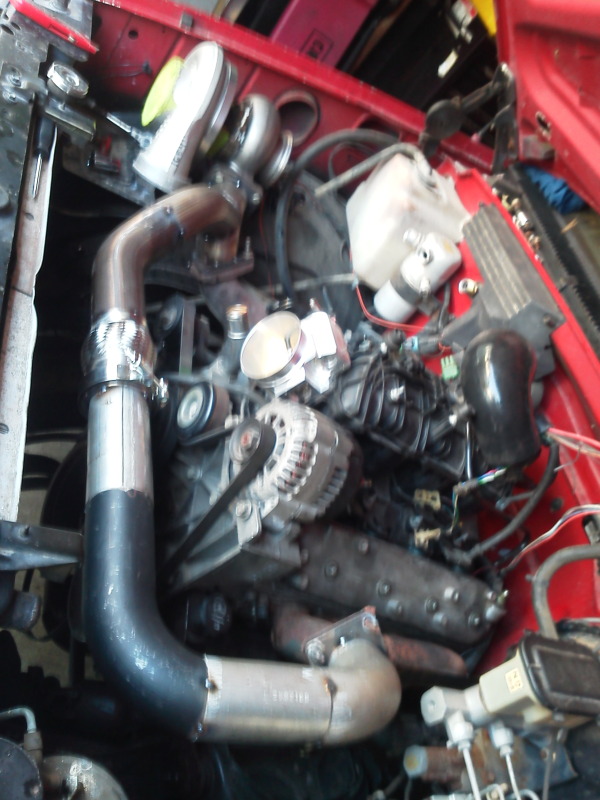

Here are some pics, hope they help you out with your DP. I only have everything tacked. I'm pulling everything off tomorrow morning to tig weld it. I'll have some better pics tomorrow if you need them.

LS1FREEK

iTrader: (1)

I'm still working on the crossover pipe, but yeah the 90 going from the manifold to the turbo is 3" but the crossover is gonna be 2.5"

Mine will also have plenty of room for a 4" DP but will for now be only running a 3"

The passenger manifold to the turbo flange will be one piece but there will be a v-band on the crossover right before it merges into the 3"

Thanks! Do you have a build thread as well?

TRD_Tundra

Nice build! Im boosting my 06 5.3 soon, if you don't mind sharing were did you get your oil line feed from and return line? Im thinking of setting my return line on the oil cap that's on the valve cover. I dunno if that'll work tho.

LS1FREEK

iTrader: (1)

I got a Trick Performance (one of our vendors on the right hand side of the page) turbo oil line kits. You wont be able to return your oil to the oil cap unless your turbo will sit higher than the cap because the oil return is gravity fed. Unless you buy a return pump, but I see that being entirely unnecessary. Im guessing the reason you wanted to do it this way is because you don't want to tap the oil pan, well an easier alternative would be to just tap the bottom of the front timing cover and put your return line there.
