Default 02 Turbo 1500 Silverado
Here are some pics of my truck after getting the turbo installed (walk around video at the bottom)

Truck is a stock 5.3 auto w/ stock stall converter

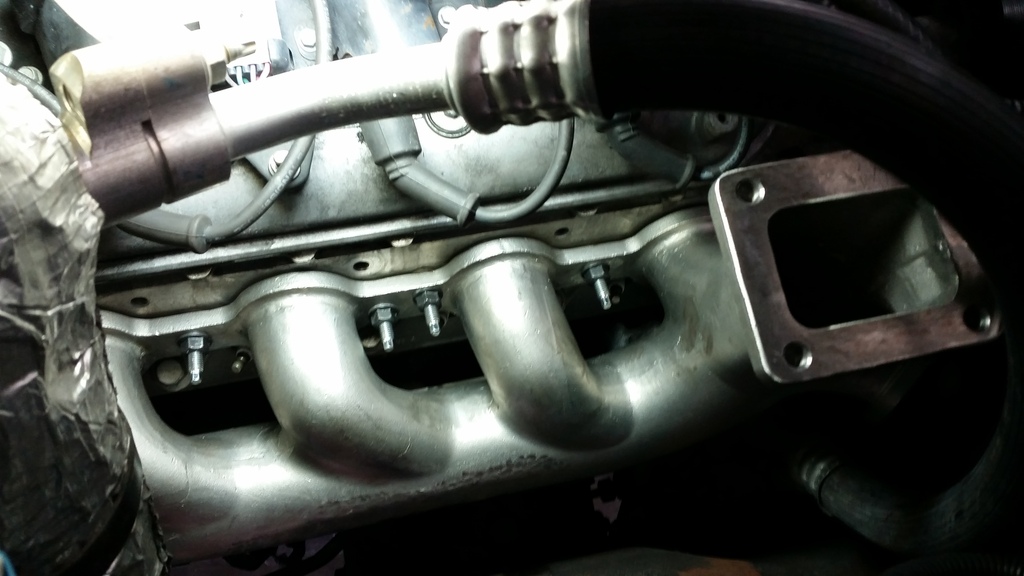

Trick hot side

Turbonetics 62-1


Name: header%201_zpszlgm4w7q.jpg Views: 678 Size: 174.1 KB


Name: header%202_zps8hon33sc.jpg Views: 610 Size: 255.4 KB

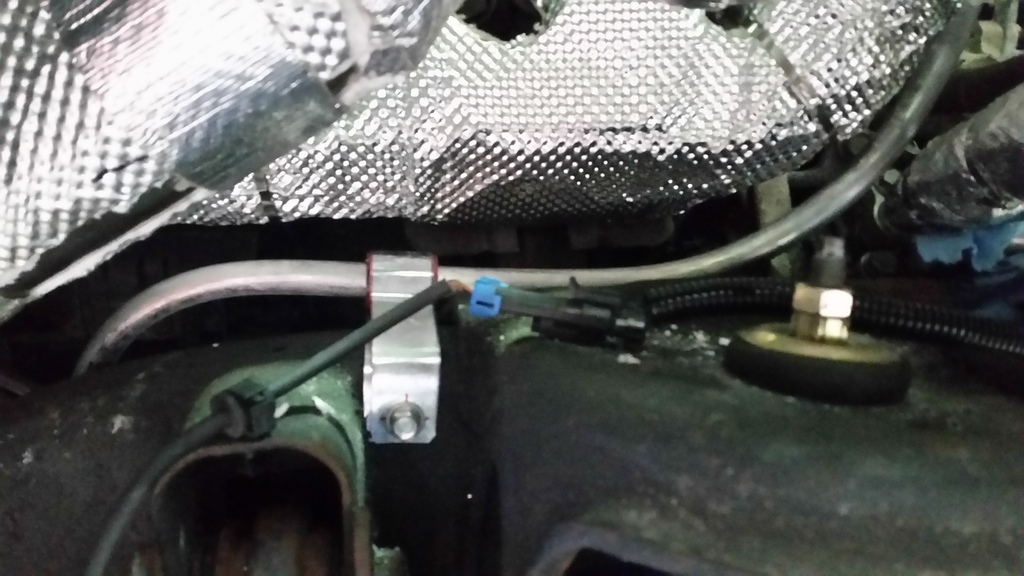

Oil Drain Tube - 5/8"

Name: oil%20drain%201_zpsupcyk0gf.jpg Views: 651 Size: 200.0 KB

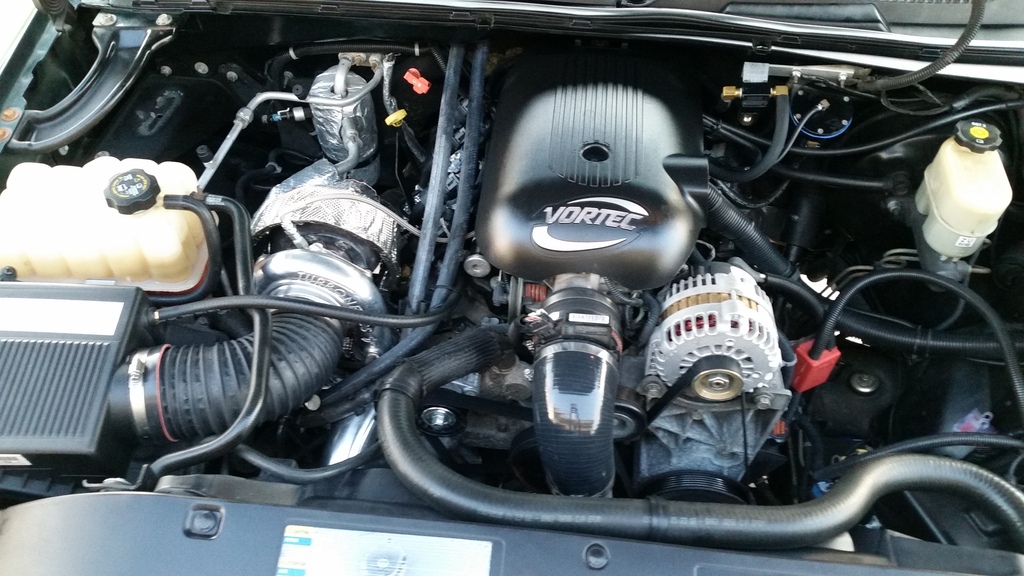

Name: engine%20underhood_zpsonx4x08o.jpg Views: 829 Size: 278.9 KB

Name: exhaust%20outlet_zps6ow6yjw8.jpg Views: 627 Size: 253.8 KB

Down Pipe

Name: downpipe_zps8barghtk.jpg Views: 669 Size: 218.9 KB

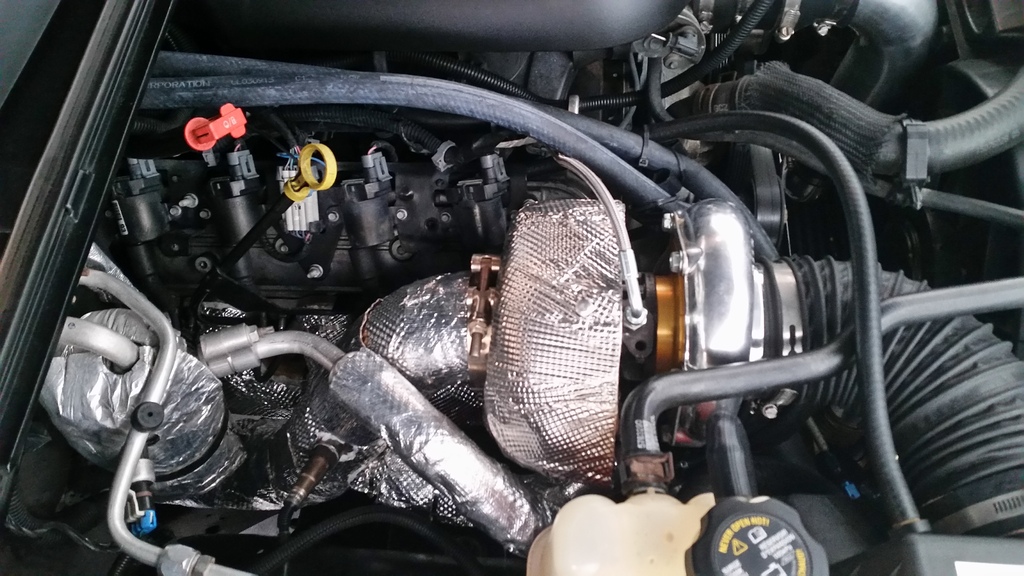

Name: turbo_zpslyk7wrnq.jpg Views: 600 Size: 256.8 KB

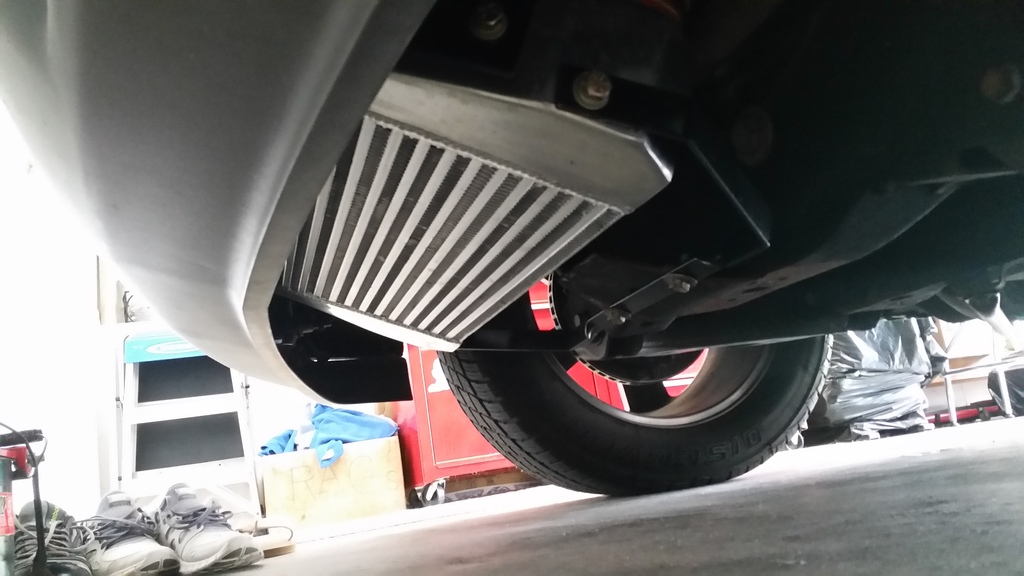

Name: 20150703_132219_zpsnf1yveyt.jpg Views: 615 Size: 165.8 KB

Name: intercooler%202_zpsvam8vse9.jpg Views: 642 Size: 166.2 KB


Walk around video:

CategoryX is offline
Reply Like
Old 08-30-2015, 01:06 PM
  #2
TECH Senior Member
iTrader: (2)

FFDP's Avatar

Join Date: May 2014
Location: Rogers, MN
Posts: 5,189
Received 545 Likes on 471 Posts
Default
I'd drive it.

I wish I lived down south sometimes, vehicles are so clean.
FFDP is offline
Reply Like
Old 08-30-2015, 01:34 PM
  #3
Teching In
Thread Starter

CategoryX's Avatar

Join Date: Mar 2015
Location: Florida
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Default
Here are some detailed pics of the custom boost & A/F dual gauges

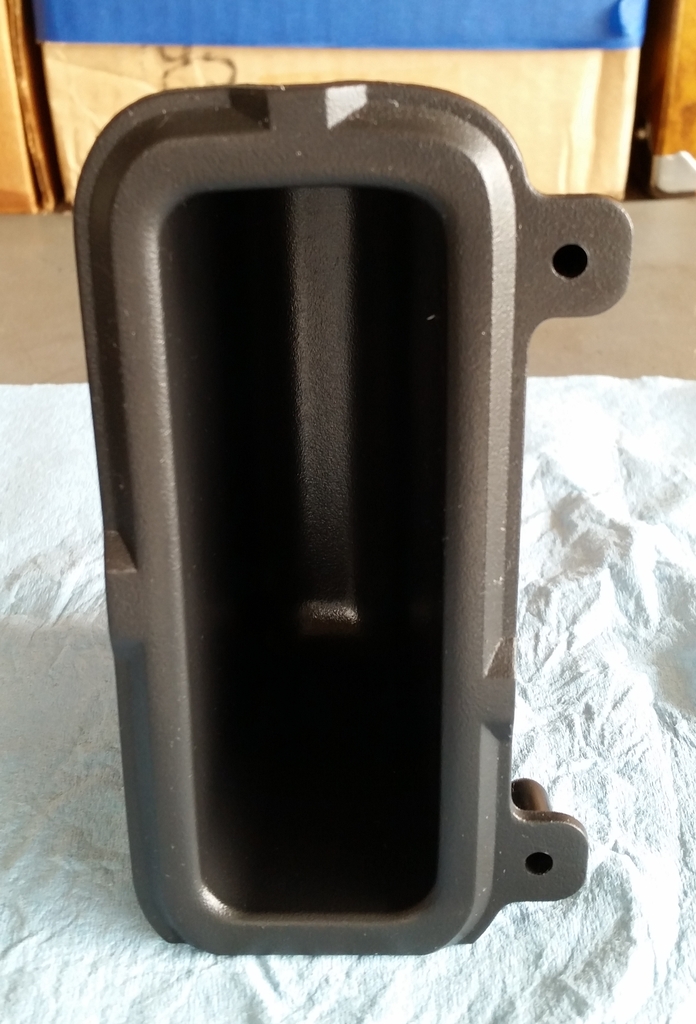

First, removed the useless pocket...

Name: Stock20Dash20Pocket_zpsapbhgagm.jpg Views: 597 Size: 391.9 KB

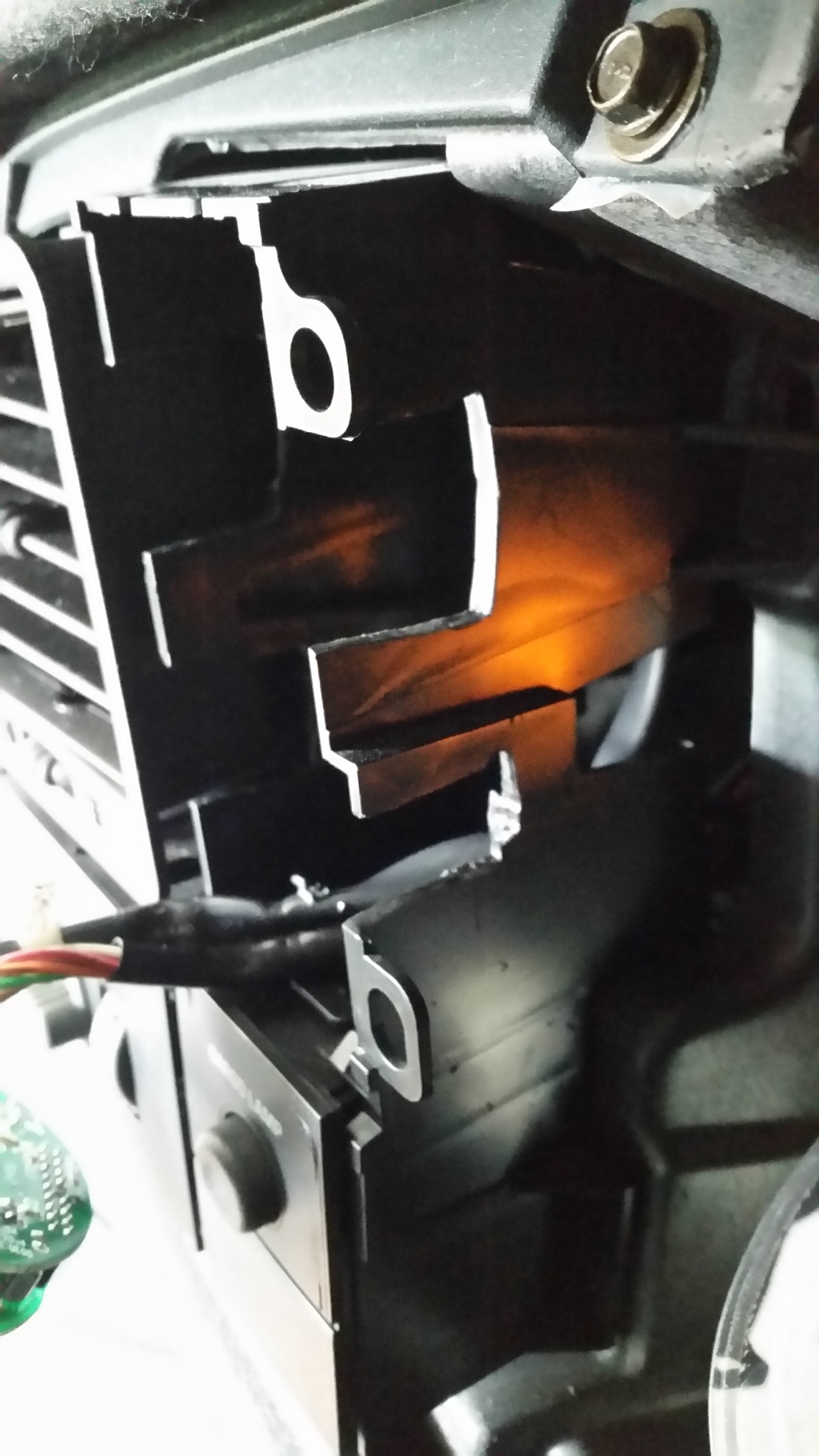

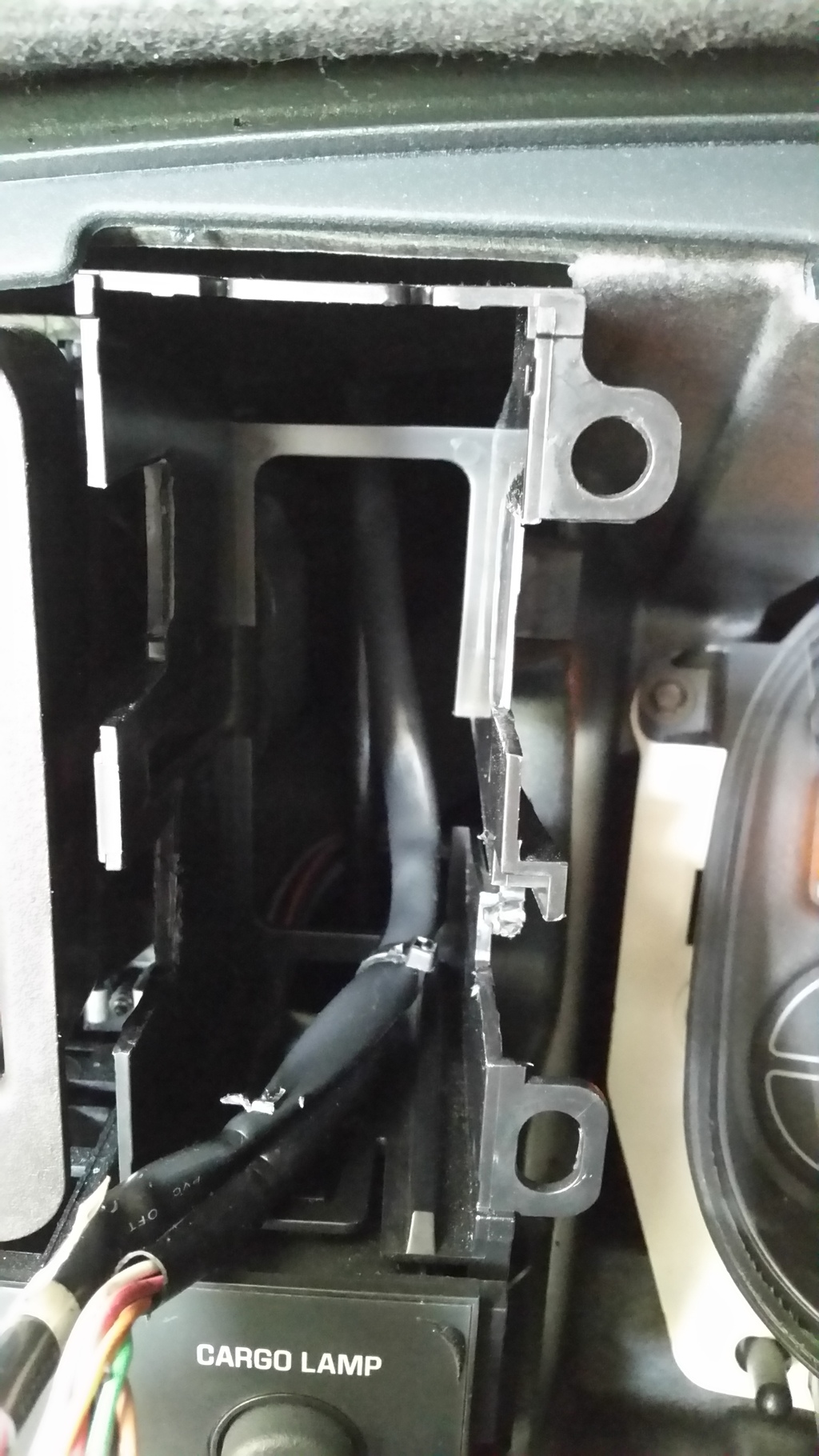

Then trimmed the dash a little to fit the gauges...

Name: dash%20opening%202_zps9utvnksw.jpg Views: 611 Size: 423.9 KB

Name: dash%20opening%201_zpskic531o6.jpg Views: 605 Size: 478.9 KB

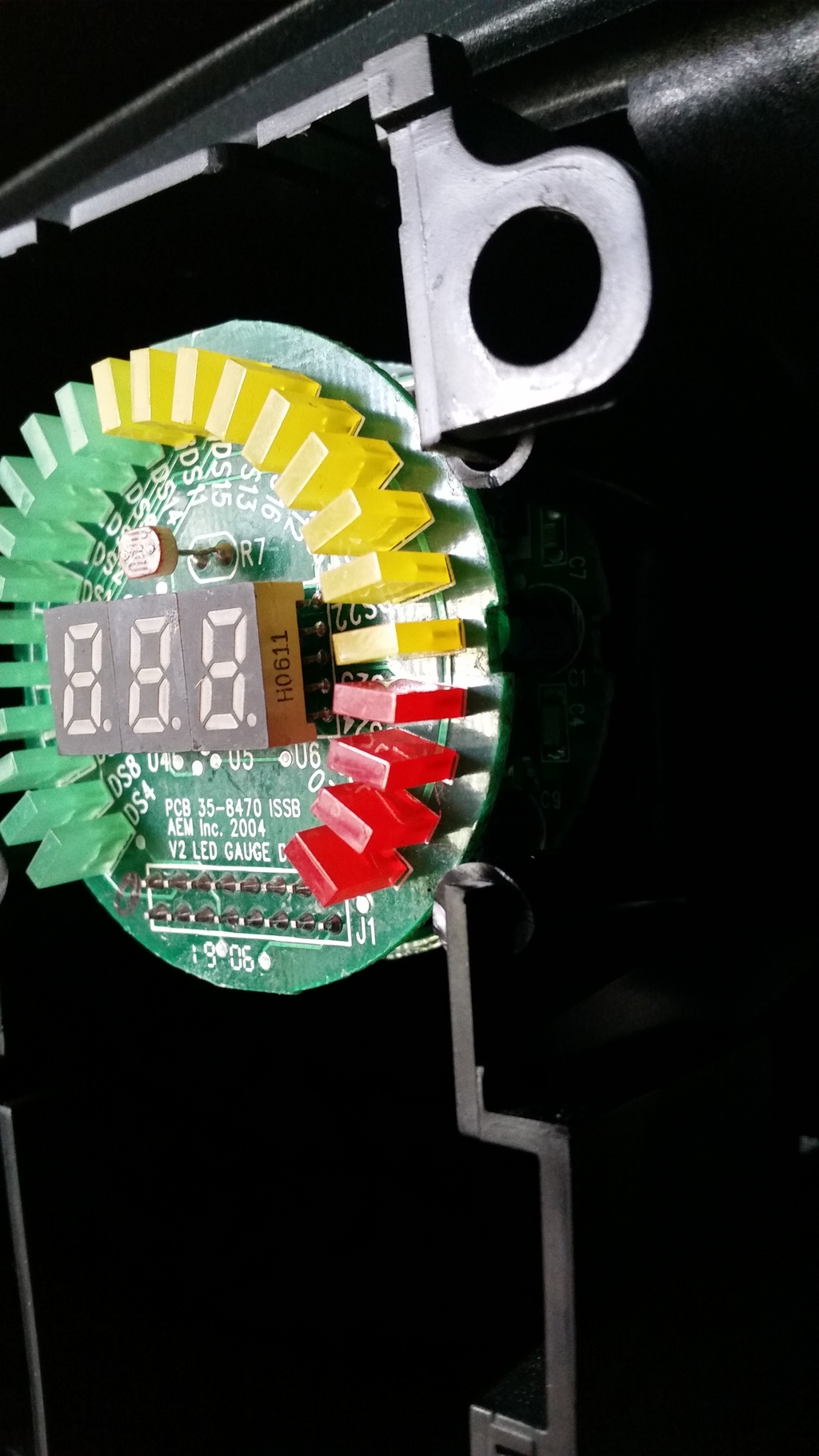

Fit the AEM wideband gauge...

Name: Gauge%20Only%20In%20Dash%201_zps4wiwzrmo.jpg Views: 643 Size: 188.7 KB


Name: wideband%20mounted%20in%20dash_zpsufgglkee.jpg Views: 665 Size: 445.0 KB

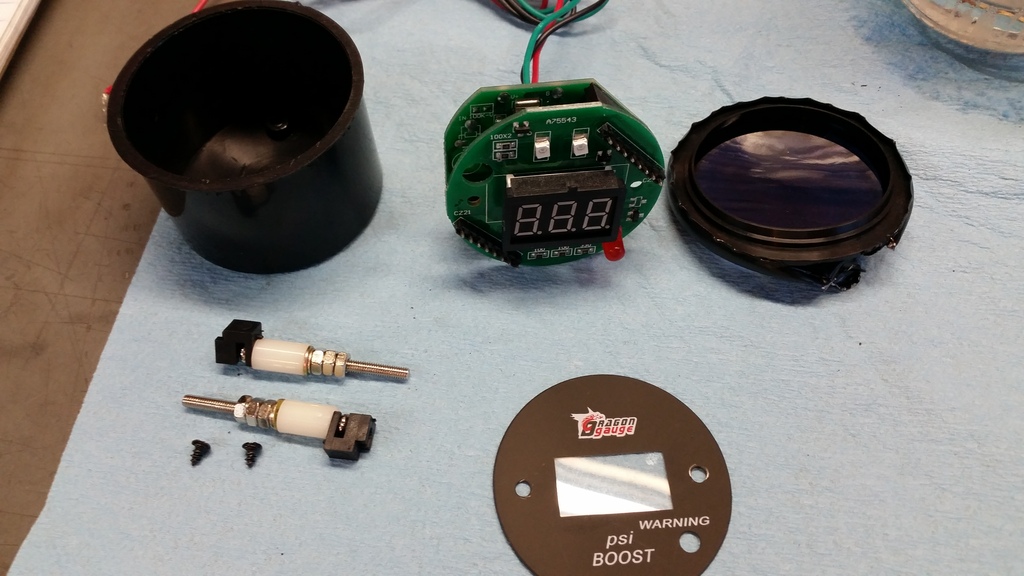

Disassembled a $20 china boost gauge....

Name: psi%20gauge%20subassemblies_zpsswofdeif.jpg Views: 623 Size: 210.5 KB

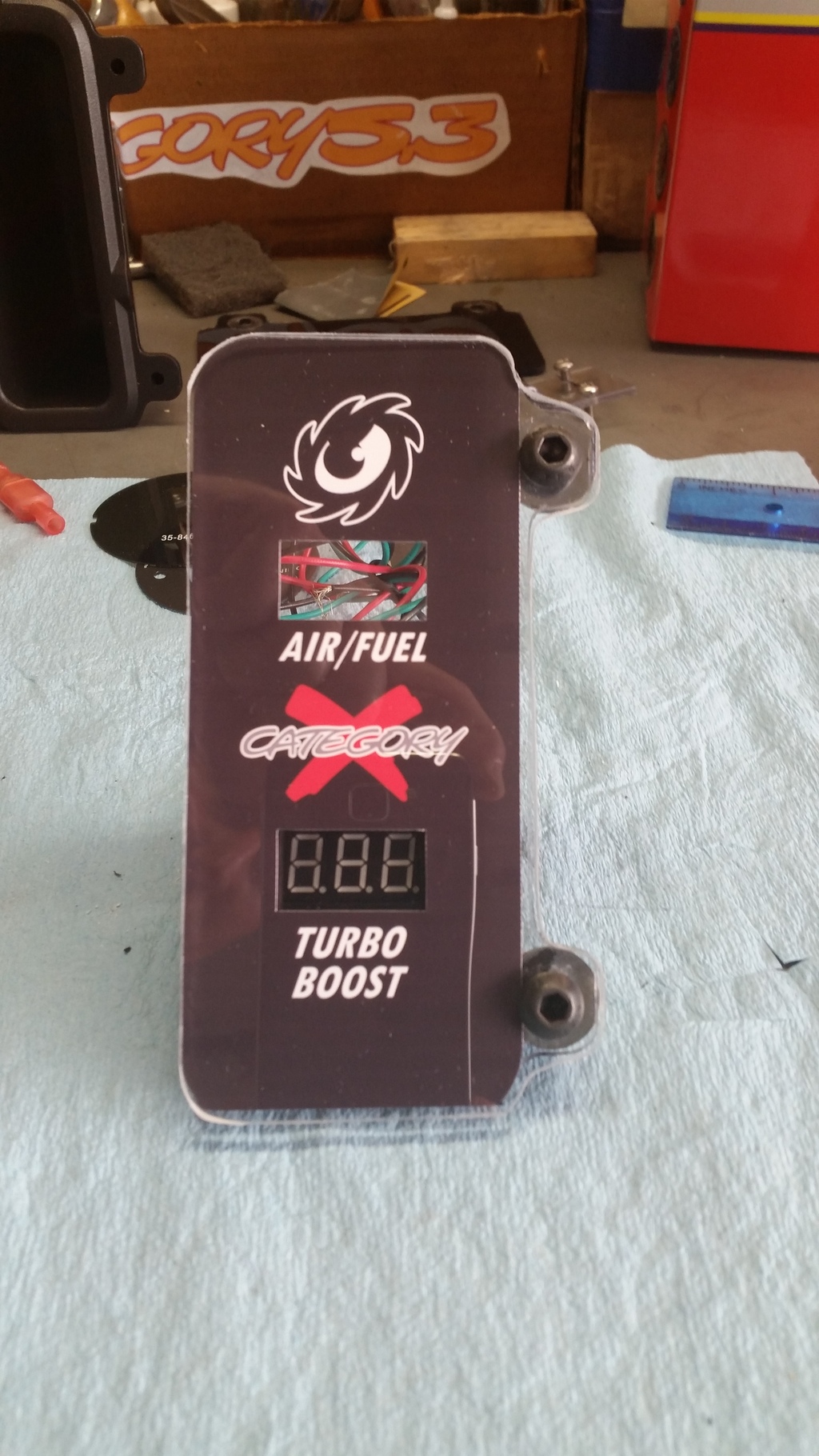

Made a face plate...

Name: rear%20of%20dual%20gauge%20plate_zps1d3wybfq.jpg Views: 594 Size: 490.1 KB

Name: dual%20gauge%20face%20complete_zpsilrkq4zn.jpg Views: 592 Size: 537.4 KB

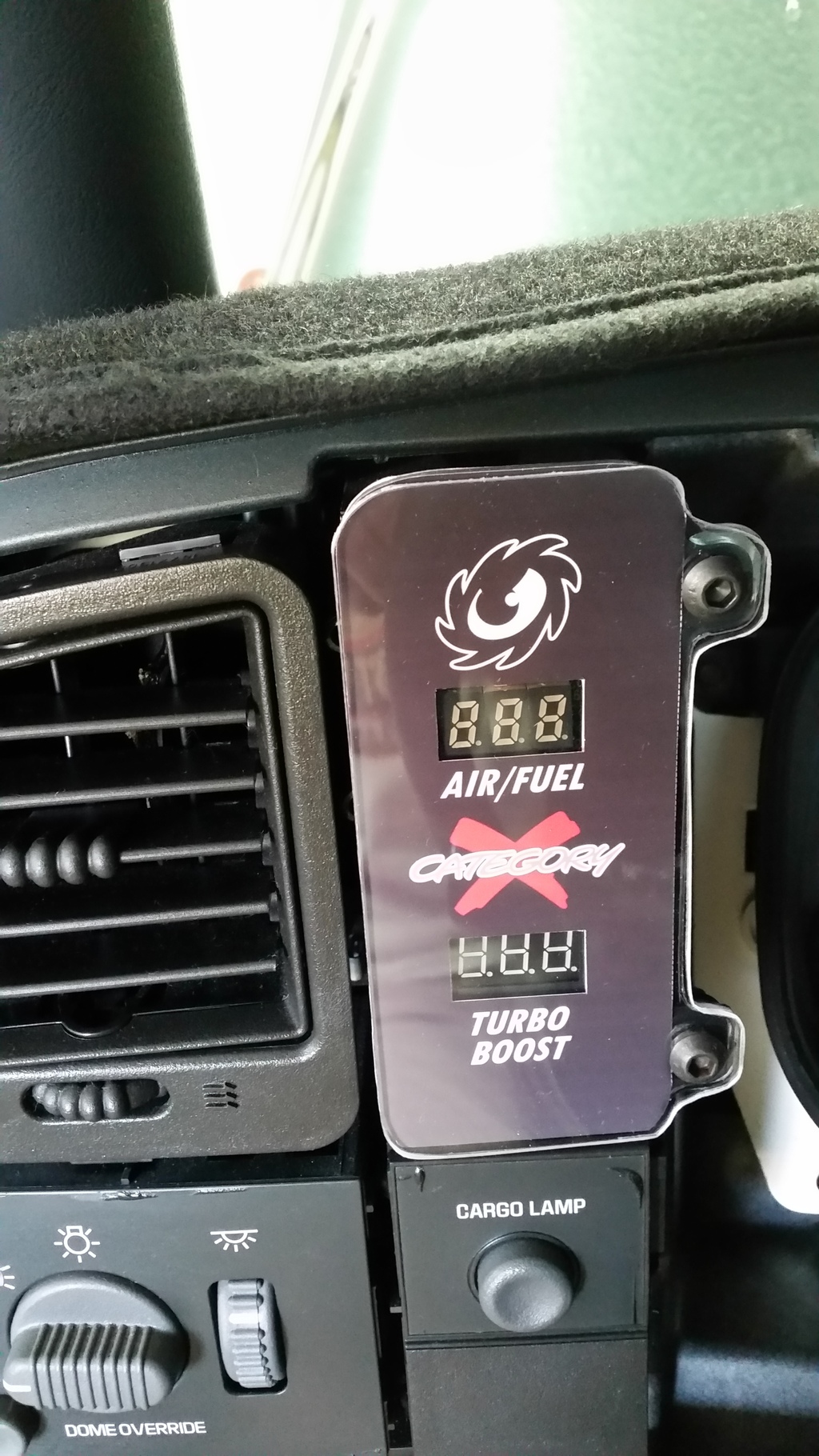

Mounted the face plate in place of the old pocket...

Name: dual%20gauge%20face%20mounted_zpshcgskuon.jpg Views: 624 Size: 566.9 KB

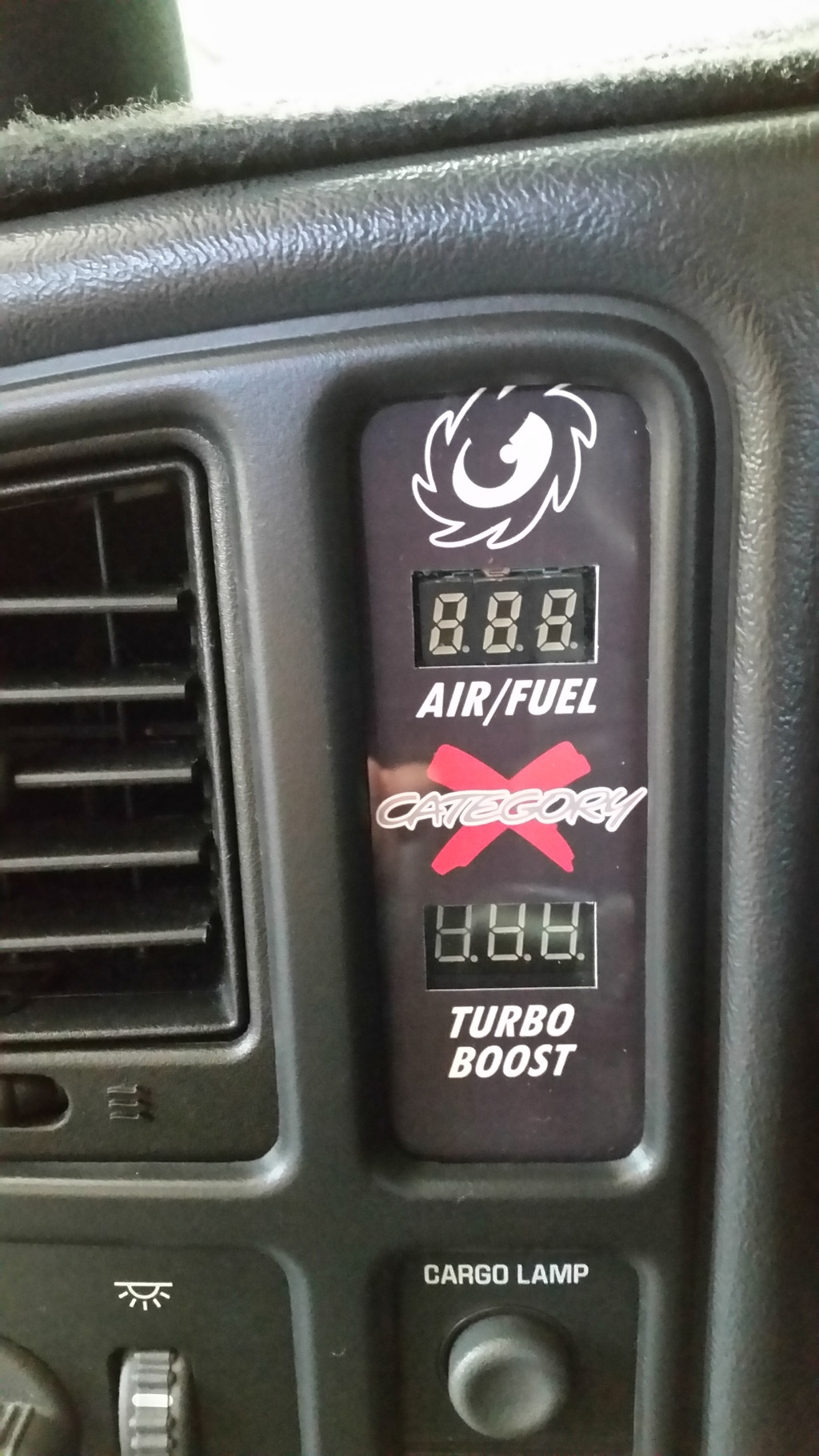

Finished Gauges in the dash....

Name: dual%20gauges%20in%20dash_zpswphmnuwl.jpg Views: 629 Size: 508.1 KB
