Default leveling kit pitures

want some pics of early 2000 trucks with a leveling kit. thinking about putting mine back up.
Old 11-24-2009, 11:21 AM
  #2
11 Second Club
iTrader: (42)

rel3rd's Avatar

Join Date: Nov 2005
Location: Baltimore, MD.
Posts: 1,643
Received 4 Likes on 4 Posts
Default

Here's my 2002 SILVERADO ECSB Z71 with Rough Country leveling kit and 33x12.50x16.5 BFG KO's on 16.5 x 9.75" Weld Scorpions (which stuck out a little before adding factory flares), and also pics of the same truck with Escalade wheels and stockers. Still rides just as nice as stock IMO.

BTW, I have considered lowering mine at some point in time, and have to ask why you are considering going back up after lowering?





Old 11-24-2009, 12:10 PM
  #3
11 Second Hall Moniter
iTrader: (22)

AKlowriderZ71's Avatar

Join Date: May 2008
Location: Wyoming
Posts: 11,651
Received 8 Likes on 8 Posts
Default

Not the best pics, but you can see lift/level vs. lowered. Both are 2001 models.


Old 11-24-2009, 12:46 PM
  #4
12 Second Truck Club
Thread Starter
iTrader: (7)

WJ MARK's Avatar

Join Date: Jun 2006
Location: colorado above 6000 ft.
Posts: 2,093
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by rel3rd
Here's my 2002 SILVERADO ECSB Z71 with Rough Country leveling kit and 33x12.50x16.5 BFG KO's on 16.5 x 9.75" Weld Scorpions (which stuck out a little before adding factory flares), and also pics of the same truck with Escalade wheels and stockers. Still rides just as nice as stock IMO.

BTW, I have considered lowering mine at some point in time, and have to ask why you are considering going back up after lowering?





I moved out to the country and have more than 2 miles of washboard dirt roads to get to my driveway. Also couple weeks ago it snow really good, a I turned into my driveway and was greeted with a snow drift up to my hood. ended up getting stuck, getting the wifes deanli stuck trying to free my truck and shoveling till 12 am. I gave up and had the neigbor yank us out with the Bobcat.

I really like pre-runner trucks and something similar would be fun on our dirt roads out here. Not to mention bashing thru snow drifts in my driveway.


Another reason is the wife is prego with Boy # 2 due in late march, I don't wanna risk being stuck in badweather when she goes into labor!!!!
Old 11-24-2009, 02:25 PM
  #5
11 Second Club
iTrader: (42)

rel3rd's Avatar

Join Date: Nov 2005
Location: Baltimore, MD.
Posts: 1,643
Received 4 Likes on 4 Posts
Default

wow! I guess if I had all that going on right now, I'd be seriously thinking about a lowering reversal as well. Good Luck with the truck, and the new baby!

also, I PM'ed you back, but here's the info...

I used Rough Country "Full" leveling kit, bought directly from them for $189.95 + shipping.
Full kit includes torsion keys, rear lift blocks, new u-bolts, and 4 new Nitro 9000 shocks.
The part number is: 283 S

Here is what is included:

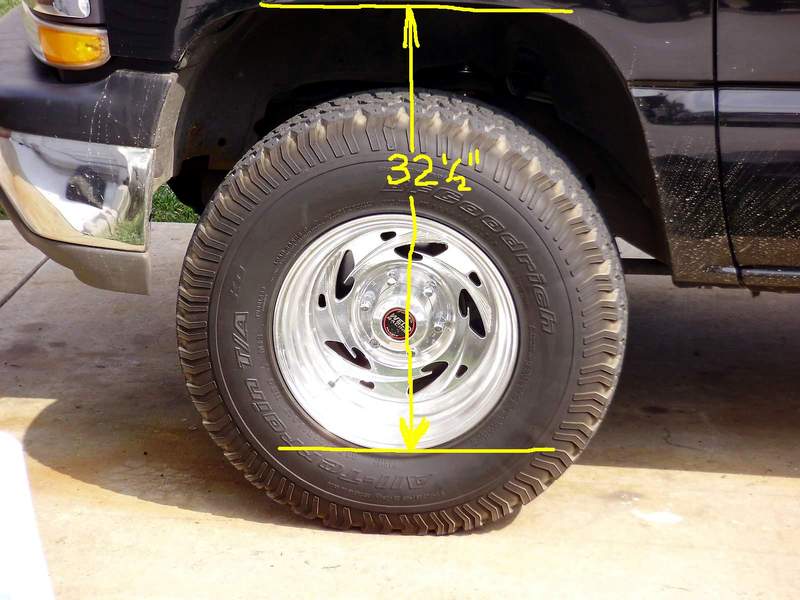

I just made up a not too awesome (LOL) MSPaint picture and attached it of how I ensured that the truck was level after the install. I went by the rear measurement, then adjusted the keys in order for the front height to match. I measured from wheel lip (as shown), to fenderlip (as shown), as this takes away any differences of tire bulge, weight, etc.
Attached Thumbnails leveling kit pitures-p8050017.jpg

Last edited by rel3rd; 11-24-2009 at 03:02 PM.
Old 11-24-2009, 03:38 PM
  #6
13 Second Truck Club
iTrader: (10)

DV2000NJ's Avatar

Join Date: Nov 2009
Location: Central NJ
Posts: 1,102
Likes: 0
Received 1 Like on 1 Post
Default

Just the stock keys cranked about an inch and a half.



Old 11-25-2009, 06:21 PM
  #7
On The Tree
iTrader: (2)

mcconditioner's Avatar

Join Date: Nov 2005
Location: Denver
Posts: 115
Likes: 0
Received 0 Likes on 0 Posts
Default

Looks better dropped What shocks are you running? I love my bilsteins.
Old 11-26-2009, 10:28 AM
  #8
12 Second Truck Club
Thread Starter
iTrader: (7)

WJ MARK's Avatar

Join Date: Jun 2006
Location: colorado above 6000 ft.
Posts: 2,093
Likes: 0
Received 0 Likes on 0 Posts
Default

I like the dropped look too but like the pre runner look too. I live in the country with lots of dirt roads and like going 100mph down em and not worry about hitting a little bump. LOL
Old 11-26-2009, 10:28 AM
  #9
12 Second Truck Club
Thread Starter
iTrader: (7)

WJ MARK's Avatar

Join Date: Jun 2006
Location: colorado above 6000 ft.
Posts: 2,093
Likes: 0
Received 0 Likes on 0 Posts
Default

I running ground force nitro drop shocks.
